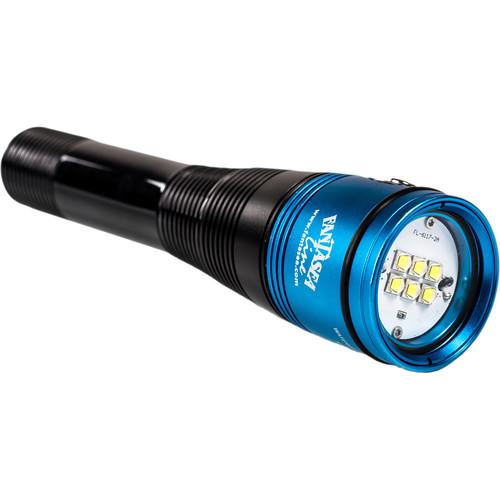

User Manual for Fantasea Line Radiant 2500 Video LED Dive Light Click to enlarge the picture
Contents of the user manual for the Fantasea Line Radiant 2500 Video LED
- Product category: Continuous Lights Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Continuous Lights
|
User manual for the Fantasea Line Radiant 2500 Video LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description - Radiant 2500 Underwater Video & Dive LED Light
Illuminate the underwater world in rich, natural color with the Fantasea Line Radiant 2500 Video LED Dive Light, which features a depth rating of 328'. Its 6 LEDs produce an even beam with a variable output of 625, 1250, or 2500 lumens, providing a run time of 0.8, 1.6, or 3.3 hr, respectively. A wide 120° beam angle provides ample coverage of coral reefs, shipwrecks, and schools of fish and is particularly useful for wide-angle video or photography. The beam has a daylight-balanced color temperature of 5300-5600K to help bring out the colors of subjects beneath the water's surface, which otherwise appear as muted shades of blue, green, and gray.
A flashing mode for emergency signaling is available and can last up to 8 hr. Built for durability, the compact, ergonomic light has a corrosion-resistant polycarbonate body and an aluminum alloy head. It also features a push-button switch with a battery indicator. Power is supplied by two 18650 lithium-ion batteries, which are included along with 2 spares and a charger. Additionally, a YS mount for attaching the light to a YS style arm is provided. - Light Performance
-
- Light Source: 6 LEDs
- Variable output: 625, 1250, or 2500 lumens
- Run time: 0.8 hr at full power, 1.6 hr at 50%, and 3.3 hr at 25% with two supplied 18650 lithium-ion batteries
- Angle of coverage: 120° for ample illumination of coral reefs, shipwrecks, and schools of fish; useful for wide-angle video or photography
- Daylight-balanced color temperature of 5300-5600K to help bring out colors that get absorbed and lost beneath the water's surface
- Flashing mode for emergency signaling is available, and can last up to 8 hr
- Switching
-
- Push-button switch with battery indicator
- Construction Details
-
- Corrosion-resistant polycarbonate body
- Aluminum alloy head
- Mounting
-
- YS mount for attaching light to YS style arm is provided
UPC: 665309060447 In the Box Fantasea Line Radiant 2500 Video LED Dive Light Hand Lanyard YS Mount 4 x 18650 Li-Ion Batteries Dual Battery Charger 2 x Replacement O-Rings Container of Silicone Grease Rubber Sleeve Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line Radiant 2500 Video LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFantasea Line 6045 Specs | Depth Rating | 328' / 100 m | | Light Source | 6x LEDs | | Light Intensity | 100%: 2500 lumens
50%: 1250 lumens
25%: 625 lumens | | Beam Angle | 120° | | Color Temperature | 5300-5600 K | | Run Time | 100% Power: 0.8 hr
50% Power: 1.6 hr
25% Power: 3.3 hr | | Switching System | Push-button switch with a battery indicator | | Operation Modes | 100, 50, and 25% power
Flashing mode | | Material of Construction | Head: Aluminum alloy
Body: Polycarbonate | | Mounting | YS mount supplied for attachment to optional YS style arm | | Power | 2x 18650 lithium-ion batteries (4 included) | | Power Indicators | 1x battery power indicator light:
Green: 100% to 60%
Yellow: 60% to 30%
Red: 30% to 15%
Flashing Red: 15 to 1% | | LED Lifetime | 35,000 hr | | Dimensions | 1.75 x 7.8" / 4.5 x 19.8 cm | | Weight | 9.25 oz / 262 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.8 x 6.2 x 2.8" |
