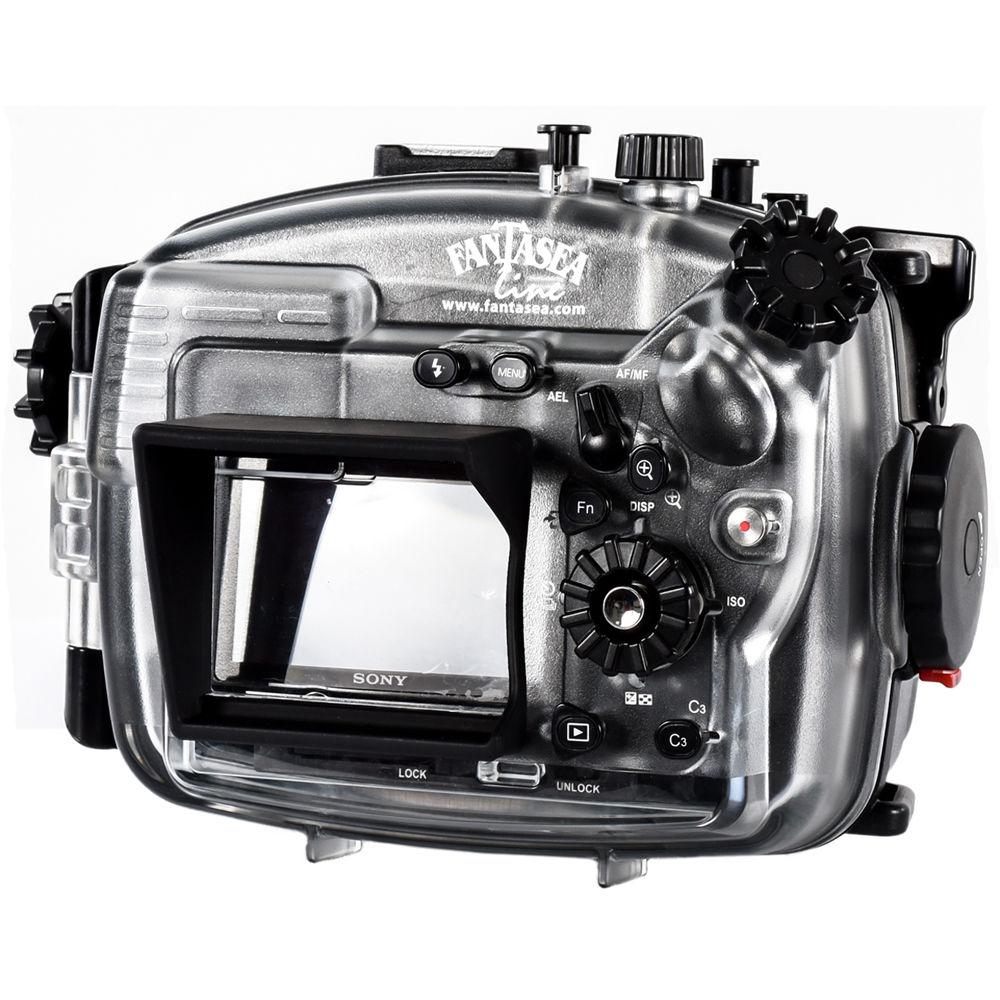

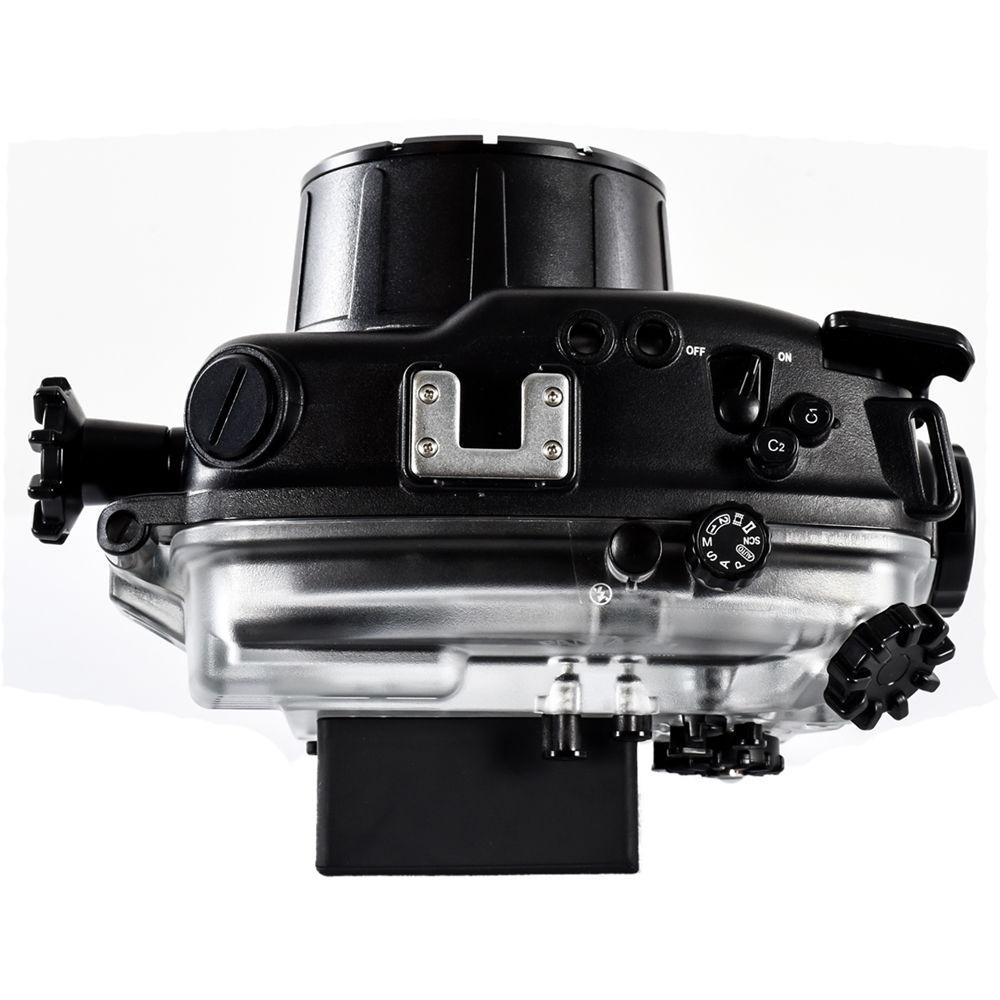

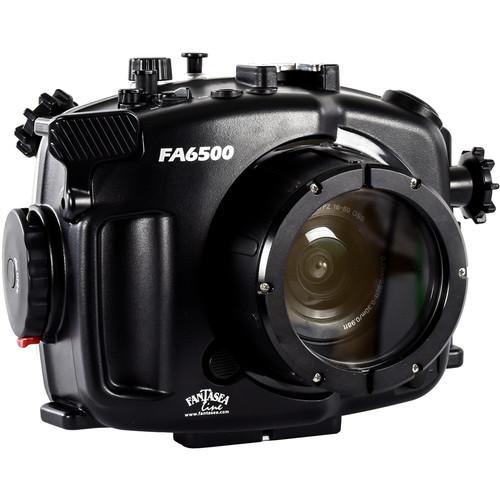

User Manual for Fantasea Line Underwater Housing Kit for Sony A6300 and A6500 with FA6500 Housing and F Flat 34 Port Click to enlarge the picture
Contents of the user manual for the Fantasea Line Underwater Housing Kit for
- Product category: Still Cameras & Housings Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Still Cameras & Housings
 |
User manual for the Fantasea Line Underwater Housing Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description Capture beautiful images of the undersea world as deep as 200' with this Underwater Housing Kit from Fantasea Line. Designed for use with Sony A6300 and A6500 mirrorless cameras, it is compatible with select lenses and provides access to all the controls that are critical for underwater photography. Included are Fantasea Line's FA6500 Underwater Housing and the FML Flat Port 34. - FA6500 Underwater Housing for Sony Alpha a6500 and a6300 You can capture brilliant photos and 4K video of pygmy seahorses, sharks, and coral reefs at depths of 200', thanks to Fantasea Line's FA6500 Underwater Housing for the Sony Alpha a6500 and a6300 Mirrorless Digital Cameras. It features a moisture detector and alarm that will alert you in the unlikely event of a breach in the waterproof seal, so you can dive with peace of mind.
Dual fiber-optic ports enable the attachment of optional external strobes via the proper cables. One of these flash units could be placed on the cold shoe mount that sits atop the housing. The FA6500 provides access to all essential camera functions via mechanical push-button, knob/dial, and lever controls. Built for durability, especially resistance to corrosion, it is constructed from injection-molded polycarbonate.
The FA6500 ships without a required lens port, and accepts various interchangeable, FML-series ports to accommodate an array of lenses. For a complete list of compatible models, see the port chart. Additionally, the housing features a removable LCD hood to keep your camera's screen free of glare in bright conditions. - Waterproofing
-
- Depth rating of 200'
- Double O-ring seal
- Moisture detector and alarm alerts you in unlikely event of a breach in waterproof seal
- Optional vacuum valve can be installed to help you confirm watertight integrity before diving
- Controls, Handling, and Operation
-
- Mechanical push-buttons, dials/knobs, and levers
- Controls afford access to all essential camera functions, including shutter, video recording, mode dial, flash, menu, AEL, auto focus, manual focus, control dials, Fn, display, play, C1, C2, C3, ISO, and magnify
- Extended shutter release for easy access when housing is mounted onto optional tray with grip handles
- Controls clearly labeled for easy identification
- Hand strap included
- M16 port for connecting various optional accessories, including an HDMI monitor, vacuum valve, or sync cord bulkheads for strobes
- Construction Details
-
- Durable, injection-molded polycarbonate body is resistant to both shock and corrosion
- Black on front, top, and sides, but clear in back to allow you to monitor waterproof seal and camera
- Removable LCD hood keeps camera's screen free of glare in bright conditions
- Lens Port System
-
- Ships without a required lens port
- Accepts interchangeable FML-series ports to accommodate wide range of different lenses
- For a complete list of compatible models, please see the port chart link above
- External Strobe and Light Use
-
- Dual fiber-optic ports for attaching optional external strobes via the proper cables
- Top cold shoe mount for connecting a flash or video light with a compatible base, or a lighting arm that can hold a flash or light
UPC: 665309015201 - FML Flat Lens Port 34 for Sony E PZ 16-50mm f/3.5 or 30mm f/3.5 Macro Lens Armed with your camera, lens, housing, and Fantasea FML Flat Lens Port 34, you can capture detailed shots of coral, moray eels, blue-ringed octopi, and other wonders of the sea at depths as great as 200'. The port is compatible with Fantasea housings with FML mounts, including the FA6500 model for the Sony Alpha a6500 and a6300 mirrorless cameras.
The glass front element is flat so as not to correct for the underwater size distortion that makes everything appear 25% larger and closer. Therefore, the port provides ample magnification for detailed close-up images. Additionally, the glass features an anti-reflection coating to help prevent lens flare when shooting in bright light. The 67mm front threads allow for the attachment of optional, external color-correction filters or accessory wide-angle or macro lenses.
Built for durability, especially resistance to corrosion by seawater, the port body is crafted from polycarbonate. As a bonus, a microfiber cloth is supplied for keeping the glass clean, clear, and scratch-free. - Compatible Lenses
-
Sony:- E PZ 16-50mm f/3.5-5.6 OSS
- E 30mm f/3.5 Macro
UPC: 665309021011 In the Box Bundle Items FA6500 Underwater Housing for Sony Alpha a6500 and a6300 - Removable Anti-Glare LCD Hood
- Limited 1-Year Warranty (Excluding Moisture Detector)
FML Flat Lens Port 34 for Sony E PZ 16-50mm f/3.5 or 30mm f/3.5 Macro Lens - Front Cap with Quick-Release Lanyard
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line Underwater Housing Kit for Sony A6300 and A6500 with FA6500 Housing and F Flat 34 Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FA6500 Underwater Housing for Sony Alpha a6500 and a6300
| Depth Rating | 200' / 61 m | | Control Type | Mechanical push-buttons, knobs/dials, and levers | | Controls | Access provided to virtually all camera functions, including shutter, video recording, mode dial, flash, menu, AEL, auto focus, manual focus, control dials, Fn, display, play, C1, C2, C3, ISO, and magnify | | Material of Construction | Injection-molded polycarbonate | | Lens Port | Ships without required lens port
Accepts interchangeable FML-series ports to accommodate wide range of different lenses
For more information, see port chart link in overview | | External Strobe Connector | 2x fiber-optic ports for optional external strobes (cables required) | | Moisture Alarm | Moisture detector and alarm | | Mounting | Cold shoe mount for flash, video light, or lighting arm | | Dimensions | 8.1 x 5.7 x 6.1" / 20.5 x 14.5 x 15.5 cm | | Weight | Housing Only: 2.2 lb / 1.0 kg
With Camera and FML Flat Port: 3.5 lb / 1.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 8.5 x 5.6" | - FML Flat Lens Port 34 for Sony E PZ 16-50mm f/3.5 or 30mm f/3.5 Macro Lens
| Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Glass
Body: Polycarbonate | | Coating | Anti-reflection | | Mount Type | FML | | Diameter | 3.6" / 92 mm | | Front Filter Thread Size | 67 mm | | Length | 2.2" / 55 mm | | Weight | 6.25 oz / 177 g | | | | Box Dimensions (LxWxH) | 4.7 x 4.1 x 4.0" |
