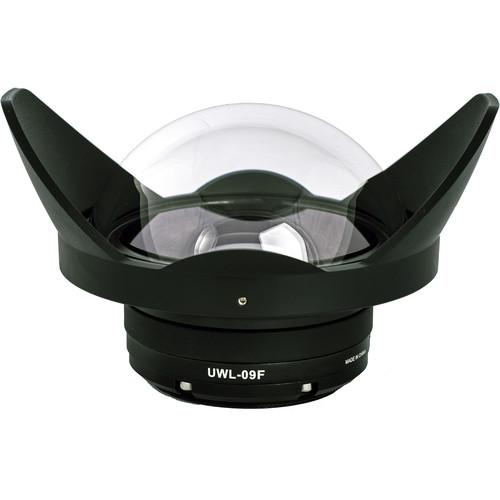

User Manual for Fantasea Line UWL-09F Underwater Wide-Angle Conversion Lens Click to enlarge the picture
Contents of the user manual for the Fantasea Line UWL-09F Underwater Wide-Angle Conversion
- Product category: Lenses Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Lenses
|
User manual for the Fantasea Line UWL-09F Underwater Wide-Angle Conversion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description Get up close and fit more in the frame when photographing coral reefs, whale sharks, or schools of fish by adding Fantasea Line's UWL-09F Underwater Wide-Angle Conversion Lens onto your camera housing. Equipped with a 67mm mounting thread, the accessory lens is compatible with many ports on housings from various brands. Easily attached underwater, it increases your coverage significantly, offering a 130° angle of view when used with a 28mm camera lens.
The dome-shaped, 0.45x lens magnifies images to a lesser degree than a flat one does and corrects for the underwater size distortion that makes everything appear 25% larger and closer. The outer dome is crafted from hard-coated polycarbonate, and the lens features 5 glass elements with multi-layered, anti-reflection coatings as well. Built for durability, the bezel is constructed from a hard-coated aluminum alloy. - Optical Performance
-
- Increases coverage, providing a 130° angle of view when used with a 28mm camera lens (35mm equivalent)
- Counteracts decrease in angle of view that occurs beneath the water's surface
- 5 multi-layered, anti-reflective elements in 5 groups provide excellent optical clarity, while eliminating chromatic aberration and flare caused by the sun or strobes/lights
- Magnification: 0.45x
- Dome magnifies images to a lesser degree than a flat front element does, and corrects for the underwater size distortion that makes everything appear 25% larger and closer
- Allows for extremely close focusing
- Great for over-under/split shots, where half the frame is above the water's surface and the other half is below it
- Construction Details
-
- Depth rating: 200'
- Pre-mounted Type A adapter with 67mm threads for attachment to camera housing's lens port
- Base of the mount is covered by a rubber ring to ensure a firm grip during attachment and removal
- Includes two adapters for use on housing ports with different accessory mounts
- Glass elements
- Polycarbonate dome with protective hard coating to prevent scratches
- Aluminum alloy bezel and barrel with hard, black anodized finish for excellent resistance to corrosion
- Two rotatable scalloped edges serve as a built-in hood, shading the lens to prevent glare
- Accessories
-
- Lens includes a quick-release line/tether to keep it secured to the housing, even when it's not mounted onto the port
- Corrosion-resistant front and rear caps to protect the lens when it's not in use
- Padded carrying case for safe, convenient storage and transportation
UPC: 665309051575 In the Box Fantasea Line UWL-09F Underwater Wide-Angle Conversion Lens Front Lens Cover Rear Lens Cover Type B Adapter Kit Padded Carrying Case Quick-Release Tether Microfiber Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line UWL-09F Underwater Wide-Angle Conversion Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFantasea Line UWL-09F Specs | Angle of View | 130° when used on 28mm camera lens (35mm equivalent) | | Shape | Dome | | Minimum Focus Distance | Nearly 0.0" | | Magnification | 0.45x | | Depth Rating | 200' / 60 m | | Mounting Thread | 67 mm | | Material of Construction | Front Element/Dome: Polycarbonate
Remaining Elements: Glass
Bezel and Barrel: Anodized aluminum alloy | | Dimensions | Diameter x Height: 5.25 x 3.7" / 133.3 x 94.4 mm | | Weight | 2.3 lb / 1.0 kg | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 8.1 x 7.3 x 7.0" |
