User Manual for Fargo C50 ID Card Printer Click to enlarge the picture
Contents of the user manual for the Fargo C50 ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
 |
User manual for the Fargo C50 ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|

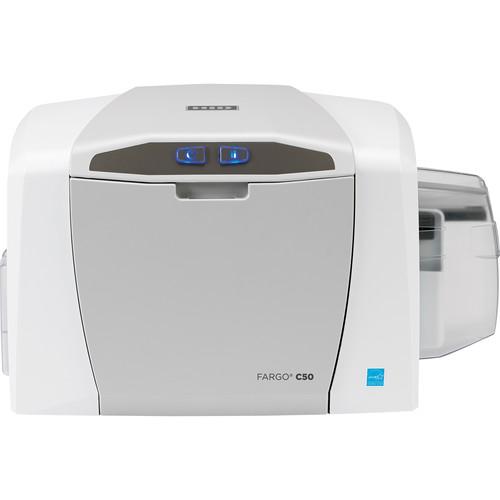

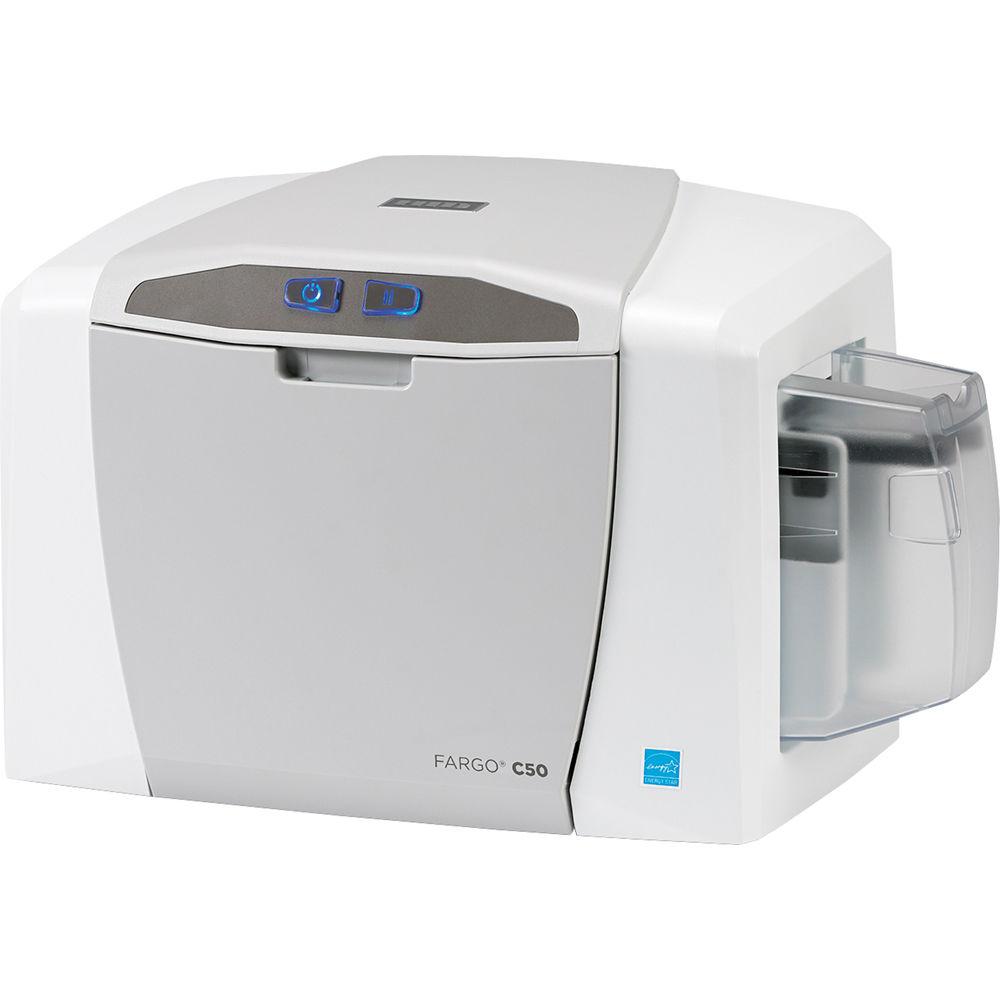

Product description A Guide to Purchasing an ID Card Printer Read More fqtucwceztac The Fargo C50 ID Card Printer is capable of single-sided card printing using a dye sublimation/resin thermal transfer print method. This allows you to produce 300 dpi resolution images in full color in 24 seconds, resulting in about 150 cards every hour. The C50 also features the ability to print on CR-80 and CR-79 adhesive back cards and can print edge-to-edge with CR-80. Additionally, the printer has an input capacity of 50 cards and an output capacity of 30 cards.
Built-in to the C50 is Swift ID badge application will automatically create ID cards without needing additional software. Also, FARGO Workbench printer maintenance and diagnostic software lets you monitor the status of your machine and make sure it is performing properly. Additionally, it is ENERGY STAR certified and features USB 2.0 connectivity. It comes with a full-color EZ ribbon good for 100 prints, a USB 2.0 cable, and 100 UltraCard Premium PVC cards. - Both EZ (disposable) and ECO (refillable) ribbon cartridges are available
- All-in-one ribbon and card cleaning cartridges simplify loading process
- Edge-to-edge printing in full color or monochrome
- System status updates provided through color changing buttons
UPC: 754563517009 In the Box Fargo C50 ID Card Printer USB 2.0 Cable EZ Full-Color Ribbon Cartridge (~100 Cards) 100 x UltraCard PVC Cards Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo C50 ID Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo C50 Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Printing Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | Up to 16.7 million / 256 shades per pixel | | Print Speed | Black: 7 sec per card
Black with Overlay: 12 sec per card
Color with Overlay: 24 sec per card | | Ribbon Options | EZ (Disposable) & ECO (Refillable)
Full-color with resin black and overlay panel, YMCKO: 100 prints
Full-color with resin black and overlay panel, YMCKO: 250 prints
Resin black (standard and premium): 1000 prints
ECO Only
Full-color half-panel with resin black and overlay panel, YMCKO: 350 prints
EZ Only
Resin green, blue, red, and white: 1000 prints
Silver and gold metallic: 500 prints | | Card Type | PVC of polyester with polished PVC finish (monochrome resin required for 100% polyester cards), optical memory card with PVC finish, rewrite | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Media Thickness | 9-40 mil (0.23-1.02 mm) | | Maximum Printable Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Paper Capacity | Input: 50 cards
Output: 30 cards | | | | Interface | USB 2.0 | | Memory | 32 MB RAM | | Drivers Compatibility | Windows XP, Vista (32/64-bit), Sever 2003 & 2008, 7 (32/64-bit), 8 (32/64-bit)
Mac OS X 10.5-10.8
Linux | | | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-1-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental: ENERGY STAR certified | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 28-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A | | Dimensions (WxHxD) | 8.8 x 13.7 x 7.9" (224 x 348 x 201 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 14.3 lb | | Box Dimensions (LxWxH) | 16.5 x 14.0 x 12.0" |
