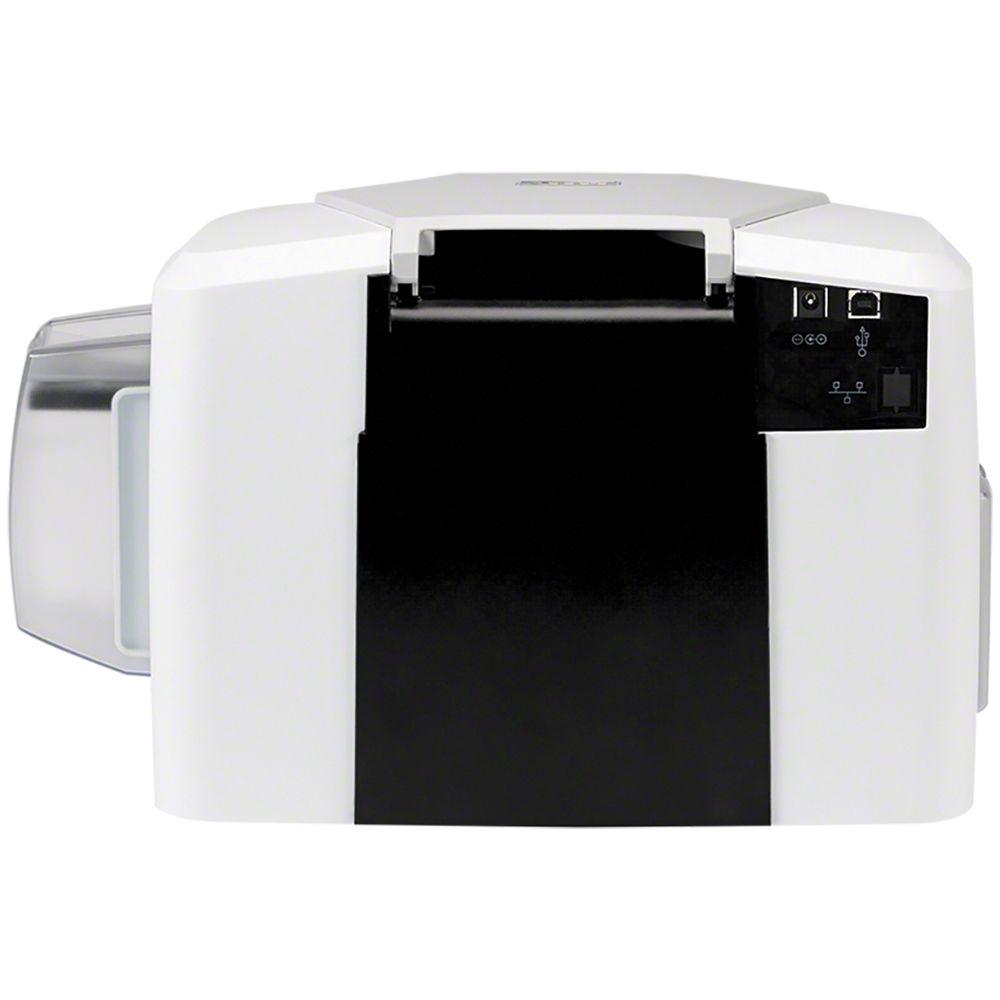

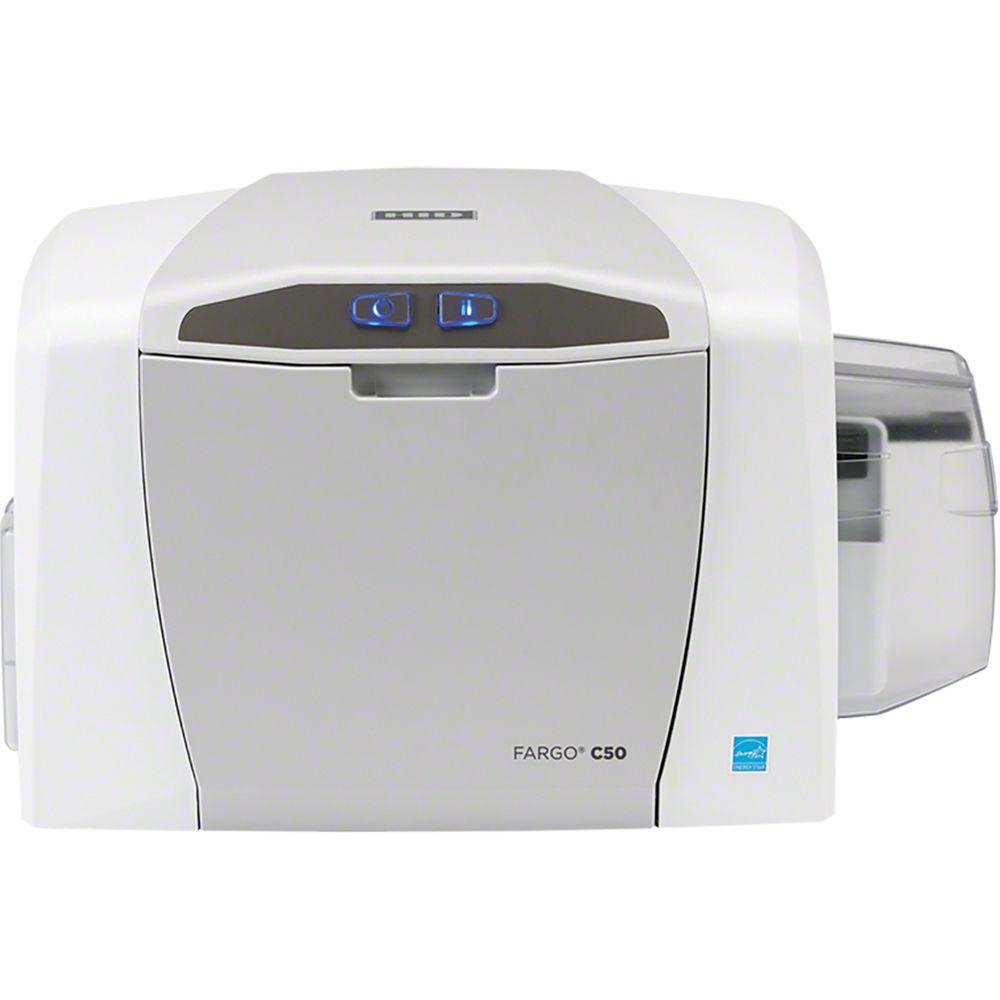

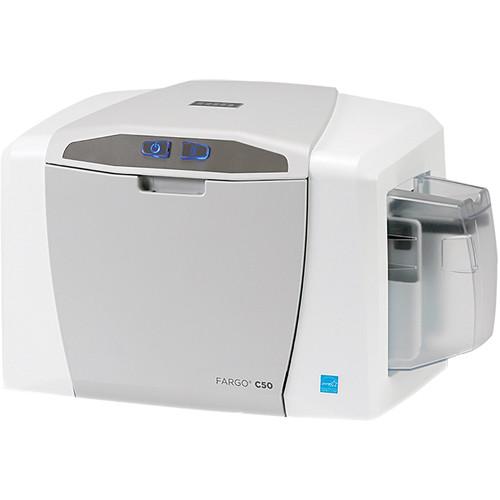

Product description A Guide to Purchasing an ID Card Printer Read More The Fargo C50 ID Card Printer with Asure ID 7 Express & Webcam is capable of single-sided card printing using a dye sublimation/resin thermal transfer print method and comes with the Express edition of Asure ID 7 card personalization software and a webcam. This allows you to produce 300 dpi resolution images in full color in 24 seconds, resulting in about 150 cards every hour. The C50 also features the ability to print on CR-80 and CR-79 adhesive back cards and can print edge-to-edge with CR-80. Additionally, the printer has an input capacity of 50 cards and an output capacity of 30 cards.
Built-in to the C50 is Swift ID badge application will automatically create ID cards without needing additional software. Also, FARGO Workbench printer maintenance and diagnostic software lets you monitor the status of your machine and make sure it is performing properly. Additionally, it is ENERGY STAR certified and features USB 2.0 connectivity.
This model features the Logitech B525 HD webcam for 2 megapixel image capture useful for making ID cards. It also includes Asure ID 7 Express with a 2-year Asure ID Protect Plan to keep it up-to-date. Additionally, a full-color EZ ribbon good for 100 prints, a USB 2.0 cable, and 100 UltraCard Premium PVC cards. - Both EZ (disposable) and ECO (refillable) ribbon cartridges are available
- All-in-one ribbon and card cleaning cartridges simplify loading process
- Edge-to-edge printing in full color or monochrome
- System status updates provided through color changing buttons
- Asure ID 7 Express ID Card Personalization Software
-
- Works with Windows XP, Vista, 7, 8, and 8 Pro Tablets
- Native and Live Link support for Microsoft Access 2000 & 2003
- Password log in with definable user privileges
- Dual-sided template designs
- Add text, photos, images, linear barcodes, and magnetic stripes
- Fluorescing Panel support
- Works with various card sizes
- Allows addition of an unlimited number of data fields
- Add compound data fields, signatures, and 2D barcodes (PDF417, QR code, and Datastripe)
- Set conditional design and print rules
- Integrated photo capture with TWAIN, DirectShow, and WIA support
- Save and search records with storage limitation based on Microsoft Access
- Integrated signature capture as well as batch and sheet printing options
- Standard and custom reports and ability to export reports
- ODBC import
- Real-time Live Link data exchange with a single database and a single table
- Two years of technical support
UPC: 754563517023 In the Box Fargo C50 ID Card Printer with Asure ID 7 Express & Webcam - USB 2.0 Cable
- B525 HD Webcam
- Asure ID 7 Express
- 2-Year Asure ID Protect Plan
- EZ Full-Color Ribbon Cartridge (~100 Cards)
- 100 x UltraCard PVC Cards
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo C50 ID Card Printer with Asure ID 7 Express & Webcam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo C50 Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Printing Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | Up to 16.7 million / 256 shades per pixel | | Print Speed | Black: 7 sec per card
Black with Overlay: 12 sec per card
Color with Overlay: 24 sec per card | | Ribbon Options | EZ (Disposable) & ECO (Refillable)
Full-color with resin black and overlay panel, YMCKO: 100 prints
Full-color with resin black and overlay panel, YMCKO: 250 prints
Resin black (standard and premium): 1000 prints
ECO Only
Full-color half-panel with resin black and overlay panel, YMCKO: 350 prints
EZ Only
Resin green, blue, red, and white: 1000 prints
Silver and gold metallic: 500 prints | | Card Type | PVC of polyester with polished PVC finish (monochrome resin required for 100% polyester cards), optical memory card with PVC finish, rewrite | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Media Thickness | 9-40 mil (0.23-1.02 mm) | | Maximum Printable Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Paper Capacity | Input: 50 cards
Output: 30 cards | | | | Interface | USB 2.0 | | Memory | 32 MB RAM | | Drivers Compatibility | Windows XP, Vista (32/64-bit), Sever 2003 & 2008, 7 (32/64-bit), 8 (32/64-bit)
Mac OS X 10.5-10.8
Linux | | | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-1-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental: ENERGY STAR certified | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 28-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A | | Dimensions (WxHxD) | 8.8 x 13.7 x 7.9" (224 x 348 x 201 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Box Dimensions (LxWxH) | 16.6 x 14.0 x 12.0" |
