User Manual for Fargo C50 Single-Sided USB Card Printer Click to enlarge the picture
Contents of the user manual for the Fargo C50 Single-Sided USB Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
 |
User manual for the Fargo C50 Single-Sided USB Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|

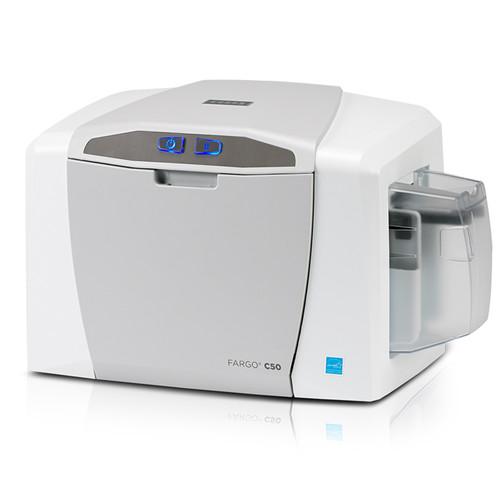

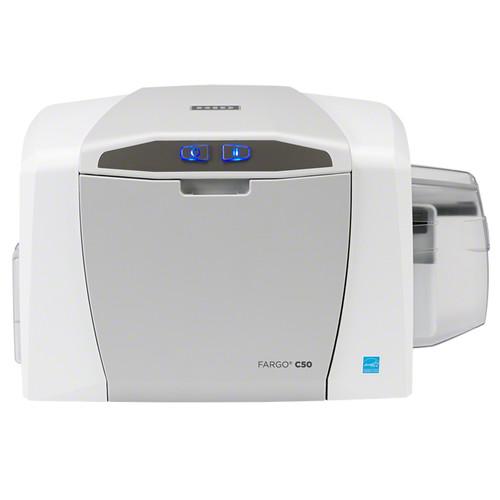

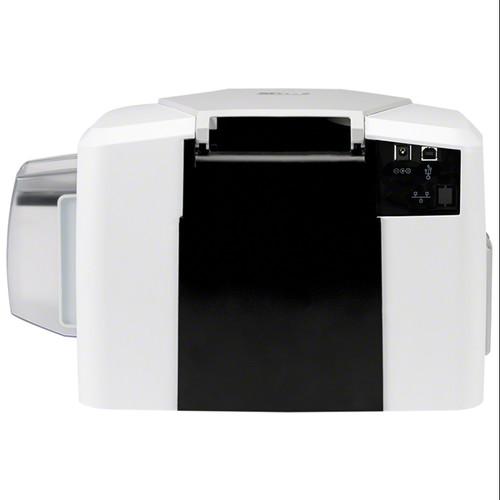

Product description A Guide to Purchasing an ID Card Printer Read More Designed to be easy-to-use, the Fargo C50 is ideal for businesses, schools, and government agencies. This single-sided USB printer can reliably print full-color employee ID, loyalty, payment, or membership cards. It utilizes dye sublimation and resin thermal transfer processes to quickly create 300 dpi resolution prints. It is capable of printing at a rate of 7 seconds per card in black and white and at 24 seconds per card in full color with an overlay panel. With a sleek, smart design, the printer requires virtually no maintenance and can easily fit into the smallest offices settings. It works well with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge. It can hold up to 50 cards (30 mil thick) in the input hopper and 30 cards (30 mil thick) in the output hopper. The printer features a USB 2.0 interface for connecting it to a computer. It is also compatible with Asure ID card personalization software and EasyLobby Secure Visitor Management software (both available separately). - All-in-one printer ribbon and card cleaning cartridge simplifies the ribbon loading process
- Built-in Swift ID badge application allows you to create ID badges in seconds without having to install any additional software
- Fargo Workbench printer maintenance and diagnostic software ensures optimal performance at all times
- Enjoy edge-to-edge printing in full-color or monochrome
- Intuitive design provides instant system status updates through color-changing buttons
In the Box Fargo C50 Single-Sided USB Card Printer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo C50 Single-Sided USB Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo C50 Specs | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | Both EZ and ECO:
Full-color with resin black and overlay panel, YMCKO (250 prints)
Resin black, standard (1000 prints)
Full-color with resin black and overlay panel, YMCKO (100 prints)
ECO Only:
Full-color half-panel with resin black and overlay panel, YMCKO (350 prints)
EZ Only:
Resin green, blue, red, and white (1000 prints)
Silver and gold metallic (500 prints)
Rewrite technology, no ribbon is required
Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change | | Print Speed | K: 7 sec/card
KO: 12 sec/card
YMCKO: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | 9 to 40 mil (0.229 to 1.016 mm) | | Card Type | PVC of polyester card with polished PVC finish
Monochrome resign required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Hopper Capacity | Input: Up to 50 cards with 30 mil (0.762 mm) thickness
Output: Up to 30 cards with 30 mil (0.762 mm) thickness | | Memory | 32 MB RAM | | Computer Interface | USB 2.0 | | Software Driver | Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8 (32/64-bit)
Mac OS X 10.5/10.6/10.7/10.8/10.9
Linux (Ubuntu 12.04, Debian 7.0, Fedora 18, Mandriva 2011, Red Hat 6.4, Open Suse 12.3) | | Software | Swift ID embedded badging application, Fargo Workbench diagnostic utility | | Interface | USB 2.0 | | Display | Color changing status buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-1-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20 to 80%, non-condensing | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz, 1.6 A (max) | | Dimensions | 8.8 x 13.7 x 7.9" (224 x 348 x 201 mm) | | Weight | 7.5 lb (3.4 kg) |
