User Manual for Fargo DTC1000Me Single-Sided Monochrome ID Card Printer with ISO Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the Fargo DTC1000Me Single-Sided Monochrome ID Card
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo DTC1000Me Single-Sided Monochrome ID Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|

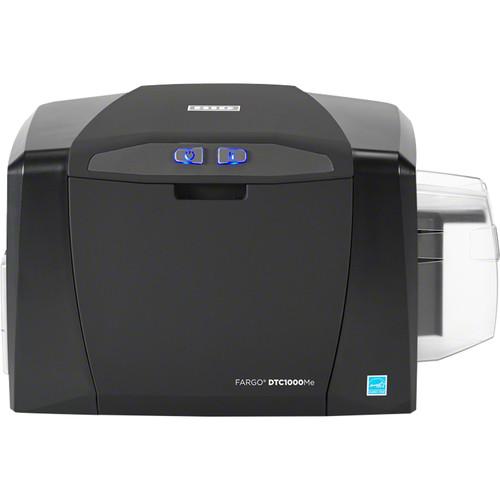

Product description A Guide to Purchasing an ID Card Printer Read More The DTC1000Me Single-Sided Monochrome ID Card Printer from Fargo is a simple monochrome, single-side direct-to-card printer with edge-to-edge printing using dye sublimation and resin thermal transfer technology that results in 300 dpi resolution for optimal quality. This printer can hold up to 100 cards in the input tray for batch jobs along with 30 cards for output. Also, the front panel has color changing status buttons for knowing current status and making adjustments.
The printer features a standard USB 2.0 port for connecting to a computer. It is a low-to-moderate-volume card issuance solution for organizations such as casinos, financial services firms, small businesses, and retailers. An eco-friendly erase-and-rewrite option also makes the printer suitable for visitor badges and temporary worker ID applications.
The DTC1000Me prints a single color, edge-to-edge image on one side of a standard CR-80 or CR-79 identification card. The resin thermal transfer process assures clear reproduction of photo images, bar codes, and alphanumeric data. It connects quickly via USB and begins creating ID badges within seconds. With the built-in Swift ID application, you can start printing without having to install any additional software. You can receive instant system status cues through color-coded buttons during your printing operation. - General
- Simple one-color, single-side, edge-to-edge printing
- Print to standard CR-80 and CR-79 cards, from 9 to 40 mil thick
- Resin-erase and rewrite capability for visitor badges and temporary workers
- Applications
- Bank and financial services payment cards
- Casino employee and member ID cards
- Small- to medium-sized business employee and temporary badges
- Retail loyalty program member ID and payment cards
In the Box Fargo DTC1000Me Single-Sided Monochrome ID Card Printer with ISO Magnetic Stripe Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC1000Me Single-Sided Monochrome ID Card Printer with ISO Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC1000me Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Resolution | 300 dpi (11.8 dots/mm) | | Colors Supported | Monochrome: black, green, blue, red, white, silver metallic, and gold metallic | | Ribbon Options | Resin Black (standard & premium): 1,000 prints (EZ and ECO)
Resin Black and Overlay Panel, KO: 500 prints (EZ)
Resin Green, Blue, Red, & White: 1,000 prints (EZ)
Resin Silver & Gold Metallic: 500 prints (EZ)
Rewrite Technology (no ribbon required)
Standard Resin Black Refillable Cartridge | | | | Print Speed | K: 6 sec/card
KO: 8 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | 9-40 mil (0.229-1.016 mm) | | Card Type | PVC or polyester cards with polished PVC finish
Monochrome resin required for 100% polyester cards
Optical memory cards with PVC finish | | Capacity | Input: 100 cards with 30 mil (0.762 mm) thickness
Output: 30 cards with 30 mil (0.762 mm) thickness | | Care & Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change | | | | Interface | USB 2.0 | | Memory | 32 MB RAM | | Compatible Operating Systems | Windows XP, Vista (32/64-bit), Server 2003, Server 2008, 7, 8 (32/64-bit)
Mac OS X 10.5-10.9
Linux | | Security | AES-256 decryption | | Encoding | ISO magnetic stripe encoding, dual high- and low-coercivity, Tracks 1, 2, and 3 | | | | Display | Color changing status buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz, 1.5 A (max) | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20 to 80%, non-condensing | | Dimensions | 8.8 x 13.7 x 7.9" (224 x 348 x 201 mm) | | Weight | 7.5 lb (3.4 kg) |
