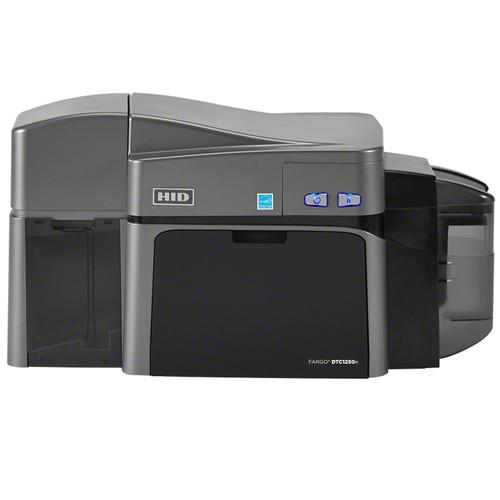

User Manual for Fargo DTC1250e Dual-Sided ID Card Printer with Ethernet and Internal Print Server Click to enlarge the picture
Contents of the user manual for the Fargo DTC1250e Dual-Sided ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo DTC1250e Dual-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More With an internal print server for secure printing and a magnetic stripe encoder, the versatile Fargo DTC1250e Dual-Sided ID Card Printer is a well-featured printer that utilizes dye sublimation and resin thermal transfer processes to quickly create 300 dpi resolution prints. This dual-sided printer works with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge. The printer is also fast with the ability to print black & white at a rate of 6 seconds per card or full color with two black resin panels at 24 seconds per card. The printer can also hold 100 cards in the input hopper and 100 cards in the output hopper.
The embedded Swift ID badging application allows you to design custom badges on the spot and the FARGO Workbench maintenance software has monitoring features that will make maintaining your printer easier. The DTC1250e also has a SmartScreen graphical display for setup and operation. It has USB 2.0 and Ethernet for connecting to a computer or network. - Works with both EZ and ECO ribbons
- Color changing display buttons
- Card cleaning roller is integrated into ribbon cartridge, meaning it is replaced with each ribbon change
- Optional encoding modules are available
- Rewrite technology is available for reducing ribbon usage
- Supports up to 16.7 million colors or 256 shades per pixel
- Internal server for secure printing over a network, enabling distributed card issuance in seconds
UPC: 754563511007 In the Box Fargo DTC1250e Dual-Sided ID Card Printer with Ethernet and Internal Print Server Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Ethernet and Internal Print Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC1250e Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | EZ and ECO
Full-color with resin black and overlay panel, YMCKO (250 prints)
Resin black, standard (1000 prints)
ECO Only
Full-color half-panel with resin black and overlay pane, YMCKO (350 prints)
EZ Only
Full-color with two resin black panels and overlay panel, YMCKOK (200 prints)
Resin black and overlay panel, KO (500 prints)
Resin black, premium (1000 prints)
Dye-sublimation black and overlay panel, BO (500 prints)
Resin green, blue, red, white, silver, gold (1000 prints)
Silver and gold metallic (500 prints)
Rewrite technology, no ribbon is required
Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change | | | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
TMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | 9-40 mil (0.229-1.016 mm) | | Double/Single-Sided | Dual | | Card Type | PVC of polyester card with polished PVC finish
Monochrome resign required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Paper Capacity | Input: 100 cards with 30 mil (0.762 mm) thickness
Output: 100 cards with 30 mil (0.762 mm) thickness | | Encoding | None | | | | Computer Interface | USB 2.0
Ethernet | | Memory | 32 MB RAM | | System & Software Requirements | Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8, 10 (32/64-bit)
Mac OS X 10.5-10.10
Linux | | | | Front Panel Buttons | Color changing status buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A max | | Dimensions | 9.8 x 18.7 x 9.2" (249 x 475 x 234 mm) | | Weight | 10 lb (4.5 kg) | | | | Package Weight | 17.25 lb | | Box Dimensions (LxWxH) | 21.7 x 15.3 x 11.9" |
