User manual
Fargo DTC1250e Dual-Sided ID Card Printer

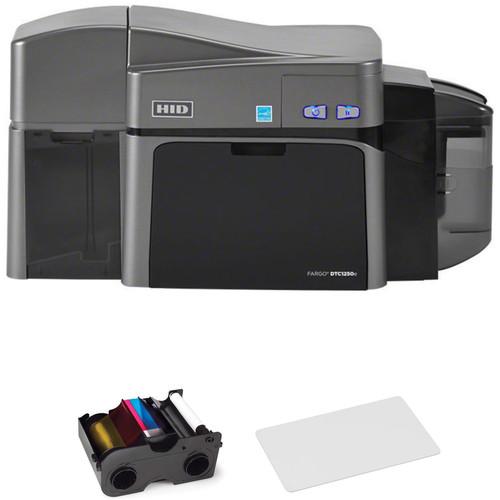

User Manual for Fargo DTC1250e Dual-Sided ID Card Printer with YMCKO Ribbon and 500 Cards Kit

• Product category: ID Card Printers Fargo
• Brand: Fargo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fargo ID Card Printers

Product description

• Fargo DTC1250e Dual-Sided ID Card Printer The Fargo DTC1250e Dual-Sided ID Card Printer is a well-featured printer that utilizes dye sublimation and resin thermal transfer processes to quickly create 300 dpi resolution prints. This dual-sided printer works with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge. The printer is also fast with the ability to print black & white at a rate of 6 seconds per card or full color with two black resin panels at 24 seconds per card. The printer can also hold 100 cards in the input hopper and 100 cards in the output hopper.

  The embedded Swift ID badging application allows you to design custom badges on the spot and the FARGO Workbench maintenance software has monitoring features that will make maintaining your printer easier. The DTC1250e also has a SmartScreen graphical display for setup and operation. It has a USB 2.0 interface for connecting to a computer.
  • Works with both EZ and ECO ribbons
  • Color changing display buttons
  • Card cleaning roller is integrated into ribbon cartridge, meaning it is replaced with each ribbon change
  • Optional encoding modules are available
  • Rewrite technology is available for reducing ribbon usage
  • Supports up to 16.7 million colors or 256 shades per pixel
  UPC: 754563501008
• Fargo 45000 YMCKO Full Color Ribbon for DTC1000 & DTC1205e ID Card Printers Produce up to 250 ID cards with your DTC1000 or DTC1250e series printer with the Fargo 45000 YMCKO Full Color Ribbon. It allows for full color printing with a protective overlay to ensure your cards will last. Additionally, this ribbon features an integrated cleaning roller.
  Compatible Printers
  • DTC1000 and DTC1250e ID card printers
  UPC: 754563450009
• IDC CR-80 PVC Cards (30 mil Thick, 500 Cards) Create sharp, vibrant IDs with this 500-card pack of CR-80/30 PVC Cards from IDC. These CR-80 size PVC cards are 30 mil thick and can be used with most card printers.

• DTC1250e Dual-Sided ID Card Printer vezaeaedfrcsecbbwqcsrsvwxstevwwtybzz
• Limited 3-Year Warranty

• 45000 YMCKO Full Color Ribbon for DTC1000 & DTC1205e ID Card Printers

• IDC - CR-80 PVC Cards (30 mil Thick, 500 Cards)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fargo DTC1250e Dual-Sided ID Card Printer

  Printing Technology	Dye sublimation / resin thermal transfer
  Maximum Resolution	300 dpi (11.8 dots/mm) continuous tone
  Colors Supported	16.7 million / 256 shades per pixel
  Ribbon Options	EZ and ECO Full-color with resin black and overlay panel, YMCKO (250 prints) Resin black, standard (1000 prints) ECO Only Full-color half-panel with resin black and overlay pane, YMCKO (350 prints) EZ Only Full-color with two resin black panels and overlay panel, YMCKOK (200 prints) Resin black and overlay panel, KO (500 prints) Resin black, premium (1000 prints) Dye-sublimation black and overlay panel, BO (500 prints) Resin green, blue, red, white, silver, gold (1000 prints) Silver and gold metallic (500 prints) Rewrite technology, no ribbon is required Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change

  Print Speed	K: 6 sec/card KO: 8 sec/card YMCKO: 16 sec/card TMCKOK: 24 sec/card
  Card Sizes	CR-80: 3.375 x 2.125" (85.6 x 54.0 mm) CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm)
  Print Area	CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm) CR-79: 3.3 x 2.04" (83.8 x 51.8 mm)
  Media Thickness	9-40 mil (0.229-1.016 mm)
  Double/Single-Sided	Dual
  Card Type	PVC of polyester card with polished PVC finish Monochrome resign required for 100% polyester cards Optical memory cards with PVC finish Rewrite
  Paper Capacity	Input: 100 cards with 30 mil (0.762 mm) thickness Output: 100 cards with 30 mil (0.762 mm) thickness
  Encoding	None

  Computer Interface	USB 2.0
  Memory	32 MB RAM
  System & Software Requirements	Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8, 10 (32/64-bit) Mac OS X 10.5-10.10 Linux

  Front Panel Buttons	Color changing status buttons
  Certifications	Safety: UL 60950-2, CSA C22.2 (60950-07), and CE EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
  Operating Temperature	65 to 80°F (18 to 27°C)
  Humidity	20-80%, non-condensing
  Power Requirements	100-240 VAC, 50-60 Hz, 1.6 A max
  Dimensions	9.8 x 18.7 x 9.2" (249 x 475 x 234 mm)
  Weight	10 lb (4.5 kg)

  Box Dimensions (LxWxH)	21.6 x 15.3 x 11.9"

• Fargo 45000 YMCKO Full Color Ribbon for DTC1000 & DTC1205e ID Card Printers

  Print Color	YMCKO (yellow, magenta, cyan, black, overlay)
  Yield	250 cards

  Box Dimensions (LxWxH)	6.3 x 4.35 x 2.65"

• IDC CR-80 PVC Cards (30 mil Thick, 500 Cards)

  Quantity	500
  Size	CR-80: 3.375 x 2.125" / 85.6 x 54.0 mm
  Thickness	30 mil / 0.76 mm
  Material	PVC
  Magnetic Stripe	None
  Surface Finish	Glossy White

  Box Dimensions (LxWxH)	16.772 x 3.858 x 2.205"
