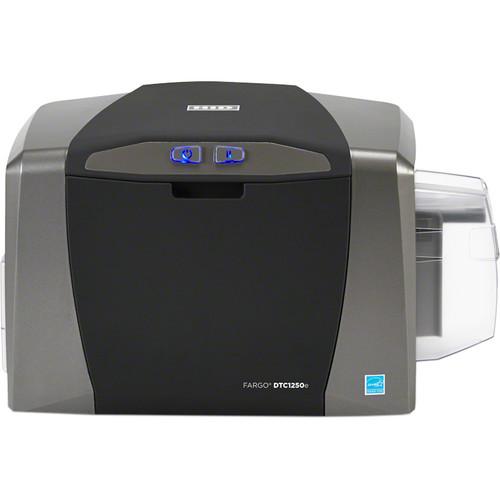

User Manual for Fargo DTC1250e Single-Sided ID Card USB Printer with Magnetic Stripe Encoder & Omnikey Cardman 5127 Encoder Click to enlarge the picture
Contents of the user manual for the Fargo DTC1250e Single-Sided ID Card USB
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo DTC1250e Single-Sided ID Card USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More Designed for small-to-medium businesses, the DTC1250e Single-Sided ID Card USB Printer from Fargo provides maximum efficiency in a sleek, user-friendly design. This printer utilizes dye sublimation resin thermal transfer processes to quickly create 300 dpi resolution prints. It works well with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge as well as encode ISO standard magnetic stripes for additional security. It also supports HID iCLASS SE, iCLASS, MIFARE/DESFire, and HID PROX (Omnikey Cardman 5127) encoding. The printer is capable of printing at a rate of 6 seconds per card in black and white and at 24 seconds per card in full color with two black resin panels. It can hold up to 100 cards (30 mil thick) in the input hopper and 30 cards (30 mil thick) in the output hopper. The integrated iCLASS SE encoder enables your printer to be compatible with the HID secure identity systems. It includes the ability to program the HID Physical Access Control System (PACS) data in the printer. This encoder provides an additional layer of security to your identity program by allowing for processing of Secure Identity Object (SIO) data, and enabling the printer to become a Trusted Identity Platform (TIP) endpoint. The printer also has a USB 2.0 interface for connecting to a computer. - Works with both Easy (EZ) all-in-one print and eco-friendly (ECO) refill ribbons
- Simple, reliable photo ID card personalization with high-quality output
- Intuitive user-focused design allows for easy set-up, loading, and operation for increased efficiency
- Create ID cards right out of the box with plug-and-play Swift ID embedded badging application
- Integrated iCLASS SE encoder (part of the iCLASS SE open encoder platform) allows you to create, encode (read/write) and manage your secure credentials from start-to-finish
- Design personalized ID badges locally and then program them to work with your current physical access control system (PACS), streamlining your ordering, inventory management, and issuance processes
- Secure data sent to printer with AES-256 decryption
- Edge-to-edge printing in full-color or simple black and white
- Intuitive design Provides instant system status through color-changing buttons
- Dual high- and low-coercivity ISO magnetic stripe encoding on tracks 1, 2, and 3
- Supports Wi-Fi accessories (not included), allowing you to print anywhere, anytime
- Eco-friendly erase and rewrite feature, suitable for creating temporary ID cards, such as visitor badges
- Ability to print on a variety of card thicknesses to create simple access cards as thin as 9 mil, or access control badges as thick as 40 mil
In the Box Fargo DTC1250e Single-Sided ID Card USB Printer with Magnetic Stripe Encoder & Omnikey Cardman 5127 Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC1250e Single-Sided ID Card USB Printer with Magnetic Stripe Encoder & Omnikey Cardman 5127 Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC1250e Specs | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | Both EZ and ECO:
Full-color with resin black and overlay panel, YMCKO (250 prints)
Resin black, standard (1000 prints)
ECO Only:
Full-color half-panel with resin black and overlay pane, YMCKO (350 prints)
EZ Only:
Full-color with two resin black panels and overlay panel, YMCKOK (200 prints)
Resin black and overlay panel, KO (500 prints)
Resin black, premium (1000 prints)
Dye-sublimation black and overlay panel, BO (500 prints)
Resin green, blue, red, white, silver, gold (1000 prints)
Silver and gold metallic (500 prints)
Rewrite technology, no ribbon is required
Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
YMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | 9 to 40 mil (0.229 to 1.016 mm) | | Double/Single-Sided | Single | | Card Type | PVC of polyester card with polished PVC finish
Monochrome resign required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Hopper Capacity | Input: Up to 100 cards with 30 mil (0.762 mm) thickness
Output: Up to 30 cards with 30 mil (0.762 mm) thickness | | Memory | 32 MB RAM | | Computer Interface | USB 2.0 | | Software Driver | Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8 (32/64-bit)
Mac OS X 10.5/10.6/10.7/10.8
Linux (Ubuntu 12.04, Debian 7.0, Fedora 18, Mandriva 2011, Red Hat 6.4, Open Suse 12.3) | | Software | Swift ID embedded badging application, FARGO Workbench diagnostic utility with Color Assist spot-color matching | | Programming | iCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE DESFire EV1, HID Prox (Omnikey Cardman 5127) encoding | | Display | With color changing status buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20 to 80%, non-condensing | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz, 1.6 A max | | Dimensions | 8.8 x 13.7 x 7.9" (224 x 348 x 201 mm) | | Weight | 7.5 lb (3.4 kg) |
