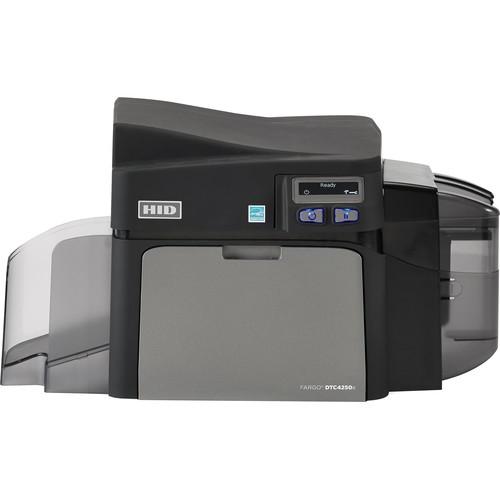

User Manual for Fargo DTC4250e Single-Sided ID Card Printer with Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the Fargo DTC4250e Single-Sided ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo DTC4250e Single-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The DTC4250e Single-Sided ID Card Printer with Magnetic Stripe Encoder from Fargo is a convenient, professional, and secure printer/encoder system, suitable for medium-sized businesses, schools, and local government institutions. This printer comes with a magnetic stripe encoder. It utilizes a dye sublimation resin thermal transfer processes to quickly create 300 dpi resolution prints. It works well with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge as well as encode ISO standard magnetic stripes for additional security. The printer is capable of printing at a rate of 6 seconds per card in black & white and at 24 seconds per card in full color with two black resin panels. It also features a movable SmartScreen graphical displaycom, which allows the printer to fit into tight spaces. - Modular, scalable design that simplifies equipment upgrades and migration to higher levels of security
- Sleek design with changeable footprint to accommodate space-constraint office environments
- SmartScreen graphical display with easy-to-follow prompts
- Works with easy-to-use all-in-one ribbon cassette (EZ ribbons) or the eco-friendly refill ribbon (ECO ribbons)
- Eco-friendly erase and rewrite feature is suitable for creating temporary ID cards
- Fargo Workbench diagnostic utility facilitates printer maintenance
- Color Assist tool matches spot colors, ensuring accurate prints of graphics such as company logos
- Fully compatible with Asure ID card personalization software for badge design, database management and technology card encoding, as well as EasyLobby Secure Visitor Management solutions
- Standard printer password protection and fluorescent panel printing provide a cost-effective and dynamic means of increasing card security
- Dual high- and low-coercivity ISO magnetic stripe encoding on tracks 1, 2, and 3
- ENERGY STAR certified for efficient energy consumption
UPC: 754563520108 In the Box Fargo DTC4250e Single-Sided ID Card Printer with Magnetic Stripe Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC4250e Single-Sided ID Card Printer with Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC4250e Specs | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | EZ and ECO:
Resin black, standard (1000 prints)
EZ Only:
Full-color with resin black and overlay panel, YMCKO, (250 prints)
Full-color half-panel with resin black and overlay panel, YMCKO, (350 prints)
Full-color with two resin black panels and overlay panel, YMCKOK, (200 prints)
Full-color with fluorescing, resin black and overlay panel, YMCFKO, (200 prints)
Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, (175 prints)
Resin black and overlay panel, KO, (500 prints)
Dye-sublimation black and overlay panel, BO, (500 prints)
Resin green, blue, red, white, silver, gold, (1000 prints)
Resin silver and gold metallic, (500 prints)
Rewrite technology, no ribbon is required
Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change | | Print Speed | K: 6 seconds per card
KO: 8 seconds per card
YMCKO: 16 seconds per card
YMCKOK: 24 seconds per card | | Card Sizes | CR-80 (L x W): 3.375 x 2.125" (85.6 x 54 mm)
CR-79 Adhesive Back (L x W): 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge (L x W): 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79 (L x W): 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | Print Only: 9 to 40 mil (0.229 to 1.016 mm)
Print: 30 to 40 mil (0.762 mm to 1.02 mm) | | Double/Single-Sided | Single | | Card Type | PVC of polyester card with polished PVC finish
Monochrome resign required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Paper Capacity | Input Hopper Card Capacity: Up to 100 cards with 30 mil (0.762 mm) thickness
Output Hopper Card Capacity: Up to 100 cards with 30 mil (0.762 mm) thickness | | Memory | 32 MB RAM | | System & Software Requirements | Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8 (32/64-bit)
Mac OS X 10.5-10.8
Linux Ubuntu 12.04, Debian 7.0, Fedora 18, Mandriva 2011, Red Hat 6.4, Open Suse 12.3 | | Software | Swift ID embedded badging application, FARGO Workbench diagnostic utility with Color Assist spot-color matching | | Display | User friendly, SmartScreen graphical display | | Security | Access is password protected | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC, ENERGY STAR qualified | | Supply Voltage | 100 to 240 VAC, 50 to 60 Hz, 1.6 A max | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20 to 80% non-condensing | | Dimensions (H x W x D) | 9.8 x 18.1 x 9.2" (249 x 460 x 234 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 22.5 x 15.3 x 12.1" |
