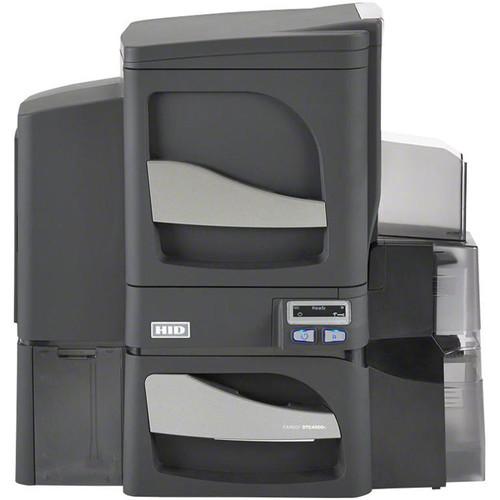

User Manual for Fargo DTC4500e Dual-Sided ID Card Printer with Dual-Sided Lamination & Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the Fargo DTC4500e Dual-Sided ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo DTC4500e Dual-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More Built to withstand large print volumes required by organizations, the DTC4500e Dual-Sided Card Printer from Fargo comes equipped with a variety of features as well as dual-sided lamination and magnetic stripe encoding options that will allow users to quickly produce ID cards that suit their needs. This direct-to-card printer uses dye sublimation and thermal transfer technology to produce CR-80 and CR-79 adhesive backed cards with a 300 dpi resolution. Also, this system allows for fast print speeds of 16 seconds per card in YMCKO and 6 seconds per card in monochrome. And, this model can print double-sided and edge-to-edge for optimum quality. Batch jobs are simplified by the use of a 200-card input hopper and a 100-card output hopper. There is also a 100-card reject hopper for getting misprints out of the way. The standard dual-input hopper allows for maximum card input capacity and management of multiple card types. Checking print status is easy with a SmartScreen graphical display on the front panel and the inclusion of the embedded Swift ID card badging for quickly making ID cards and the Fargo Workbench with Color Assist tool for diagnostics and matching colors for accurate prints. - Works with both EZ and ECO ribbons
- Rewrite technology is available for reducing ribbon usage
- Supports up to 16.7 million colors or 256 shades per pixel
- A card cleaning roller is integrated into the ribbon cartridge for easy maintenance
- Dual-sided printer allows you to add additional company or cardholder information and security features, such as duplicate photos and digital signature
- Dual high- and low-coercivity ISO magnetic stripe encoding on tracks 1, 2, and 3
- Standard dual-input card hopper increases capacity or management of multiple card types
- Card lamination for applying over laminates to produce highly-secure cards that resist forgery and increase card durability
- Dual-sided simultaneous lamination saves time with increased throughput
- SmartScreen graphical display provides easy-to-follow prompts for printer status
- Standard printer password protection and fluorescent panel printing provide a cost-effective and dynamic means of increasing card security
- Fargo Workbench diagnostic utility facilitates printer maintenance
- Color Assist tool matches spot colors, ensuring accurate prints of graphics such as company logos
- Fully compatible with Asure ID card personalization software for badge design, database management and technology card encoding, as well as EasyLobby Secure Visitor Management solutions
- Fully interoperable with other products in the HID ecosystem
In the Box Fargo DTC4500e Dual-Sided ID Card Printer with Dual-Sided Lamination & Magnetic Stripe Encoder USB Cable Power Cord Driver & Documentation CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC4500e Dual-Sided ID Card Printer with Dual-Sided Lamination & Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC4500e Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | Full-color with resin black and overlay panel, YMCKO, 500 prints, more economical and eco-friendly refill ribbon for cartridge (ECO only)
Full-color half-panel with resin black and overlay panel, YMCKO, 850 prints, ECO only
Full-color with two resin black panels and overlay panel, YMCKOK, 500 prints, ECO only
Full-color with fluorescing, resin black and overlay panel, YMCFKO, 500 prints, ECO only
Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 400 prints, ECO only
Full-color with two resin black panels and overlay panel, YMCKK, 500 prints, ECO only
Resin black and overlay panel, KO, 1250 prints, ECO only
Dye-sublimation black and overlay panel, BO, 1250 prints, ECO only
Resin black (standard and premium), 3000 prints, ECO only
Resin green, blue, red, white, silver, and gold, 2000 prints, ECO only
Rewrite technology | | | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
YMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | Print Only: 9-40 mil (0.229-1.016 mm)
Print & Lamination: 30-40 mil (0.762-1.020 mm) | | Card Type | PVC or polyester cards with polished PVC finish
Monochrome resin required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Capacity | Input: 200 cards with 30 mil (0.762 mm) thickness
Output: 100 cards with 30 mil (0.762 mm) thickness
Reject: 100 cards with 30 mil (0.762 mm) thickness | | Care & Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change | | Advanced Features | Dual-sided lamination | | | | Computer Interface | USB 2.0
Ethernet with internal print server | | Memory | 32 MB RAM | | Compatible Operating Systems | Windows XP, Vista (32/64-bit), Server 2003, Server 2008, 7, 8 (32/64-bit)
Mac OS X 10.5-10.9
Linux Ubuntu 12.04, Debian 7.0, Fedora 18, Mandriva 2011, Red Hat 6.4, Open Suse 12.3 | | Security | Printer access password protected | | | | Front Panel | SmartScreen graphical display
Buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental: Refillable supply cartridges (ECO) | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A max | | Dimensions | 18.9 x 18.7 x 9.2" (48.0 x 47.5 x 23.4 cm) | | Weight | 20 lb (9.1 kg) |
