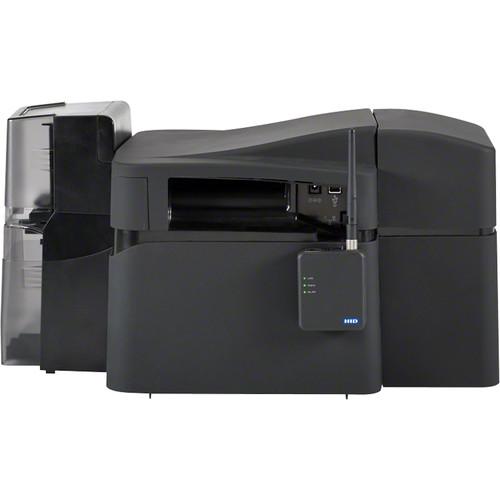

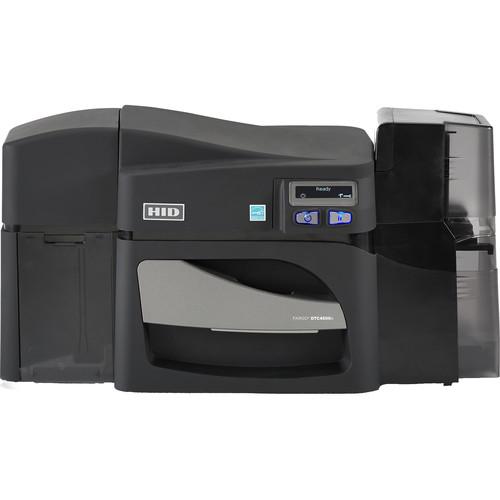

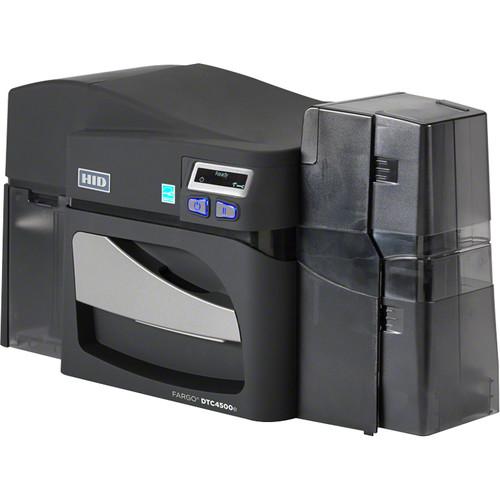

User Manual for Fargo DTC4500e Single-Sided ID Card Printer with Same-Side Hopper Click to enlarge the picture
Contents of the user manual for the Fargo DTC4500e Single-Sided ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
 |
User manual for the Fargo DTC4500e Single-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More Built to withstand large print volumes required by organizations, the DTC4500e Single-Sided Card Printer from Fargo comes equipped with a variety of features that will allow users to quickly produce ID cards that suit their needs. This direct-to-card printer uses dye sublimation and thermal transfer technology to produce CR-80 and CR-79 adhesive backed cards with a 300 dpi resolution. Also, this system allows for fast print speeds of 16 seconds per card in YMCKO and 6 seconds per card in monochrome.
This model can print single-sided and edge-to-edge for optimum quality. Batch jobs are simplified by the use of a 200-card input hopper and a 100-card output hopper. The same-side hopper enables the use of a 100-card reject hopper to hold misprints and incorrectly programmed cards.
Checking print status is easy with a SmartScreen graphical display on the front panel and the inclusion of the embedded Swift ID card badging for quickly making ID cards and the Fargo Workbench with Color Assist tool for diagnostics and matching colors for accurate prints. Additionally, the printer has both USB 2.0 and Ethernet connectivity options with an internal print server for secure printing. - Works with both EZ and ECO ribbons
- Rewrite technology is available for reducing ribbon usage
- Supports up to 16.7 million colors or 256 shades per pixel
- A card cleaning roller is integrated into the ribbon cartridge for easy maintenance
- Dual-sided printer allows you to add additional company or cardholder information and security features, such as duplicate photos and digital signature
- Internal server for secure printing over a network
- Optional Wi-Fi accessories
- Standard dual-input card hopper increases capacity or management of multiple card types
- SmartScreen graphical display provides easy-to-follow prompts for printer status
- Easily integrates into existing IT infrastructures through the built-in Ethernet and USB connection, allowing for centralized or remote ID card issuance
- Standard printer password protection and fluorescent panel printing provide a cost-effective and dynamic means of increasing card security
- Fargo Workbench diagnostic utility facilitates printer maintenance
- Color Assist tool matches spot colors, ensuring accurate prints of graphics such as company logos
- Fully compatible with Asure ID card personalization software for badge design, database management and technology card encoding, as well as EasyLobby Secure Visitor Management solutions
- Fully interoperable with other products in the HID ecosystem
- GreenCircle Certified for efficient energy consumption and eco-friendly refill ribbons
In the Box Fargo DTC4500e Single-Sided ID Card Printer with Same-Side Hopper USB Cable Power Cord Driver & Documentation CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo DTC4500e Single-Sided ID Card Printer with Same-Side Hopper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo DTC4500e Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Double/Single-Sided | Single | | Ribbon Options | YMCKO (500 prints)
Half-Panel YMCKO (850 prints)
YMCKOK (500 prints)
YMCFKO (500 prints)
YMCFKOK (400 prints)
YMCKK (500 prints)
KO (1250 prints)
BO (1250 prints
Resin black, standard and premium (3000 prints)
Resin green, blue, red, white, silver, and gold (2000 prints) | | | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
YMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" / 85.6 x 54.0 mm
CR-79 Adhesive Back: 3.313 x 2.063" / 84.1 x 52.4 mm | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" / 85.3 x 53.7 mm
CR-79: 3.3 x 2.04" / 83.8 x 51.8 mm | | Media Thickness | Print Only: 9-40 mil / 0.229-1.016 mm | | Card Type | PVC or polyester cards with polished PVC finish
Optical memory cards with PVC finish
Rewriteable | | Capacity | Input: 200 cards
Output: 100 cards
Reject: 100 cards | | Encoding | None | | Lamination | None | | | | Computer Interface | USB 2.0
Ethernet | | Memory | 32 MB RAM | | Compatible Operating Systems | Windows 8, 7, Vista, XP, Server 2003, Server 2008
Mac OS X 10.5-10.9
Linux | | | | Front Panel | SmartScreen graphical display
Buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC | | Operating Conditions | Temperature: 65 to 80°F / 18 to 27°C
Humidity: 20 to 80% | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A max | | Dimensions | 9.8 x 18.1 x 9.2" / 24.9 x 46.0 x 23.4 cm | | Weight | 9 lb / 4.1 kg |
