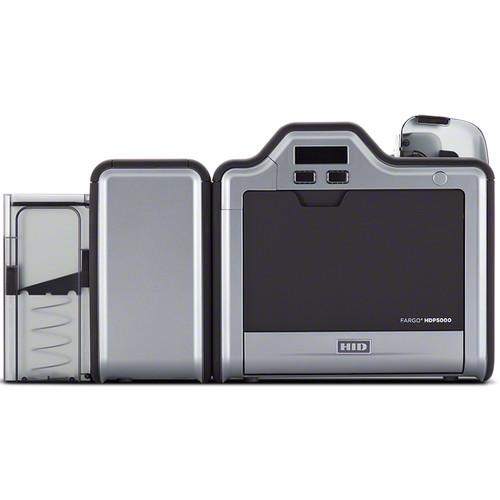

User Manual for Fargo HDP5000 Dual-Sided ID Card Printer Click to enlarge the picture
Contents of the user manual for the Fargo HDP5000 Dual-Sided ID Card Printer
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo HDP5000 Dual-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More Print your ID cards with ease with the HDP5000 Dual-Sided ID Card Printer from Fargo. This printer uses dye sublimation and a thermal transfer process to create sharp, vivid images with 300 dpi resolution. With a full-color YMC print speed of 26 seconds for each card, it can produce approximately 138 cards per hour when printing in batch mode. The HDP5000 supports CR-80 cards, printing over-the-edge with a 0.04" over-bleed on each side to ensure there are no visible borders. The card cartridge is used for input and can hold over 100 cards at a time, while the output hopper on the side of the printer provides a 200-card capacity. A two-line LCD screen is used for displaying information and can be controlled via two soft keys placed below it. The HDP5000 connects to the computer via USB 2.0 or Ethernet ports and is compatible with Windows. -
- YMC batch printing at 138 cards per hour
- YMCK batch printing at 113 cards per hour
- CR-80 card size support with over-the-edge printing that ensures there are no visible white edges
- 100-card input cartridge, 200-card output hopper
- Several printing ribbons available, including options with heat seal and UV fluorescent panels
- Comes with installation CD, cleaning roller, and power supply
- Compatible with Windows XP (32-bit), Server 2003 (32-bit), Vista (32-/64-bit), Server 2008 (32-/64-bit), Server 2012 (64-bit), Server 2008 R2 (64-bit), 7 (32-/64-bit), and 8 (32-/64-bit)
UPC: 754563896401 In the Box Fargo HDP5000 Dual-Sided ID Card Printer Installation CD with Printer Driver Cleaning Roller Power Supply Limited 3-Year Warranty Limited Lifetime Warranty on Printhead Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo HDP5000 Dual-Sided ID Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo HDP5000 Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi | | Color Spaces Supported | Up to 16.7 million colors, 256 shades per pixel | | Ribbon Options | YMC
YMCK
YMCKK
YMCK with heat seal panels
YMCK with UV fluorescent panel | | | | Print Speed | YMC: 26 seconds/card (138 cards/hour)
YMCK: 32 seconds/card (113 cards/hour)
YMCKK: 47 seconds/card (77 cards/hour) | | Duplex Printing | Yes | | Lamination | None; lamination modules available separately | | | | Card Sizes | CR-80: 3.37 x 2.13" (8.6 x 5.4 cm) | | Card Type | ABS
PVC
PET
PETG | | Card Thickness | 30 to 50 mil (0.8 to 1.3 mm) | | Media Capacity | Input: 100 cards
Output: 200 cards | | | | Computer Interface | USB 2.0
Ethernet | | Memory (RAM) | 16 MB | | System Requirements | x86-based or compatible
500 MHz computer
256 MB RAM memory or higher
500 MB free hard disk space or higher | | Software Compatibility | Windows XP (32-bit), Server 2003 (32-bit), Vista (32-/64-bit), Server 2008 (32-/64-bit), Server 2012 (64-bit), Server 2008 R2 (64-bit), 7 (32-/64-bit), and 8 (32-/64-bit) | | | | Status Display | 2-line, 32-character LCD display | | Front Panel Controls | Two soft-key buttons below display | | Certifications | UL IEC 60950-1 (2nd edition), CSA C22.2 No. 60950-1-07 2nd edition, LVD 2006/95/EC, GB4943, and CNS14336 | | Environmental Compliance | Power supply Efficiency level V minimum, RoHS, and China RoHS | | Emission Standard | FCC Part 15 Class A, RSS-GEN, RSS 210, CNS 13438, EMC 2004/108/EC, R&TTE 1999/5/EC, GB9254, and GB 17625 | | Operating Conditions | Temperature: 65-90°F (18-32°C)
Humidity: 20-80% | | Power Requirements | 120 - 240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 11.5 x 17.5 x 9.25" / 29.2 x 44.5 x 23.5 cm | | Weight | 22 lb / 10 kg | | | | Package Weight | 28.5 lb | | Box Dimensions (LxWxH) | 22.5 x 19.0 x 12.0" |
