User Manual for Fargo HDP5000 High-Definition Dual-Sided Printer Encoder with Omnikey 5121 Contact Smart Card Encoder with Single-Sided Lamination Click to enlarge the picture
Contents of the user manual for the Fargo HDP5000 High-Definition Dual-Sided Printer Encoder
- Product category: ID Card Printers Fargo
- Brand: Fargo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fargo ID Card Printers
|
User manual for the Fargo HDP5000 High-Definition Dual-Sided Printer Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fargo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fargo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fargo product will considerably shorten its lifespan!
|

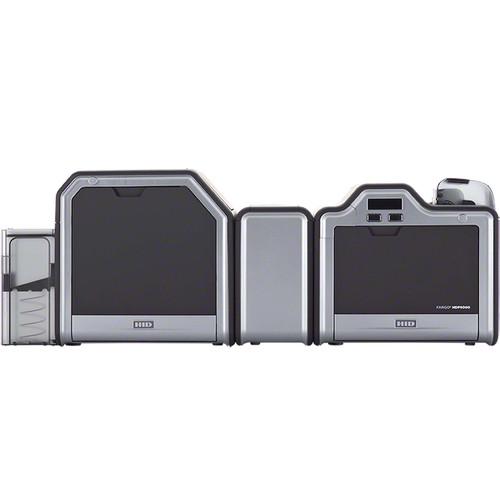

Product description A Guide to Purchasing an ID Card Printer Read More The Fargo HDP5000 High-Definition Dual-Sided Printer/Encoder with Single-Sided Lamination comes with a standard holographic (500 prints) HDP film that fuses to the surface of proximity and smart cards, conforming to ridges and indentations formed by embedded electronics. Batch jobs are simplified by the use of a 100-card input hopper and a 200-card output hopper. Checking print status is easy with a SmartScreen graphical display on the front panel and with Color Assist tool for diagnostics and matching colors for accurate prints. Additionally, it has both USB 2.0 and Ethernet connectivity options.
The Omnikey 5121 Reader Board is a dual interface PC-linked reader that reads/writes to both a 13.56 MHz contactless smart card and virtually any contact smart card. The dual interface feature, implemented on a small PCB, economically supports end-user environments where both contactless and contact smart card technology may be in use.
By printing a reverse image on the underside of the HDP film, then fusing the film to the card surface, the printer creates an image quality that looks more like a sharp glossy photo. Printing on film instead of directly on the card means that the uneven surface of technology cards doesn’t compromise the image quality. In addition, the printer can print double-sided and edge-to-edge for optimum quality.
For added protection during the printing process, the printhead never comes in contact with card surfaces or debris. Cards produced by high definition printing are tamper-resistant and can withstand wear and tear. Cards, ribbons and overlaminates can be quickly loaded via the cartridge-based system. In addition, the printer is suitable for creating government IDs, corporate IDs, and student IDs. 5121 Encoder - Supported cards include HID, iCLASS, MIFARE DESFire, and MIFARE Classic
- Supports ISO 14443 A&B, ISO 15693, and ISO 7816
- Contact unit based on OMNIKEY 3121
- Up to 424 Kb/s transmission rate
- Optional mounting bracket
In the Box Fargo HDP5000 High-Definition Dual-Sided Printer/Encoder with Omnikey 5121 Contact Smart Card Encoder with Single-Sided Lamination Software Installation CD (Includes Printer Driver) Cleaning Roller Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fargo HDP5000 High-Definition Dual-Sided Printer Encoder with Omnikey 5121 Contact Smart Card Encoder with Single-Sided Lamination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFargo HDP5000 Specs | | | Print Method | HDP dye-sublimation / resin thermal transfer | | Resolution | 300 dpi (11.8 dots/mm) | | Colors | Up to 16.7 million / 256 shades per pixel | | Card Thickness | Print Only: 30 to 50 mil (0.762 to 1.27 mm)
Print/Lamination: 30 to 40 mil (0.762 to 1.02 mm) | | Supported Card Types | Electronic Cards: HID Proximity Cards, Mifare Contactless Smart Cards, Contact Smart Cards, and iClass
Compositions: ABS, PVC, PET, PETG, Proximity Cards, Contact Smart Cards, Magnetic Stripe cards, and Optical Memory Cards | | Care & Cleaning | Card: Replaceable cleaning roller (included with each print Ribbon) | | Cartridge Capacity | Input Card: 100 cards (30 mil / 0.762 mm)
Output Hopper: 200 card (30 mil / 0.762 mm) | | Card Sizes | CR-80: 3.37 x 2.125" (85.6 x 54 mm) | | Print Area | Over-the-edge on CR-80 cards | | Display | SmartScreen LCD control panel | | Ribbon Options | Full color, YMC, 750 prints
Full color with resin black, YMCK, 500 prints
Full color with two resin black Panels, YMCKK, 500 prints
Full color YMC with resin black and heat seal panel for difficult-to-print surfaces, YMCKH, 500 prints
Full color YMC with resin black and UV fluorescing panel, YMCFK, 500 prints | | Print Speed | 38 seconds per card / 95 cards per hour (YMC with transfer)
46 seconds per card / 78 cards per hour (YMCK with transfer)
70 seconds per card / 51 cards per hour (YMCKK with transfer)
70 seconds per card / 51 cards per hour (YMCFK with transfer)
50 seconds per card / 72 cards per hour(YMCK with transfer and dual-sided, simultaneous lamination)
75 seconds per card / 48 cards per hour(YMCKK with transfer and dual-sided, simultaneous lamination) | | Drivers | Windows XP, Server 2003, Vista (32-/64-bit), Server 2008 (32-/64-bit), 7 (32-/63-bit)
Mac OS X v10.4 and later
Linux | | System Requirements | x86 based PC or compatible
Windows 2000, Windows XP, Windows 2003
500 MHz computer with 256 MB of RAM or higher
500 MB free hard disk space or higher | | Supply Voltage | 100 to 240 VAC, 50/60 Hz, 3.8 A | | Power Consumption | 80 W | | Memory | 16 MB RAM | | Operating Temperature | 65 to 90°F (18 to 32°C) | | Storage Temperature | HDP Film: 77°F (25°C) or lower for no longer than 1.5 years | | Humidity | 20 to 80% (non-condensing) | | Interface | USB 2.0 (high speed) and Ethernet with internal print server
Interfacing information for E-card Options | | Regulatory | CSA (cUL), FCC, UL | | Agency & Safety Certifications | Emissions Standards: CE, FCC, CRC c1374, EN 55022 Class A, FCC Class A, EN 55024: 1998, EN 61000-3-2 and EN 61000-3-3
Safety Standards: UL IEC 60950-1 (2001), CSA C22.2 No. 60950-1-03 | | Dimensions (H x W x D) | Not Specified by the Manufacturer | | Weight | Not Specified by the Manufacturer | | | | Interface | Smart Card Interface Standards: ISO 7816 & EMV2 2000 Level 1
Contactless Smart Card: ISO 14443 A with 424 Kb/s transmission rate (depending on card)
ISO 14443 B with 424 Kb/s transmission rate (depending on card)
ISO 15693 with 26 Kb/s transmission rate (depending on card) | | Protocols | T=0, T=1
2-wire: SLE 4432/42 (S=10)
3-wire: SLE 4418/28 (S=9)
I2C (S=8) | | Supported Card Types | 5 V, 3 V and 1.8 V Smart Cards
ISO 7816 Class A, AB, and C | | Detection | Smart Card
Movement detection with auto power-off
Automatic Detection of smart card type
Short circuit and thermal protection | | Supported APIs | PC/SC driver (ready for 2.01)
CT-API (on top of PC/SC, for contact interface)
OCF (on top of PC/SC, for contact interface)
Synchronous API (on top of PC/SC) | | Connector Cable | 70.9" (180 cm) | | Durability | 100,000 insertions | | MTBF | 500,000 hours | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Operating Humidity | 10 to 90% rH | | Dimensions (L x W x H) | 2.6 x 2.16 x 0.43" (66 x 55 x 11 mm) | | Weight | Approximately: 2.65 oz (75 g) including the cable |
