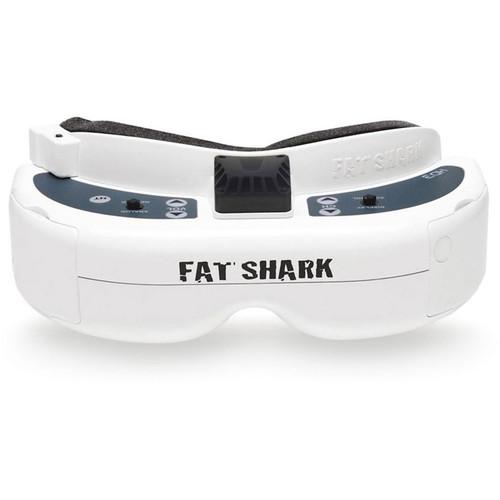

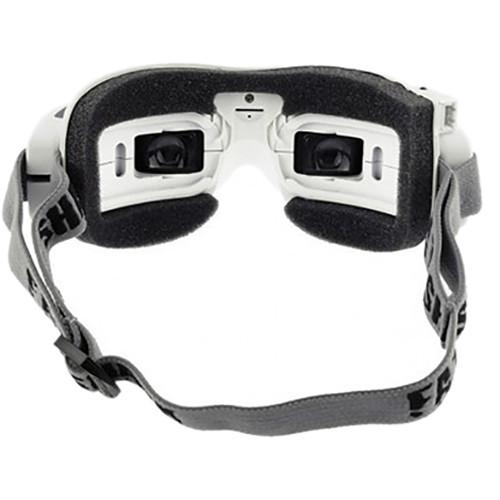

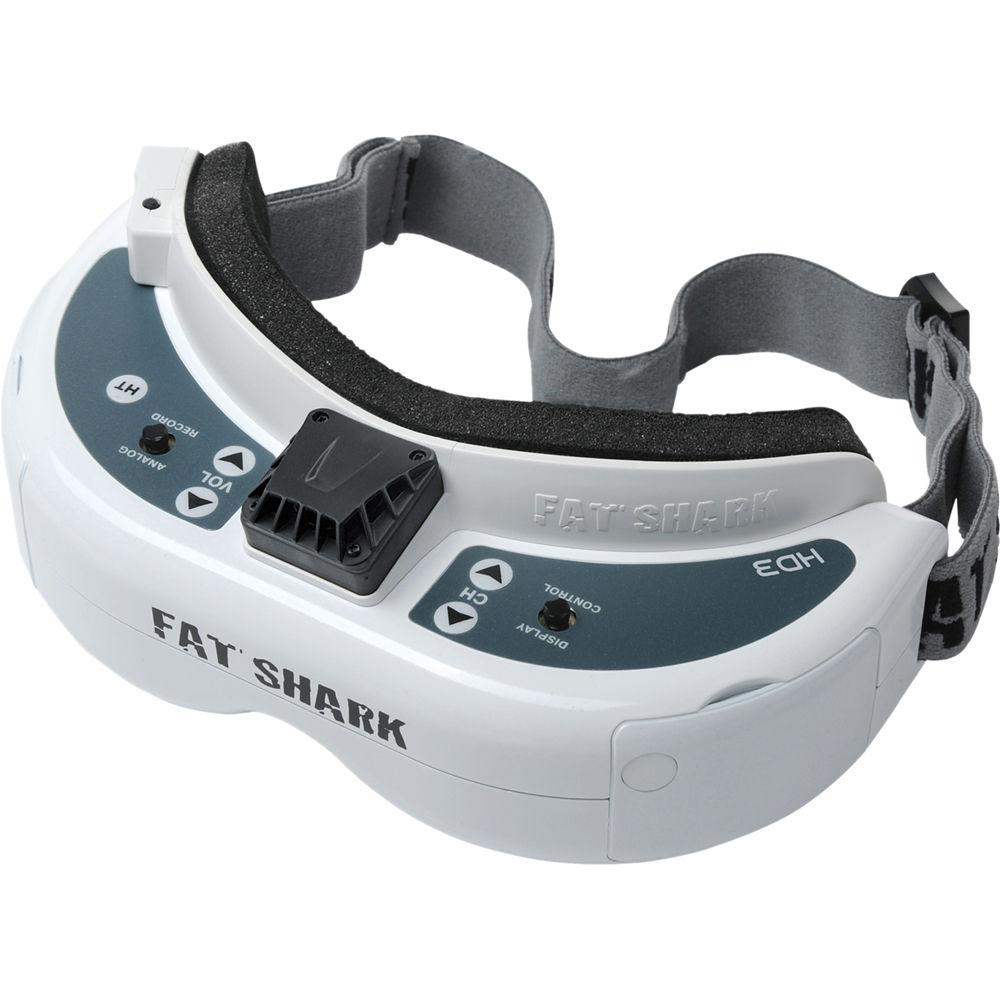

Product description Experience the thrill of FPV drone flying with the Dominator HD3 Headset from Fat Shark. With these goggles and a receiver unit (not included), the video feed of your drone's camera can be sent wirelessly to give you a first-person flying experience as you pilot your drone. Whether you're racing or just casually flying, the headset is designed to make you feel as if you're in the proverbial cockpit. The headset is even capable of recording your flight to an (optional) microSD card, so you can analyze a race or share your footage online.
When you're done flying, you can still use the Dominator HD3 headset for enjoying movies and TV. Simply plug your headset into a video source with the included RCA AV cable or an (optional) Mini-HDMI to HDMI cable. When connected via HDMI, you can input up to 720p video in a cinematic 16:9 aspect ratio. The goggles display footage up to SVGA 800 x 600 resolution and provide you with a 42° field of vision. - Additional Features
- Removable foam faceplate
Adjustable headband
Built-in mini fan to ensure clear optics
Analog and HDMI side/side 3D support
NTSC and PAL support
Brightness and contrast control
Low battery warning
Modular bay for optional head tracker unit UPC: 840630110768 In the Box Fat Shark Dominator HD3 Headset Carry Case 1800mAh LiPo USB Battery AV Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fat Shark Dominator HD3 Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFat Shark FSV1076 Specs | | | Audio | Stereo | | User Controls | Channel Selection
Volume Control
Mode Selection (Wired/Wireless)
Display Control
DVR Control
HT Control | | Battery | 7.4 V, 1.8 A (13.32 Wh) | | Interfaces | 3.5 mm AV In/Out
3.5 mm 3p headphone
Mini-DIN4 data port (head tracking)
Mini-HDMI (720p, 50/60 Hz, 16:9 aspect ratio)
RF module
Power In | | | | FOV (Diagonal) | 42° | | Construction Material | Plastic | | Interpupillary Distance | 59 to 69 mm | | Diopter Lens | -2, -4, and -6 dpt with optional inserts | | | | Resolution | 800 x 600 | | Backlight | Polarized LED | | Video Format | NTSC/PAL | | 3D Capability | Side/Side | | | | Power Supply | 7-13 VDC (2S/3S supply - fan plate only accepts 2S input) | | Power Consumption | 440 mA (wireless at 7.4 V nominal)
250 mA (direct mode, no RX at 7.4 V nominal) | | DVR | Analog via microSD (optional, up to 32 GB)
6 Mb/s record rate
MJPG compression
30 fps
AVI format | | | | Dimensions | 6.7 x 3.1 x 1.8" / 16.9 x 8.0 x 4.6 cm | | Weight | 5.4 oz / 152.0 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.0 x 5.6 x 4.1" |
