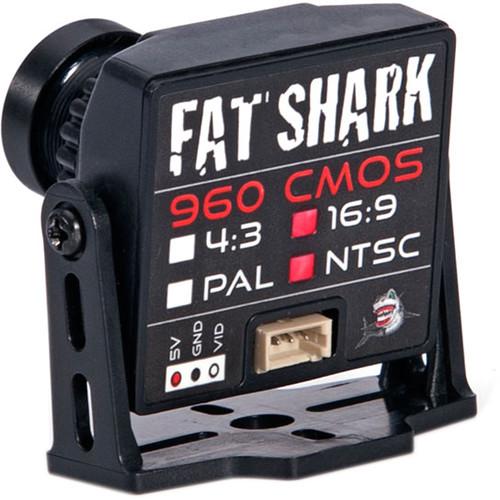

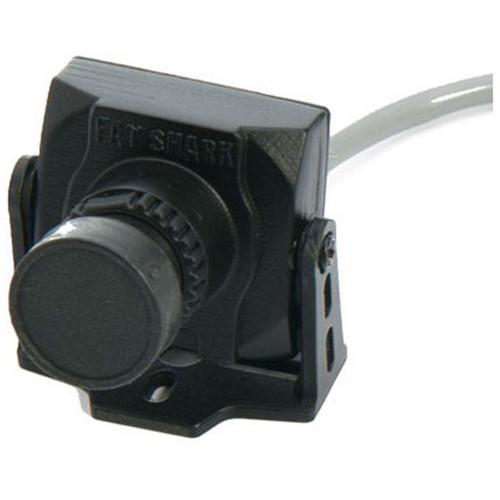

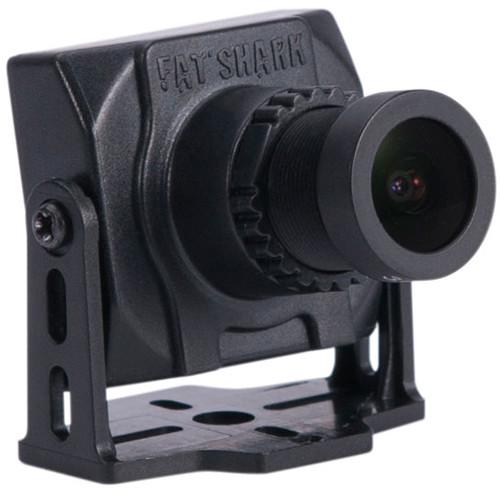

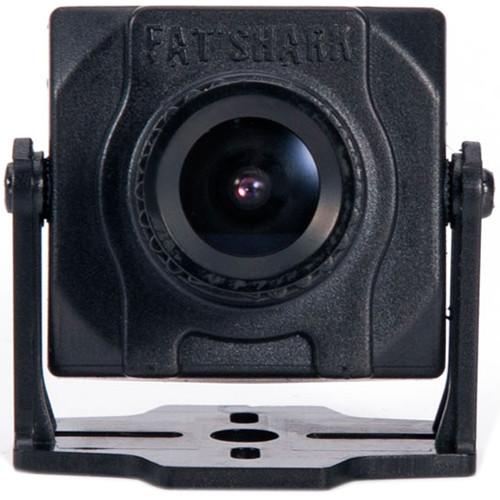

User Manual for Fat Shark qHD 16:9 NTSC FPV Camera for RC Drones Click to enlarge the picture
Contents of the user manual for the Fat Shark qHD 16:9 NTSC FPV
- Product category: FPV (First Person View) Components Fat Shark
- Brand: Fat Shark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fat Shark FPV (First Person View) Components
 |
User manual for the Fat Shark qHD 16:9 NTSC FPV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fat Shark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fat Shark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fat Shark product will considerably shorten its lifespan!
|
Product description Add a Fat Shark qHD 16:9 NTSC FPV Camera to your RC drone and experience the thrilling speed of flying firsthand with optional goggles or display. The 2.8mm lens can capture footage in a cinematic 16:9 aspect ratio, or can be cut down to WVGA resolution for standard 4:3 displays. The camera features auto DNR, gain control, white balance, and a defog function in order to help make your FPV look as good as it can. To help preserve your drone's battery life, the Fat Shark camera only adds an additional 0.5 oz to your drone. UPC: 840630112076 Table of Contents
|
Upload User Manual
Have you got an user manual for the Fat Shark qHD 16:9 NTSC FPV Camera for RC Drones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFat Shark FSV1207 Specs | | | Resolution | qHD 960 x 576
WVGA 768 x 576 | | Aspect Ratio | 16:9
4:3 | | | | Lens | 2.8mm | | FOV (Diagonal) | 100 Degrees | | Imager | 1/3" CMOS | | Picture Elements | NTSC 1312 x 1069 (H x V) | | Minimum Illumination | Color: 0.01 Lux at f/1.2 (AGC ON)
Black and White: 0.001 Lux at f/1.2 (AGC ON) | | | | Power Supply | 4.0 to 5.5 VDC | | Power Consumption | 1 W | | System | NTSC | | S/N Ratio | >58 dB | | Cables | Red: Power Input
Black: Ground
White: Video | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Cable Length | 11.8" / 30.0 cm | | Dimensions | 1.1 x 1.0" / 2.7 x 2.5 cm | | Weight | 0.5 oz / 14.0 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.0 x 2.6 x 1.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
