User Manual for FBT J 5A Processed Active Monitor 80W 40W RMS Click to enlarge the picture
Contents of the user manual for the FBT J 5A Processed Active Monitor
- Product category: PA Speakers FBT
- Brand: FBT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FBT PA Speakers
 |
User manual for the FBT J 5A Processed Active Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FBT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FBT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FBT product will considerably shorten its lifespan!
|

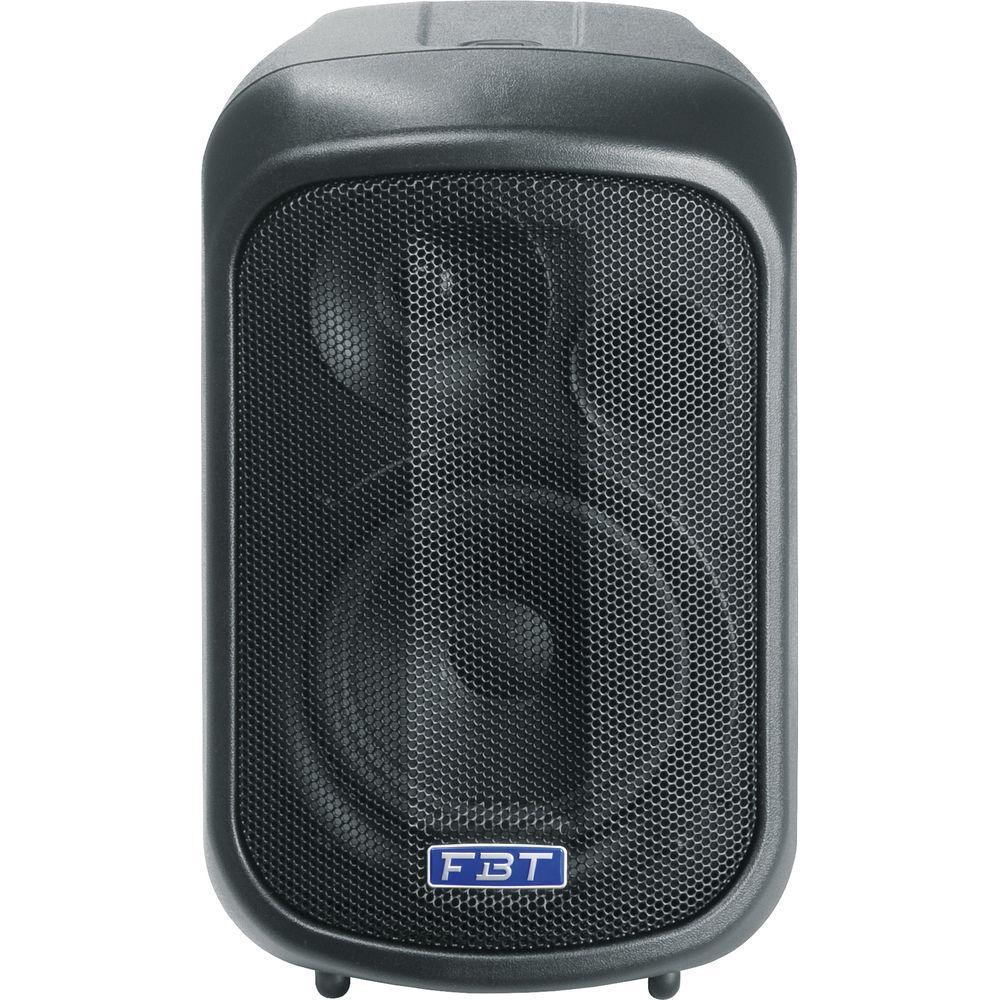

Product description The black J 5A Processed Active Monitor from FBT is a two-way 5" 80W+40W RMS professional speaker with a 1" neodymium silk dome tweeter. It can be used in various environments for applications such as theater, clubs, gyms, bars, and more. It features a frequency response of 80 Hz to 20 kHz and is designed with an on-board analog signal processor and limiter to protect the monitor from overloads during performance. The built-in class D amplifier for the J 5A uses 80W RMS for the low frequency driver and 40W RMS for the 1" high frequency driver. The 2-way bass-reflex speaker is built with two M6 suspension points for attaching to a wall. An AC power cord is included. - Features a 5" (130mm) woofer with improved efficiency and linearity with a 1" (25mm) neodymium silk dome tweeter
- Low noise toroidal transformer power supply
In the Box FBT J 5A Processed Active Monitor 80W + 40W RMS (Black) 16.4" AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FBT J 5A Processed Active Monitor 80W 40W RMS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFBT J 5 A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 240 W Peak
120 W RMS | | Amplifier Power Rating | LF:
80 W RMS
HF:
40 W RMS | | | | HF Driver | 1 x 1" / 25 mm Dome | | HF Voice Coil | 0.75" / 19 mm | | LF Voice Coil | 0.2" / 5 mm | | | | Frequency Response | 80 Hz to 20 kHz | | Maximum SPL | 113 dB (Continuous)
117 dB (Peak) | | Coverage Angle | 90° H x 90° V | | I/O Impedance | Input:

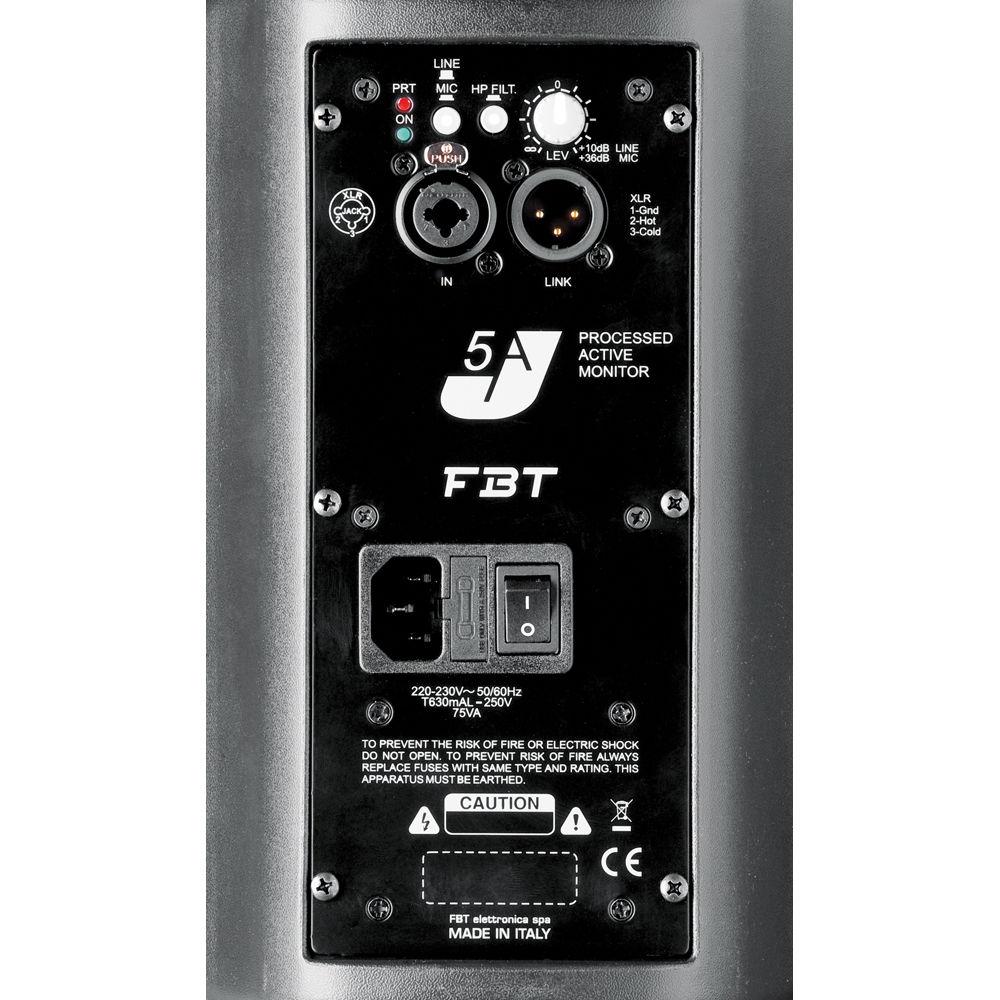

22 kOhms | | | | Audio I/O | 1 x Combo XLR / 1/4" Input
1 x XLR Link Output | | | | Dimensions | 6.7 x 10.8 x 7.1" / 170.0 x 275.0 x 180.0 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 14.0 x 9.78 x 9.12" |
