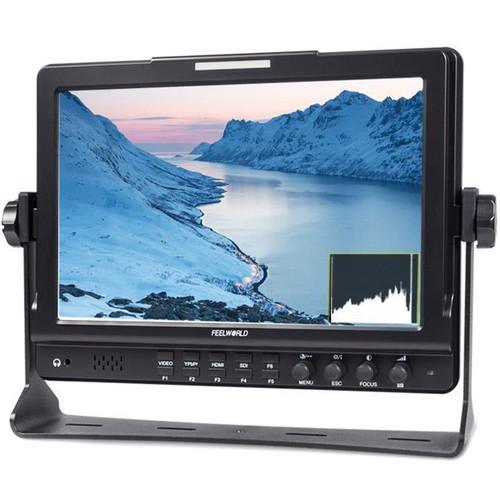

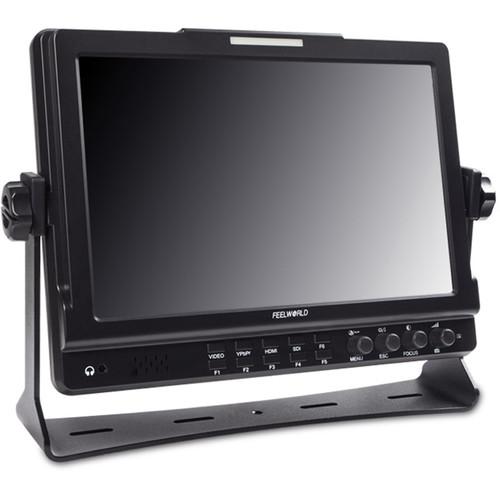

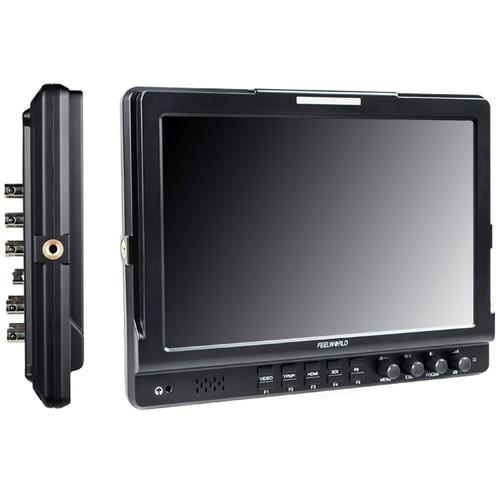

Product description Featuring a large screen, 1920 x 1200 resolution, and many image analysis tools, the 10" 4K IPS Professional Field Monitor from FeelWorld allows you to frame your shots with accuracy. It features 1/4"-20 mounting threads so you can attach it to your camera or camera rig, and it comes with a U-bracket so you can use it desktop-mounted. A sunshade is also supplied that lets you confidently monitor your image outdoors.

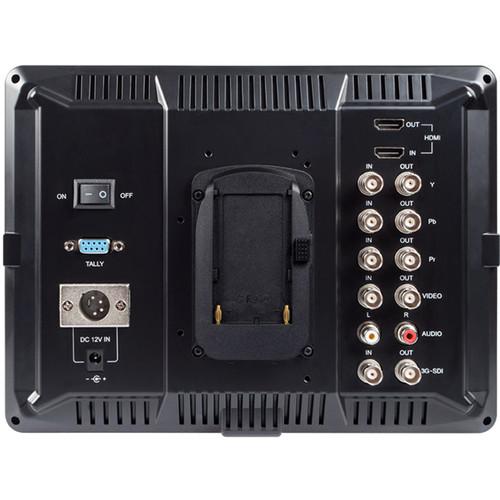

The monitor features SDI, HDMI, and analog inputs and outputs, audio and tally inputs, and a headphone jack and speaker. It supports up to DCI 4K resolution signals at 24 fps via the HDMI input and up to 1080p60 via the 3G-SDI input. Up to six of the image analysis tools can be assigned to function buttons on the front panel. An L-series battery plate comes included with the monitor but can be switched out for optional LP-E6, D28S, V-mount, or Gold mount plates. A battery is sold separately. - Key Features
-
- 1920 x 1200 screen resolution
- 170° IPS viewing angle
- SDI, HDMI, and analog inputs and outputs
- Audio and tally inputs
- Headphone jack and speaker
- Supports up to DCI 4K resolution signals at 24 fps via HDMI
- Supports up to 1080p60 via 3G-SDI

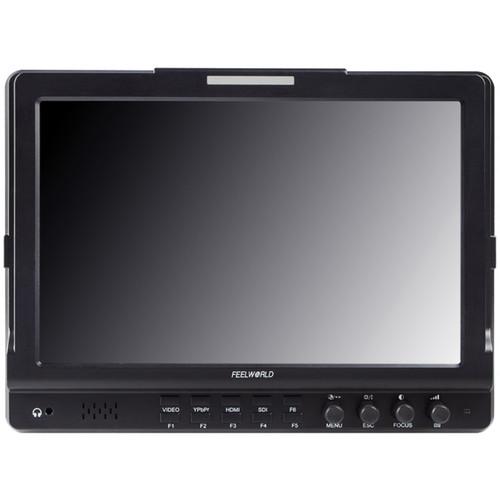

- Six assignable function buttons on front panel
- L-series battery plate (interchangeable; D28S, LP-E6, V-mount, or Gold mount plates supported)
- 320 cd/m² brightness
- 800:1 contrast ratio
- Image Analysis
-
- Brightness histogram
- Peaking focus assist
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Audio level meters for embedded audio monitoring
- Check field (red, green, blue, mono)
- Camera mode
- Anamorphic mode (1.3x, 2.0x, 2.0x) - allows you to see the image unsqueezed, even if your camera does not de-squeeze in-camera
- Image flip (H, V, H/V)
- Image freeze
- Center marker
- Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Color temperature adjustment
- Nine-grid (zoom in on an image to up to full screen - up to 1080p input only)
- Zoom (4x, 9x, 16x - up to 1080p input only)
- Pixel-to-pixel (up to 1080p)
- Zoom-all (up to 1080p)
- U/D zoom (up to 1080p)
- L/R zoom (up to 1080p)
UPC: 815206024626 In the Box FeelWorld 10" 4K IPS Professional Field Monitor L-Series Battery Plate Mini HDMI Cable Foldable Sunshade Shoe Mount Tally Kit U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 10" 4K IPS Professional Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FW1018SPV1 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 10.0" / 25.4 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 170° (85/85)
Vertical: 170° (85/85) | | Touchscreen | No | | Maximum Brightness | 320 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.113 x 0.113 mm | | Real-Time LUT Monitoring | No | | | | Video | 1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 1.4) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.4) Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output | | Audio | 1 x 2RCA Input | | Built-In Speaker | 1 | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-9/DB-9) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL
HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | | | DC Input Power | 6 to 36 VDC | | Battery Type | 1 x L-Series (Interchangeable Mount) | | Power Consumption | 12 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female Left/right/bottom | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 10.24 x 7.48 x 1.57" / 26 x 19 x 4 cm | | Weight | 1.76 lb / 0.8 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 20.1 x 12.6 x 12.6" |
