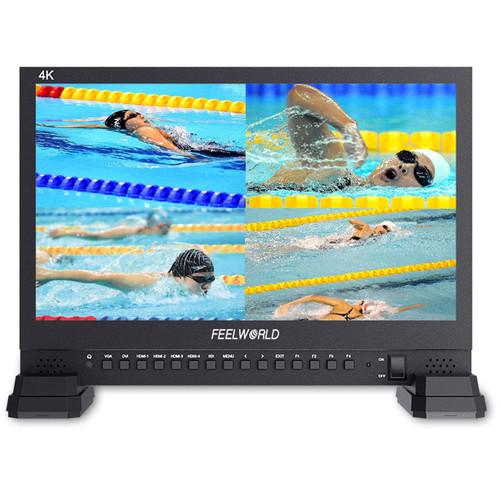

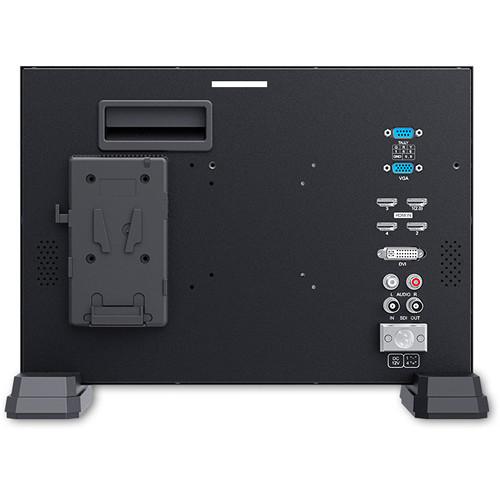

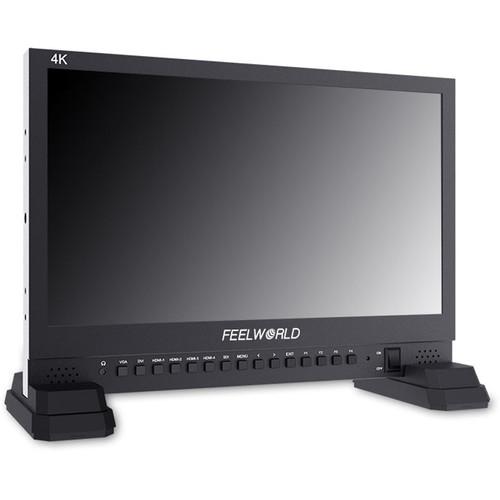

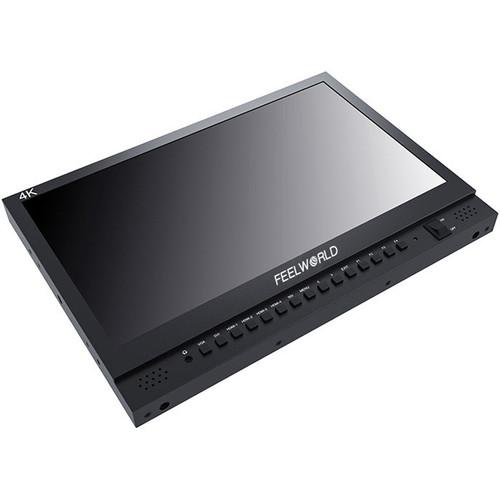

Product description The 15.6" 4K IPS Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 3840 x 2160 and 300 cd/m2 brightness. The rear panel contains SDI, HDMI, DVI, component, and composite inputs; outputs are available for SDI, HDMI, component, and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. A U-bracket is also included for convenient tabletop mounting. - Key Features
-
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- Overscan
- Display rotate (0, 90, 180, 270°)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%)
- Line color (red, green, blue, white)
- Color temperature adjustment
- Built-in LED tally indicators (red, green, yellow)
UPC: 815206023018 In the Box FeelWorld 15.6" 4K IPS Broadcast Director Monitor 1.5A DC Power Adapter V-Mount Battery Plate Mini HDMI Cable Tally Kit U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 15.6" 4K IPS Broadcast Director Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

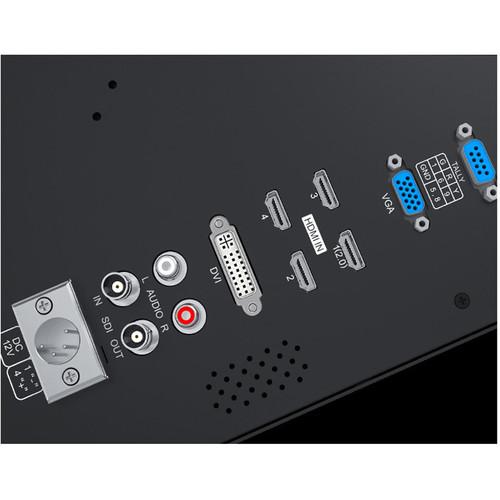

Technical parametersFeelWorld 4K156-9HSD-384 Specs | Screen Size | 15.6" / 39.6 cm IPS | | Resolution | 3840 x 2160p | | Display Colors | 16.7 million colors (8-bit) | | Dot Pitch | 0.0897 x 0.0897 mm | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 | | Contrast | 800:1 | | Backlight | LED | | Response Time | 25 ms | | Viewing Angle | 85°/85°(L/R)
85°/85°(U/D) | | Inputs | 1 x HDMI 2.0
3 x HDMI 1.4
1 x HD-SDI
1 x DVI
1 x VGA
2 x RCA (L/R), audio
1 x Tally
1 x USB, for upgrade | | Outputs | 1 x SDI
1 x 3.5 mm stereo headphone jack | | Supported Video Formats | SDI
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29/30/50/59.94/60
576i
480i
HDMI
HDMI 2.0: UHD 4K 23.98/24/25/29.97/30/50/59.94/60
HDMI 1.4: UHD 4K 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29/30/50/59.94/60
576p/i
480p/i | | Audio | Headphone jack
Speaker | | Power Consumption | ≤18 W | | Input Voltage | 12 to 24 VDC | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 14.6 x 10.3 x 1.1" / 37.2 x 26.2 x 2.8 cm (without U-bracket) | | Weight | 4.4 lb / 2.03 kg (without U-bracket) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 16.8 x 16.3 x 5.4" |
