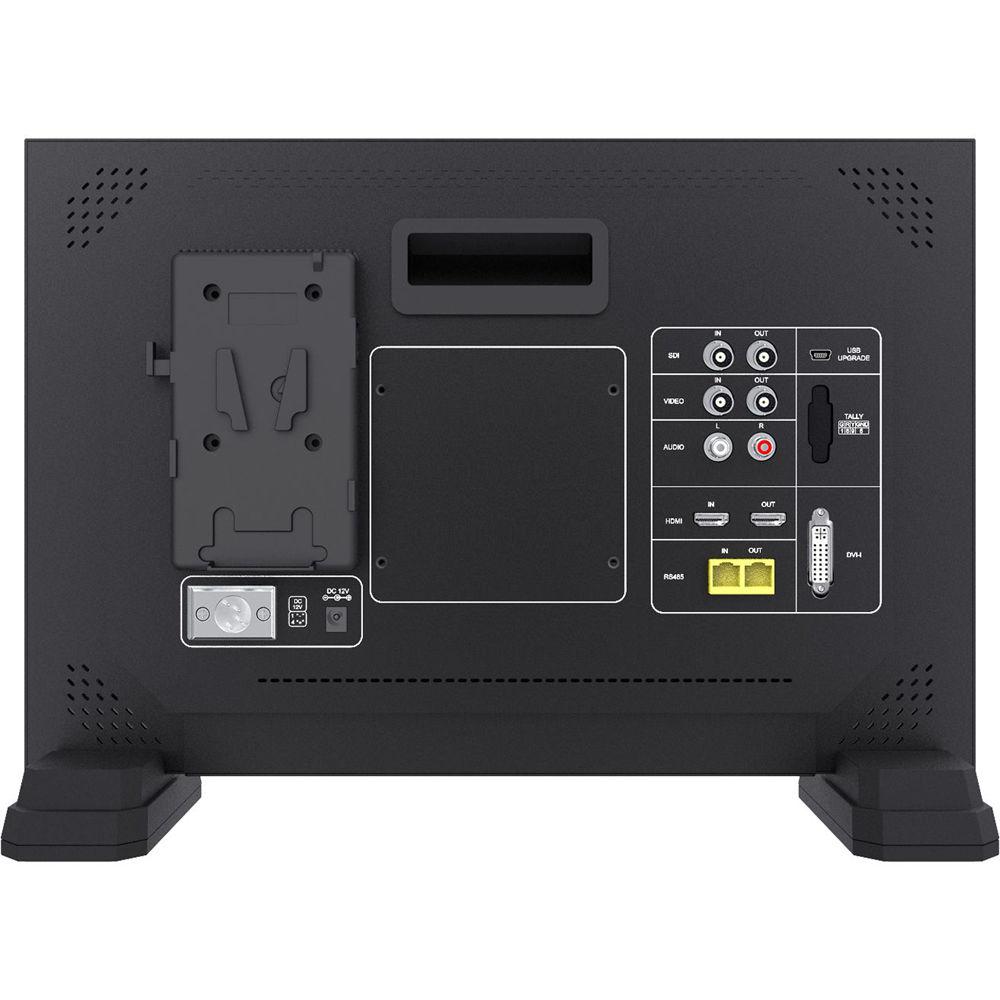

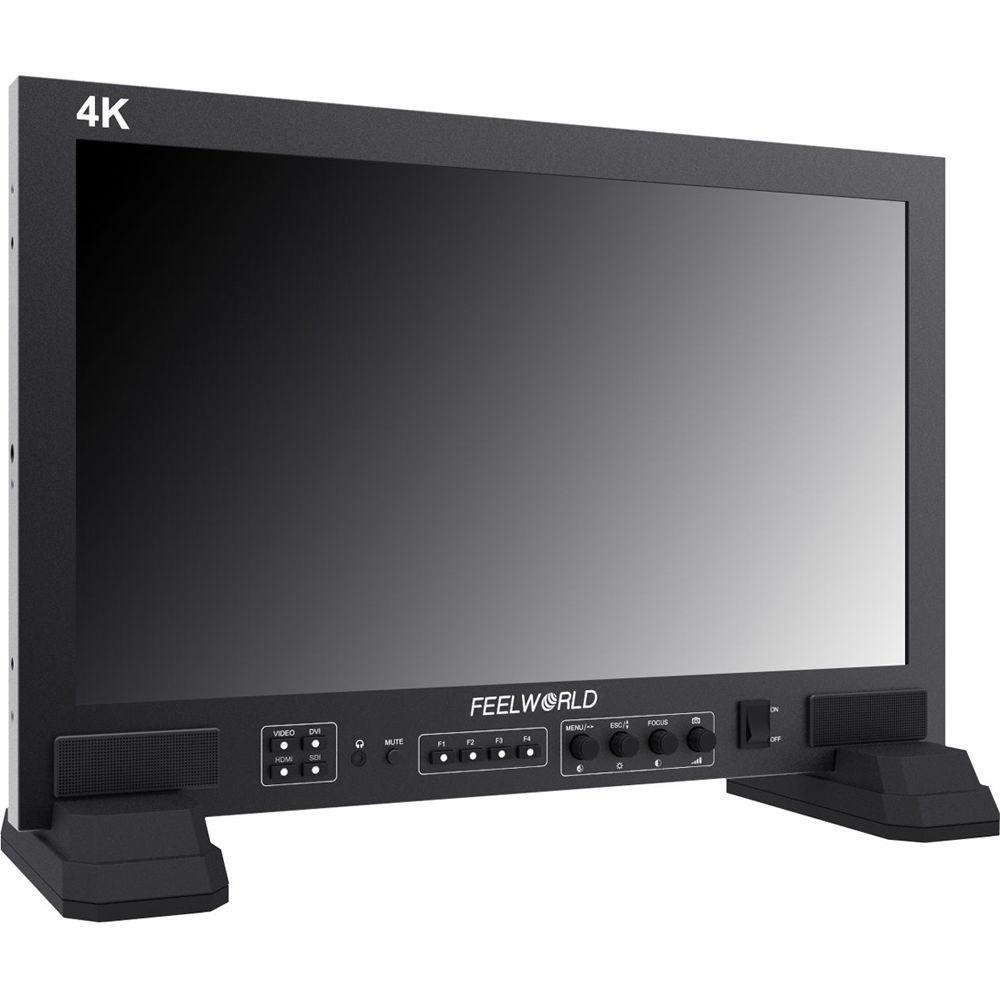

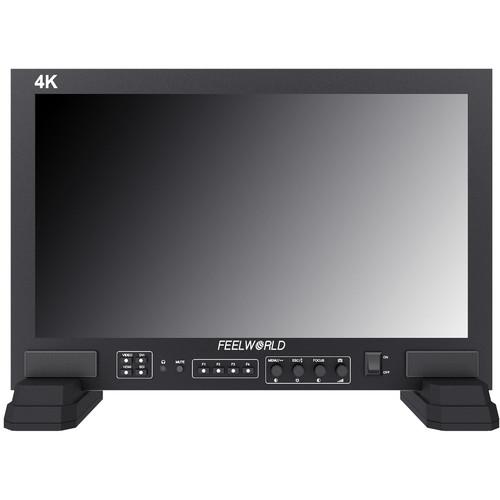

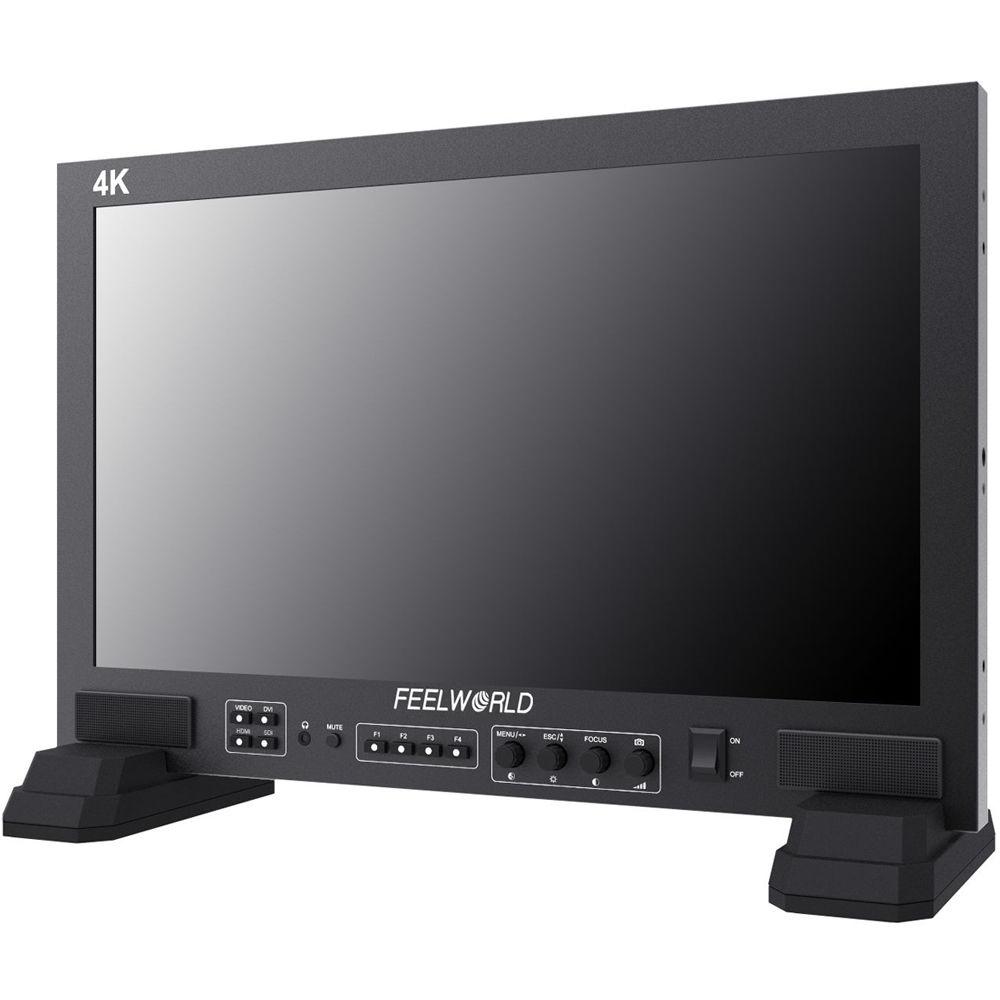

Product description The FeelWorld 17.3" Full HD Broadcast Studio Monitor features a 1920 x 1080 resolution and supports up to DCI 4K HDMI signal input and loop-through output. It can be used in-studio or taken on the road using an optional metal aviation case. It has a robust aluminum housing that provides durability in all scenarios while also allowing increased heat dissipation. Multiple power options further support the flexibility to use this display in-house or in transport. It can be battery-powered via the included V-mount plate, or powered continually via the DC and XLR ports on the rear.
The monitor offers UMD (Under Monitor Display) and Text-Tally Display, with UMD supported via RS-485 input and loop-through out. It offers multiple assist features, including peaking and pixel-to-pixel.
The other connections consist of 3G-SDI and composite inputs and outputs, and RCA audio and DVI inputs. The front panel offers signal switching and assignable function buttons, as well as rotating dials for quickly accessing the menu and other settings. There is also a headphone jack on the front and a built-in speaker. - Key Features
-
- 1920 x 1080 resolution
- Rec. 709 color standard
- Up to DCI 4K HDMI input and loop-through output
- 3G-SDI and composite input and output
- UMD and Text-Tally Display (TSL 3.1/4.0 protocol, 0-126 TSL address selection, and up to 16 letters displayed)
- UMD support via RS-485 input and output
- Optional LED tally indicators supported
- Front panel signal switch buttons and assignable function keys
- Front panel rotary encoder switches for immediate access to the menu, saturation, brightness, contrast, focus, and camera mode
- Powered via included DC adapter, 4-pin XLR port, or included V-mount battery plate (optional Gold mount plate supported)
- Built-in speaker and front panel headphone jack
- Robust machined aluminum design provides increased heat dissipation
- Optional portable aviation aluminum case supported
- Assist Features
-
- DSLR scaling
- Peaking
- Image freeze
- Check field
- Image flip (H, V, H/V)
- Center marker
- Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Camera mode
- Pixel-to-pixel (not supported with 4K input)
- Check field (red, green, blue, mono)
- Zoom-all (not supported with 4K input)
- Up/Down and Left/Right zoom (not supported with 4K input)
- Custom color temperature
UPC: 815206023599 In the Box FeelWorld 17.3" Full HD Broadcast Studio Monitor 3A DC Power Adapter V-Mount Battery Plate Mini HDMI Cable Set of Stand Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 17.3" Full HD Broadcast Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FS173-S4K Specs | | | Panel Type | IPS-Type LCD | | Display Size | 17.3" / 44.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° (80/80)
Vertical: 140° (60/80) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Dot Pitch | 0.1989 x 0.1989 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 40 ms | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (Composite) Output
1 x 3BNC (Component) Output
1 x DE-15/DB-15 (VGA) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x BNC (Composite) Input
1 x DVI-I (Dual-Link DVI) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Other I/O | 1 x RS-485 (RJ45) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
PAL
NTSC
HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 27 W (Maximum) | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Material of Construction | Aluminum | | Dimensions (W x H x D) | 17 x 11 x 1.4" / 43 x 28 x 3.6 cm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 10.35 lb | | Box Dimensions (LxWxH) | 20.8 x 16.0 x 6.1" |
