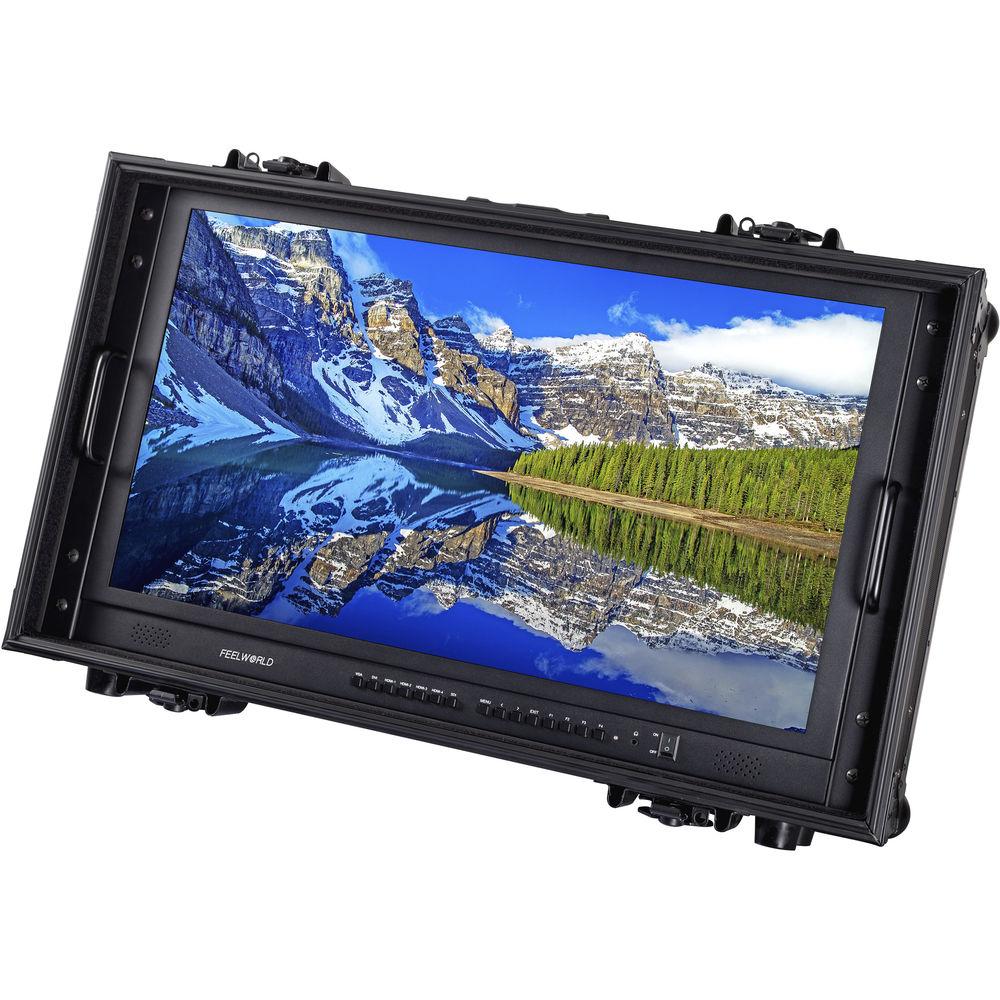

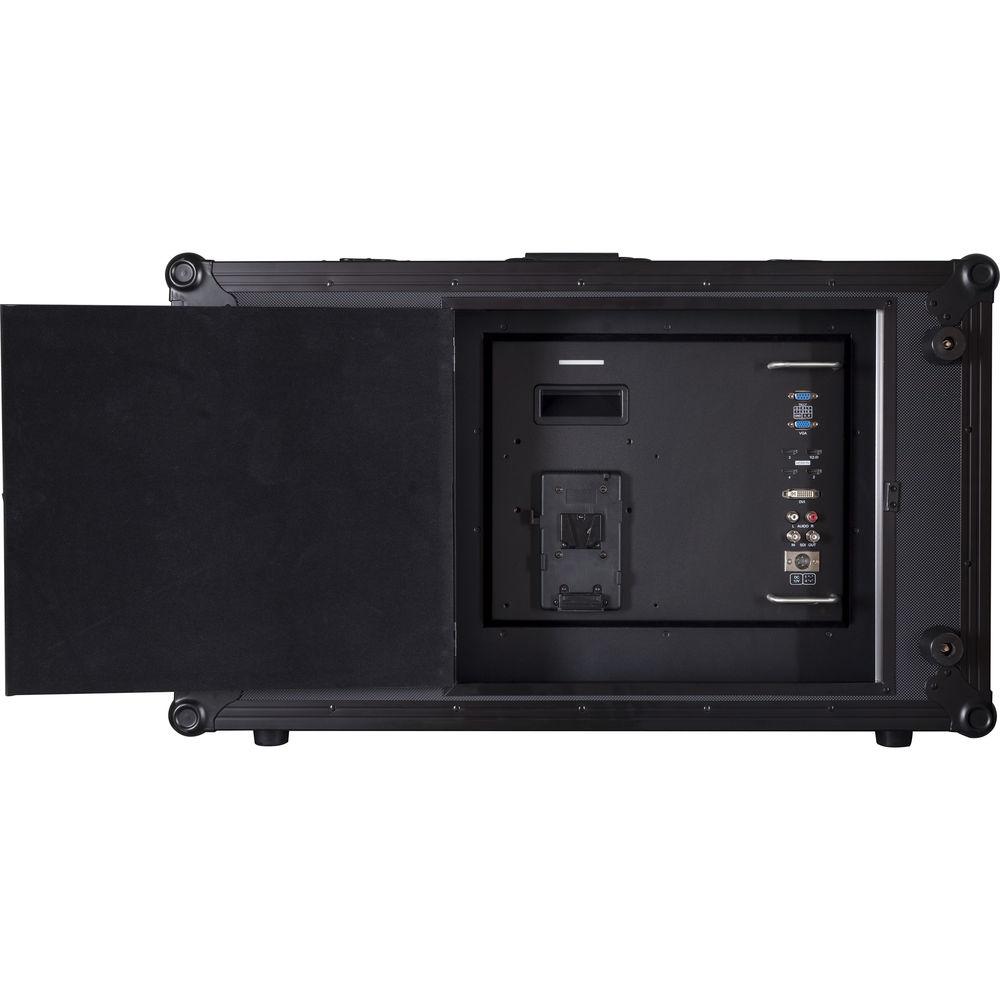

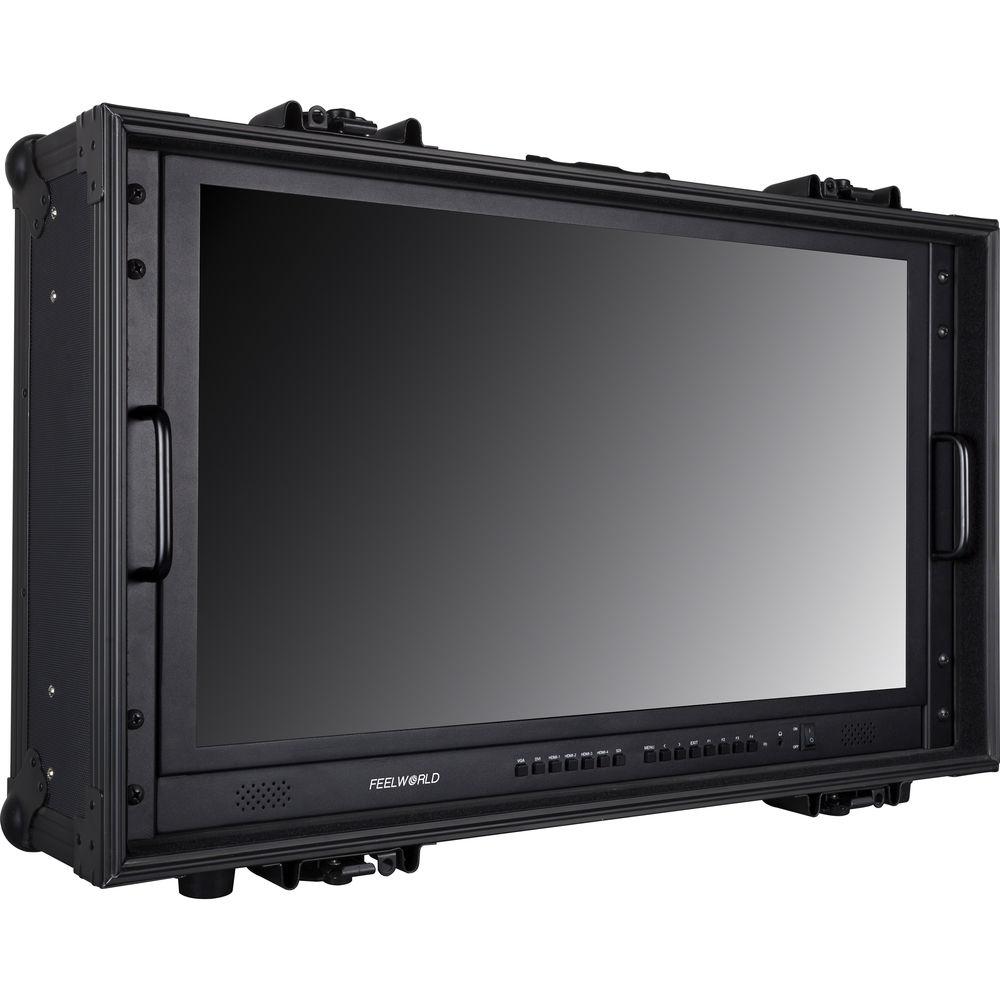

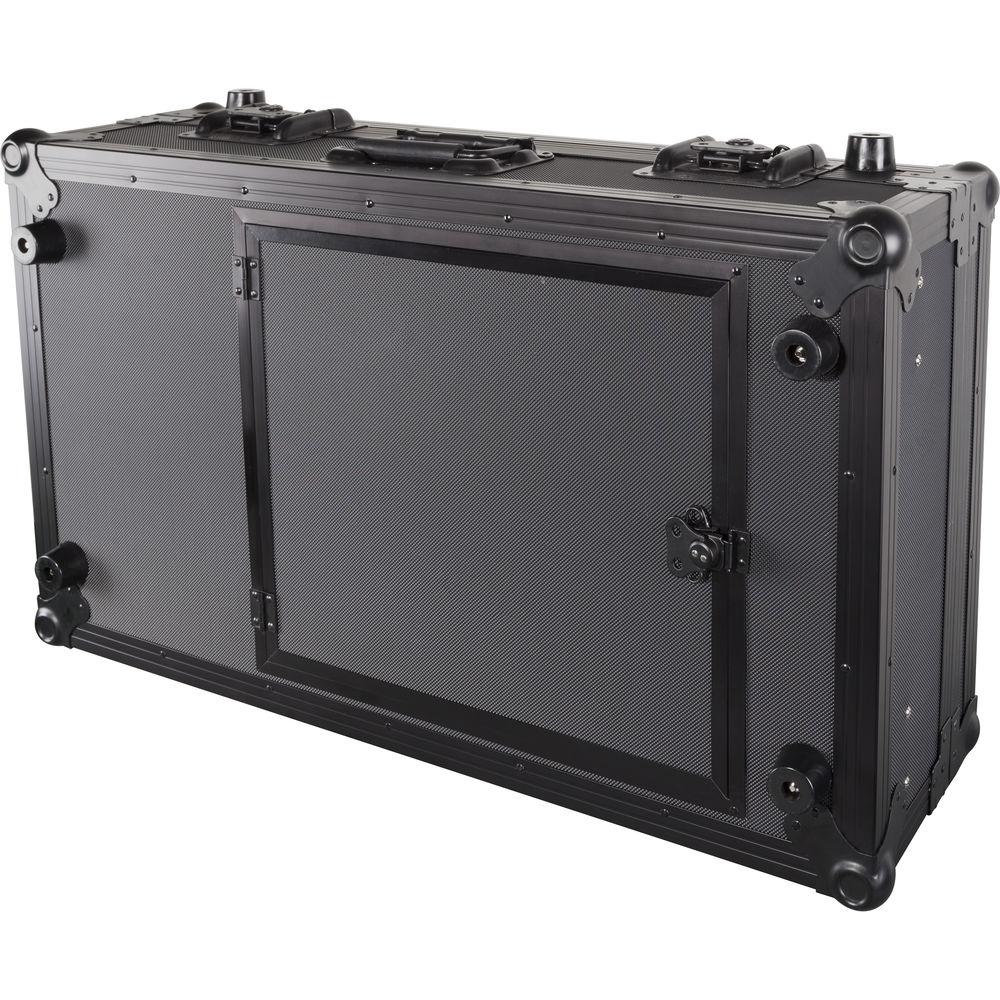

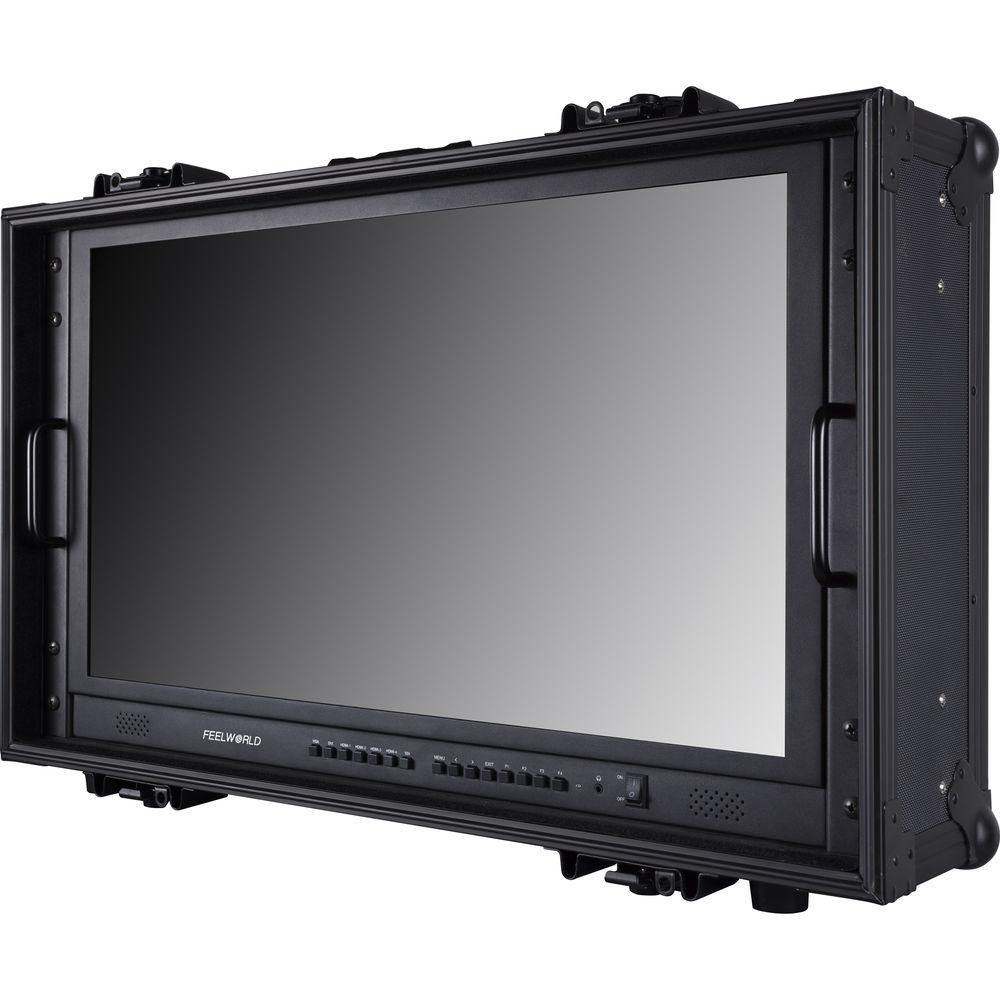

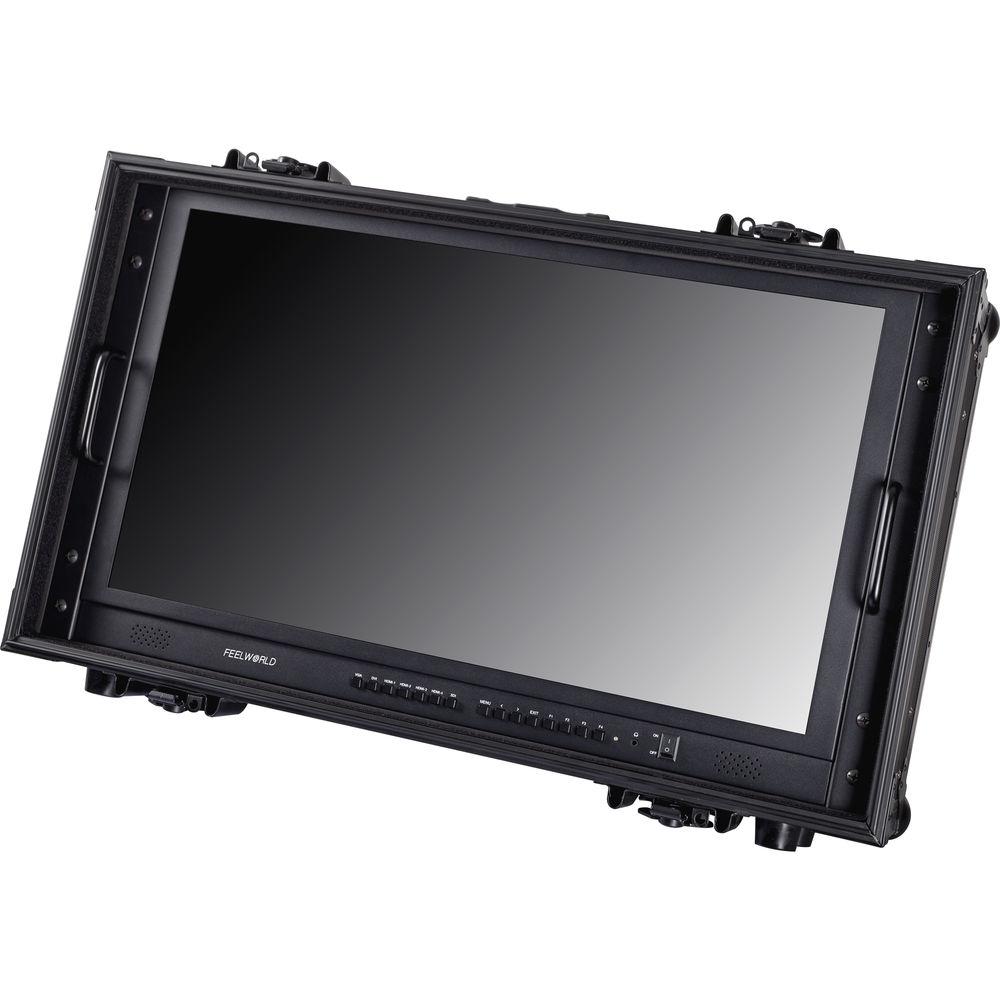

Product description See every detail in a UHD picture, pixel for pixel with this 28" 4K Carry-On Broadcast Monitor from FeelWorld. Whether pulling focus on a high-resolution production or editing UHD footage in post-production, having a native UHD display has many advantages. HD and lower resolution signals are scaled properly to fit the screen, and multiple inputs can be tiled next to each other for multiview options. The rear panel of the screen houses the inputs and a V-mount battery plate for powering in the field. Available inputs include a 3G-SDI BNC spigot and four 4K-capable HDMI inputs, one of which is HDMI v2.0 for displaying 4K footage up to 60 fps. Legacy inputs such as DVI and VGA are also available. Embedded audio or audio input to the L/R RCA ports can be monitored using the built-in speakers or the 3.5mm headphone jack. A hard case surrounds the monitor and opens on the front to reveal the display and on the rear for port and V-mount access. The included sunhood can be used to reduce glare and reflections when outdoors. - Monitoring Tools
-

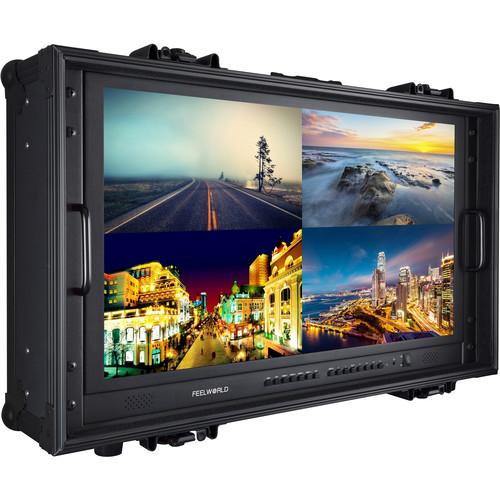

- Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking
- Overscan
- Display rotation (0°, 90°, 180°, 270°)
- R/G/B-only
- Image freeze
- Zoom
- Aspect ratio selection (full screen, 16:9, 4:3, 1:1)
- Markers (center, 80%, 85%, 90%, 93%, 96%) with color selection
- Tally Kit
- For connecting to broadcast equipment, a tally kit for custom wiring is included.
In the Box FeelWorld 28" 4K Carry-On Broadcast Monitor Sun Shade Power Supply V-Mount Battery Plate Mini HDMI Cable Tally Kit Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 28" 4K Carry-On Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWP280-9HSD-4K-CO Specs | Screen Size | 28" / 71 cm | | Color Depth | 10-bit (1.7 billion colors) | | Resolution | 3840 x 2160 pixels | | Pixel Pitch (H x V) | 0.16 x 0.16 mm | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m² | | Contrast Ratio | 1000:1 | | Backlight | LED | | Viewing Angle (H x V) | 170° / 160° | | Input | 1 x HDMI Type A, v2.0
3 x HDMI Type A, v1.4
1 x BNC, 3G/HD/SD-SDI
1 x DVI
1 x VGA
2 x L/R audio (RCA)
1 x Tally | | Output | 1 x BNC, SDI | | Audio Out | Stereo headphone
Internal speaker (stereo) | | SDI Format Support | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | HDMI Format Support | 4K
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | Input Voltage | 13 to 18 VDC | | Power Consumption | 45 W | | Working Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (L x H x D) | 28.8 x 16.1 x 1.5" / 73.1 x 41 x 3.9 cm without suitcase
33.1 x 16.9 x 10.6" / 84 x 43 x 27 cm) with suitcase | | Weight | 41.4 lb / 18.8 kg with suitcase | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 32.5 x 20.0 x 12.5" |
