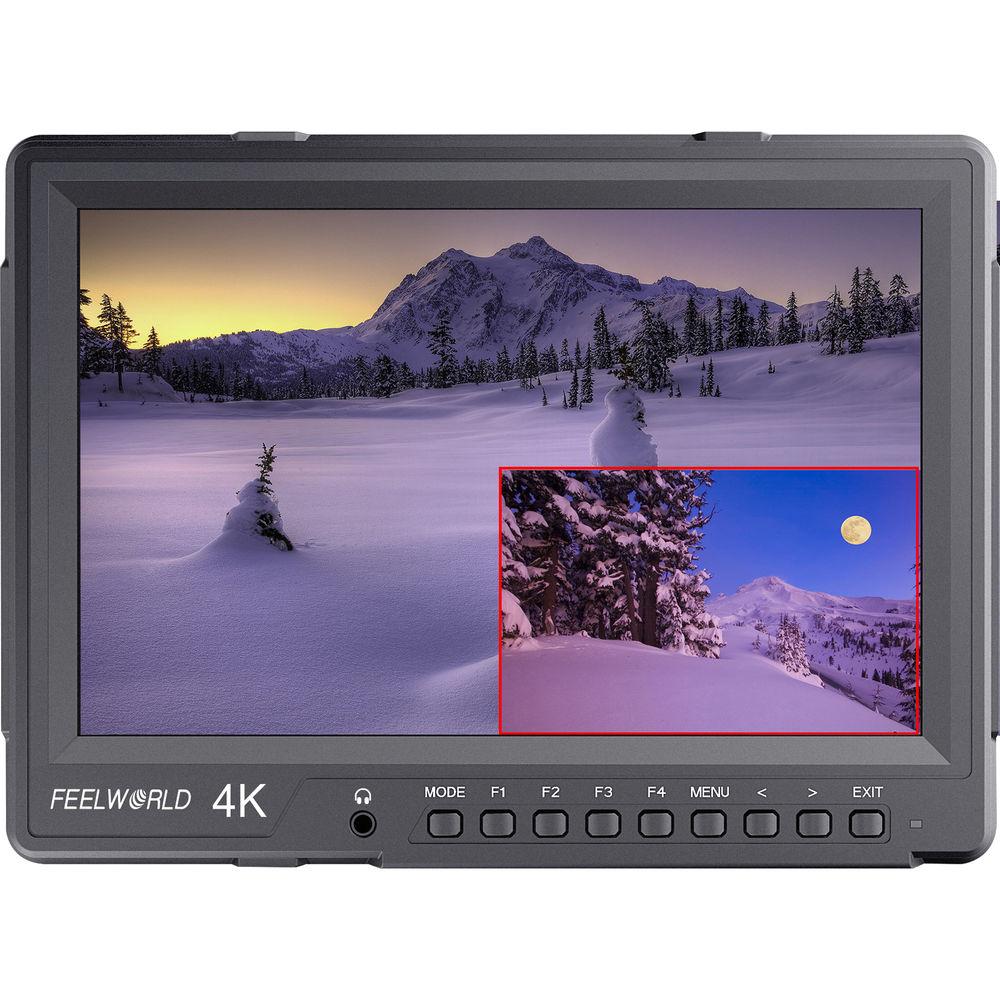

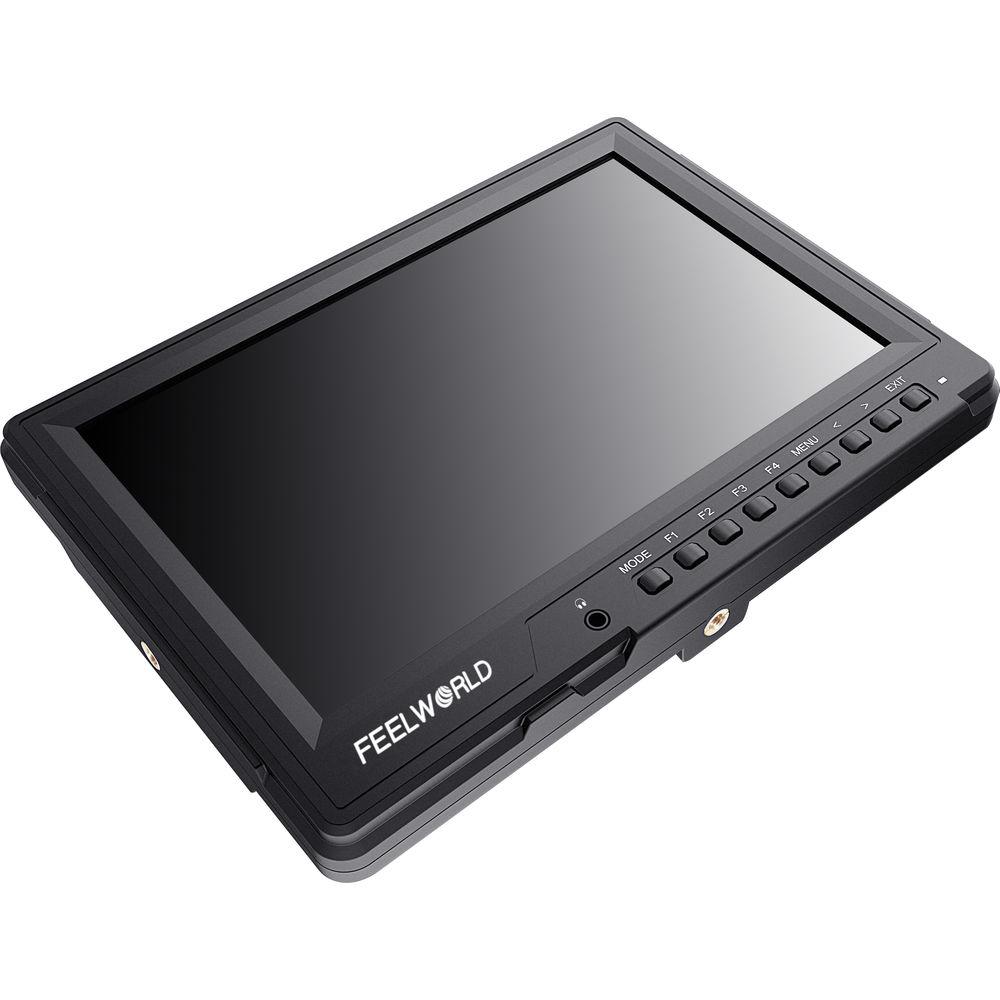

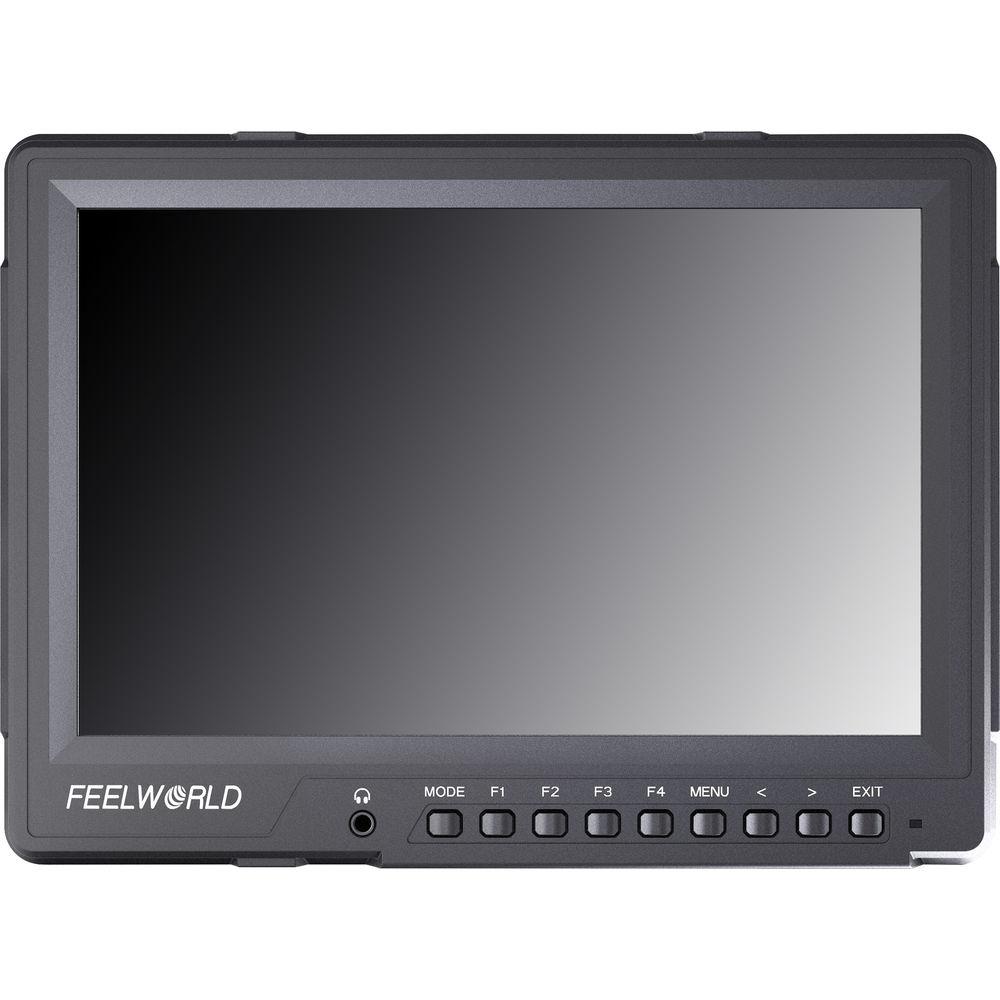

Product description The FeelWorld 4K101HSD-256 10.1" Broadcast Monitor features a large 10.1" high-resolution 2560 x 1600 IPS LCD panel. Signals up to UHD 4K in resolution are supported using the HDMI 2.0 input. A single SDI input for SD or HD sources is available as well. Both inputs can be displayed simultaneously, so this monitor could work very well in a multi-camera production environment. Essential monitoring tools such as focus peaking, pixel-to-pixel mapping, markers, and more are built right in. A Mini HDMI to HDMI cable, sun hood, NP-F battery plate, mounting bracket, and tally connection kit are included. Monitoring Tools - Quad split display (1P, 2P LR, 2P TB, 2P PiP)
- Display rotate (0°, 90°, 180°, 270°)
- Check field (red, green, blue, mono)
- Screen marker (80%, 85%, 90%, 93%, 96%)
- Built-in LED tally indicators (red, green, yellow)
UPC: 815206022875 In the Box FeelWorld 4K101HSD-256 10.1" Broadcast Monitor Mini HDMI to HDMI Cable Sun Hood Shoe Mount Tally Kit NP-F Battery Plate Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 4K101HSD-256 10.1" Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld 4K101HSD-256 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 10.1" / 25.7 cm | | Screen Resolution | 2560 x 1600 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)

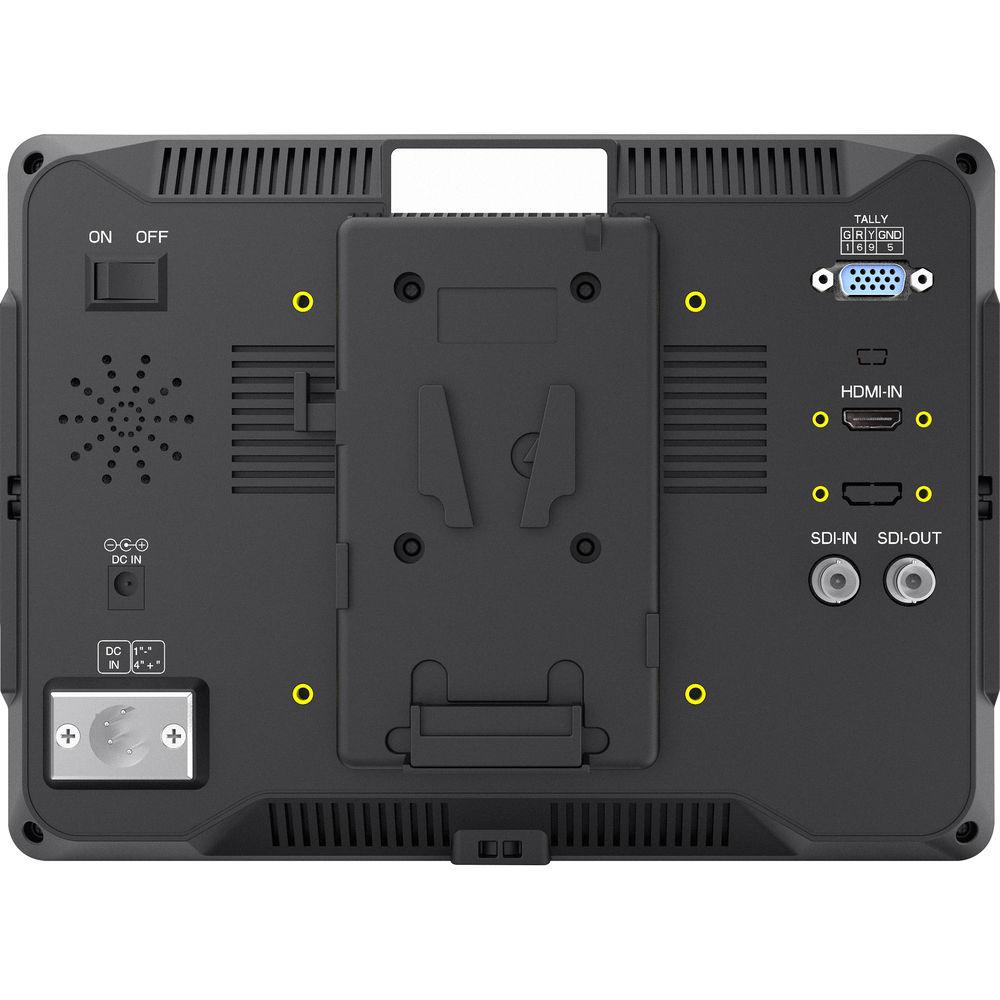

Vertical: 178° (89/89) | | Maximum Brightness | 370 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.0423 x 0.0423 mm | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 4 x HDMI Type A (HDMI 2.0) Input
1 x BNC (SDI) Input
1 x BNC (SDI) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Other I/O | 1 x Tally (DE-9/DB-9) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL
HDMI
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | | | DC Input Power | 9 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 12 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 10.1 x 7.5 x 1.4" / 25.8 x 19 x 3.6 cm | | Weight | 1.5 lb / 680 g
1.6 lb / 710 g, Including Battery Plate | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 12.0 x 10.6 x 3.4" |
