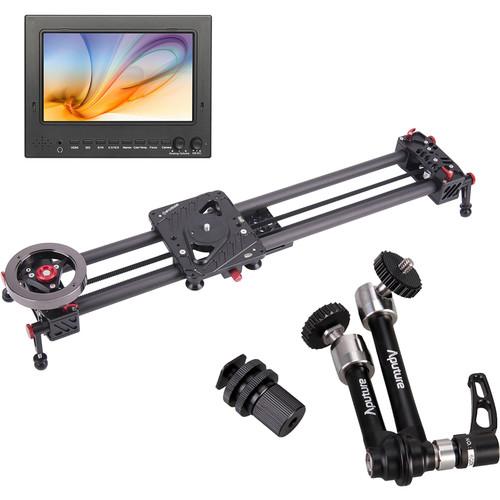

FeelWorld 7" 3G-SDI HDMI Monitor with

User Manual for FeelWorld 7" 3G-SDI HDMI Monitor with Carbon Fiber Shark Slider & Magic Arm Kit

• Product category: Camera Sliders FeelWorld
• Brand: FeelWorld
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FeelWorld Camera Sliders

Product description

• FeelWorld 7" IPS Lightweight 3G-SDI HDMI Field Monitor with Peaking & Sunshade The 7" IPS Lightweight 3G-SDI HDMI Field Monitor with Peaking & Sunshade from FeelWorld features IPS technology, for both accurate color rendering and a wider viewing angle. It supports resolutions up to 1024 x 600 and offers a contrast ratio of 800:1. The ST702-HSD provides both 3G-SDI and HDMI signal loop-through ports, along with a 3.5mm mini headphone jack.The monitor supports peaking function for focusing assist, highlighting image edges in red. The pixel-to-pixel enables the filmmaker to check the image from the 1:1 signal source without scaling. In Blue mode, only the blue pixels are used to generate the image, allowing hue and saturation to be adjusted quickly and accurately. The setting knob and six shortcut keys make monitor settings adjustment a quick and easy process.
  • Wide viewing angle of 85° U/D, L/R
  • Wide color gamut LCD panel ensures precise color representation
  • Double-function knobs
  • Extended screen hood prevents light from affecting the display in almost all environments
  • Supports camera mode and check field
  • Supports center and screen markers
  • Supports color temperature and image adjustment (4:3 and 16:9)
  • Supports image flipping and freezing
• iFootage Carbon Fiber Shark Slider S1 (31") The iFootage Carbon Fiber Shark Slider S1 is a modular slider measuring 31" end-to-end and featuring a 25" sliding length. It supports up to 15 lb loads and offers smooth movement thanks to long-lasting silent bearings imported from Japan, synchronous belts, and a flywheel that adds inertia.

  The carbon fiber tubes provide for better corrosion resistance than aluminum and also allow the Shark Slider to save on weight. Additional iFootage carbon fiber extension tubes are also available for purchase and can give you a maximum sliding range of 70" when attached to the existing ones. This provides the option for growth for whenever your production needs to expand.

  The flywheel adds a damping effect to your slides, ensuring smooth acceleration/deceleration as opposed to jerky starts and stops. The flywheel achieves this through its centrifugal force while the slider belt is connected to it.

  All the components of the Shark Slider S1 can be detached from one another without any tools and packed separately. Most times this capability will be of no use to you but sometimes it might prove a lifesaver of a convenience. Among these components are the end pieces of the slider, which have adjustable feet that spread out in triangular form. This type of positioning adds extra stability to the slider. The mounting plate at the bottom of the sliding carriage is also designed with stability in mind. It's screwed into the carriage at four corners to minimize vibration when the slider is mounted on a tripod.

  Additional components available for purchase include the S1A1 and S1A3 Wireless Motion Controllers, and the Motion X2 which provides 360° camera movement.
  Key Features
  • • Modular carbon fiber slider with a flywheel
    • 31" Length end to end
    • 25" Sliding length
    • Lightweight, corrosion-resistant carbon fiber tubes
    • 15 lb Payload
    • Long-lasting silent bearings imported from Japan
    • Synchronous belts
    • Flywheel adds a damping effect that ensures smooth acceleration/deceleration
    • Two bubble levels
    • Three-wheel locking system
    • Optional extension tubes are available that bring the total length to approximately 6 ft
    • Optional motion controllers and other components are also available
• Aputure Aputure a10 Articulating Magic Arm (10") Utilizing a rosette design instead of flat-surface friction, the Aputure a10 Articulating Magic Arm can hold heavy accessories without buckling or shifting. The arm tightens by way of a large comfortable lever that is easy to grip. Each 1/4"-20 nut on the ends of the arm are flanked by ridged grips for secure fitting. A CNC aluminum design is strong enough to survive the rigors of shooting and offers a sleek finish. The included shoe-mount can be affixed to one end for mounting accessories atop a DSLR or mirrorless camera.

• 7" IPS Lightweight 3G-SDI HDMI Field Monitor with Peaking & Sunshade yqtsyvfycdbrsqxxyffvad
• Mini HDMI Cable
• Sun Shade
• Hot Shoe Mount
• L-Series Type Battery Plate
• Limited 1-Year Warranty

• iFootage - Carbon Fiber Shark Slider S1 (31") yqtsyvfycdbrsqxxyffvad

• Aputure - Aputure a10 Articulating Magic Arm (10")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FeelWorld 7" IPS Lightweight 3G-SDI HDMI Field Monitor with Peaking & Sunshade

  Resolution	1024 x 600 pixels
  Dot Pitch	H x V: 0.05 x 0.15 mm
  Aspect Ratio	16:9
  Brightness	600 cd/m²
  Contrast	800:1
  Viewing Angle	85°/85°(L/R) 85°/85°(U/D)
  Backlight	LED

  SDI	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576i 480i
  HDMI	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576p / 576i 480p / 480i

  Input	1 x SDI 1 x HDMI
  Output	1 x SDI 1 x HDMI

  Audio	1 x Speaker 1 x Earphone slot
  Input Voltage	6 to 24 VDC
  Power Consumption	≤ 9 W
  Working Temperature	-4 to 122°F (-20 to 50°C)
  Storage Temperature	-22 to 149°F (-30 to 65°C)
  Threads	1/4"-20 thread socket on all four sides
  Dimensions	7.6 x 5.8 x 1.1" (19.4 x 14.8 x 2.9 cm), without sunshade 7.6 x 5.9 x 2.4" (19.4 x 15.0 x 6.2 cm), with sunshade
  Weight	18 oz (512 g), with battery plate 23.5 oz (669 g), with battery plate and sunshade

  Box Dimensions (LxWxH)	11.45 x 7.6 x 3.4"

• iFootage Carbon Fiber Shark Slider S1 (31")

  Load Capacity	15 lb / 6.8 kg
  Travel Distance	25" / 64 cm

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	1/4"-20 Female Thread 3/8"-16 Female Thread

  Diameter	0.87" / 22 mm
  Material	Carbon Fiber

  Body Material	Aluminum
  Track Length	31" / 79 cm
  Weight	6.6 lb / 3 kg

  Box Dimensions (LxWxH)	32.5 x 8.0 x 6.0"

• Aputure Aputure a10 Articulating Magic Arm (10")

  Length

  10" / 25 cm

  Box Dimensions (LxWxH)	8.55 x 5.85 x 1.6"
