Product description

1280 x 800 IPS HD Panel
• The Z7's 7" 1280 x 800 IPS HD panel delivers near-perfect viewing angles outputting clear shots on the field.

Built-in HDMI to SDI Conversion
• The build-in conversion is used to broadcast and deliver the HDMI camera video. It's same format conversion and supports 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) HDMI formats.

Video Analysis Assistant Pattern
• The Z7 supports waveform display under both SDI and HDMI, including RGB, YUV, Y channels. The vectorscope and R/G/B histogram can be switched on/off independently to the waveform, and support All scope mode.

Waveform Function
• The function assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope
• Vectorscope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Color Histogram
• Color histogram is a graphical display of the distribution of tones, shows the red, green and blue channels in overlay histogram. This function is suitable for HD-SDI and HDMI signal monitoring.

All Scopes Mode
• This mode shrinks your video image to approximately the size of a 7" display and tiles your choice of vectorscope, histogram, and waveform on the border of your video.

Brightness Histogram
• The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.

Embedded Audio Monitoring
• The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green by default. It will turn yellow when exceeds -20 dB and turn red when exceeds -9 dB.

Peaking Focus Assist
• The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch and put a line color between red, green, blue, and white according to a different tone of the subject. Peaking focus assist has High-low level to adjust, and is also available during video zoom-in.

False Color
• The False Color filter is used to aid in the setting of camera exposure. As the camera's Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure
• The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas.

Check Field
• Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue, or mono pixels to generate the image because hue and saturation can be adjusted more quickly and accurately in this environment.

Internal Colorbar
• Internal colorbar allows you to analyze the monitor image's color, adjust tone & brightness, and more.

Pixel to Pixel
• Pixel to Pixel enables you to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

Anamorphic Mode
• Built-in selection of no squeeze, 1.3x or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2x mag mode magnifies the center of your image so you can check the focus of your scaled image.

Center & Safe Marker
• You can switch the Mark color between red, green, blue, white, black, and gray according to a different tone of the subject. The monitor features six colors for option (red, green, blue, white, black, gray).

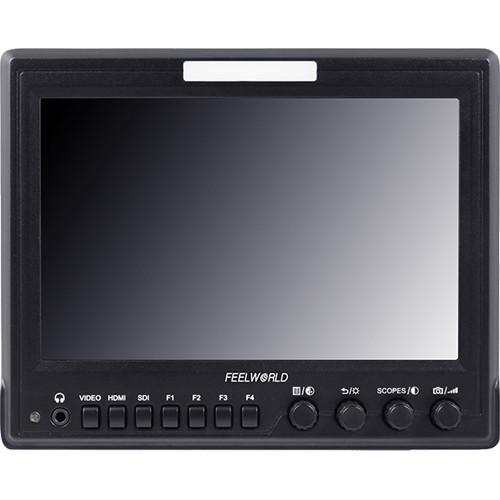

3-Color Tally Light

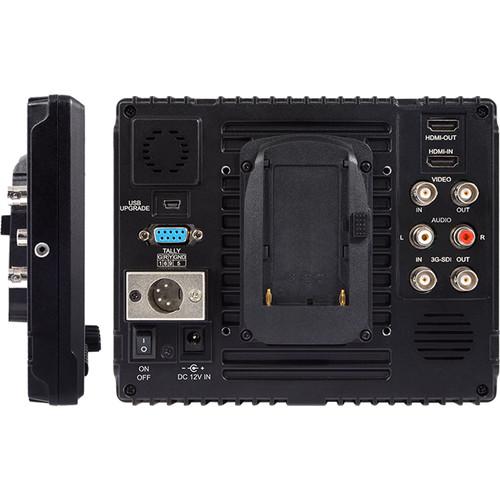

• The monitor features front TALLY lights with 3-color display (red, green, yellow). It can be controlled via DB-9 ports on the rear panel.

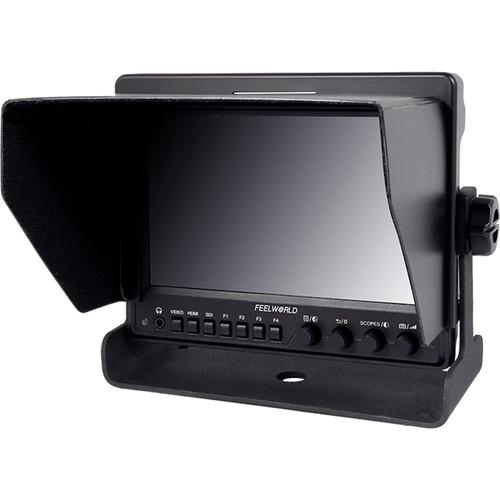

Durable Aluminum Construction
• The Z7's frame is constructed with heavy-duty aluminum. Its durable chassis protects the monitor from the elements and unpredictable weather, ensuring monitor's reliability and longevity.

Other Features
• • Squared segmentation
  • Camera mode
  • Scan mode
  • Real time video zoom-in (standard, 4x, 9x,16x)
  • Image flip (horizontal, vertical, HV)
  • Image freeze
