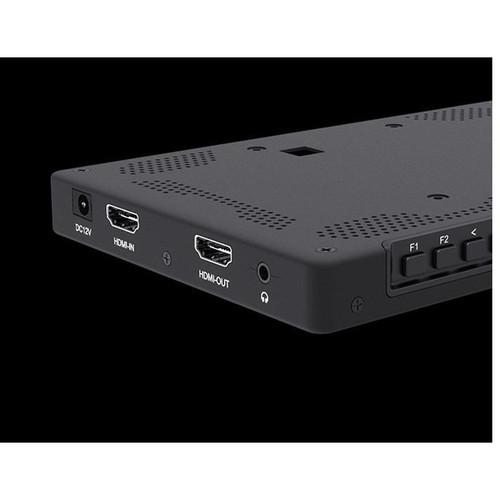

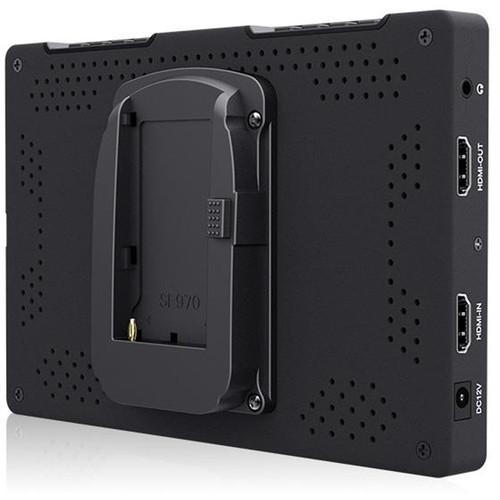

Product description The 7" IPS 4K HDMI On-Camera Aluminum Monitor from FeelWorld features a native display resolution of 1920 x 1200. It can display signals without scaling, while it scales higher and lower resolution content to fit the screen. The IPS screen allows for off-axis viewing of 80° up/down/left/right, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1. The monitor incorporates an HDMI input and output. The T7 features useful functions into its small size including peaking, zoom, pixel mapping, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI to HDMI cable, sunshade, shoe mount adapter, and L-series type battery plate. - Key Features
-
- Full HD 1920 x 1200 resolution
- Aircraft grade aluminum construction
- IPS panel with 160° wide-viewing angle
- Histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure
- Nine grid
- Embedded audio meter
- Camera mode
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all
- U/D and L/R zoom
- Color temperature adjustment
UPC: 815206023254 In the Box FeelWorld 7" IPS 4K HDMI On-Camera Aluminum Monitor Sunshade Mini HDMI Cable Shoe Mount Adapter L-Series Battery Plate Limited 1-Year Warranty Guides & Manuals svrvasvwbczzeevdesczadcfsxrcrddsufyw Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 7" IPS 4K HDMI On-Camera Aluminum Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWT7 Specs | Screen Size | 7" / 17.7 cm | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.07875 x 0.07875 mm | | Aspect Ratio | 16:10 | | Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Backlight | LED | | Viewing Angle | 80°/80° (L/R)
80°/80° (U/D) | | Input | 1 x HDMI | | Output | 1 x HDMI | | Audio Out | 3.5 mm stereo headphone jack
Speaker | | HDMI Format Support | 4096 x 2160p: 24
3840 x 2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576p/576i
480p/480i | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤8 W | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Mounting Thread | 1/4"-20 thread socket (top, bottom) | | Battery Plate | L-series type | | Dimensions | 7.1 x 4.7 x 0.7" / 180 x 120 x 18 mm | | Weight | 11.3 oz / 320 g (without battery plate)
12.3 oz / 350 g (with battery plate) | | | | Package Weight | 1.895 lb | | Box Dimensions (LxWxH) | 8.1 x 5.8 x 3.6" |
