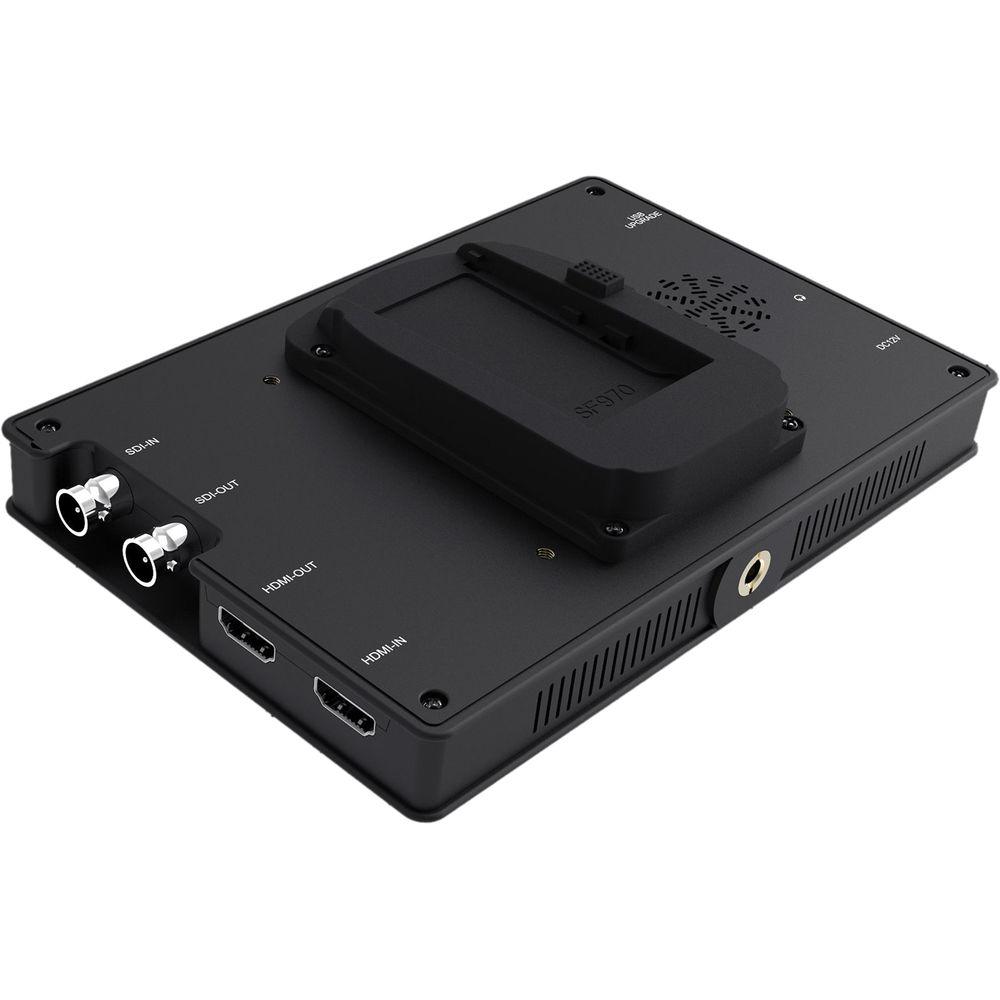

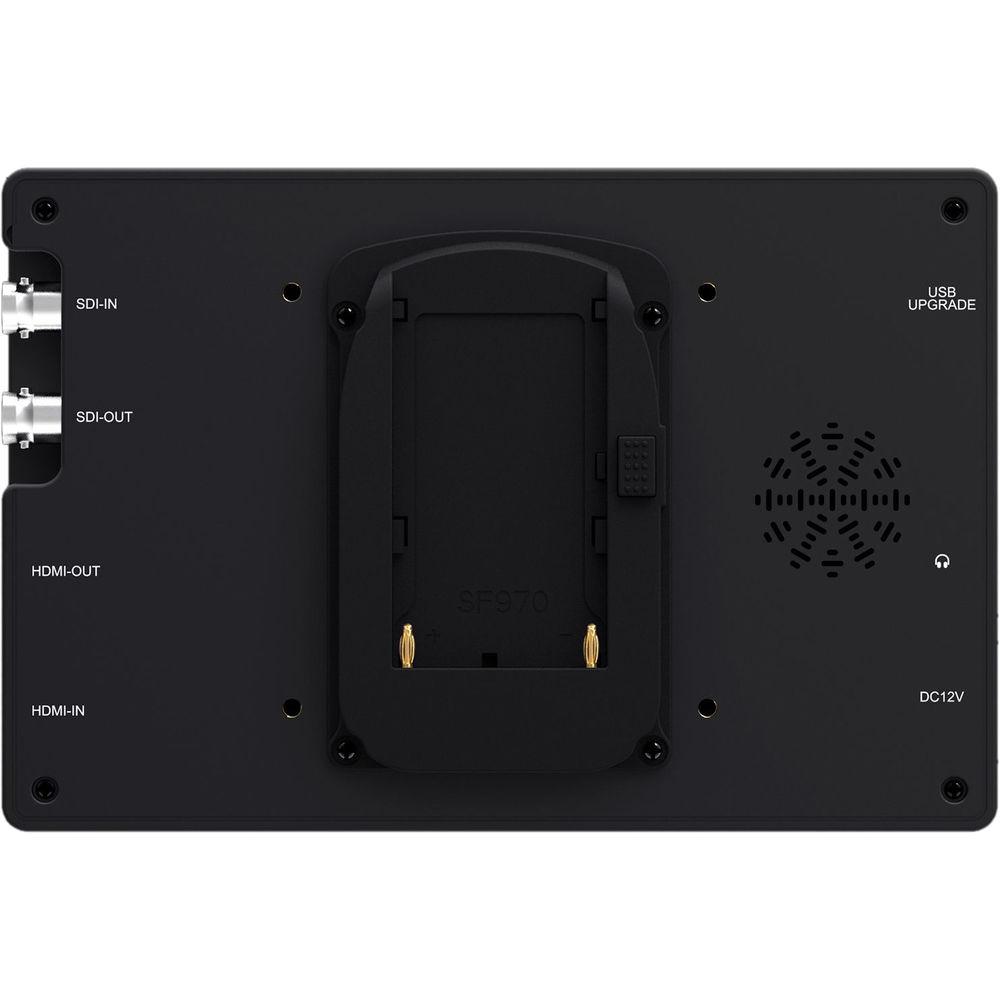

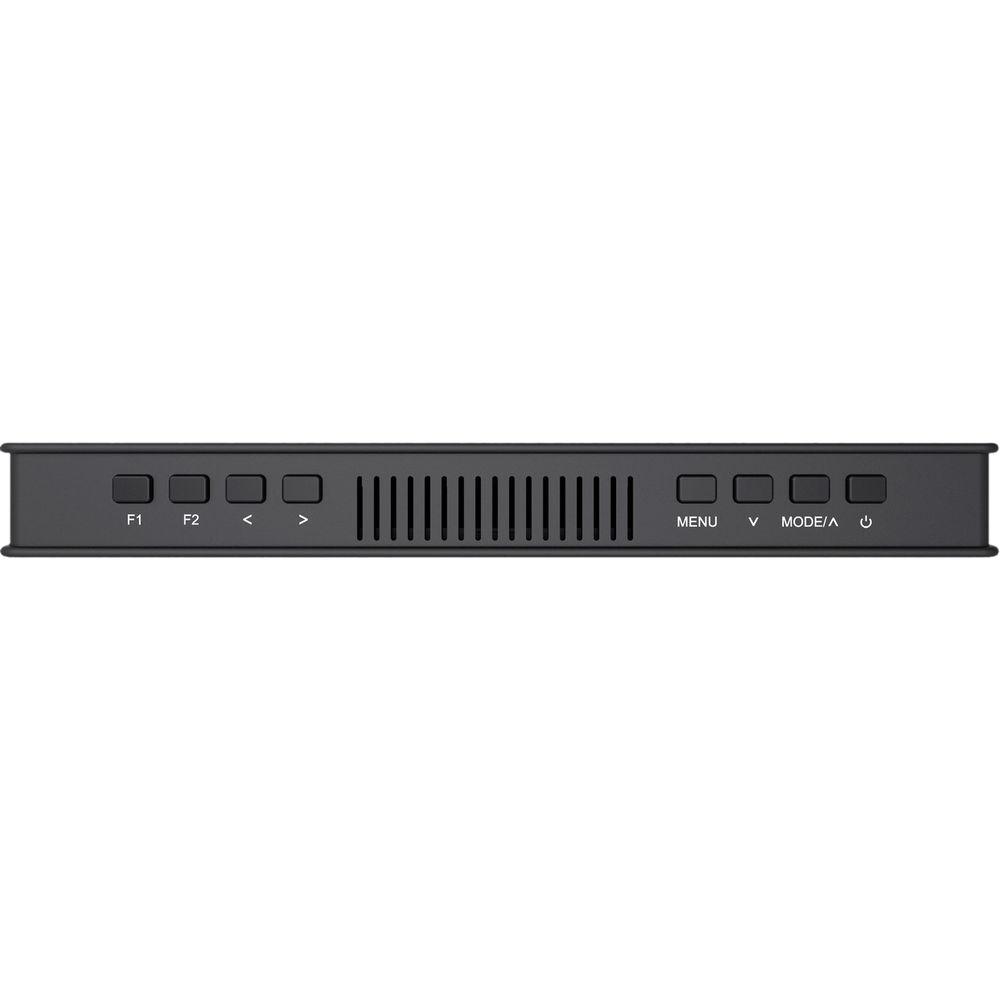

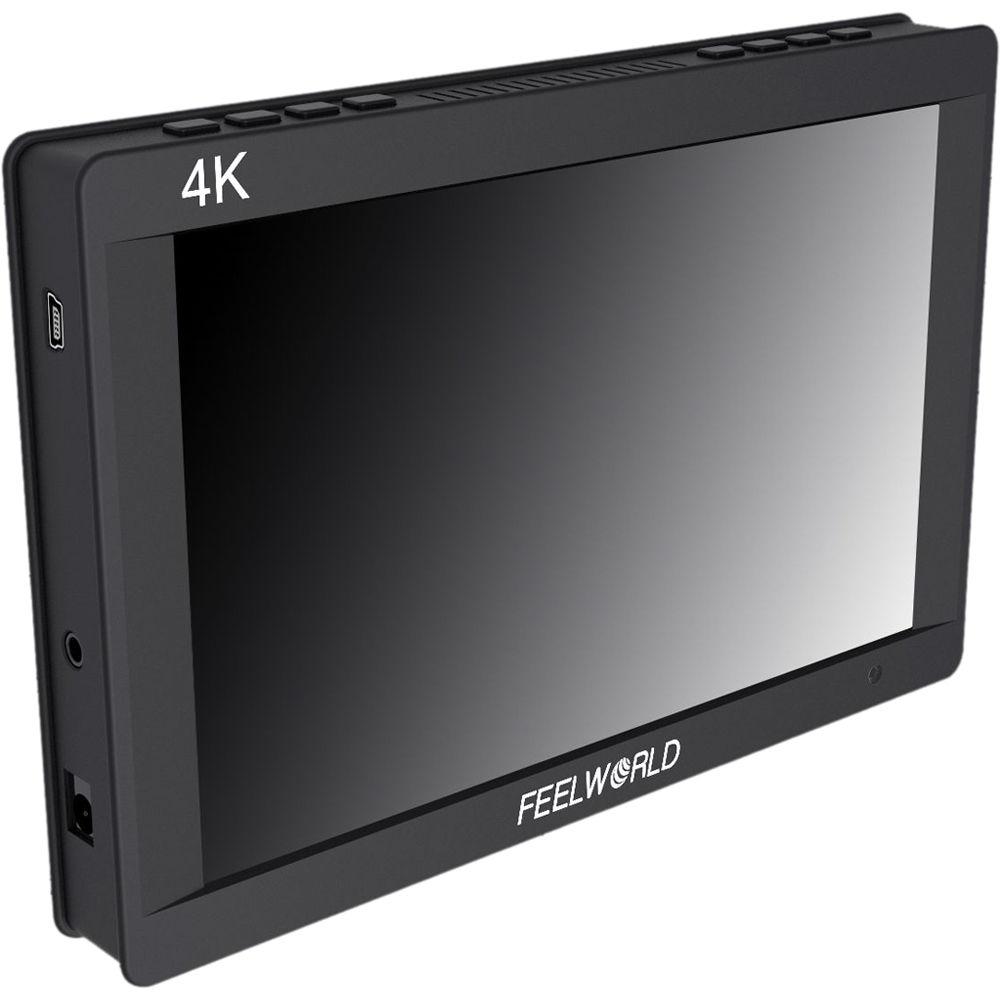

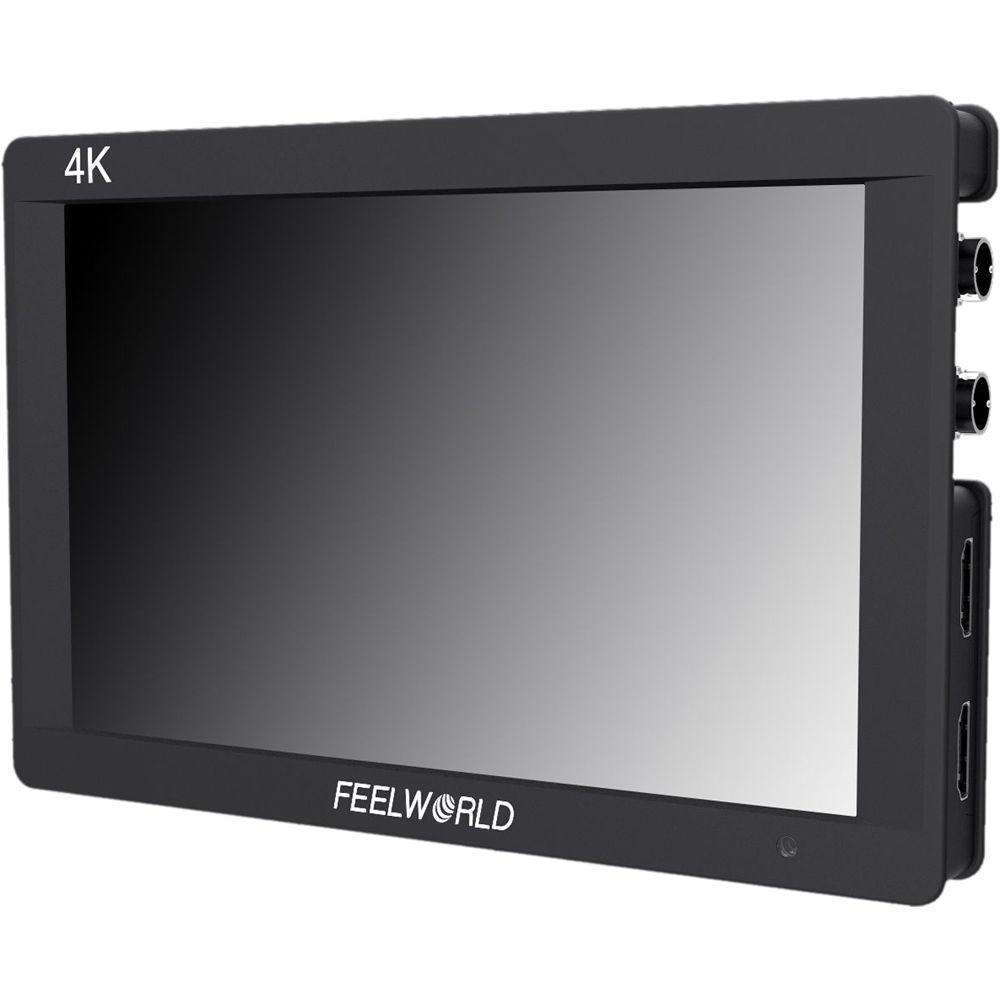

Product description The 7" IPS 4K On-Camera HDMI & HD-SDI Monitor from FeelWorld features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and a 450 cd/m2 measured brightness for easy viewing indoors. On the right edge of the monitor you'll find HDMI and HD-SDI input/output connections, and on the left edge a headphone jack. A 1/4"-20 thread for securing the monitor to the included shoe mount or to an optional articulating arm can be found at the monitor's base. The back of the monitor hosts the included L-series type battery plate, which will readily accept widely available L-series batteries. Various monitoring tools are built into the F7S including a histogram, false color, zebra stripes, peaking, and framing markers. - Key Features
-
- Histogram
- Focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Embedded audio
- Camera mode
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
UPC: 815206023001 In the Box FeelWorld 7" IPS 4K On-Camera HDMI & HD-SDI Monitor HDMI to Mini HDMI Cable Hot Shoe Mount L-Series Type Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld 7" IPS 4K On-Camera HDMI & HD-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWF7S Specs | Screen Size | 7" / 18 cm IPS | | Resolution | 1920 x 1200 | | Display Colors | 16.7 million colors (8-bit) | | Dot Pitch | 0.07875 x 0.07875 mm | | Aspect Ratio | 16:10 | | Brightness | 450 cd/m2 | | Contrast | 1200:1 | | Backlight | LED | | Response Time | 27 ms | | Viewing Angle | 80°/80°(L/R)
80°/80°(U/D) | | Inputs | 1 x HD-SDI
1 x HDMI | | Outputs | 1 x HD-SDI
1 x HDMI
1 x 3.5 mm stereo headphone jack | | Supported Video Formats | SDI
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29/30/50/59.94/60
576i
480i
HDMI (In/Out)
4096 x 2160p 24 Hz
3840 x 2160p 23.98/24/25/29.97/30 Hz
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29/30/50/59.94/60
576p/i
480p/i | | Audio | Headphone jack
Built-in speaker | | Power Consumption | ≤9 W | | Input Voltage | 6.5 to 24 VDC | | Power Connector | DC | | Battery Plate | L-series type (standard)
D28S/D54, LP-E6, BP-U60 (optional) | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Threaded Mounting Hole | 1/4"-20 thread socket (bottom) | | Dimensions | 7.1 x 4.7 x 0.7" / 18 x 12 x 2 cm | | Weight | 15.6 oz / 445 g (without battery plate)
16.7 oz / 475 g (with battery plate) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 3.1" |
