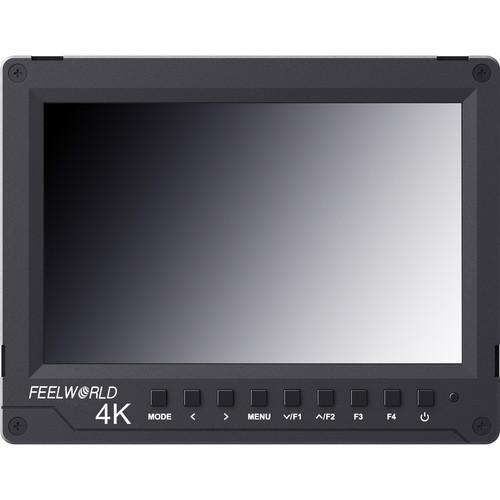

User Manual for FeelWorld A737 7" On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld A737 7" On-Camera Monitor
- Product category: On Camera Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld On Camera Monitors
 |
User manual for the FeelWorld A737 7" On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|

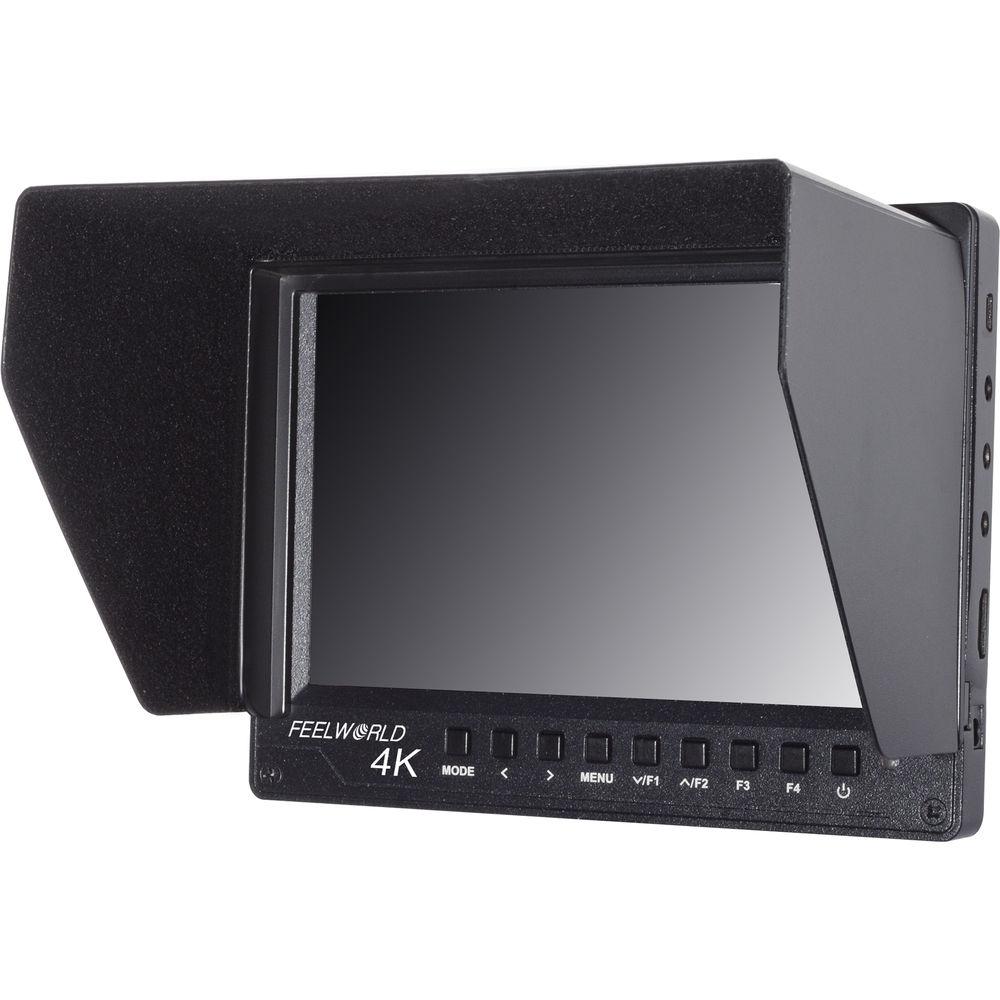

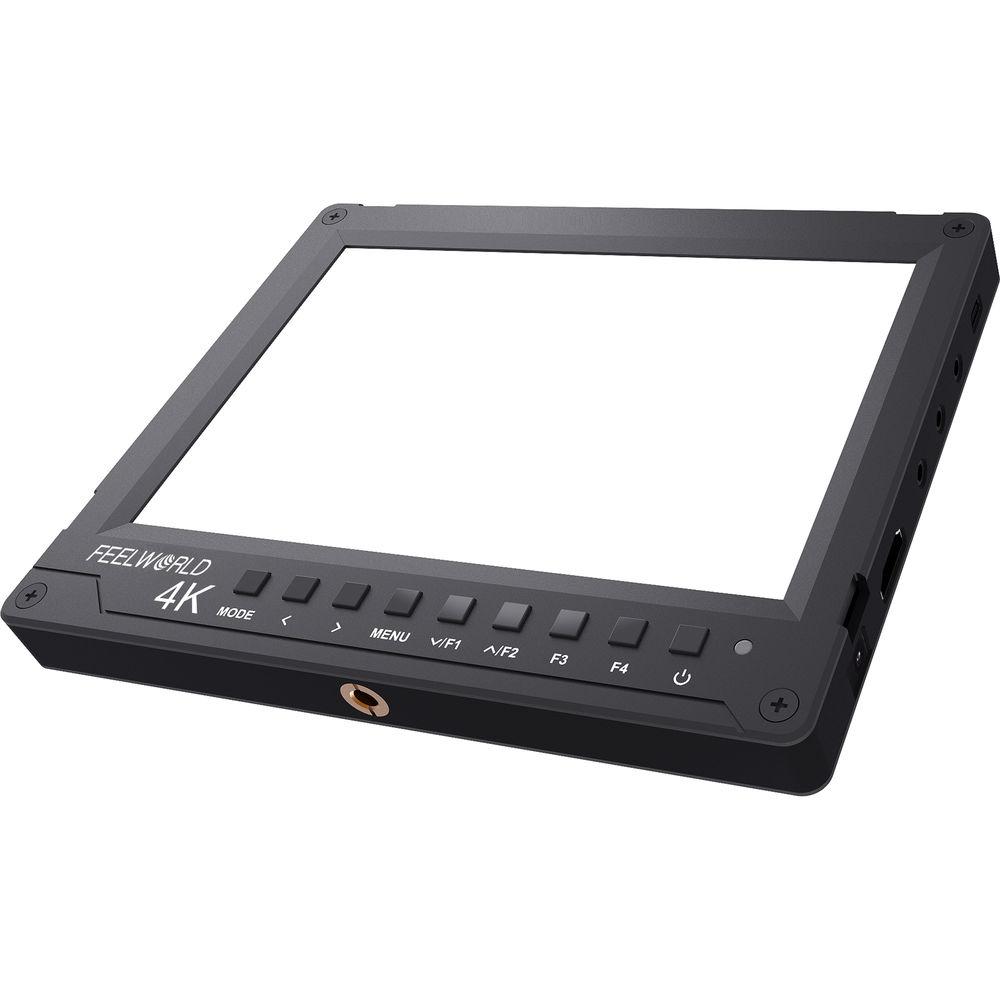

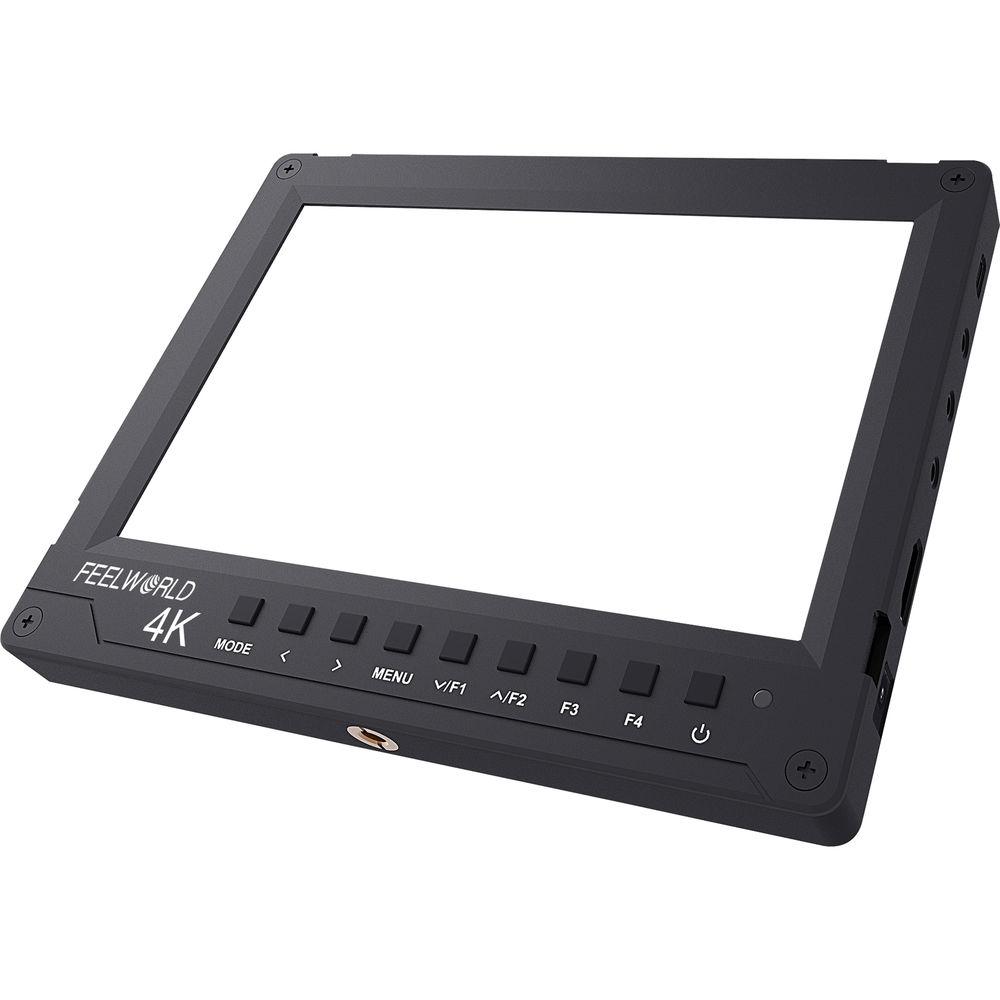

Product description The slim FeelWorld A737 7" On-Camera Monitor is a lightweight, yet robustly built, on-camera monitor that can accept UHD and DCI 4K video signals over its HDMI input. The screen has a 1920 x 1200 resolution for checking framing and focus of high-resolution video. Built-in monitoring tools such as focus peaking, zoom, and 1:1 pixel mapping help with critical focus, while other tools including false color, histogram, and zebra allow you to ensure proper exposure. In the box, a Mini HDMI to HDMI cable is included, along with a cable lock, sunshade, shoe mount, and L-Series battery plate. Whether you want to monitor images off a camcorder or 4K-capable mirrorless camera, the A737 will display your images. Monitoring Tools - Embedded audio monitoring
- Peaking focus assist (Red, Green, and Blue highlights)
- Zebras (adjustable from 1-100 IRE)
- Check field (Red, Green, Blue, Mono)
- Anamorphic desqueeze (1.3x, 2.0x, 2.0x mag)
- Horizontal and vertical image flip
- Screen markers (80%, 85%, 90%, 93%, 96%)
- Aspect ratio markers (4:3, 13:9 ,14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Color temperature adjustment
Monitoring Tools (Not Available in 4K) UPC: 815206022936 In the Box FeelWorld A737 7" On-Camera Monitor Mini HDMI to HDMI Cable Sun Hood Shoe Mount NP-F Battery Plate HDMI Cable Lock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld A737 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWA737 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x HDMI Type A Input

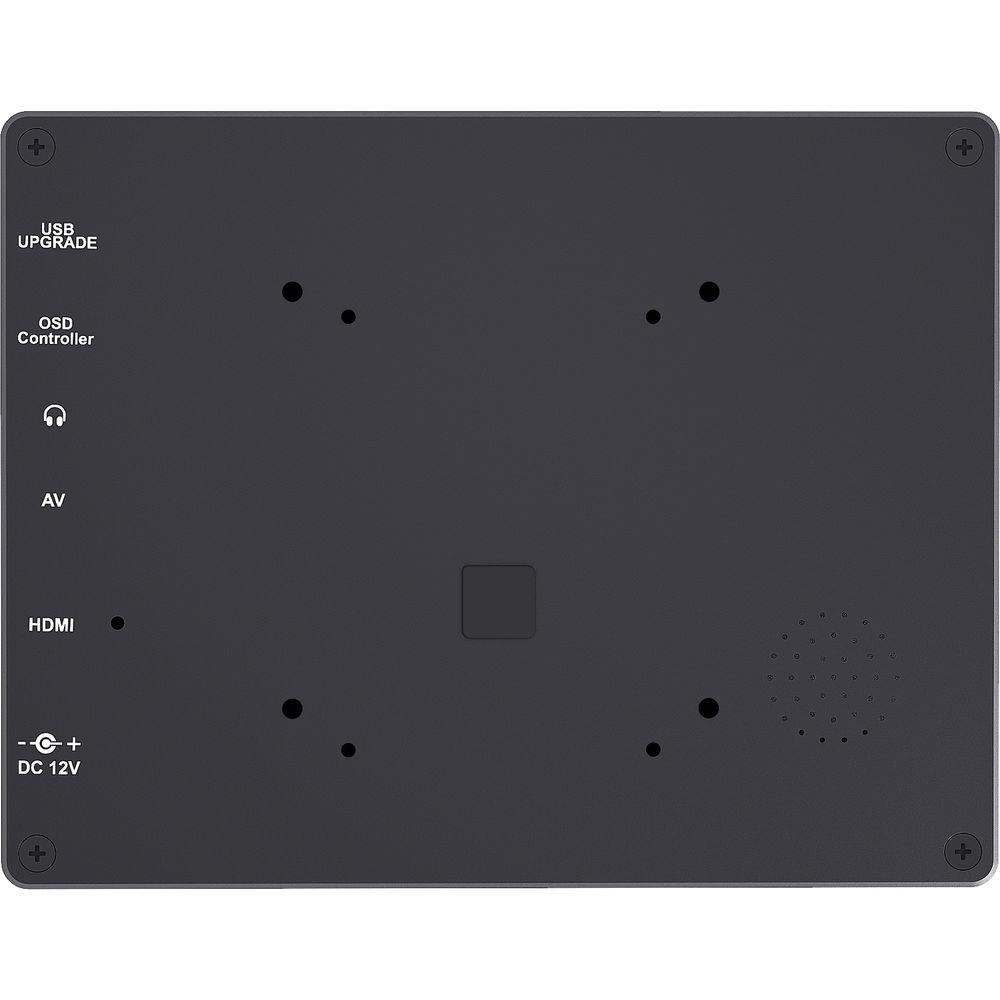

1 x 3.5 mm (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Other I/O | 1 x 3.5 mm | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p

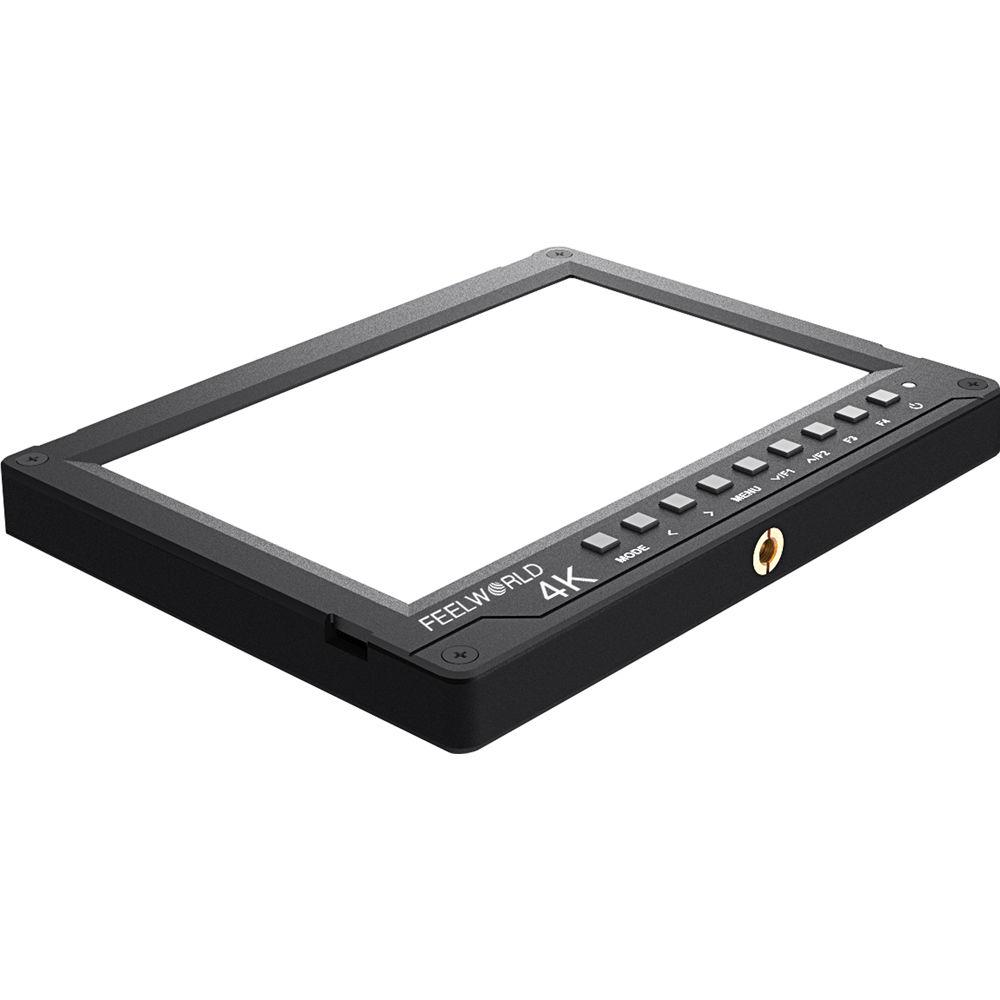

NTSC | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 8 W (Maximum) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7.1 x 5.5 x 0.7" / 18 x 14 x 1.7 cm | | Weight | 1.1 lb / 490 g
1.1 lb / 520 g, Including Battery Plate | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 8.9 x 7.5 x 2.6" |
