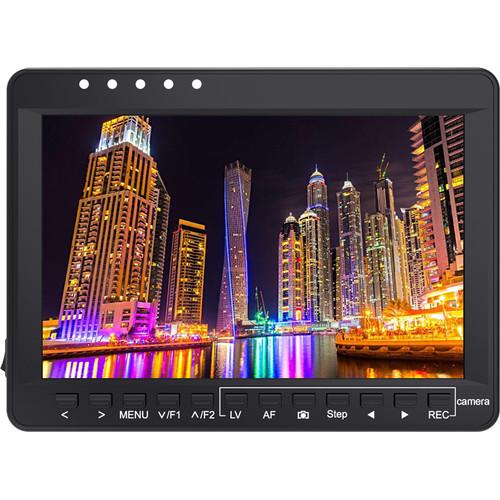

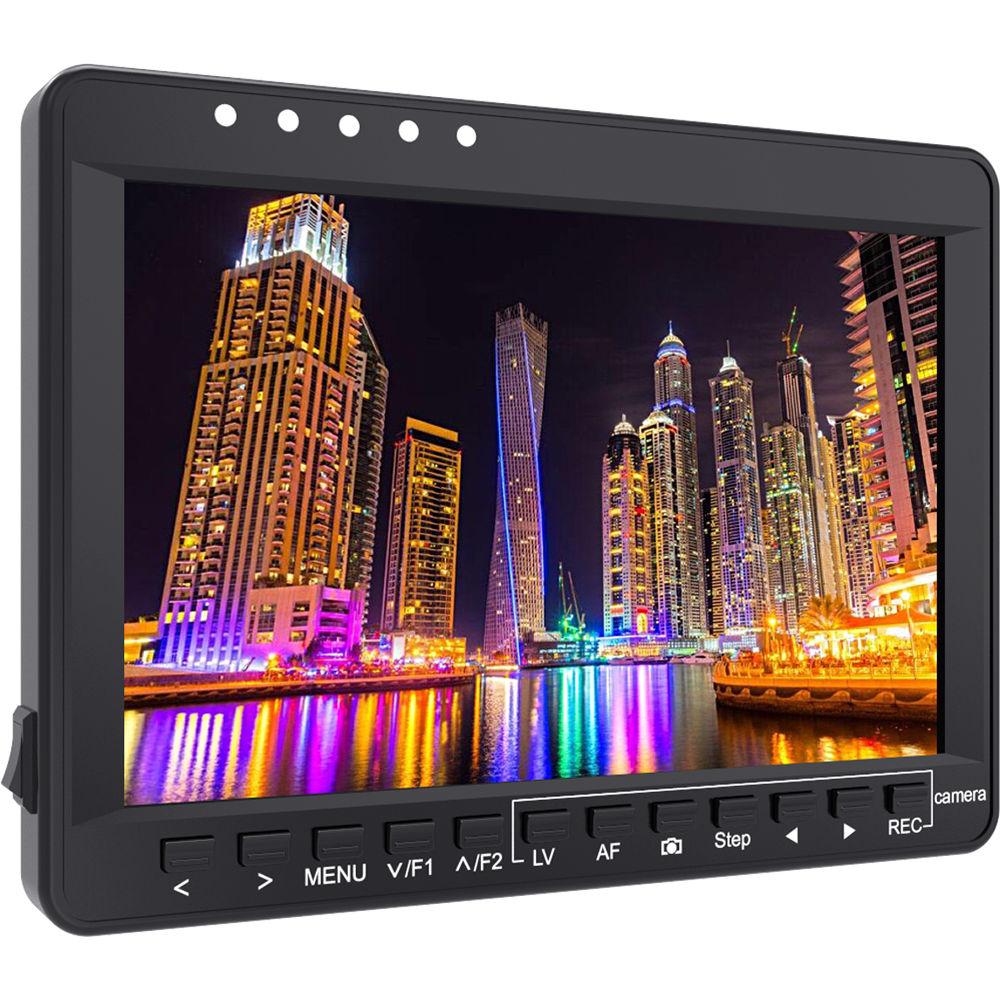

Product description The FeelWorld CN7 7" On-Camera Monitor is designed for high-resolution video production using DSLR or mirrorless cameras. The 1280 x 800 IPS display can be used to check focus and framing, assisted by built-in monitoring tools such as focus peaking and markers. The IPS panel construction ensures wide viewing angles and vibrant colors. Users of cameras that can record in 4K resolutions will appreciate the UHD and DCI 4K support. Connected via the HDMI input, UHD 4K video signals are supported up to 30 fps, while DCI 4K signals are supported up to 24 fps.Connect the USB terminal to a Canon DSLR and use the front panel buttons to control various camera functions (only compatible with select models). Live-view mode, autofocus, recording start/stop, and focus pulls can be performed without touching the camera itself. This could come in handy, for example, if the camera is atop a jib or in a difficult-to-reach space.Along with the monitor, a Mini HDMI to HDMI cable, a USB camera control cable, and an NP-F battery plate are included. For battery power, an NP-F (Sony L-series) battery must be acquired separately. For direct camera mounting, a shoe-mount ball head is also included. - Camera Control Compatibility
- Canon EOS 1D mk3/mk4
Canon EOS 1Ds mk3
Canon EOS 1D X
Canon EOS 5D mk2/mk3/mk4
Canon EOS 7D
Canon EOS 40D/50D/60D
Canon EOS Rebel XS/Xsi/T1i/T2i/T3/T3i/T4i Monitoring Tools - Peaking focus assist (Red, Green, and Blue highlights)
- Check field (Red, Green, Blue, Mono)
- Horizontal and vertical image flip
- Safe markers (80%, 85%, 90%, 93%, 96%)
- Color temperature adjustment
UPC: 815206022929 In the Box FeelWorld CN7 7" On-Camera Monitor Mini HDMI to HDMI Cable USB Cable Shoe Mount NP-F Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld CN7 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld CN7 Specs | Screen | 7" / 17.8 cm IPS LCD | | Resolution | 1280 x 800 | | Color Depth | 8-bit (16.7 million colors) | | Pixel Pitch | 0.11775 x 0.11775 mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m² | | Contrast Ratio | 800:1 | | Backlight | LED | | Viewing Angle | 178° | | Response Time | 25 ms | | Inputs | 1 x HDMI Type A | | Audio Out | 1 x 3.5 mm jack, stereo headphone
Internal speaker | | Other I/O | 1 x USB, camera control | | HDMI Format Support | 4096 x 2160 24
3840 x 2160 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | Mounting Interface | 1 x 1/4"-20 threaded hole (bottom) | | Input Voltage | 7 to 24 VDC | | Power Consumption | 6 W max | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Dimensions | 6.9 x 5.1 x 0.7" / 17.6 x 13 x 1.7 cm | | Weight | 13.4 oz / 380 g (without battery plate)
14.5 oz lb / 410 g (with battery plate) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 12.3 x 7.9 x 2.8" |
