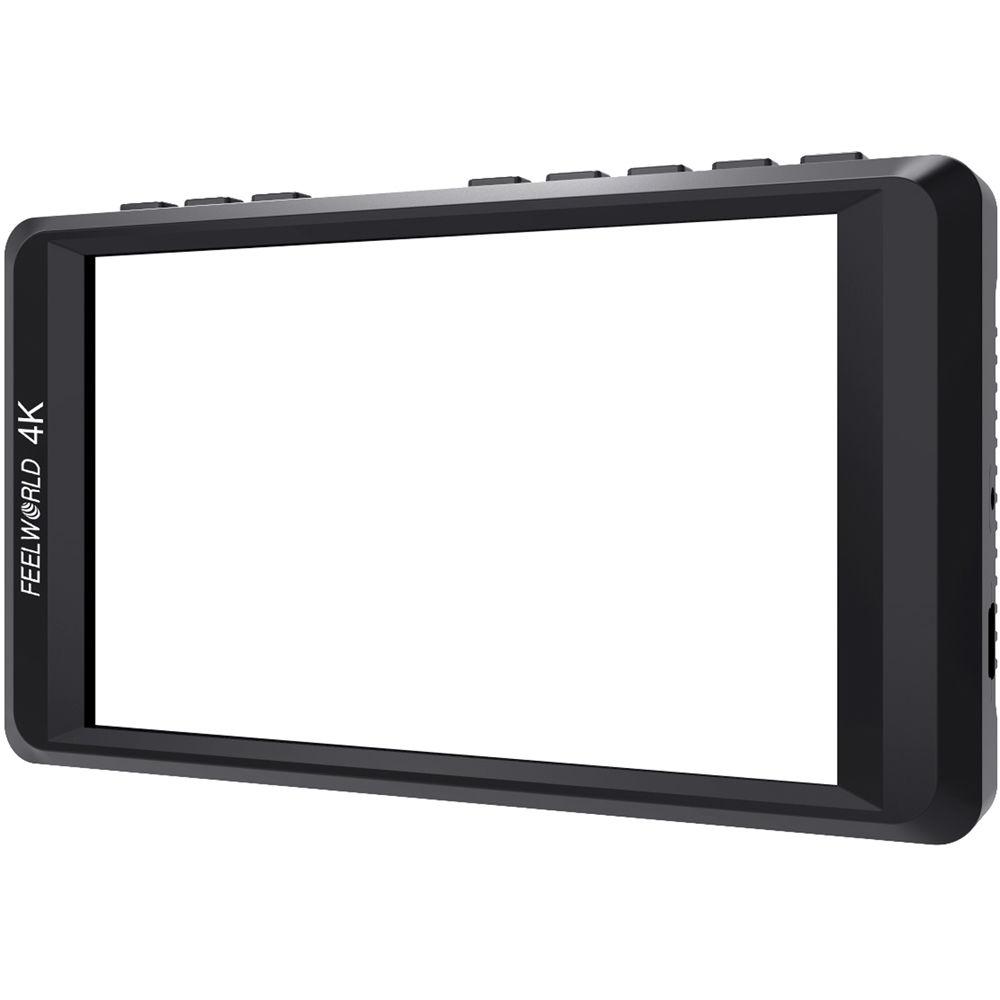

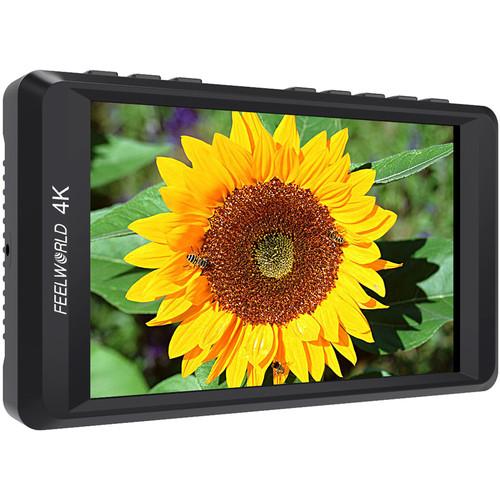

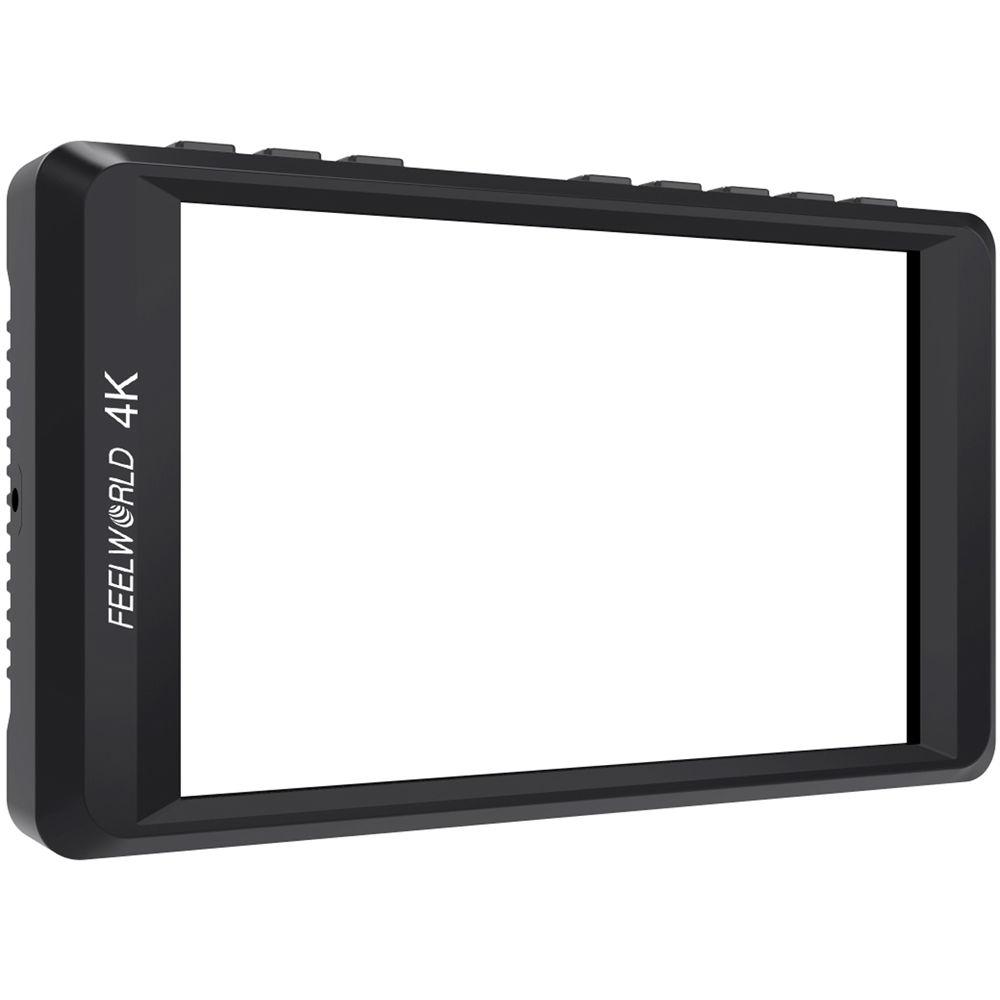

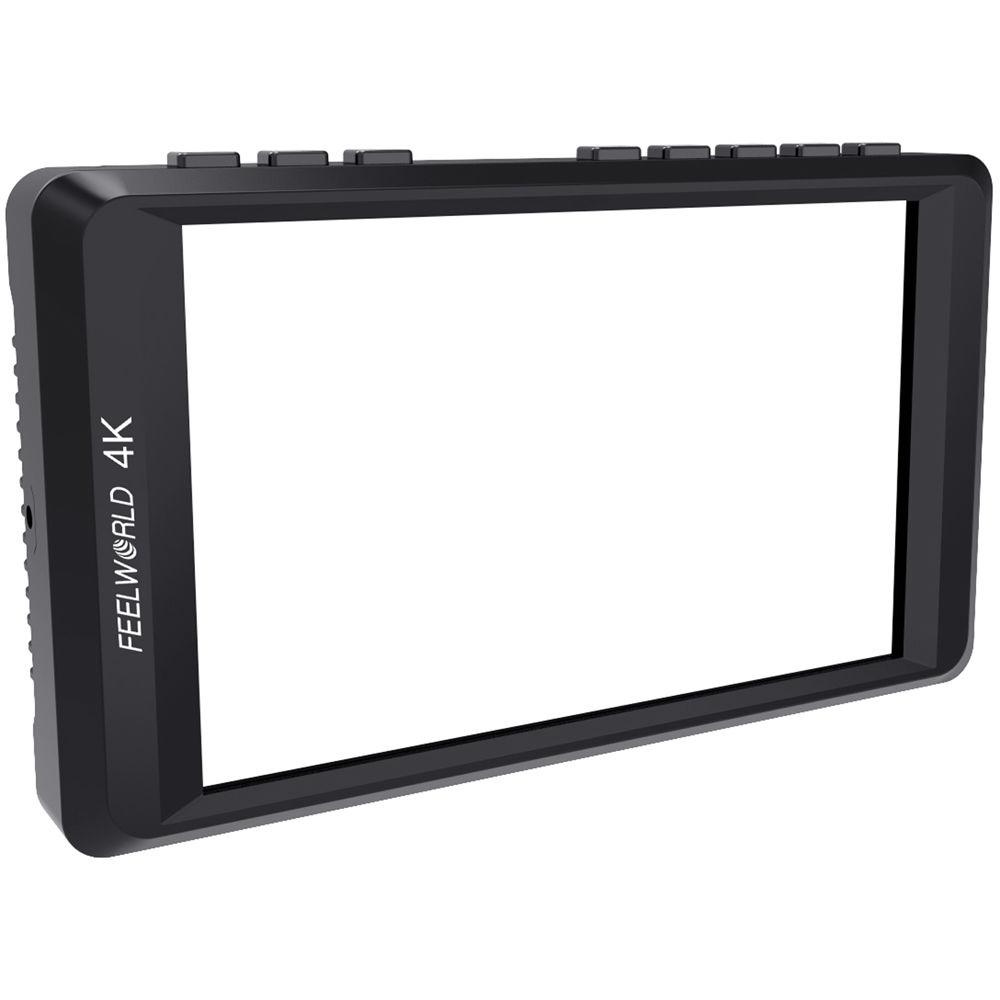

User Manual for FeelWorld F450 4.5" On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld F450 4.5" On-Camera Monitor
- Product category: On Camera Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld On Camera Monitors
 |
User manual for the FeelWorld F450 4.5" On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|
Product description The FeelWorld F450 4.5" On-Camera Monitor is a portable, lightweight, and slim monitoring solution for DSLRs, camcorders, and professional cinema cameras with HDMI compatibility. The full-size HDMI input supports video resolutions from SD all the way up to DCI 4K at 24 fps. A full-size HDMI output can be used to loop signals out to additional equipment. The 1280 x 800 LCD panel itself sports a 470 cd/m² brightness rating, and a 900:1 contrast ratio. IPS technology is implemented in the panel for vivid colors and wide 160° viewing angles. Essential monitoring tools such as focus peaking, pixel-to-pixel mapping, markers, and more are built right in. A Mini HDMI to HDMI cable, shoe mount, 1/4"-20 thread clip, and NP-F battery plate are included. The included battery plate can be swapped out for other separately available power options - Focus Peaking
- Activate focus peaking to highlight the areas of the images that have the highest contrast. By having these areas highlighted in red over a monochrome image, you can easily pick out what is in sharpest focus.
- Check Field
- With red, green, blue, and luminance monitoring, you can adjust hue, saturation, and contrast for each individual color channel and the overall image.
- Pixel-to-Pixel Mapping
- View the incoming video signal without scaling. This mode is useful for checking for critical focus and detail.
- Image Flip
- Orient your monitor to fit your setup, and use image flip to adjust the image to fit the screen orientation.
- Other Monitoring Tools
-
- Camera mode (scaling)
- Center marker
- Safe markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image freeze
- Zoom with region of interest adjustment
- Color temperature adjustment
UPC: 815206022912 In the Box FeelWorld F450 4.5" On-Camera Monitor Mini HDMI to HDMI Cable Shoe Mount NP-F Battery Plate 1/4"-20 Thread Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld F450 4.5" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWF450 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 4.5" / 11.4 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 470 cd/m2 | | Contrast Ratio | 900:1 | | Dot Pitch | 0.07575 x 0.02525 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom | | | | Video | 1 x HDMI Type A Input
1 x BNC (3G-SDI) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC | | | | DC Input Power | 7 to 18 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5 W (Maximum) | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 5 x 2.8 x 0.6" / 12.6 x 7.2 x 1.6 cm | | Weight | 6 oz / 170 g
7.1 oz / 200 g, Including Battery Plate | | | | Package Weight | 1.035 lb | | Box Dimensions (LxWxH) | 8.0 x 5.05 x 3.1" |
