User Manual for FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld F550 5.5" IPS 1920 x
- Product category: On Camera Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld On Camera Monitors
 |
User manual for the FeelWorld F550 5.5" IPS 1920 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|

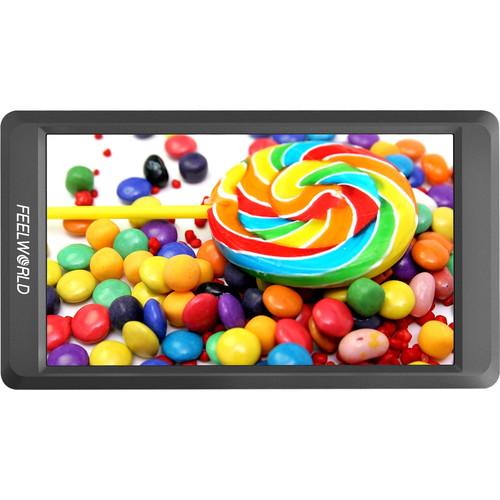

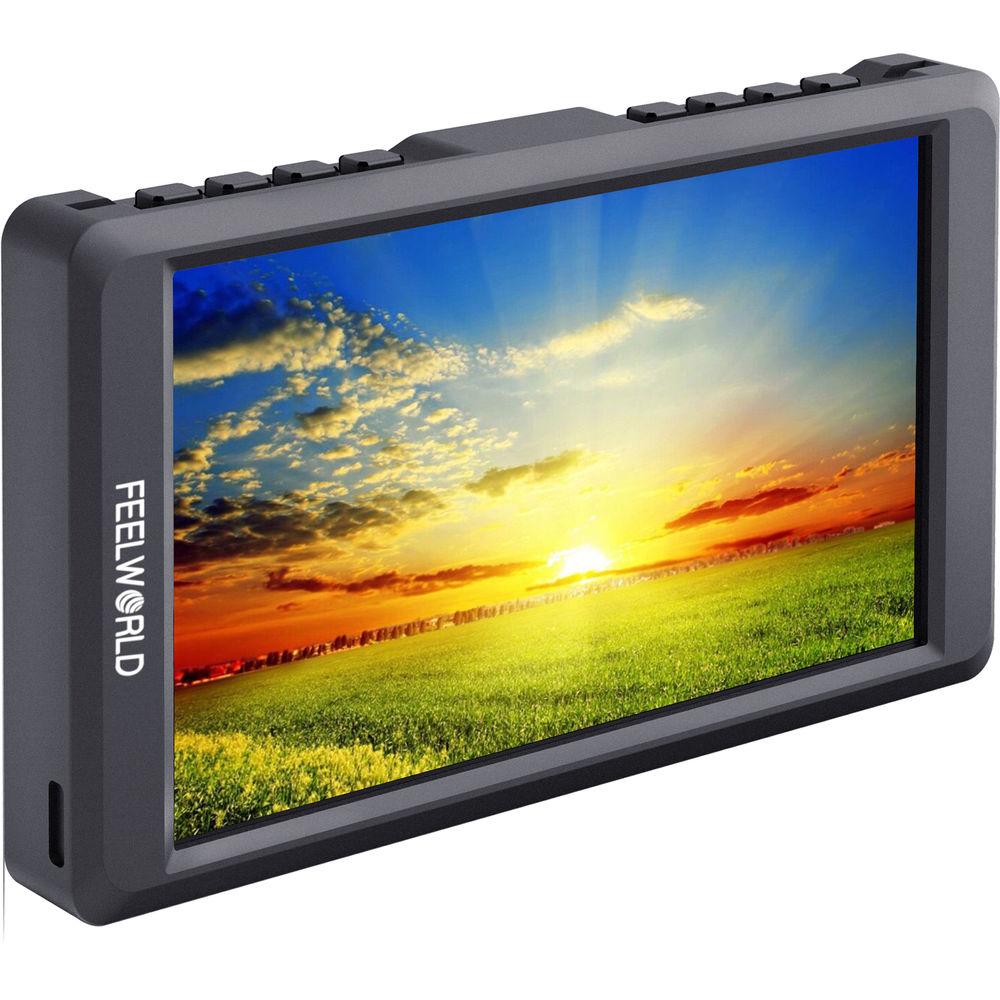

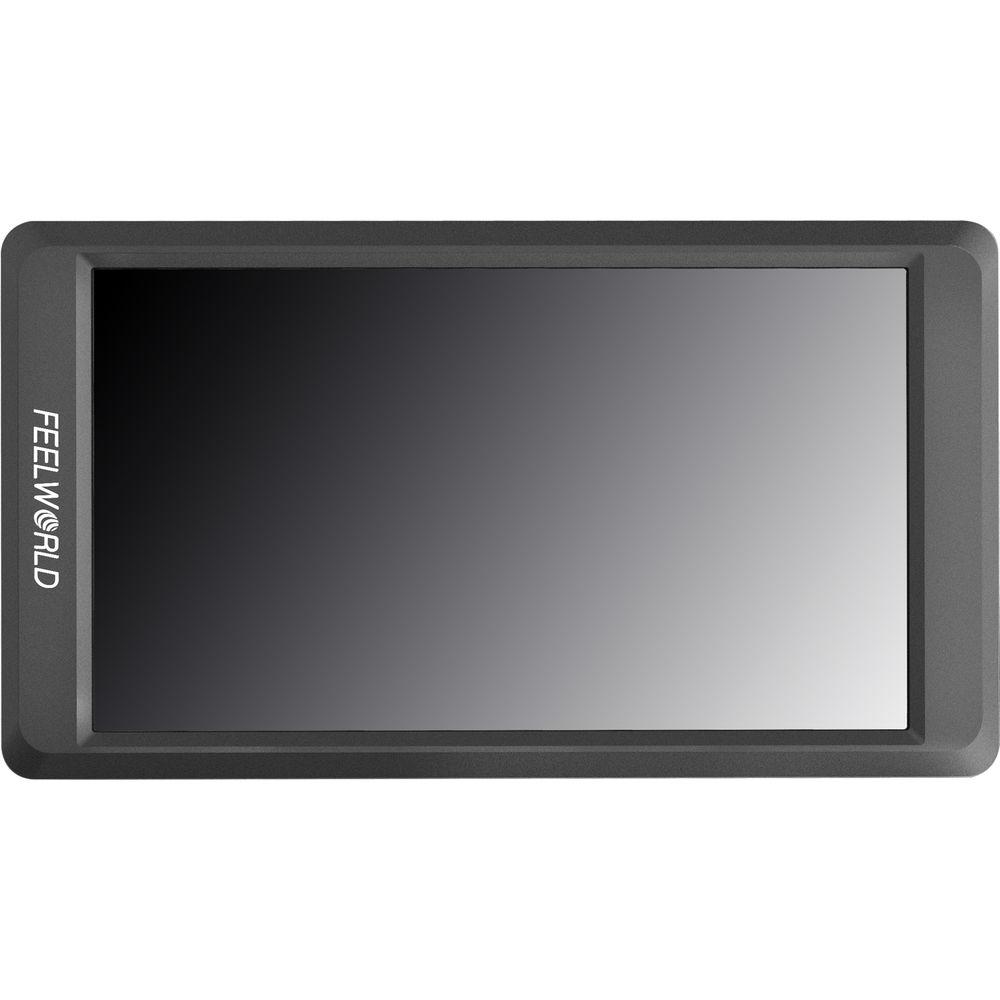

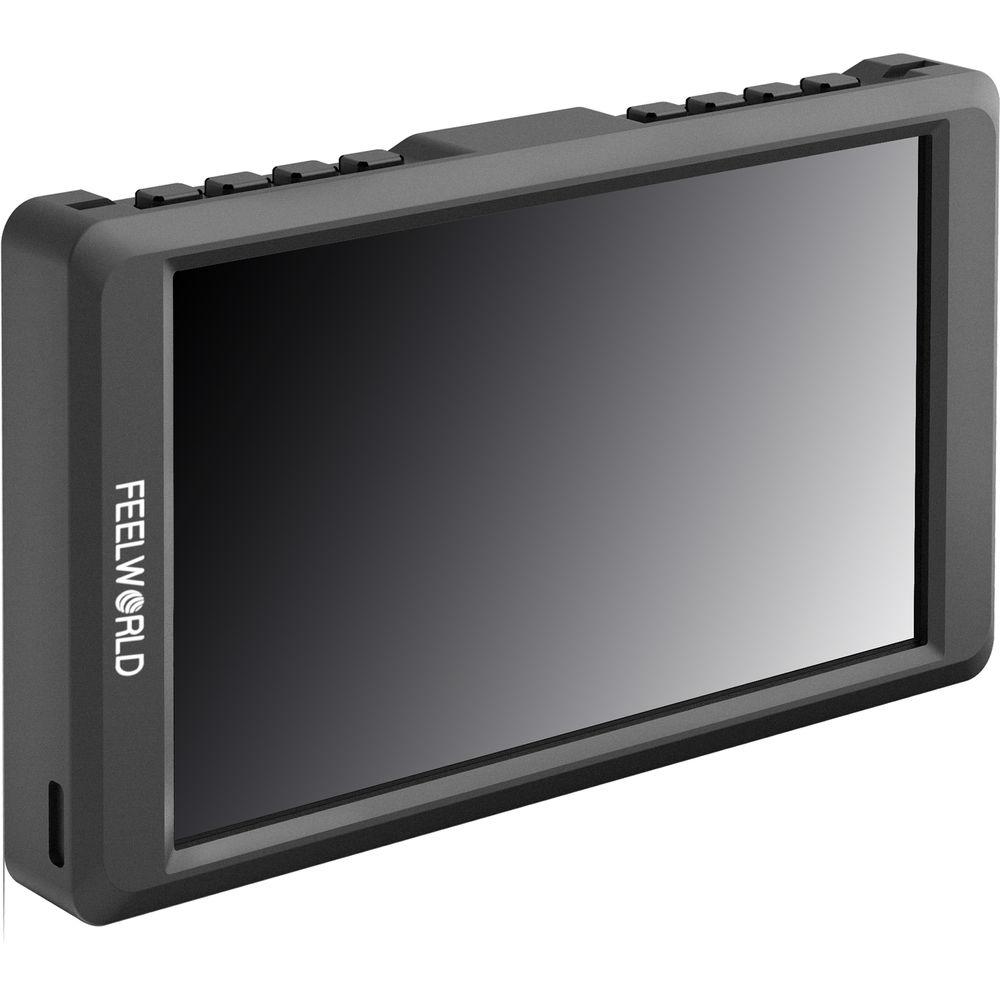

Product description Supporting resolutions up to DCI and UHD 4K, the FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor features a native display resolution of 1920 x 1080. It can display 1080p signals without scaling, while it scales higher and lower resolution content to fit the screen. The IPS screen allows for off-axis viewing of 80° up/down/left/right, and it features a brightness of 450 cd/m² with a contrast ratio of 1000:1. The monitor incorporates a dedicated HDMI input and dedicated HDMI output.
The F550 packs many useful functions into its small size, including peaking, zoom, and 1:1-pixel mapping, anamorphic de-squeeze, frame lines, markers, and image flip. Rounding out the internal feature set are the exposure functions which include histogram, false color, and zebras. Included with the monitor are a Mini HDMI to HDMI cable, sunshade, shoe mount, and L-Series battery plate. - Monitoring Tools
-
- Histogram
- Audio level meters
- Focus peaking
- False color
- Zebras (0-100 IRE selectable)
- R/G/B-only and luma-only modes
- Over/underscan
- 4, 9 and 16x zoom
- Anamorphic de-squeeze
- Image flip
- Nine-grid zoom-in
- 1:1-pixel mapping
- Frame markers
UPC: 815206022783 In the Box FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor Sunshade L-Series Battery Plate Shoe Mount HDMI to Mini HDMI Cable HDMI Plug Lock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FW550 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.063 x 0.215 mm | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 8 W (Maximum) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 5.83 x 3.23 x 0.79" / 148 x 82 x 20 mm | | Weight | 8.1 oz / 230 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.0 x 4.9 x 3.2" |
