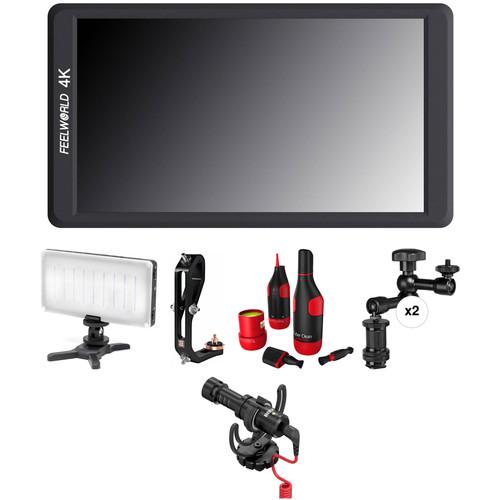

Product description The FeelWorld F570 5.7" 4K On-Camera Monitor + SIMPLY GIMBAL Adapter & Accessories Kit from B&H features a compact monitor and an L-shaped handgrip that secures on the bottom of your gimbal and provides four 1/4"-20 threads for mounting accessories. The kit also includes a pocket-sized 3200 to 5600K LED light with USB power and charging ports, a Rode VideoMicro compact on-camera mic, two 7.5" articulating arms, and a camera cleaning set for removing smudges, fingerprints, dust, and debris from your camera and lens gear. The monitor, light, mic, and other accessories can be attached to the gimbal handgrip to provide you with a more complete shooting setup. - FeelWorld F570 5.7" IPS 4K HDMI On-Camera Monitor The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080. The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m2 with a contrast ratio of 1400:1. The monitor incorporates an HDMI input with a loop-through HDMI out. The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate.
- Full HD 1920 x 1080 display resolution
- 170° wide-viewing angle IPS panel
- Peaking focus assist (red, green, blue)
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment
UPC: 815206023209 - GVB Gear PL60B Pocket-Sized On-Camera Light with USB Charging/Power (Bi-Color) The GVB Gear PL60B Pocket-Sized On-Camera Light with USB Charging/Power is a compact bi-color fixture that mounts onto your camera's hot shoe or the included base. It features an integrated 5000mAh battery that charges via USB. You can also use the fixture to charge/power mobile devices via its USB and USB Type-C connectors. The PL60B features 30 tungsten-balanced and 30 daylight-balanced LEDs with a 120° beam spread.
The PL60B is locally dimmable on the unit itself and included with the PL60B is a diffuser that magnetically attaches to the fixture. An included shoe mount enables mounting the light onto your camera or onto the base that is also included with the fixture. - Small, self-contained light fixture
- Includes magnetically attached diffuser
- Integrated battery charges via USB
- Provides USB and USB Type-C outputs for charging smartphones
UPC: 815206024381 - SIMPLY GIMBAL FMJ Handheld Gimbal Adapter for Mounting Monitors, Microphones, and Accessories The Simply Gimbal FMJ Handheld Gimbal Adapter for Mounting Monitors, Microphones, and Accessories is a handgrip that enables mounting accessories to your gimbal without affecting its operation. The handgrip features a removable, copper-colored mounting adapter that enables you to mount your gimbal to the handheld adapter, as a rubber washer provides a strong grip. On the bottom of the copper adapter is a female 1/4"-20 mounting hole which can be used for a variety of accessories including an optional mini-tripod.
The handgrip itself incorporates four 1/4"-20, double-sided, threaded mounting holes so you can mount accessories directly to the handgrip. - This adapter allows you to add accessories to your gimbal and improve operation.
UPC: 703709857523 - GVB Gear Complete Camera Cleaning Kit Keep your lenses and camera clean with the Complete Camera Cleaning Kit from GVB Gear. This all-in-one main body houses all the tools you need for cleaning. Under the protective cap, you can find the lens cleaning head, which comes with five replaceable microfiber patches, to clean smudges and fingerprints off the surface of optical glass. Reversing the lens cleaning head reveals a 3mm anti-static carbon brush that removes dust without scratching the glass. Removing the lens cleaning head and carbon brush altogether exposes the air blower nozzle, which also carefully removes excess dust from the interior and exterior of a camera body by squeezing the silicone sides of the main body. Use the 110g of cleaning compound, which is stored in the bottom cap of the kit, to remove whatever leftover debris you could not remove. UPC: 815206024398
- 2 x Pearstone 7.5" Articulating Arm The Pearstone 7.5" Articulating Arm is an arm used to mount small displays on prosumer and professional camcorders. The arm's unique design features a single-point locking mechanism, which gives the user maximum flexibility. Moving the display on multiple axes is quick and easy, allowing users to find the best possible viewing angle. In addition, the bottom verticle spacer piece is removeable to reveal a 1/4"-20 male screw, and the bottom shoe mount is removeable to reveal a 1/4"-20 female thread. The full length of this arm (tip-to-tip) measures 7.5", and the usable extension range (end-joint to end-joint) measures 4.2".
- Maximum mounting flexibility
- Single point locking mechanism
- Fits on any standard shoe mount
UPC: 847628014992 - Rode VideoMicro Compact On-Camera Microphone The VideoMicro from RODE is a compact on-camera microphone that features a cardioid condenser mic capsule for capturing audio recordings. The lightweight microphone can be used when paired with a video camera for applications such as weddings, interviews, and more. The VideoMicro reduces distracting peripheral sound and focuses on the audio in front of the camera. The microphone body is made from aluminum, giving it a high level of RF rejection, and is finished in a ceramic anti-glare black coating. The mic is powered by camera plug-in power (min. 3V) so no battery is required. In addition, the VideoMicro includes a Lyre shoe-mount that minimizes unwanted vibrations, handling, and cable-borne noises, and a WS9 synthetic furry windshield with a foam inner cell, designed for use in outdoor situations where wind and environmental noise can inhibit recordings. A 1/8" TRS patch cable is also included. UPC: 698813004362
In the Box - F570 5.7" IPS 4K HDMI On-Camera Monitor xttadxtstbsbzzvvaszuxxbtrwaad
- Mini HDMI Cable
- Sunshade
- Cold Shoe Mount
- L-Series Type Battery Plate
- 1/4"-20 Screw Lock
- Limited 1-Year Warranty
- GVB Gear - PL60B Pocket-Sized On-Camera Light with USB Charging/Power (Bi-Color)
- SIMPLY GIMBAL - FMJ Handheld Gimbal Adapter for Mounting Monitors, Microphones, and Accessories
- GVB Gear - Complete Camera Cleaning Kit
- 2 x Pearstone - 7.5" Articulating Arm
- Rode - VideoMicro Compact On-Camera Microphone
Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld F570 5.7" 4K On-Camera Monitor SIMPLY GIMBAL Adapter & Accessories Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FeelWorld F570 5.7" IPS 4K HDMI On-Camera Monitor
| Screen Size | 5.7" / 14.5 cm | | Resolution | 1920 x 1080p | | Pixel Pitch | 0.0657 x 0.0219 mm | | Aspect Ratio | 16:9 | | Brightness | 460 cd/m2 | | Contrast Ratio | 1400:1 | | Backlight | LED | | Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) | | Input | 1 x HDMI | | Output | 1 x HDMI
1 x 3.5 mm, stereo headphone port | | Additional Ports | 1 x Mini-USB, for firmware updates | | Supported Video Formats | 4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/ 23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p / 576i
480p / 480i | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤8 W | | Working Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Installation | 1/4"-20 thread socket | | Battery Plate | F970, L-Series type | | Dimensions | 5.8 x 3.2 x 0.7" / 14.8 x 8.2 x 1.9 cm | | Weight | 10.9 oz / 310 g (with battery plate)
9.8 oz / 280 g (without plate) | | | | Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.2" | - GVB Gear PL60B Pocket-Sized On-Camera Light with USB Charging/Power (Bi-Color)
| | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Temperature with Included Filter | 3200K | | Photometrics | 120° at 5600K:
139.3 fc / 1500 lux at 1.51' / 0.46 m
65 fc / 700 lux at 2.99' / 0.91 m
120° at 3200K:
130.1 fc / 1400 lux at 1.51' / 0.46 m
46.5 fc / 500 lux at 2.99' / 0.91 m
120° at 4400K:
278.7 fc / 3000 lux at 1.51' / 0.46 m
111.5 fc / 1200 lux at 2.99' / 0.91 m | | Dimming | Yes | | Number of LEDs | 30 (Daylight)
30 (Tungsten) | | | | Capacity (mAh) | 5000 mAh | | Battery Chemistry | Lithium-Ion | | | | Power Input Connector | Micro-USB | | Power Output Ports | 1 x USB Type-A
1 x USB Type-C | | | | Mount Type | Cold Shoe | | Dimensions | 6 x 3 x 0.5" / 15.2 x 7.6 x 1.3 cm | | Weight | 6.3 oz / 179 g | | | | Box Dimensions (LxWxH) | 7.6 x 3.7 x 2.0" | - SIMPLY GIMBAL FMJ Handheld Gimbal Adapter for Mounting Monitors, Microphones, and Accessories
| Material of Construction | Adapter: Aluminum
Mounting Studs: Stainless steel | | Accessory Mount Type | 4 x 1/4"-20 Threaded mounting holes | | Dimensions | L-Shaped: 5 x 7" / 12.70 x 17.78 cm | | Weight | 0.6 lb / 0.27 kg | | | | Box Dimensions (LxWxH) | 8.3 x 6.3 x 1.75" | - GVB Gear Complete Camera Cleaning Kit
| | | Box Dimensions (LxWxH) | 7.8 x 3.4 x 2.8" | - 2 x Pearstone 7.5" Articulating Arm
| Load Capacity | 5 lb (2.3 kg) | | Length, Fully Extended | 7.5" (19 cm) | | Arm Length | 4.2" (10.7 cm) (joint-to-joint length) | | Mount Compatibility | Top: 1/4"-20 male screw
Bottom: cold shoe
1/4"-20 female thread (with spacer piece attached)
1/4"-20 male screw (with spacer removed) | | | | Box Dimensions (LxWxH) | 5.65 x 3.1 x 1.7" | - Rode VideoMicro Compact On-Camera Microphone
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.50" / 12.70 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 100 Hz to 20 kHz | | Equivalent Noise Level | Cardioid: 20 dB A-Weighted | | Maximum SPL | Cardioid: 140 dB SPL Peak | | THD | > 1% | | Sensitivity | Cardioid: -33.0 dB at 1 kHz | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Length | 3.15" / 80 mm | | Diameter | 0.83" / 21 mm | | Weight | 1.48 oz / 42 g | | | | Box Dimensions (LxWxH) | 7.1 x 5.0 x 2.6" |
