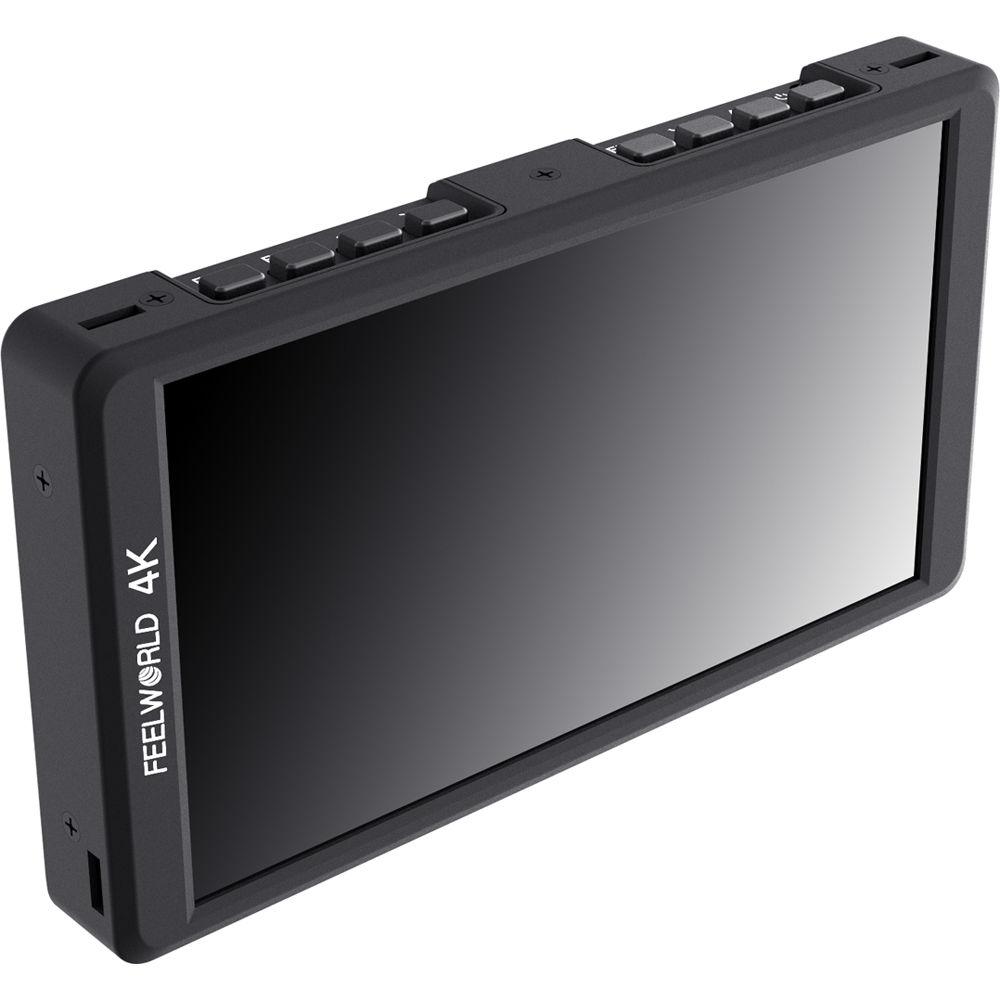

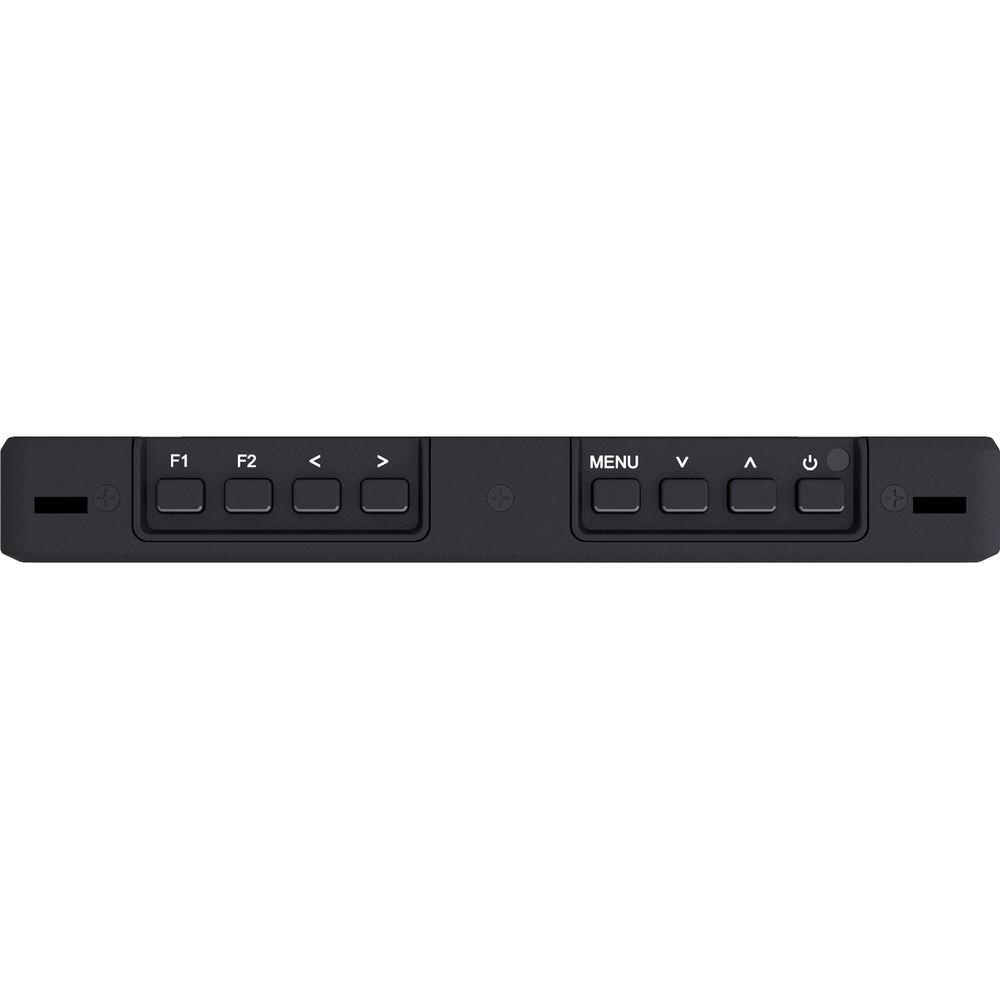

Product description The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080. The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m2 with a contrast ratio of 1400:1. The monitor incorporates an HDMI input with a loop-through HDMI out. The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate. - Full HD 1920 x 1080 display resolution
- 170° wide-viewing angle IPS panel
- Peaking focus assist (red, green, blue)
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment

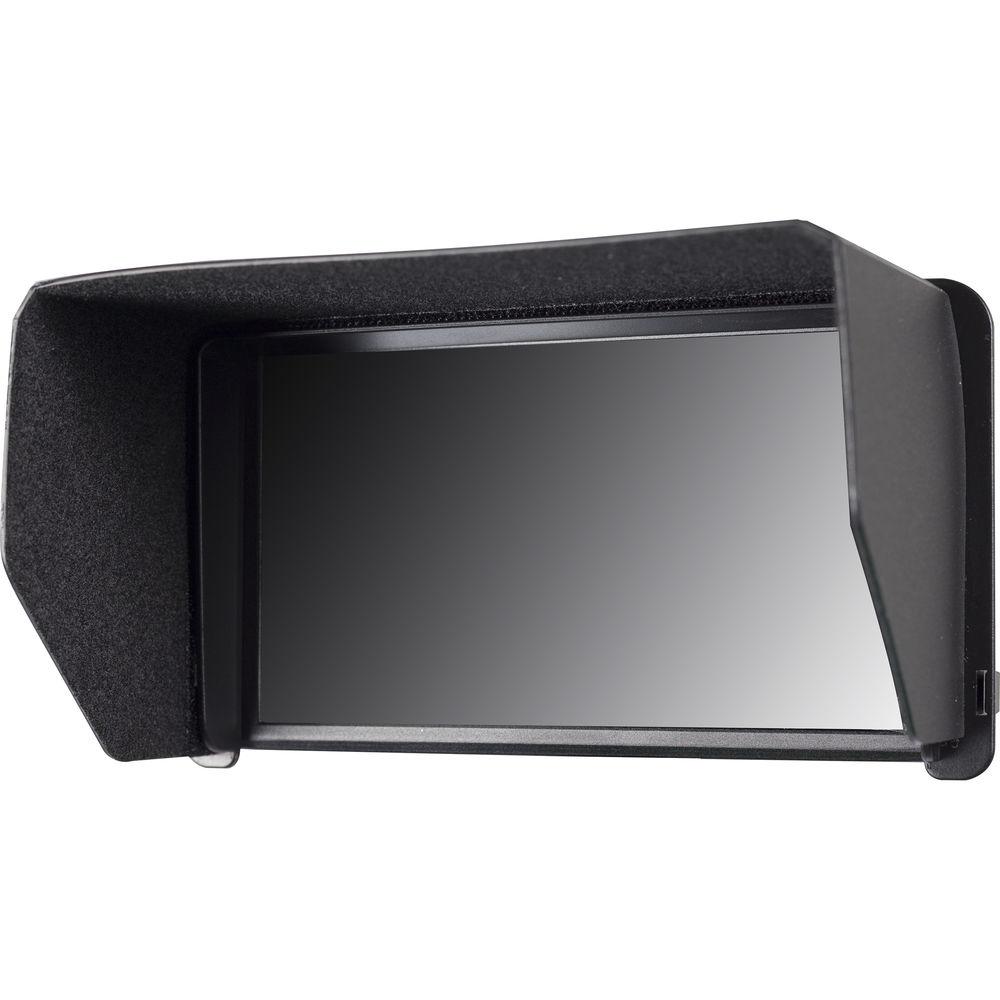

UPC: 815206023209 In the Box FeelWorld F570 5.7" IPS 4K HDMI On-Camera Monitor Mini HDMI Cable Sunshade Cold Shoe Mount L-Series Type Battery Plate 1/4"-20 Screw Lock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld F570 5.7" IPS 4K HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

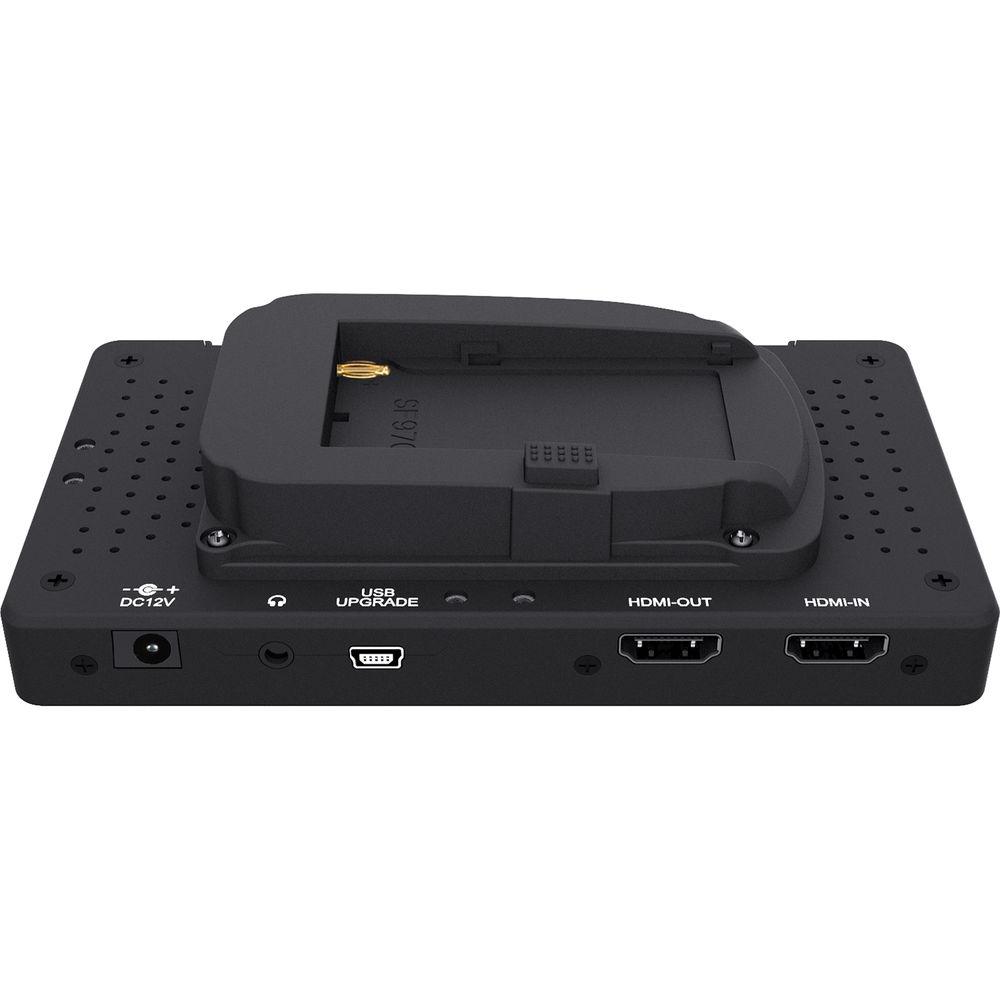

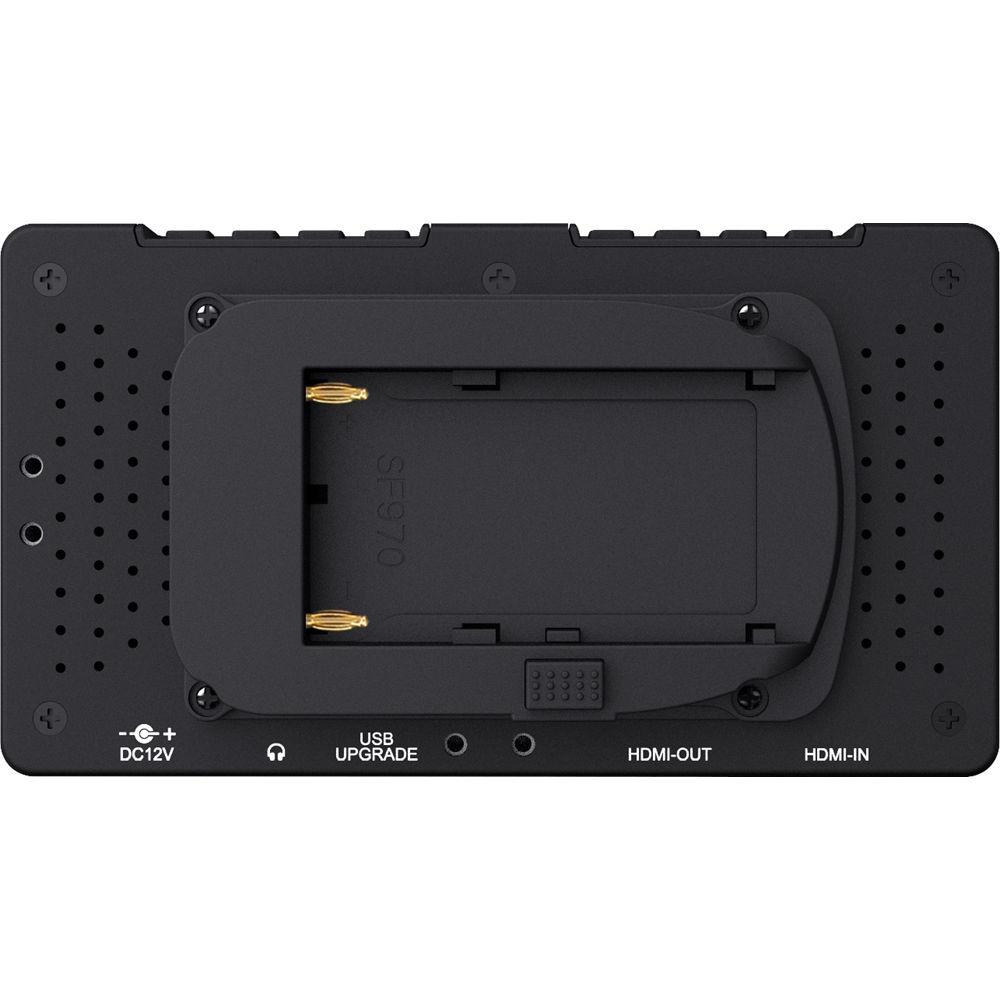

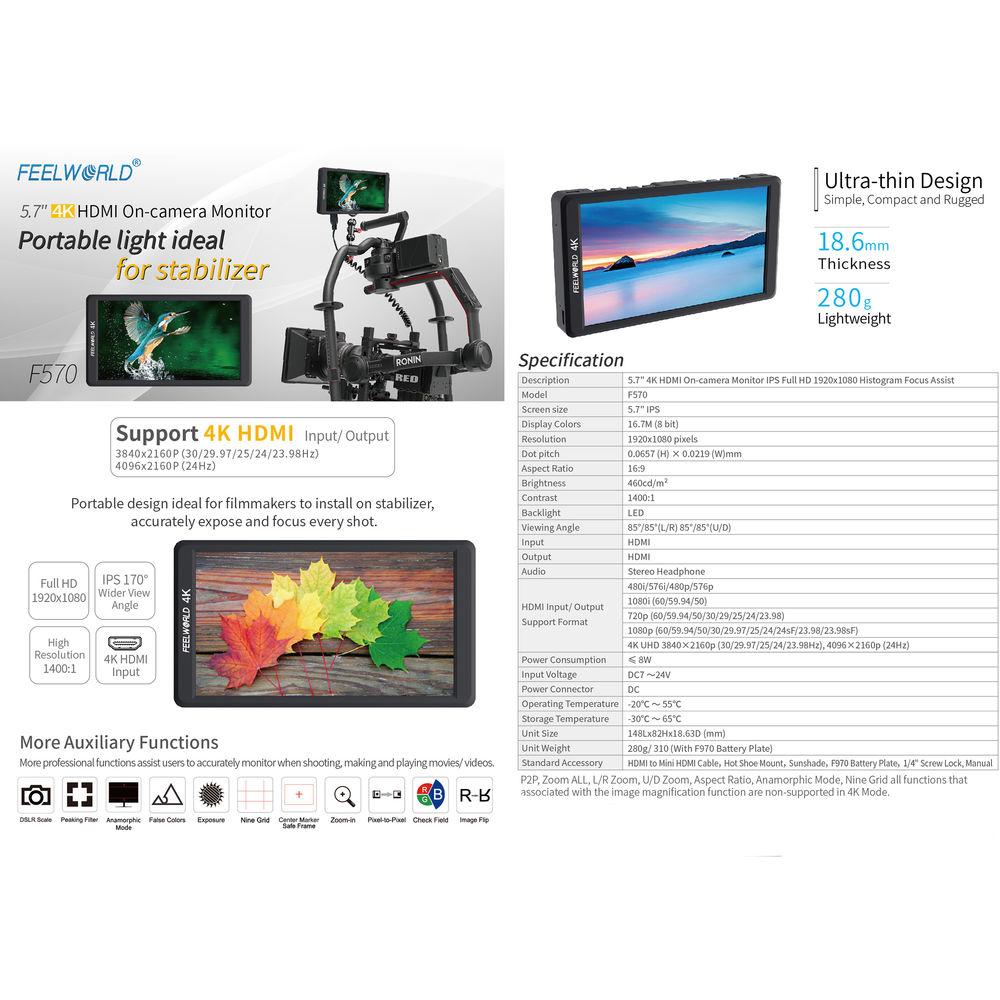

Technical parametersFeelWorld F570 Specs | Screen Size | 5.7" / 14.5 cm | | Resolution | 1920 x 1080p | | Pixel Pitch | 0.0657 x 0.0219 mm | | Aspect Ratio | 16:9 | | Brightness | 460 cd/m2 | | Contrast Ratio | 1400:1 | | Backlight | LED | | Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) | | Input | 1 x HDMI | | Output | 1 x HDMI
1 x 3.5 mm, stereo headphone port | | Additional Ports | 1 x Mini-USB, for firmware updates | | Supported Video Formats | 4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/ 23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p / 576i
480p / 480i | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤8 W | | Working Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Installation | 1/4"-20 thread socket | | Battery Plate | F970, L-Series type | | Dimensions | 5.8 x 3.2 x 0.7" / 14.8 x 8.2 x 1.9 cm | | Weight | 10.9 oz / 310 g (with battery plate)
9.8 oz / 280 g (without plate) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.2" |
