Product description

  • FEELWORLD FH7 7'' 4K camera Monitor for Gimbal Sony Canon Nikon Panasonic

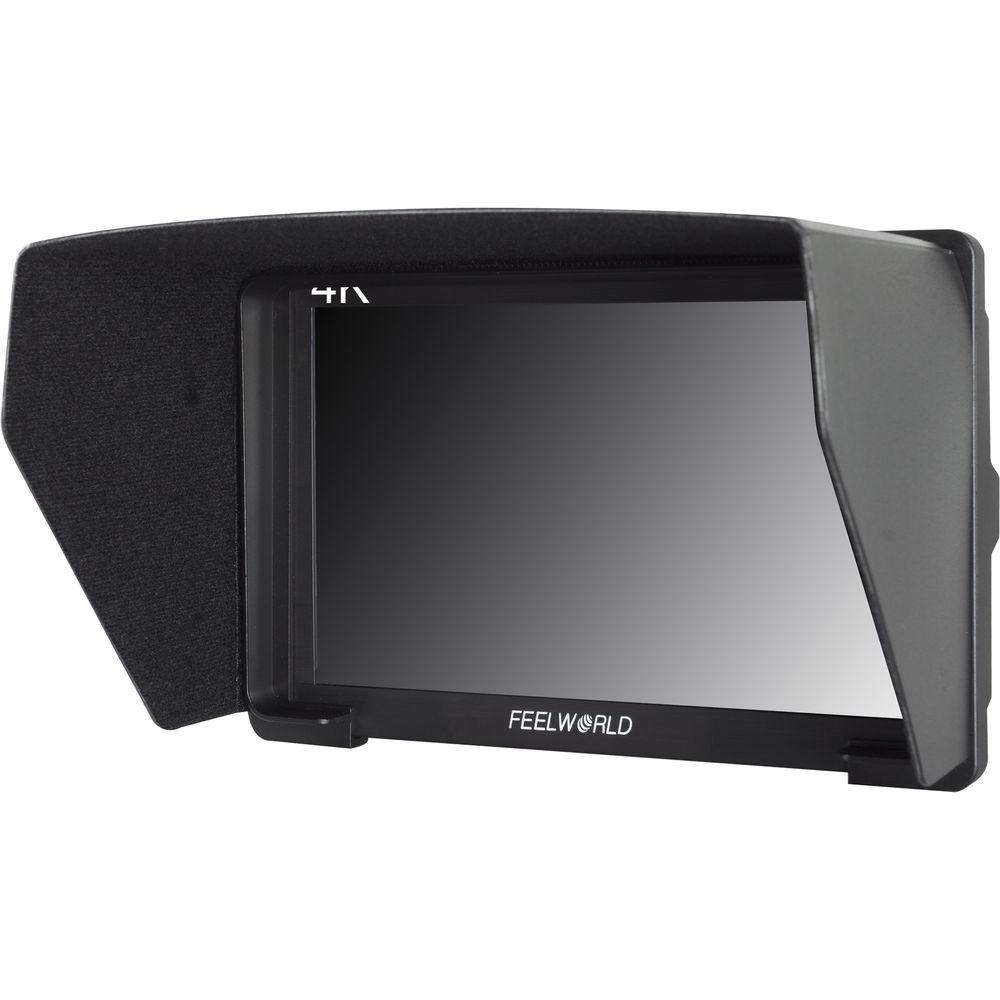

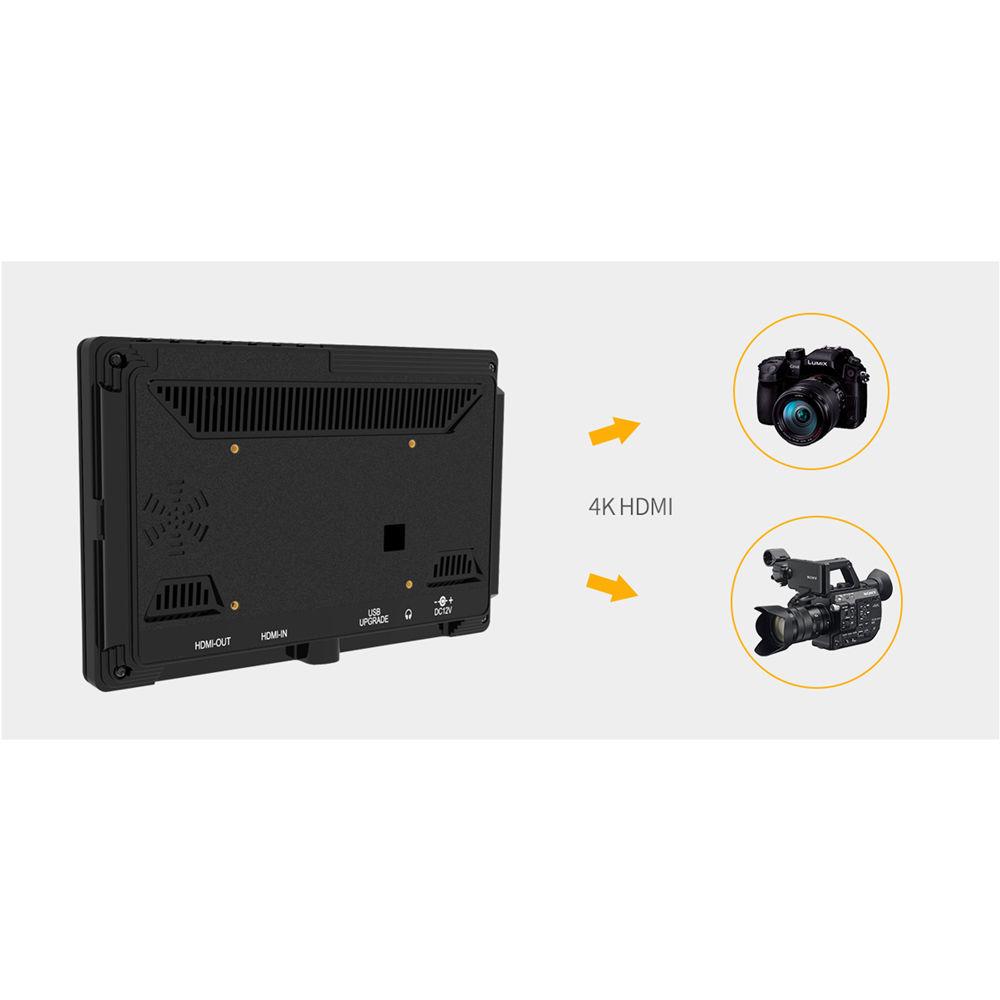

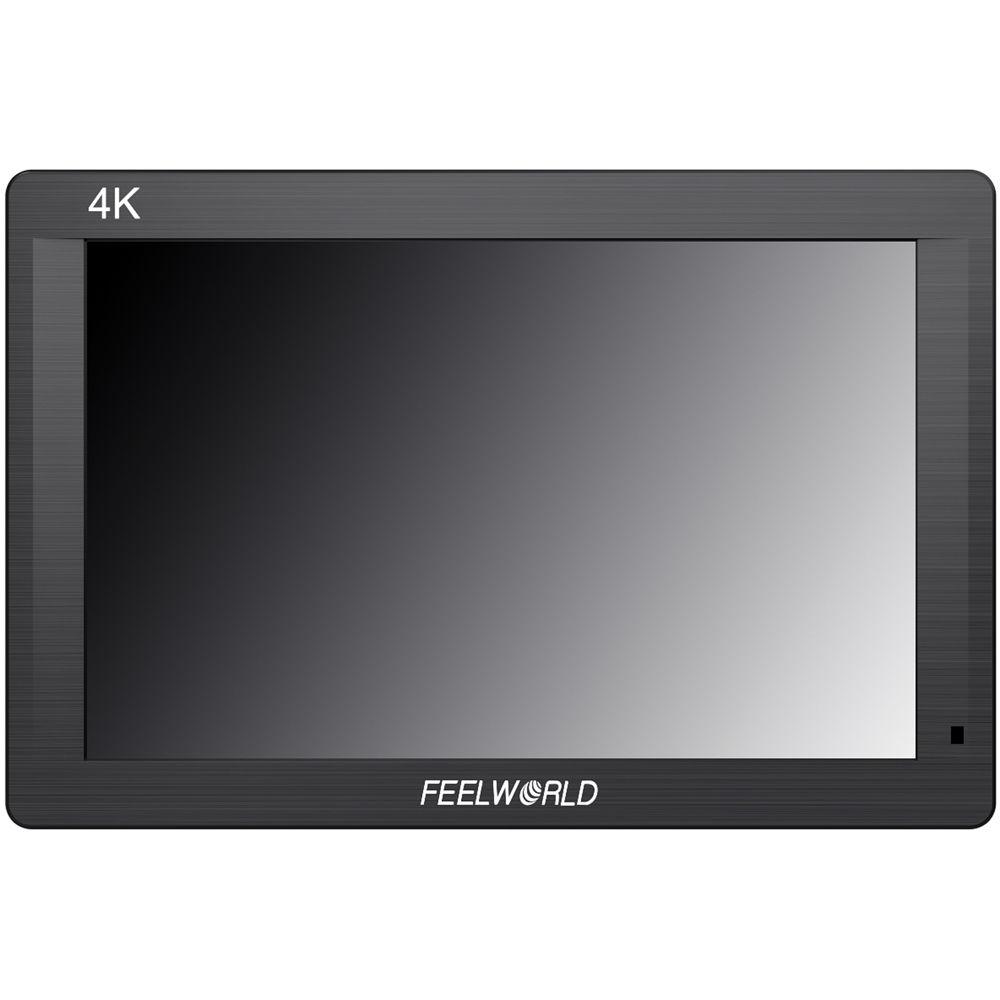

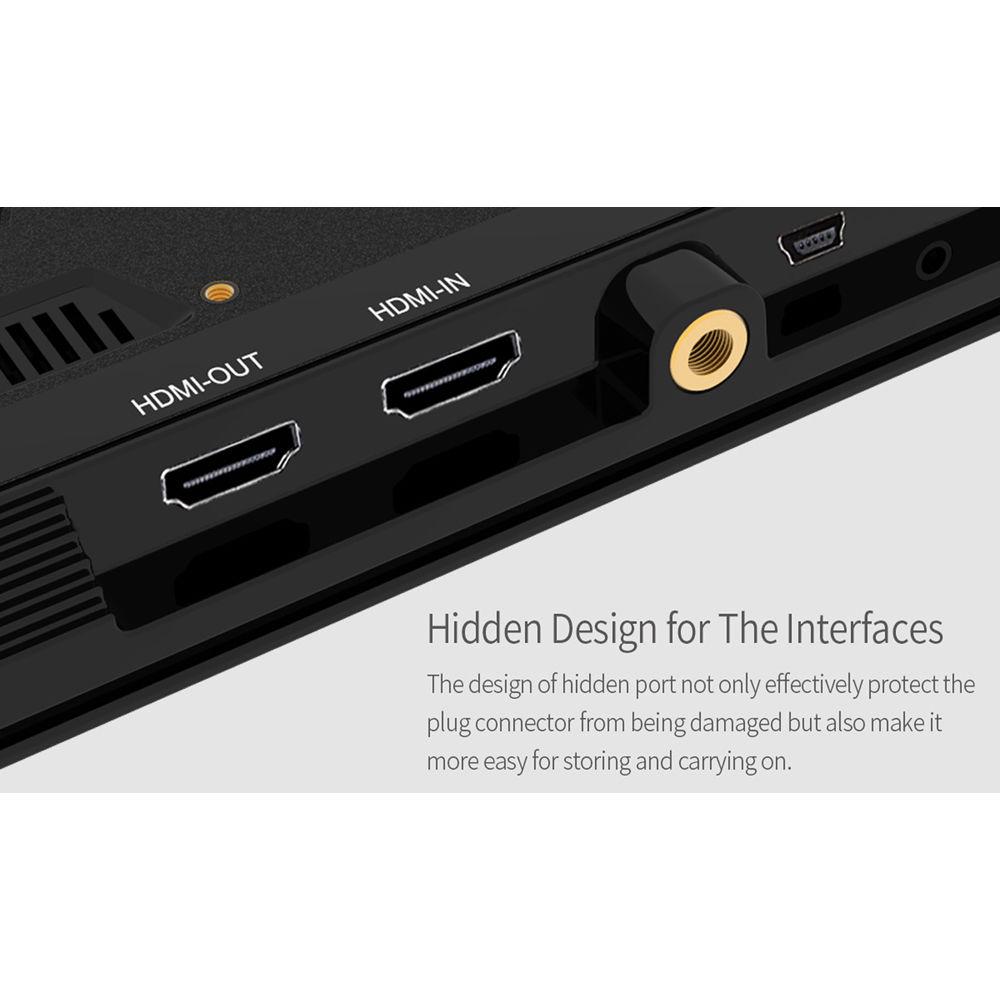

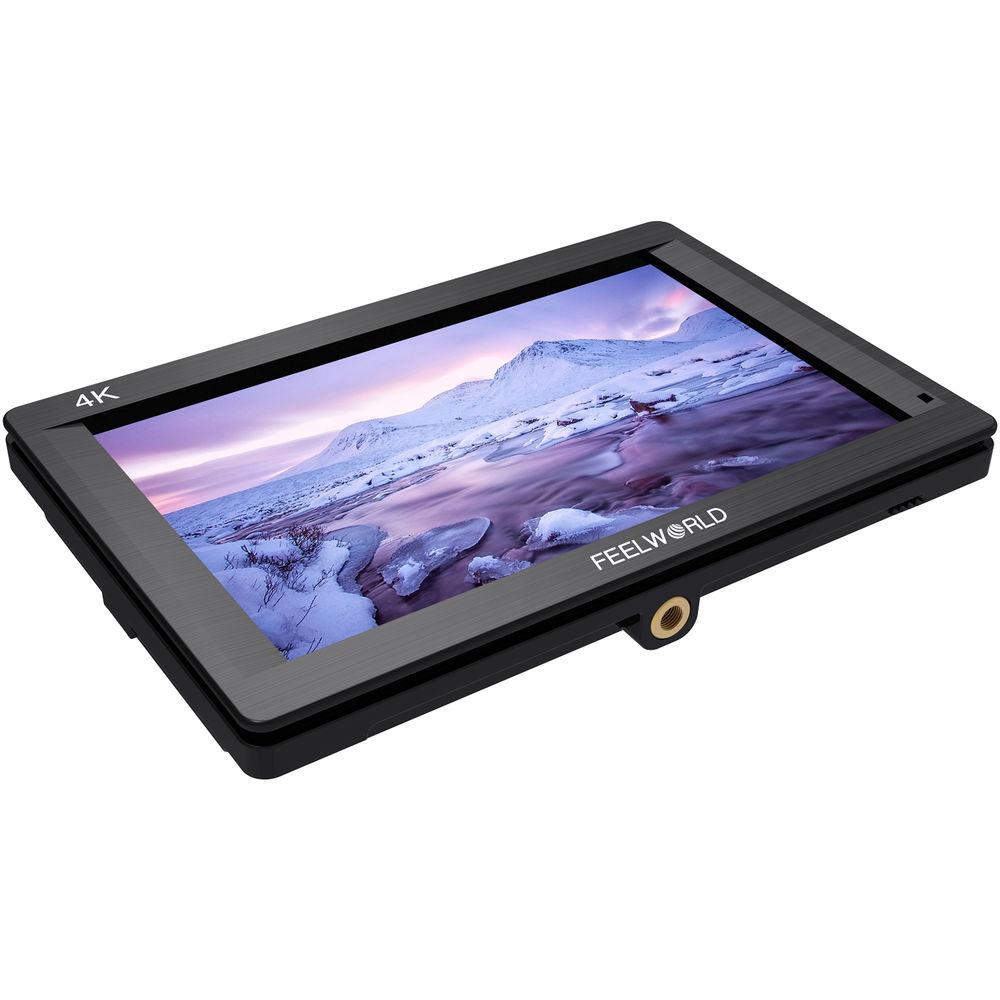

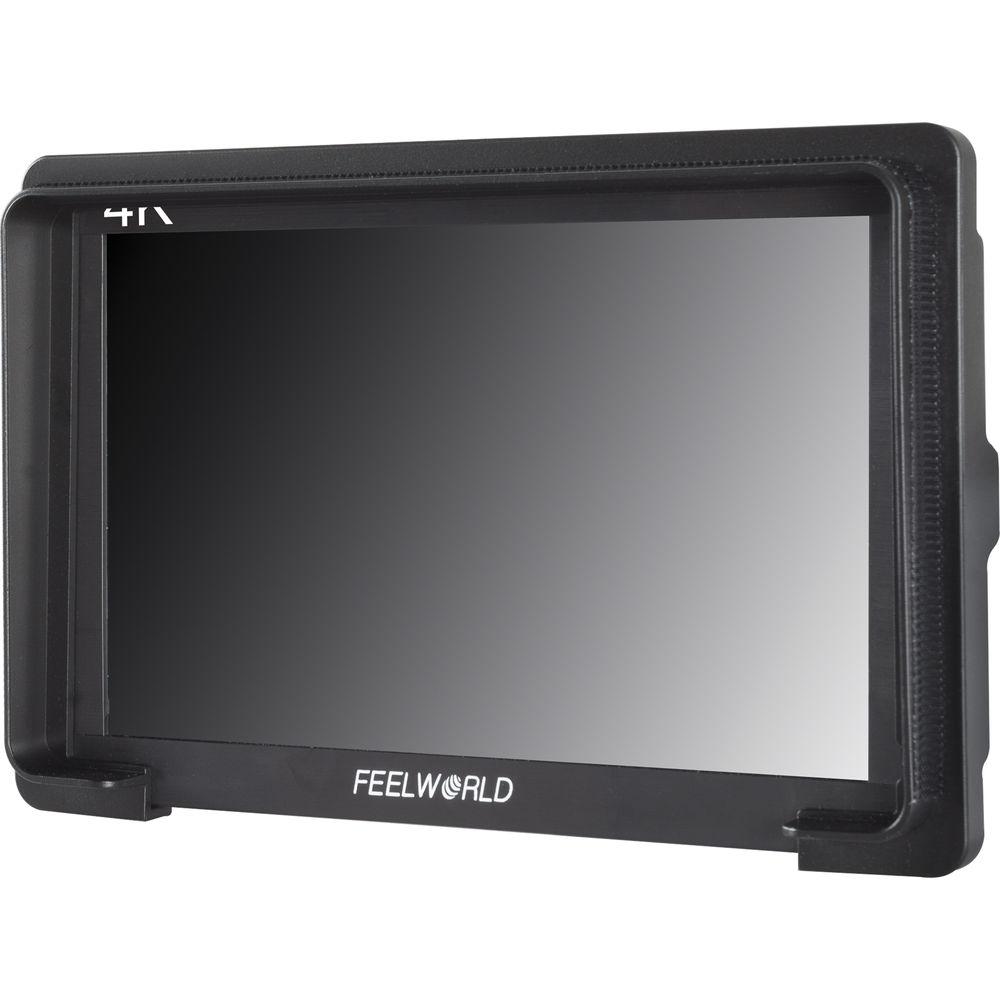

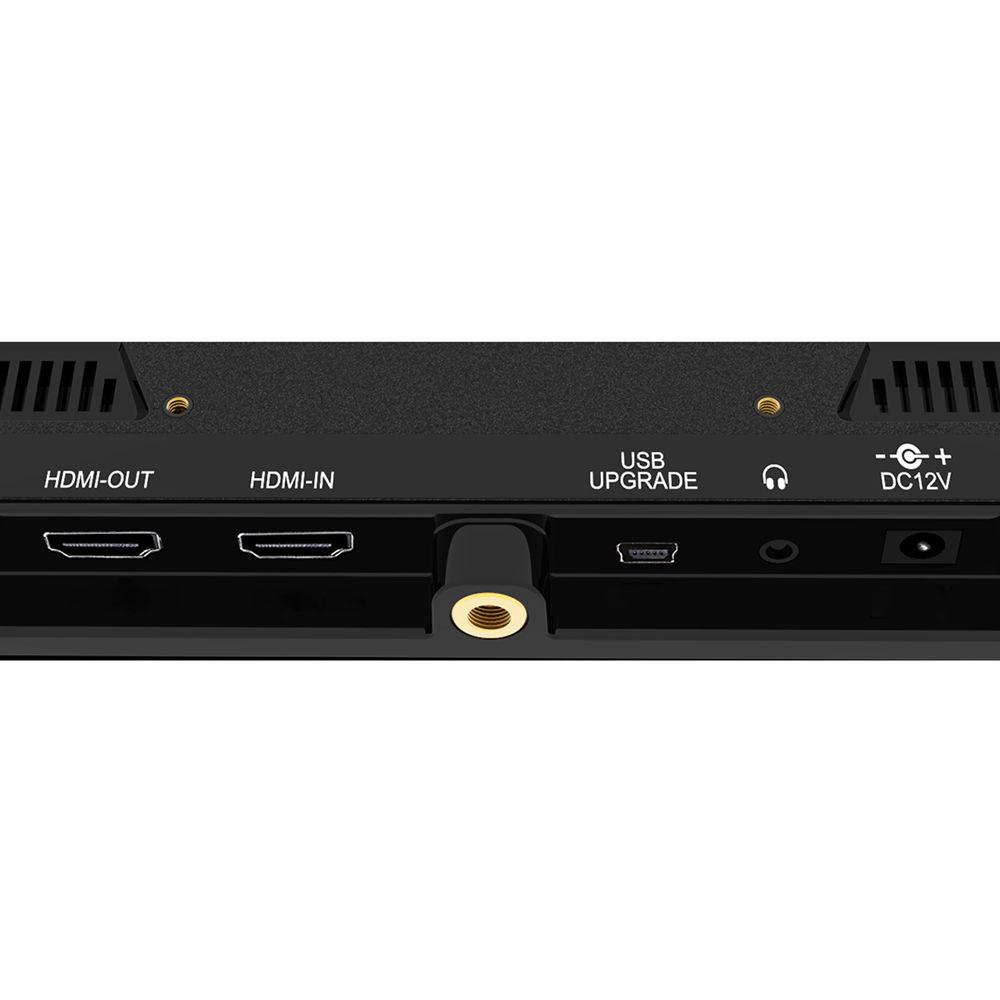

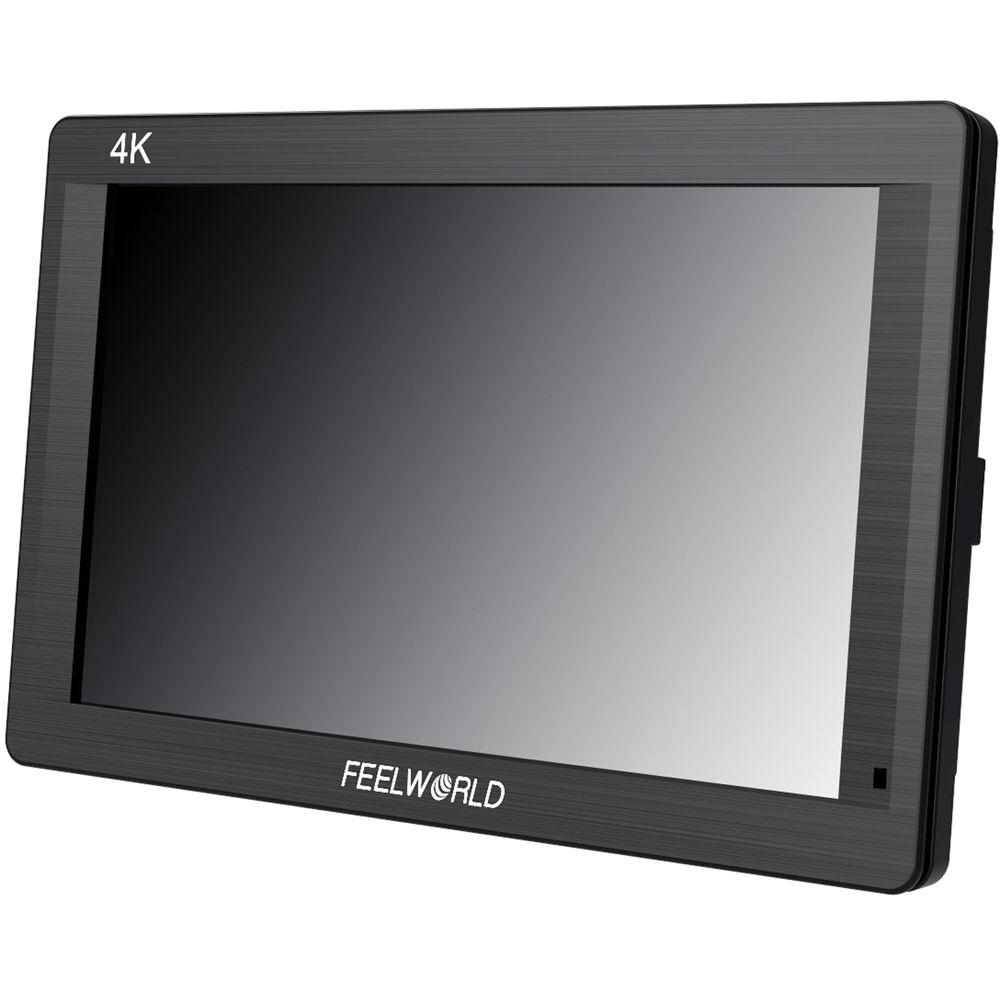

Featuring a 323 PPI (pixels-per-inch) IPS LCD panel, the FeelWorld FH7 7" On-Camera HDMI Monitor is up to the task of displaying SD, HD, or UHD 4K video. The LCD panel boast a 1920 x 1200 resolution, a 1200:1 contrast ratio, and a 450 cd/m² measured brightness for easy viewing indoors. Outdoor viewing can be accomplished using the included sun hood for blocking glare. The monitor's chassis is both thin and light at 0.9" and 11 oz, respectively.At the base of the monitor you'll find HDMI input and output connections in addition to a headphone jack. A 1/4"-20 thread for securing the monitor to the included shoe mount or to an optional articulating arm can also be found at the monitor's base. Any signal input into the HDMI input will be looped out to the HDMI output without modification. The back of the monitor hosts the included L-series battery plate, which will readily accept widely available L-series batteries.Different monitoring tools are built into the FH7, including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Monitoring Tools

  • Histogram
  • Colored focus peaking
  • False color
  • Zebras
  • 3x3 grid
  • Embedded audio monitoring
  • Zoom (4x/9x/16x)
  • Anamorphic desqueeze
  • Pixel-to-pixel mapping
  • Central marker
  • Title safe
  • Aspect ratio markers
  • R/G/B/luma-only
  • Image flip
  • Image freeze
  • Color temperature adjustment
UPC: 815206022981 In the Box FeelWorld FH7 7" IPS LCD On-Camera HDMI Monitor
  • Mini HDMI to HDMI Cable
  • Sunshade
  • Shoe Mount
  • L-Series Battery Plate
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FeelWorld FH7 7" IPS LCD On-Camera HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    FeelWorld FH7 Specs

    Panel Type IPS-Type LCD
    Display Size 7.0" / 17.8 cm
    Screen Resolution 1920 x 1200
    Aspect Ratio 16:10
    Viewing Angle Horizontal: 160°
    Vertical: 160°
    Maximum Brightness 450 cd/m2
    Contrast Ratio 1200:1
    Dot Pitch 0.07875 x 0.07875 mm
    Image Controls Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan
    Video 1 x HDMI Type A Output
    1 x HDMI Type A Input
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker 1
    Card Slot None
    Video Format HDMI
    UHD 4K: 23.98/24/25/29.97/30
    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080i: 50/59.94/60
    720p: 29.97/30/50/59.94/60
    576p
    PAL
    480p
    NTSC
    DC Input Power 7 to 24 VDC
    Battery Type 1 x L-Series
    Power Consumption 8 W (Maximum)
    Mounting 1 x 1/4"-20 Female
    Operating Temperature -4 to 131°F / -20 to 55°C
    Storage Temperature -22 to 149°F / -30 to 65°C
    Dimensions (W x H x D) 7 x 4.7 x 0.9" / 18 x 12 x 2.3 cm
    Weight 10.9 oz / 310 g
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 8.9 x 6.4 x 3.2"
