User Manual for FeelWorld FW-1D S O 7" IPS SDI HDMI On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld FW-1D S O 7" IPS
- Product category: On Camera Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld On Camera Monitors
 |
User manual for the FeelWorld FW-1D S O 7" IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|

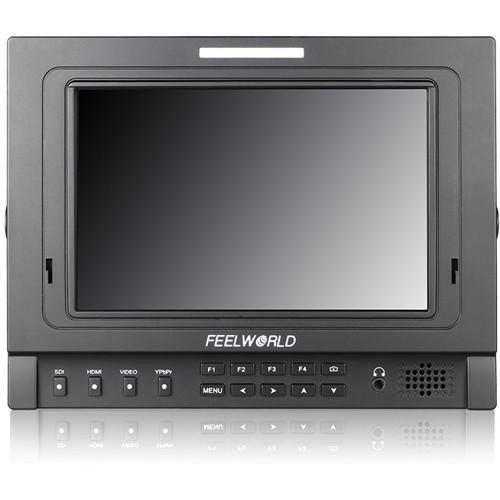

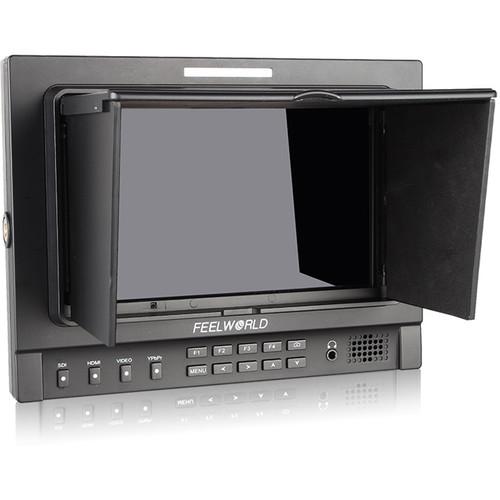

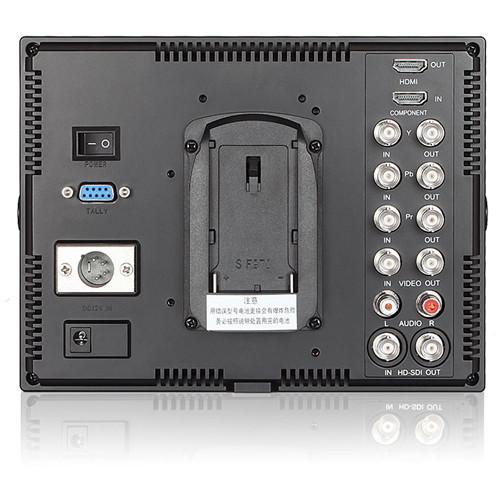

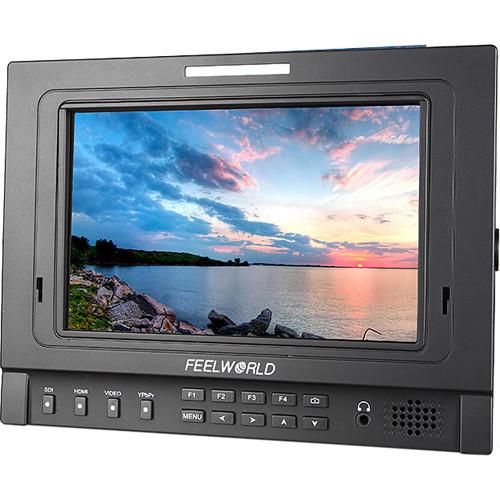

Product description Monitor your HD videos with this 7" IPS On-Camera Monitor from FeelWorld for vivid image reproduction and wide viewing angles. The 1280x800 LCD panel supports the display of 1080p, 720p and SD resolutions for high-definition and legacy workflows. A wide selection of video I/O on the rear is available. Digital SDI and HDMI inputs and outputs are complemented by component and composite analog inputs and outputs. Audio input into the monitor can be monitored via on-board speaker or with the 3.5mm headphone jack. On the outside surface of the monitor, four 1/4"-20 threads can be used for mounting the display on a rig or a stand. A ball mount is included for attaching to your camera's accessory shoe. Other advantages of the IPS panel employed in this monitor include wider viewing angles, 178° in this case, a more vibrant color representation (compared to most panels utilizing TN technology), and a bright 400cd/m² output. A collapsible hood is included for blocking screen glare resulting from bright light sources. Also included in the box is an HDMI to Mini HDMI cable, a battery plate which accepts Sony L-series batteries, and a tally adapter kit for connecting to live switching equipment. - Peaking Focus Assist
- Add colored highlights to high-contrast edges in the image to easily determine correct focus. The image can be displayed in color or monochrome for clearer delineation of high-contrast edges.
- Exposure Tools
- Histogram: The built-in histogram displays the distribution of brightness levels across your image. This offers a quick way to check overall image exposure.
False Color: Use false color to accurately gauge exposure levels for every part of your image. See exactly where highlights are getting blown out, where shadows lose detail, and when skin tones are exposed properly.
Zebras: This non-intrusive assist tool overlays black lines where the image is approaching overexposure. - Check Field
- Useful for adjusting hue and saturation, each color channel, red, blue, or green, can be displayed separately. Monochrome is also available for setting contrast and exposure.
- Pixel-to-Pixel Mapping
- Turn the input scaling off to see the individual pixels on the screen. This can be useful for critical image analysis and achieving critical focus.
Quick Features - Center, title-safe, and aspect ratio markers
In the Box FeelWorld FW-1D/S/O 7" IPS SDI/HDMI On-Camera Monitor HDMI to Mini HDMI Cable Sun Shade Shoe Mount L-Series Battery Plate Tally Adapter Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld FW-1D S O 7" IPS SDI HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FW-1D/S/O Specs | | | Resolution | 1280 x 800 pixels | | Dot Pitch | 0.117 mm² | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m² | | Contrast | 800:1 | | Viewing Angle | 178° | | Backlight | LED | | | | SDI | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
720p 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | HDMI | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
720p 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | | | Input | 1 x 3G/HD/SD-SDI
1 x HDMI
1 x YPbPr
1 x Video
1 x Audio(L/R) | | Output | 1 x 3G/HD/SD-SDI
1 x HDMI
1 x YPbPr
1 x Video | | | | Audio | 1 x Speaker output
1 x Headphone output | | Input Voltage | 6 to 18 VDC | | Power Consumption | Maximum: 12 W | | Environmental | Operating Temperature: 14 to 131°F / -10 to 55°C
Storage Temperature: -4 to 149°F / -20 to 65°C | | Threads | 4 x 1/4"-20 | | Dimensions | 8 x 6 x 1.7" / 21 x 16 x 4.2 cm | | Weight | With Sunshade Cover: 1.7 lb / 780 g
With F970 Battery Plate: 1.8 lb / 800 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 12.4 x 9.5 x 4.1" |
