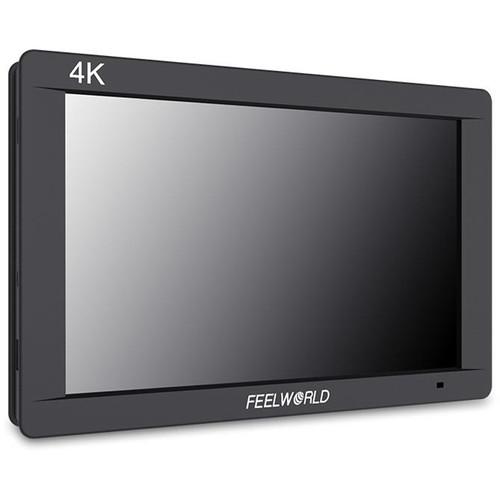

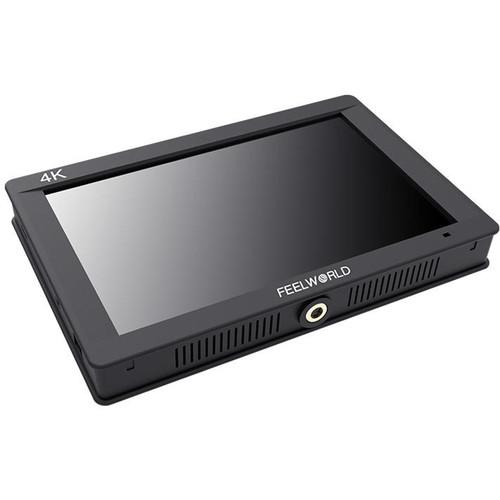

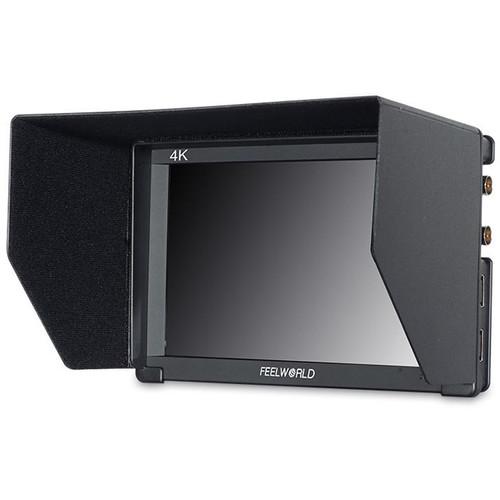

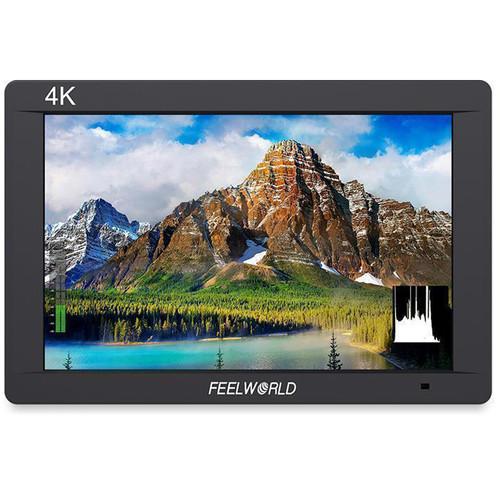

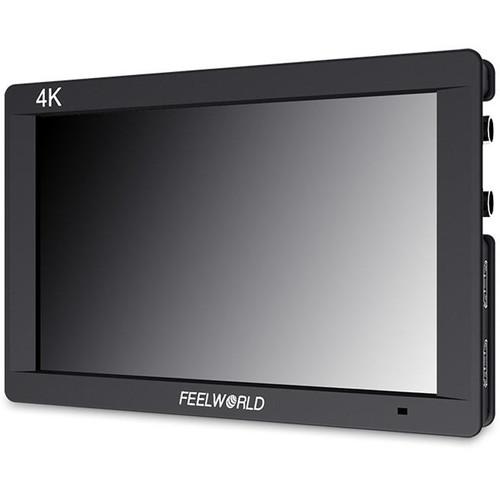

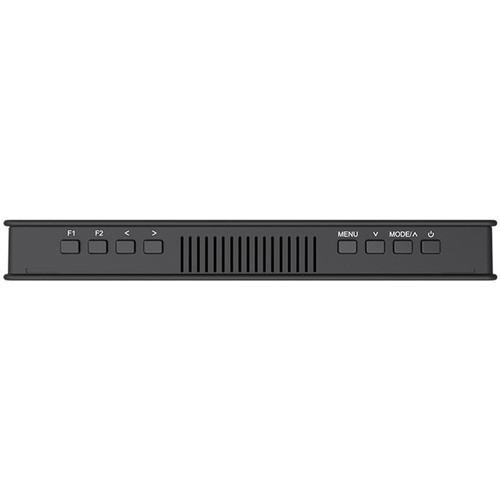

Product description The FW703 3G-SDI 4K HDMI On-Camera Monitor from FeelWorld features a 7" Full HD screen with a resolution of 1920 x 1200 and up to 323 ppi density. This compact monitor includes 3G-SDI and 4K HDMI inputs and outputs. The IPS 160° wide-viewing angle allows the operator to have a clear, easy-to-see image as their position shifts, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1. The FW703 features professional color calibration, peaking, zoom, anamorphic mode, markers, and image flip. The monitor includes an HDMI to mini HDMI cable, sunshade, shoe mount adapter, and an L-series type battery plate. Software upgrade on this monitor is done via its USB port. - 3G-SDI and 4K HDMI loop-through output
- Full HD 1920 x 1200 resolution
- 160° wide-viewing angle IPS panel
- Peaking focus assist (red, green, blue)
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment
UPC: 815206024206 In the Box FeelWorld FW703 7" IPS 3G-SDI 4K HDMI On-Camera Monitor HDMI to Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate Limited 1-Year Warranty Specification PDF 604.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld FW703 7" IPS 3G-SDI 4K HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

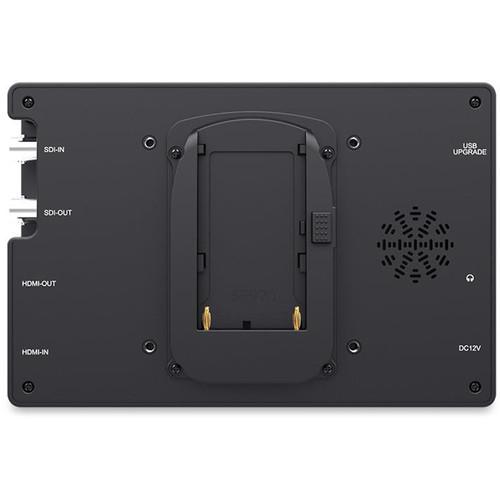

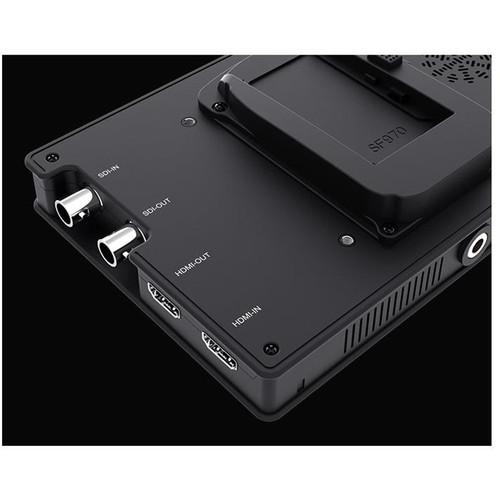

Technical parametersFeelWorld FW703 Specs | Screen Size | 7" IPS | | Display Colors | 16.7M (8-bit) | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.07875 mm (H) x 0.07875 mm (W) | | Aspect Ratio | 16:10 | | Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Backlight | LED | | Viewing Angle | 80°/80° (L/R)
80°/80° (U/D) | | Inputs | 1 x 3G-SDI
1 x HDMI
1 x USB (for upgrade) | | Outputs | 1 x 3G-SDI
1 x HDMI | | Audio Out | 1 x Built-in speaker
1 x 3.5 mm stereo headphone jack | | Power Connector | 12 DC input | | SDI Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576i
480i | | HDMI Format Support | 4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p/i
480p/i | | Input Voltage | 6.5 to 24 VDC | | Power Consumption | ≤9 W | | Operating temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Mounting Thread | 1/4"-20, on bottom | | Battery Plate | F970, L-series type | | Dimensions | 7.1 x 4.7 x 0.9" / 18.0 x 12.0 x 2.2 cm | | Weight | 11 oz / 320 g
12 oz / 350 g (with F970 battery plate) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.8 x 6.2 x 2.9" |
