Product description

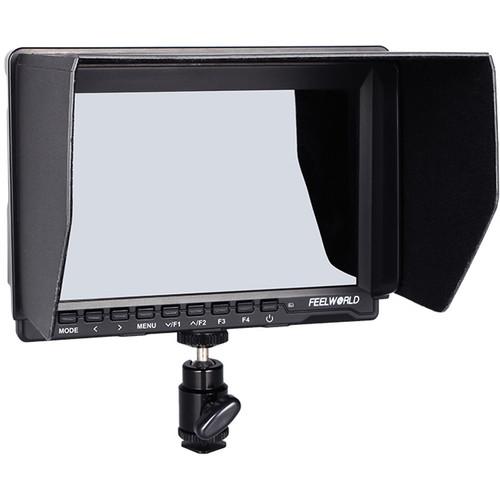

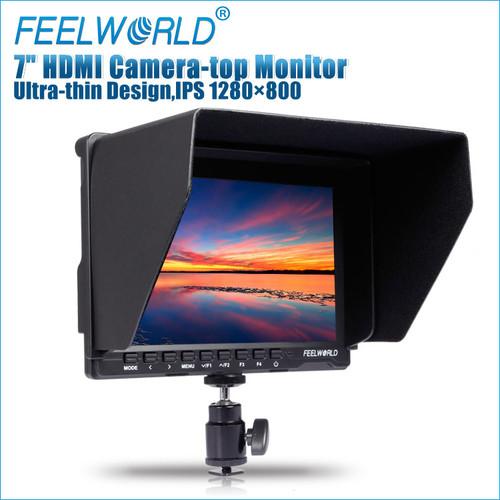

The FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock from FeelWorld uses an IPS panel which provides a brightness output up to 400 cd/m² and 800:1 color contrast ratio. Wide viewing angle of 178 x 178° allows you to see accurate, consistent, and bright images from virtually any angle. A wide color gamut and 1280 x 800 resolution ensure that the monitor produces precise color restoration. The FW759 features multiple input options like HDMI and AV, and supports most DSLRs and camcorders.The monitor offers peaking focus assist function. The peaking filter aids you to obtain the sharpest possible picture, which is most effective in bright light conditions. The included folding sun hood can be quickly clipped on to block out unwanted glare and reflections from the sun.
  • Supports 5D II mode, check field (red, green, blue, mono) function, and pixel-to-pixel function
  • Supports center marker and safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Supports image flipping (horizontal, vertical, HV) and image freezing

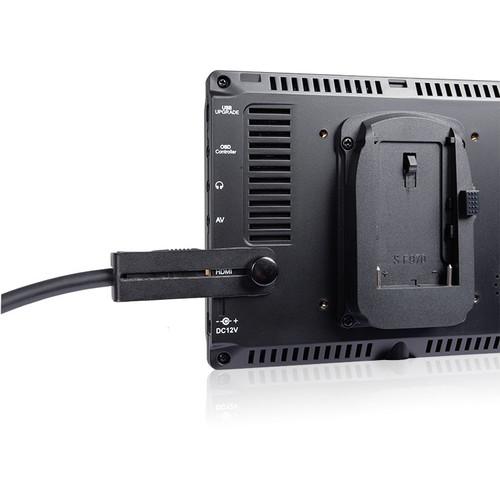

  • HDMI lock to avoid stress on the cable

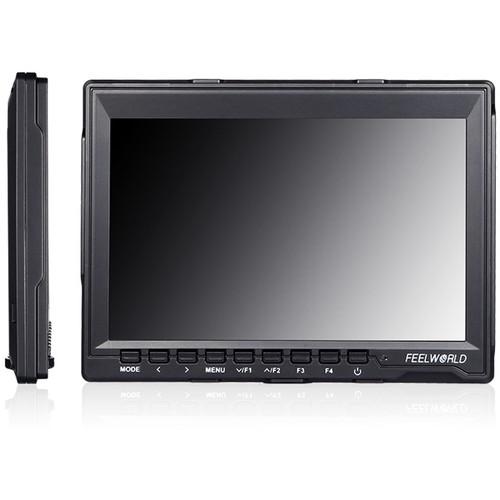

  • Thickness of 17mm
  • Portable light compatible with Steadicam, DSLR rig, camcorder kit, handheld stabilizer, video camera crane
  • Please note, the monitor incorporates a Sony L-series type battery plate; however, it does not come with either a battery or power supply. You will need to source a battery or power supply yourself to use the monitor
In the Box FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock
  • Mini HDMI Cable
  • Sunshade
  • Hot Shoe Mount
  • NP-F970 Battery Plate
  • HDMI Plug Lock
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI Lock can be downloaded in PDF format at the link stated below.
    Download PDF user manual - FeelWorld FW759 7" IPS HDMI On-Camera Monitor with Sunshade and HDMI LockDownload PDF User Manual - https://www.search-manual.com/ upload/ feelworld-fw759-7-ips-hdmi-on-camera-monitor-with-sunshade-and-hdmi-lock-210612-user-manual.pdf
    (PDF file, 2.44 MB)


    Technical parameters

    FeelWorld FW759 Specs

    Resolution 1280 x 800
    Dot Pitch H x V: 0.11775 x 0.11775
    Aspect Ratio 16:10
    Brightness 400 cd/m²
    Contrast 800:1
    Viewing Angle 178/178°
    Backlight LED
    HDMI 1080p (60/59.94/50/30/29.97/25/24/24fps/23.98/23.98 fps)
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29/25/24/23.98)
    576p/576i/480p/480i
    Input 1 x HDMI
    1 x Video
    1 x Audio
    Output 1 x OSD controller
    Audio 1 x Speaker
    1 x 3.5 mm Mini headphone jack
    Input Voltage 5.5 to 35 V
    Power Consumption ≤5 W
    Working Temperature -4 to 122°F (-20 to 50°C)
    Storage Temperature -22 to 140°F (-30 to 60°C)
    Threads 1/4"-20 Thread socket on bottom
    Dimensions 6.9 x 5.1 x 0.7" (17.6 x 13.0 x 1.7 cm)
    Weight 14 oz (400 g)
    Package Weight 1.83 lb
    Box Dimensions (LxWxH) 8.8 x 7.6 x 2.6"
