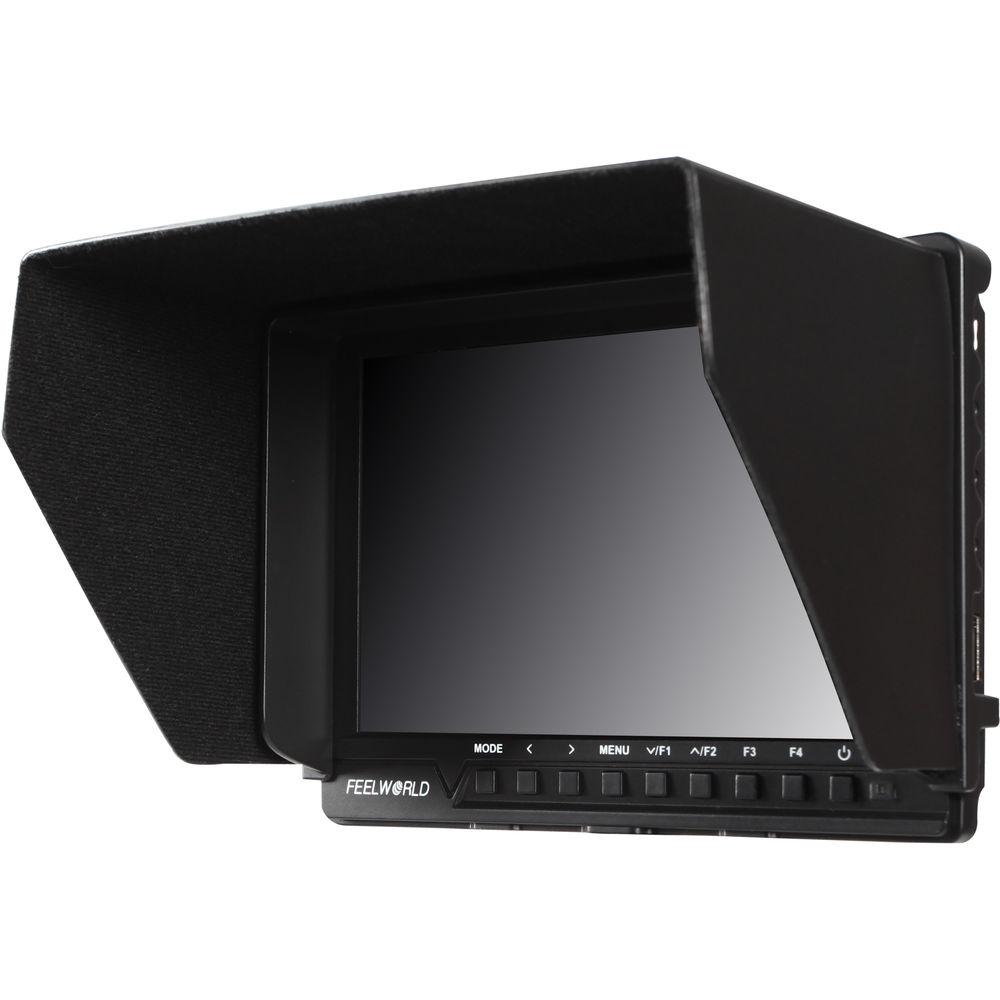

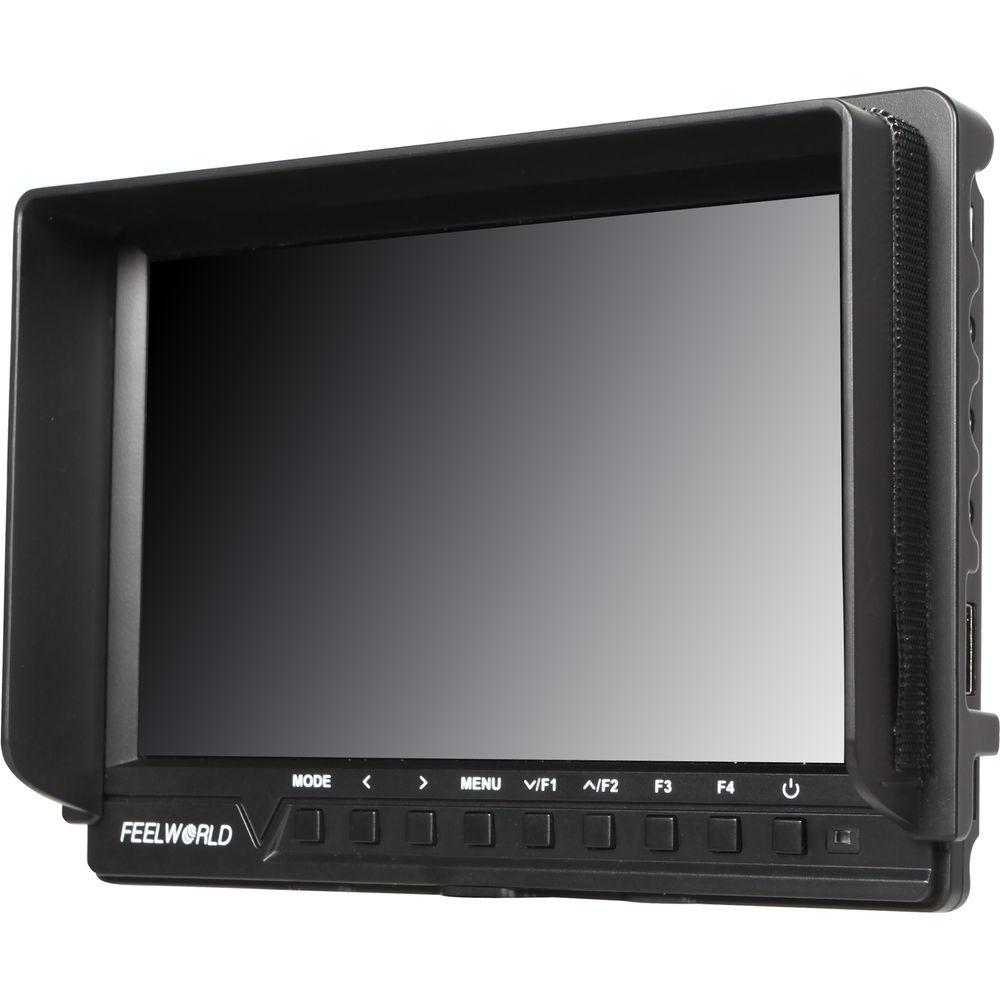

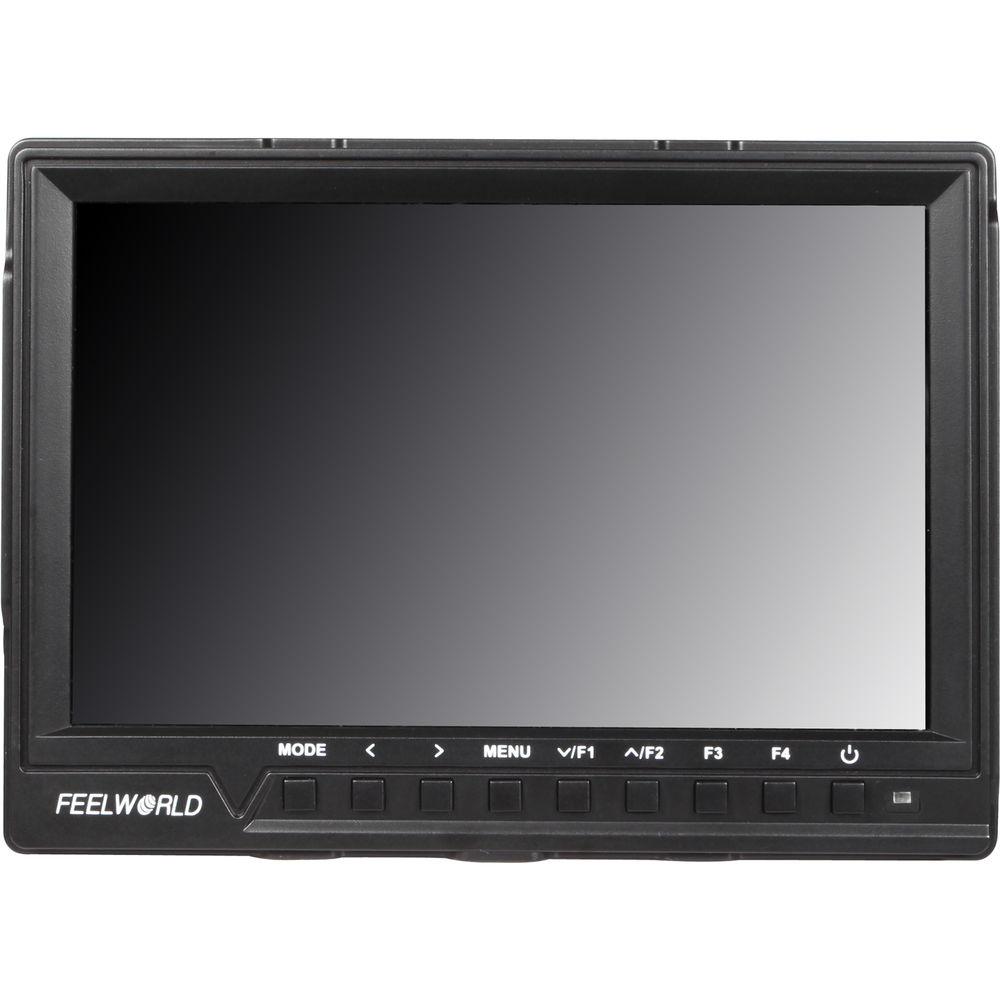

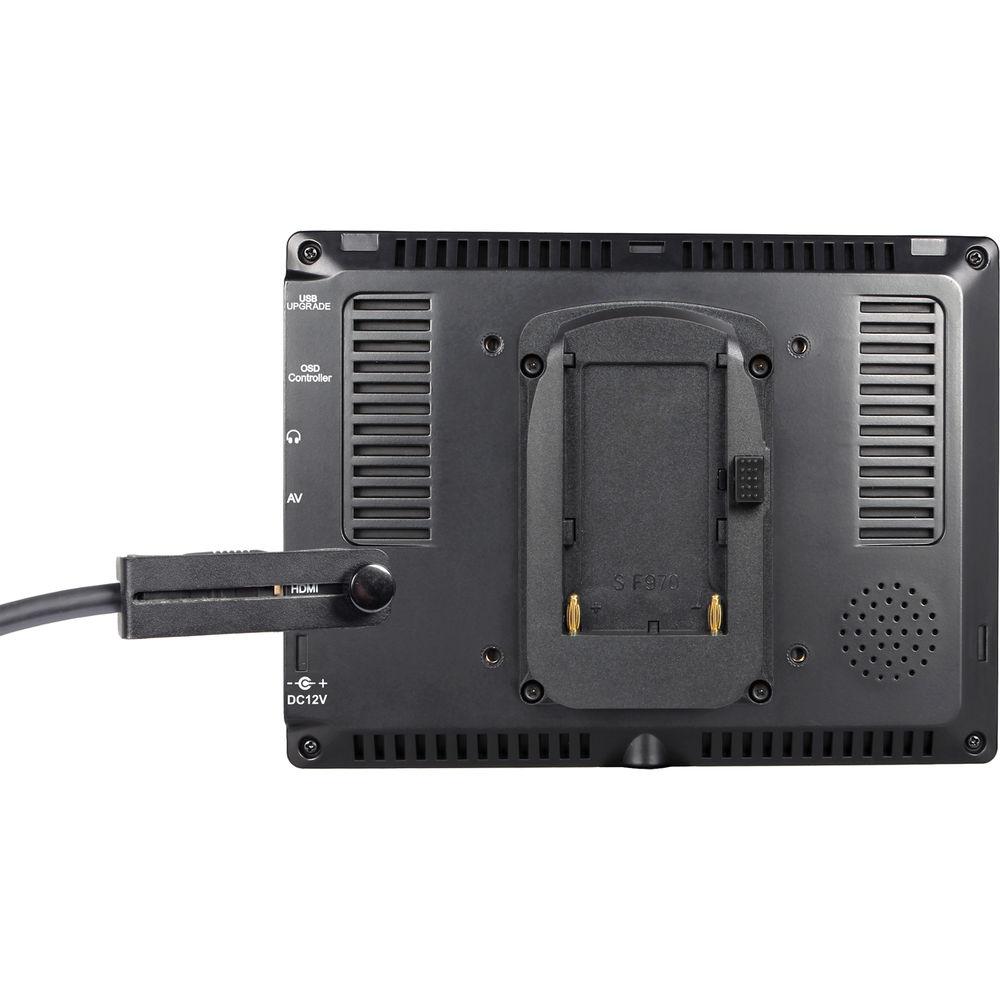

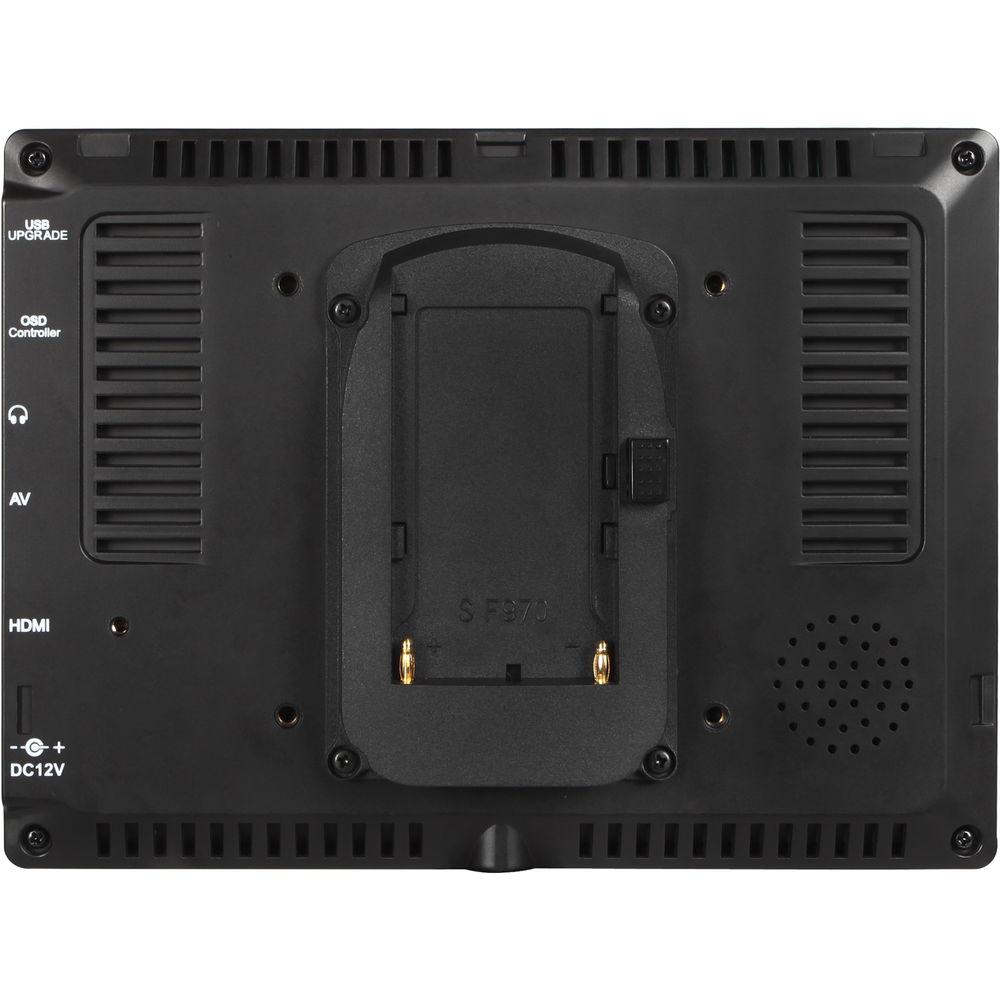

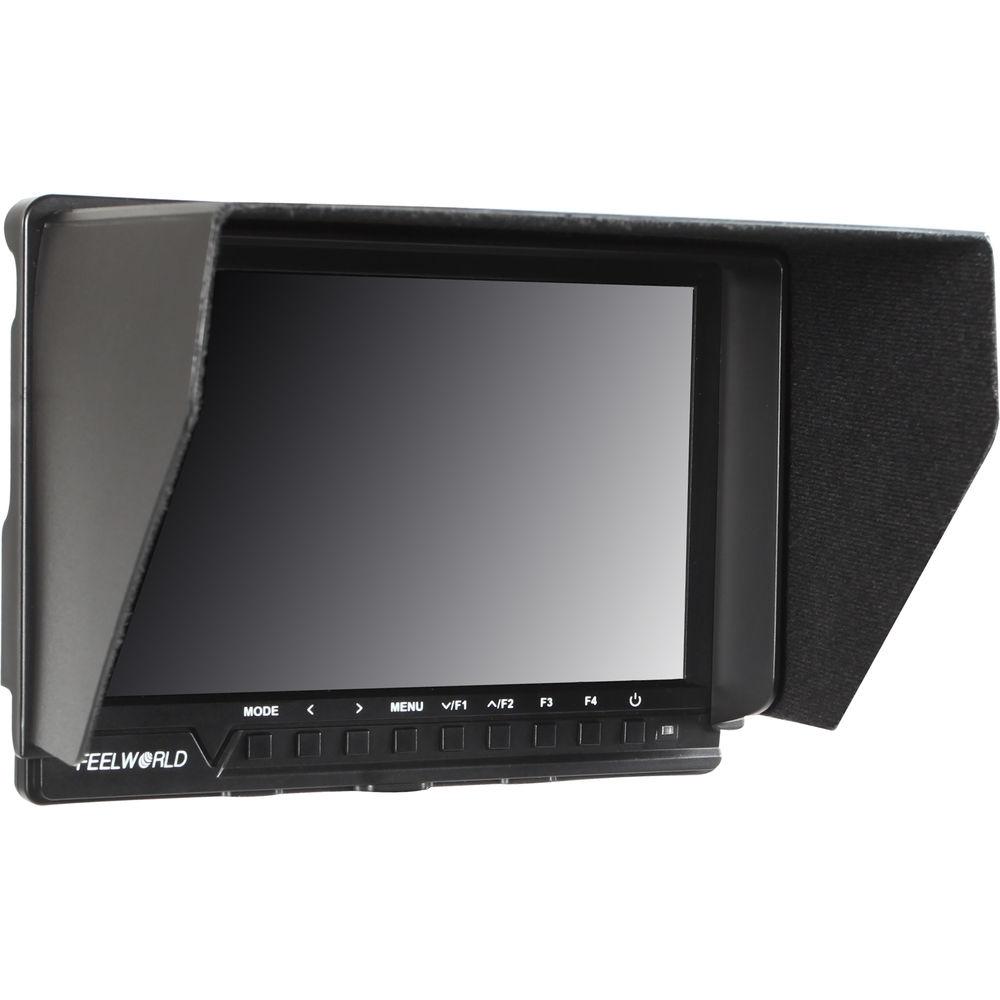

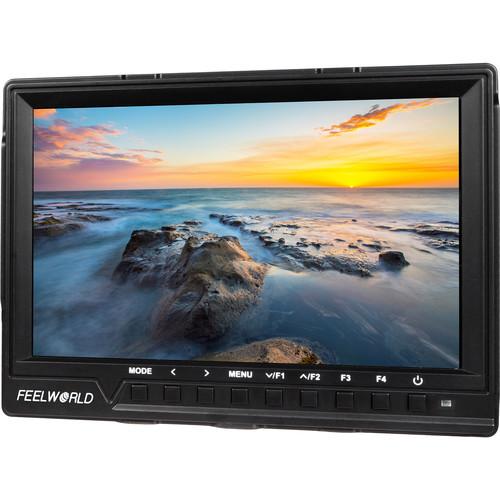

Product description Monitor SD, HD, and UHD 4K video with the Feelworld FW760 7" On-Camera LCD Monitor. A display resolution of 1920 x 1200 can display 1080p signals without scaling, as well as higher and lower resolution content. HDMI and analog composite video inputs are offered on the side of the monitor. For added security, a simple HDMI cable lock is included, ensuring a stable connection.Despite its slim form factor, the FW760 offers many helpful functions that are useful across many different kinds of workflows. Various focus-checking functions such as peaking, zoom, and 1:1 pixel mapping assist in getting sharp images. Framing functions include anamorphic desqueeze, frame lines, markers, and image flip. Rounding out the internal feature set are the exposure functions which include histogram, false color, and zebras.In addition to the aforementioned HDMI cable lock, a Mini HDMI to HDMI cable, sunshade, shoe mount, and L-Series battery plate are included in the box. Whether you're shooting with an SD DV camera, HD camcorder, DSLR, or 4K mirrorless camera, the FW760 will display your images. - Monitoring Tools
-
- Histogram
- Audio level meters
- Focus peaking
- False color
- Zebras (0-100 IRE selectable)
- R/G/B-only and luma-only modes
- Over/underscan
- 4, 9 and 16x zoom
- Anamorphic de-squeeze
- Image flip
- Nine-grid zoom-in
- 1:1 pixel mapping
- Frame markers
In the Box FeelWorld FW760 7" On-Camera LCD Monitor Mini HDMI to HDMI Cable Sunshade Shoe Mount HDMI Plug Lock L-Series Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld FW760 7" On-Camera LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FW760 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.7 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A Input
1 x 3.5 mm (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Other I/O | 1 x 3.5 mm | | Card Slot | None | | | | Video Format | HDMI
UHD 4K: 23.98/24/25/29.97/30
DCI 4K: 24
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5 W | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7 x 5.1 x 0.6" / 18 x 13 x 1.7 cm | | Weight | 13 oz / 370 g, Including Sun Hood
9.5 oz / 270 g | | | | Package Weight | 1.815 lb | | Box Dimensions (LxWxH) | 8.85 x 7.6 x 2.7" |
