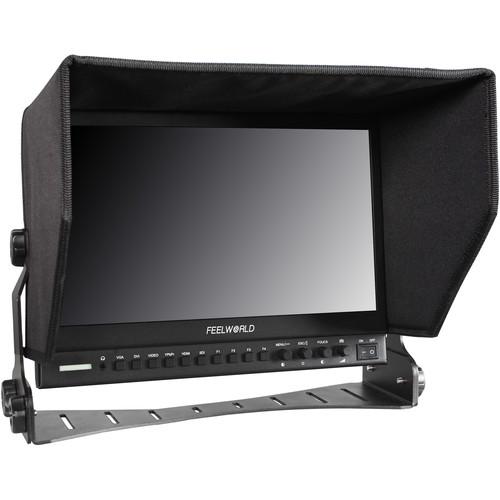

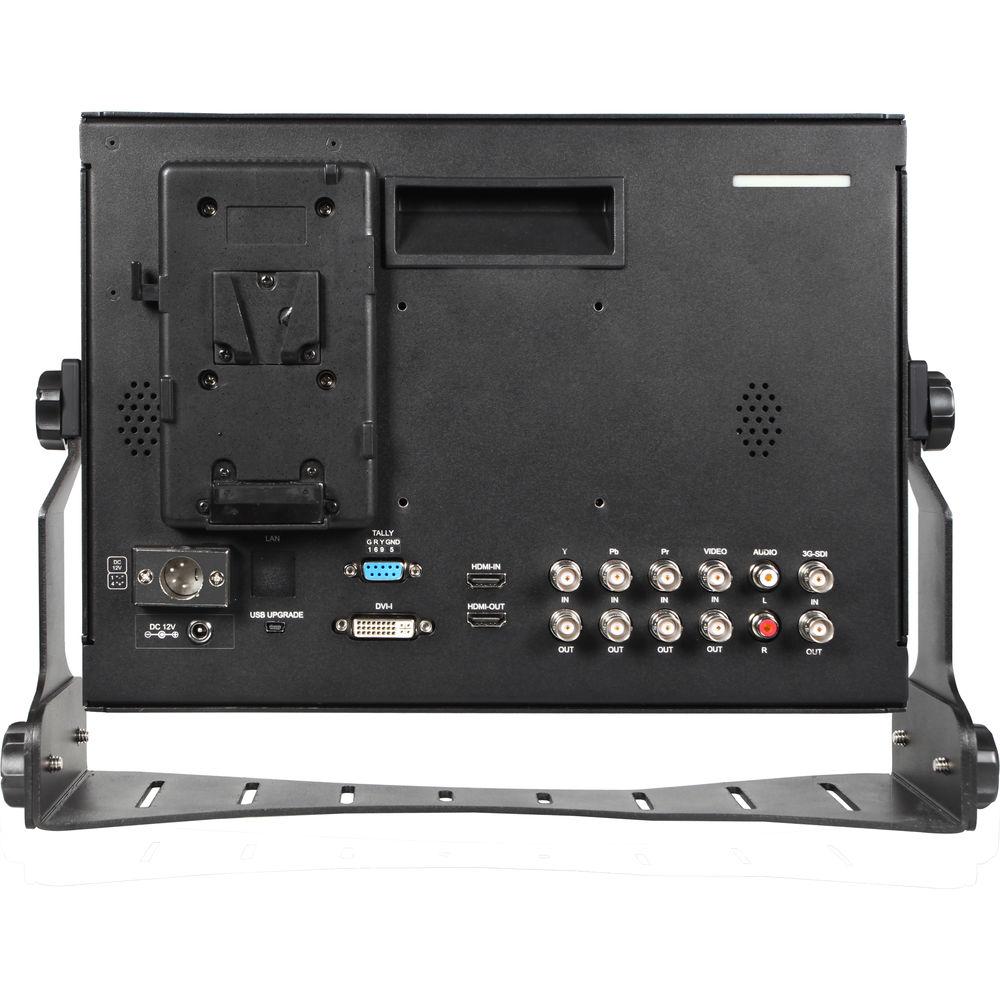

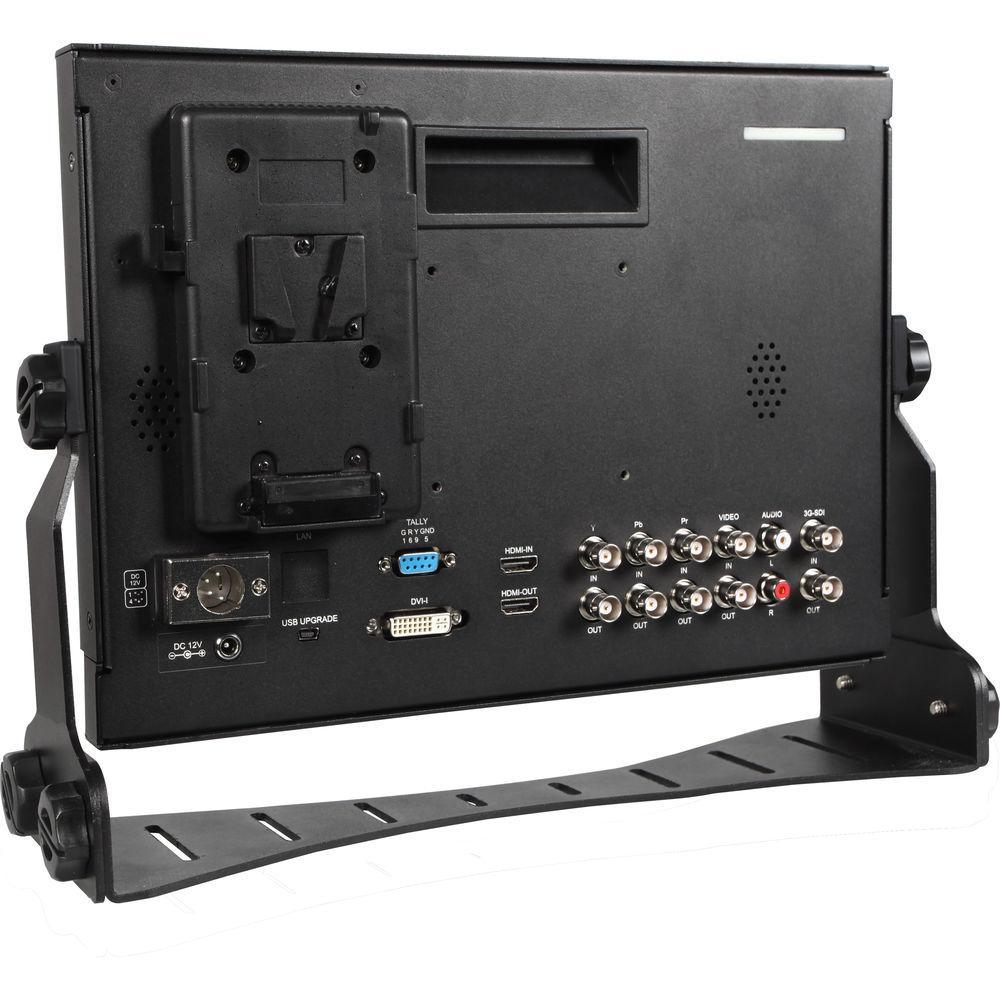

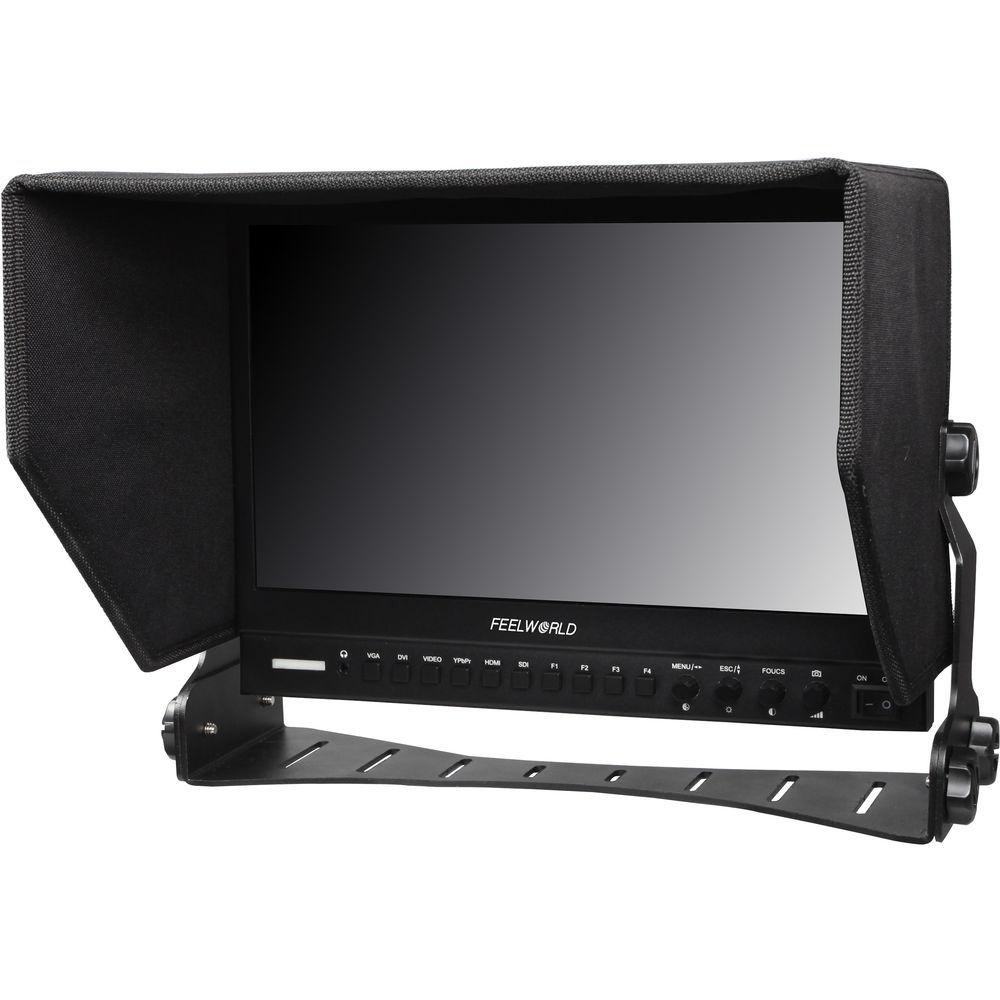

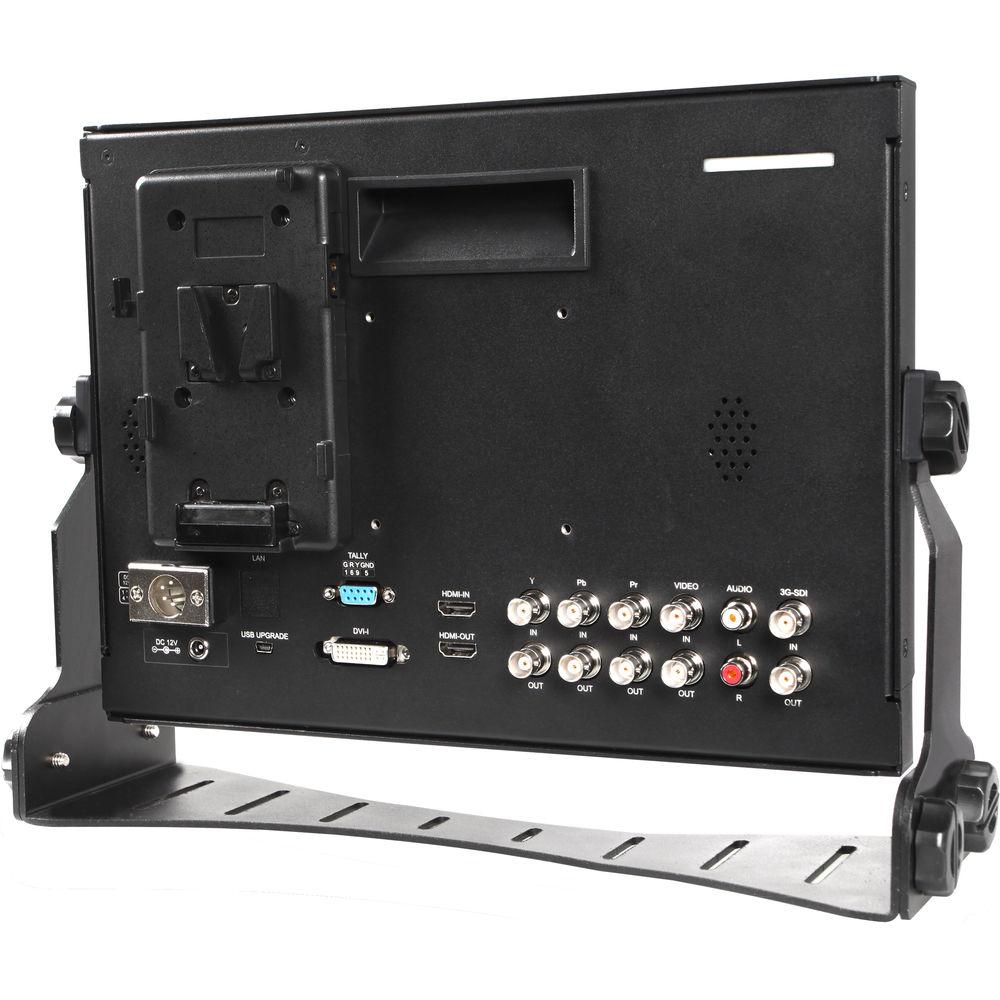

Product description Featuring a full-HD IPS LCD panel, the FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration. Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting. - Monitoring Tools
-
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
In the Box FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor Power Supply V-Mount Battery Plate Mini HDMI Cable Tally Kit Sunshade U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWP133-9HSD Specs | | | Panel Type | IPS-Type LCD | | Display Size | 13.3" / 33.8 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.1533 x 0.1533 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x DVI-I Input
1 x BNC (Composite) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 23.98/24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 12 W (Maximum) | | | | Mounting-Hole Pattern | 75 x 75 mm | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 12.4 x 9.1 x 1" / 315.5 x 231 x 26.4 mm | | Weight | 3.61 lb / 1.64 kg
4.32 lb / 1.96 kg, Including Bracket | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 14.9 x 13.9 x 4.8" |
