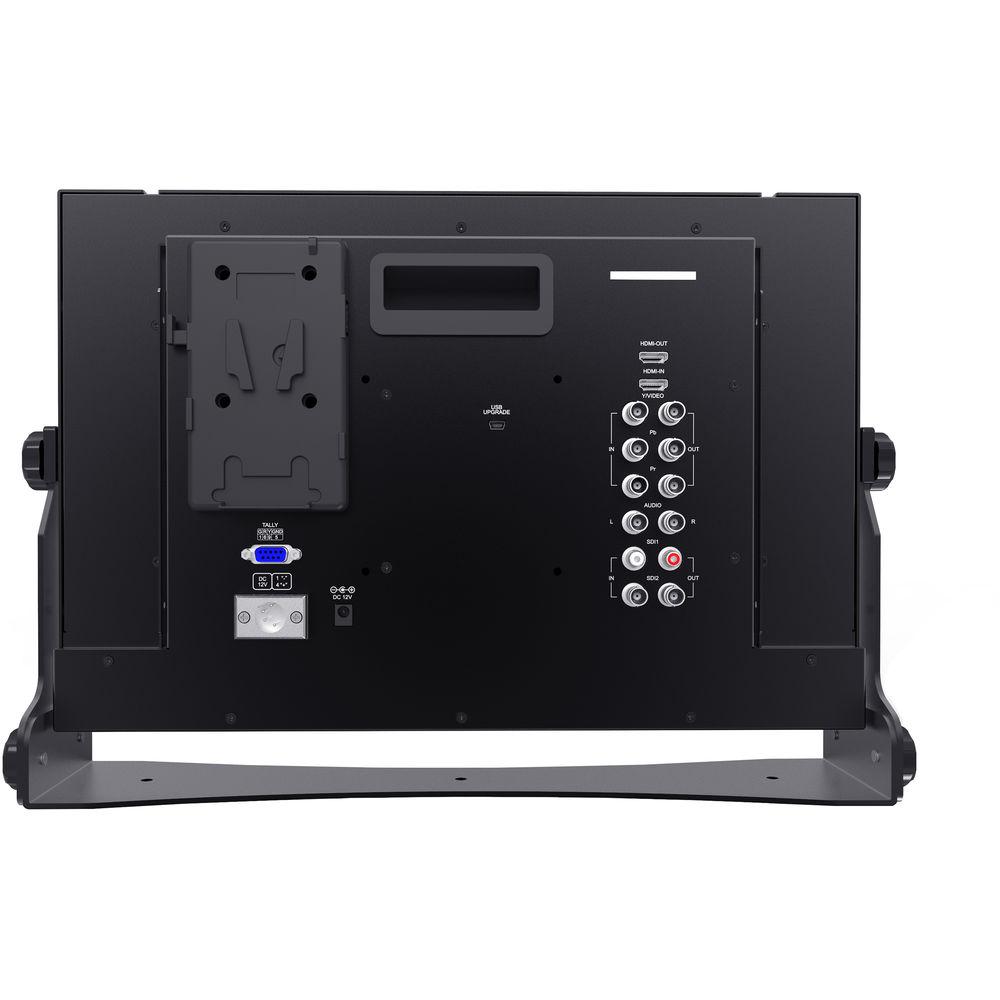

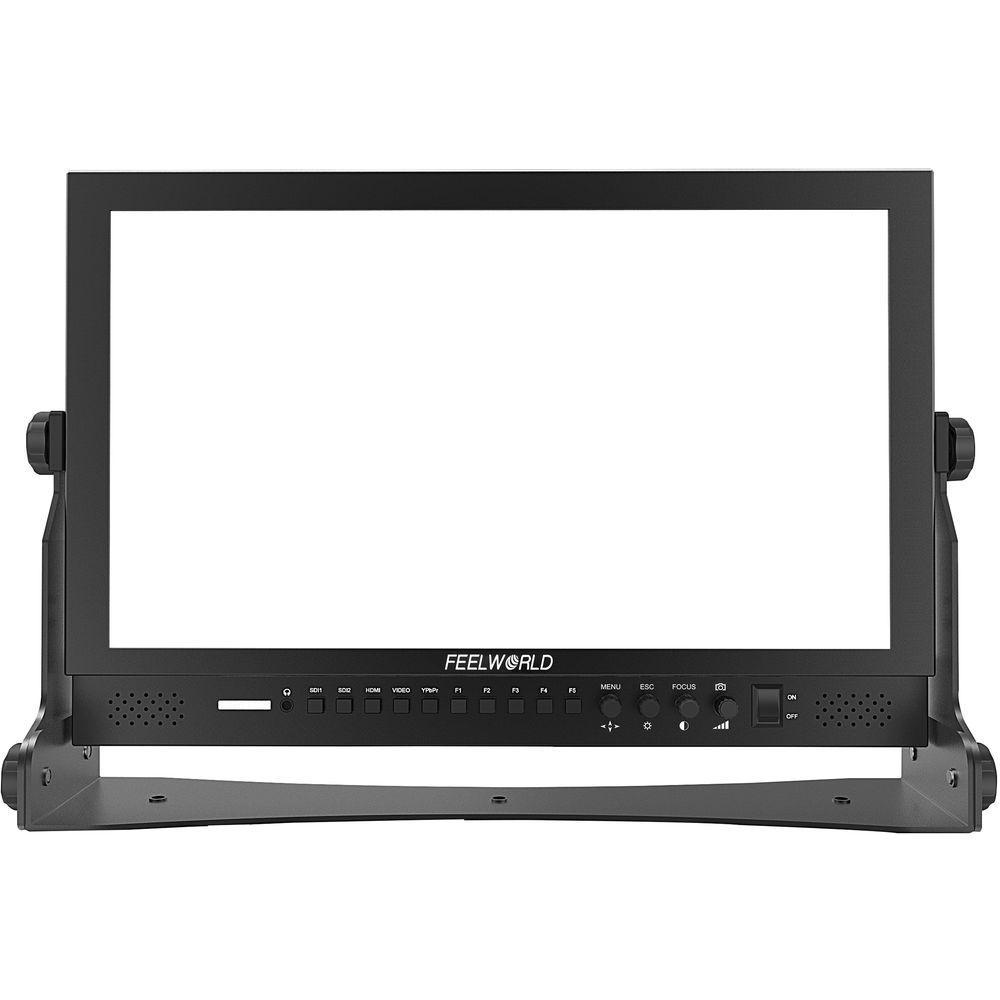

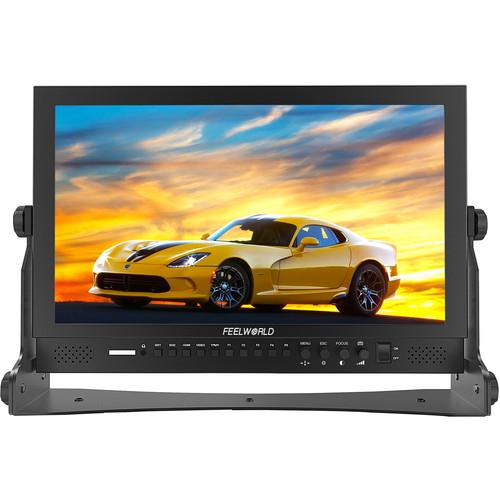

Product description Featuring a Full HD panel, the FeelWorld P173-9DSW 17.3" Broadcast LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs; outputs are available for SDI, HDMI, component, and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration, activating the 3-color tally light atop the display. A V-Mount bracket on the rear of the monitor can be used to power the display in the field, in addition to 12V barrel and 4-pin XLR jacks. Gold Mount plates are available separately.Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. Scopes can be displayed transparently on top of the image or in a black bar below the image, depending on preference. If shooting outdoors, attach the included sun hood for optimal contrast. A U-bracket is also included for convenient tabletop mounting. - Monitoring Tools
-

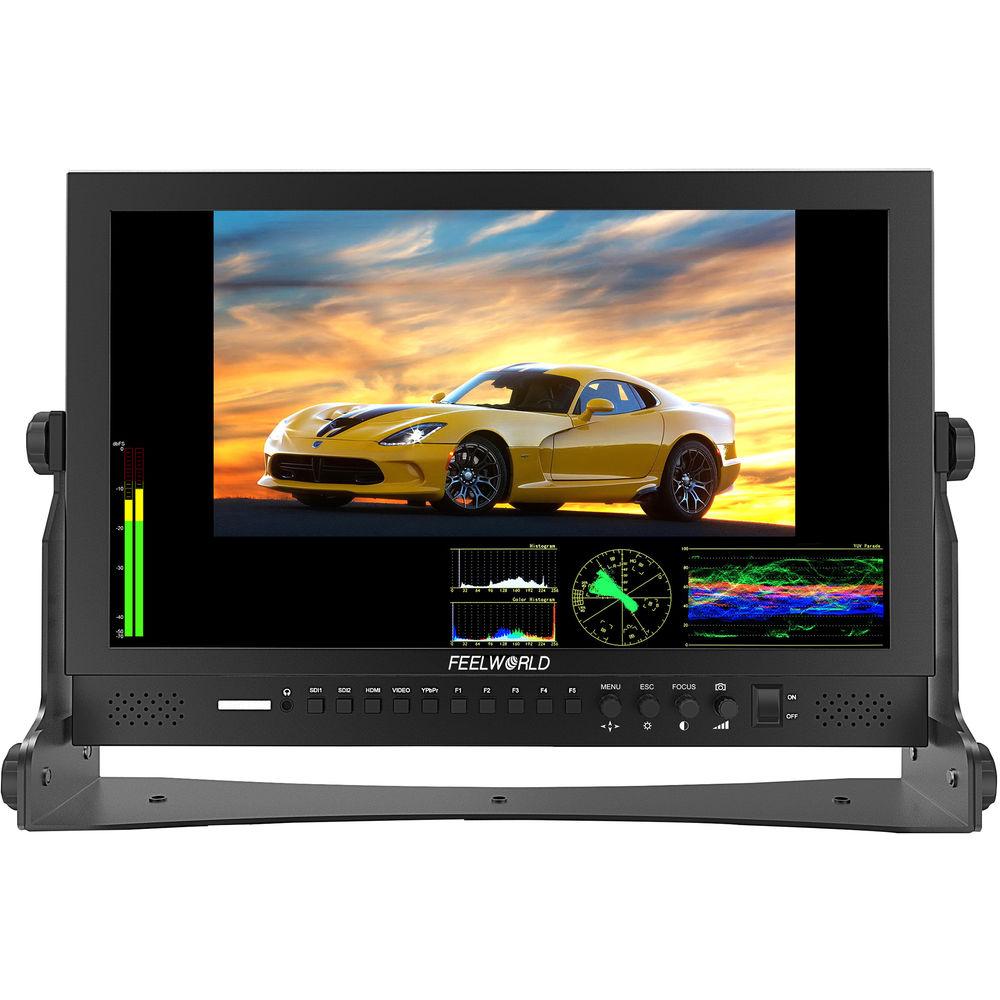

- Waveform (RGB, YUV, Y (Luminance))
- Vectorscope
- Color and luminance histograms
- Embedded audio meter
- Peaking focus assist
- False color
- Zebras
- Check field (R/G/B/Gray)
- Color bars
- DSLR scaling
- Scan modes (auto/over/full-screen)
- Pixel-to-pixel mapping
- Zoom scale (punch-in)
- Anamorphic de-squeeze (1.33x / 2.0x / 2.0x mag)
- Image flip
- Center marker
- Colored screen markers (16:9, 4:3, 2.35:1, 1.85:1)
- Safe area (80/85/90/93/96%)
- Color temperature
UPC: 815206022899 In the Box FeelWorld P173-9DSW 17.3" Broadcast LCD Monitor Power Supply V-Mount Battery Plate Mini HDMI Cable Tally Kit Sunshade U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld P173-9DSW 17.3" Broadcast LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWP173-9DSW Specs | | | Panel Type | TFT LCD | | Display Size | 17.3" / 43.9 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 140° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Dot Pitch | 0.1989 x 0.1989 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x DVI-I Input
1 x BNC (Composite) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Card Slot | None | | | | Video Format | HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
PAL
NTSC | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 27 W (Maximum) | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 16.8 x 11.2 x 1.4" / 42.6 x 28.5 x 3.5 cm | | Weight | 6.4 lb / 2.9 kg
7.7 lb / 3.5 kg, Including Bracket | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 20.6 x 16.1 x 6.8" |
