User Manual for FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor
- Product category: Production Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld Production Monitors
 |
User manual for the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|

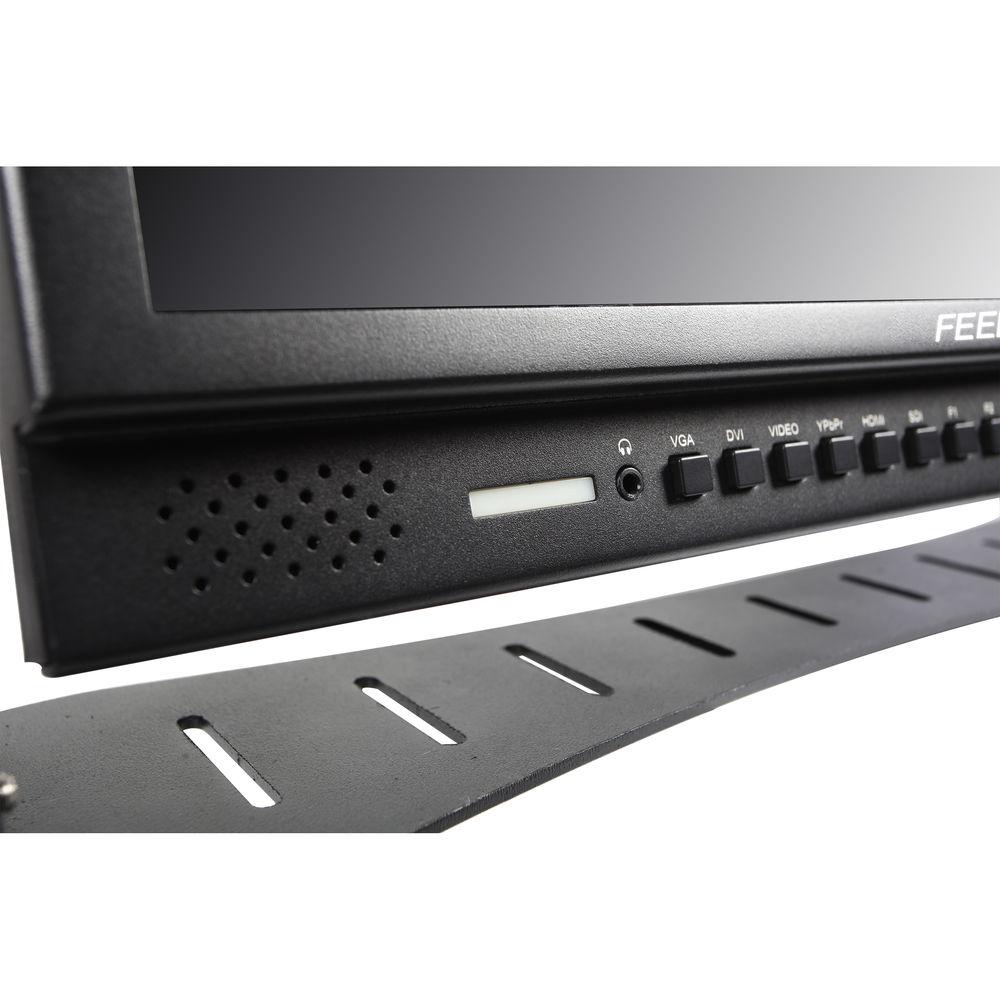

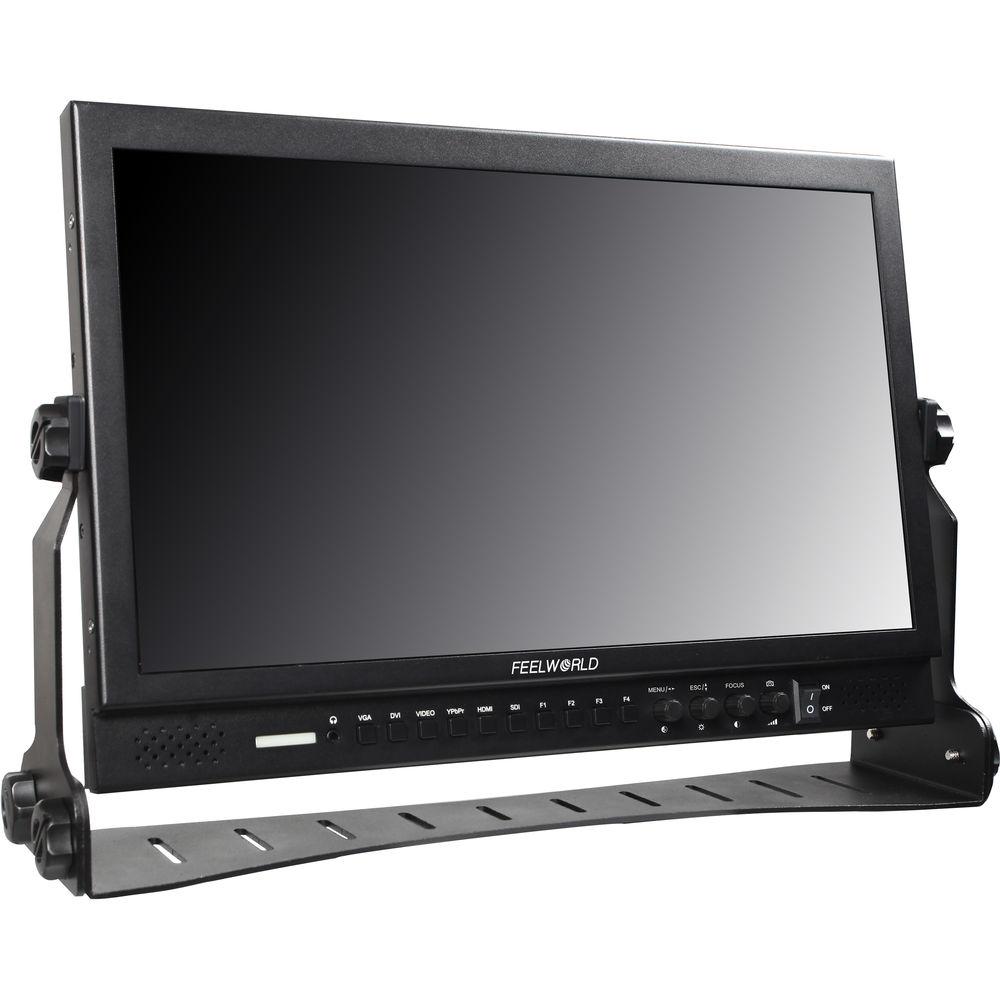

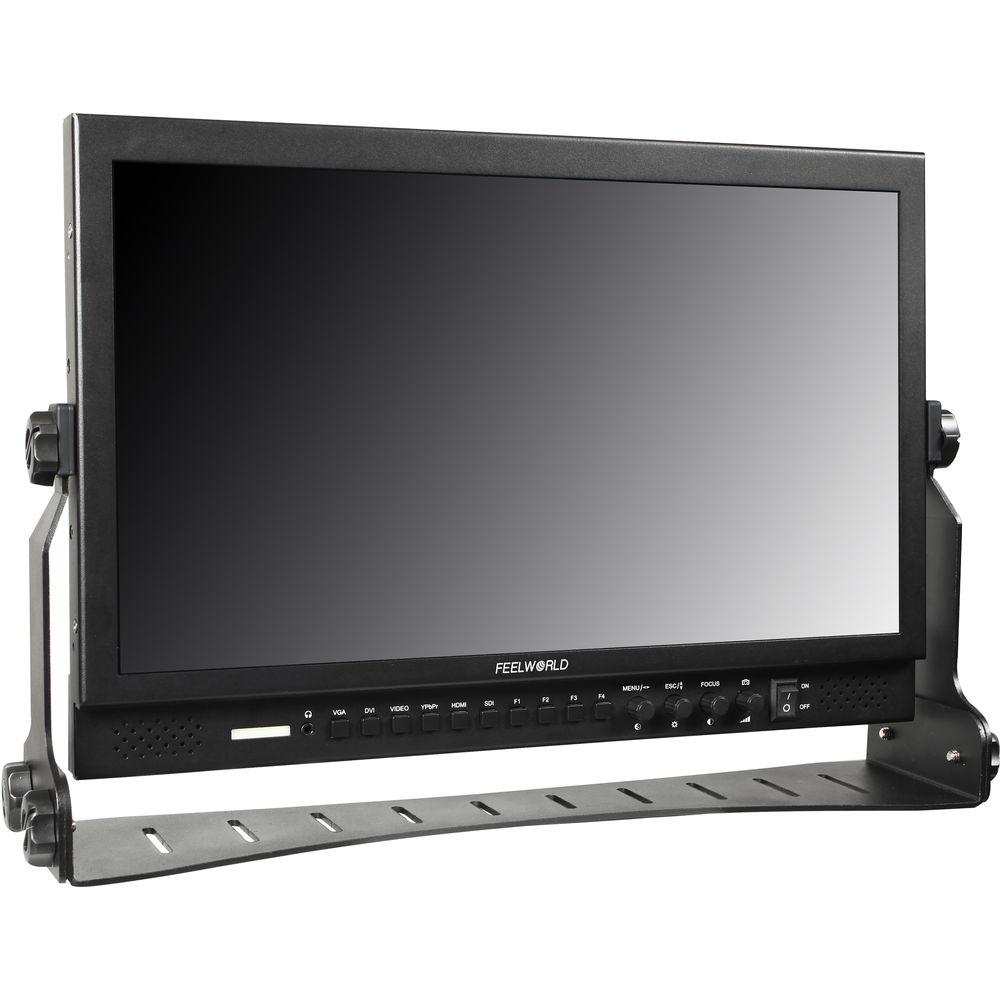

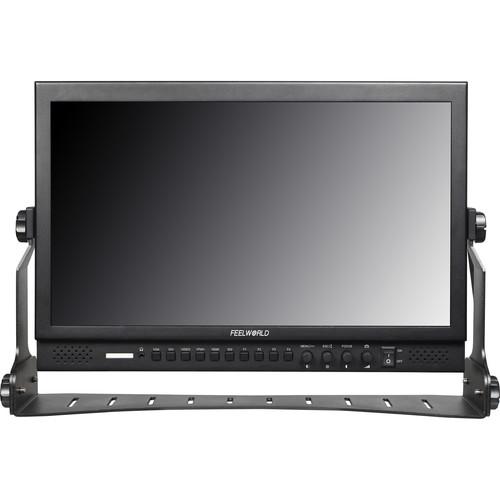

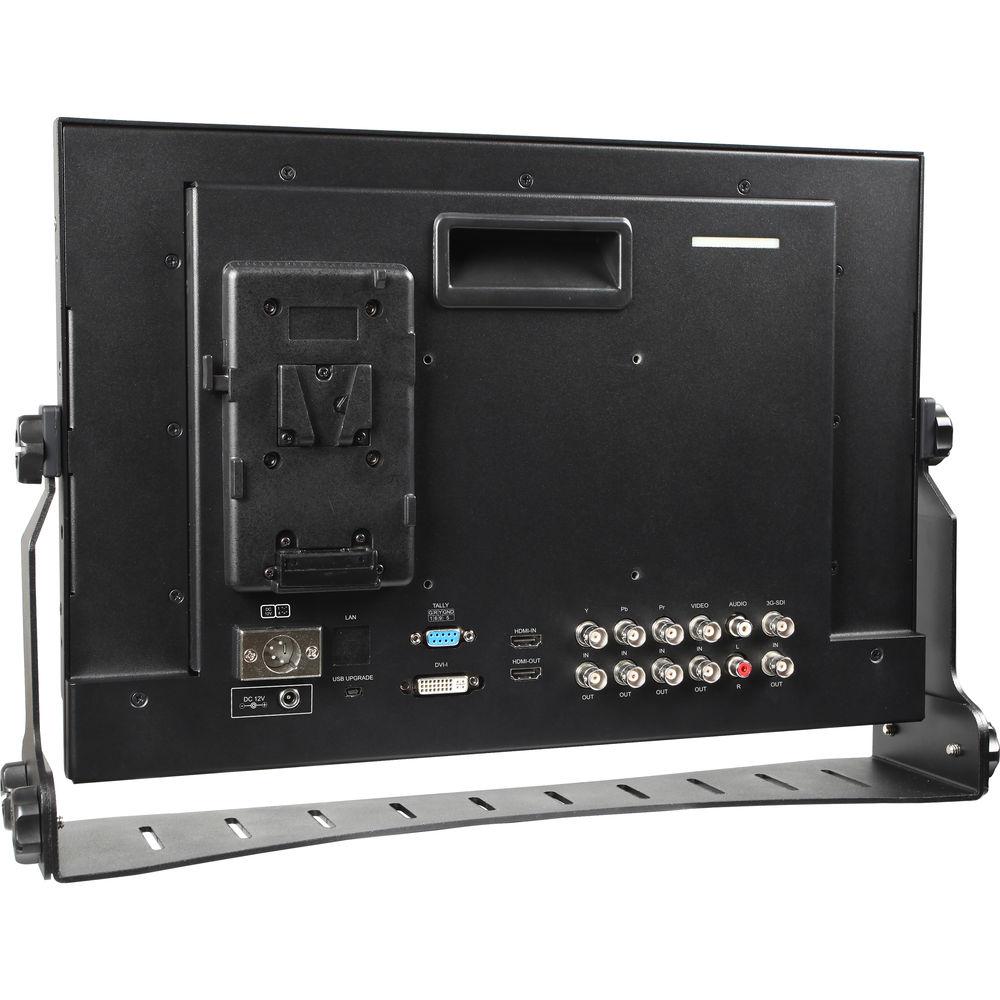

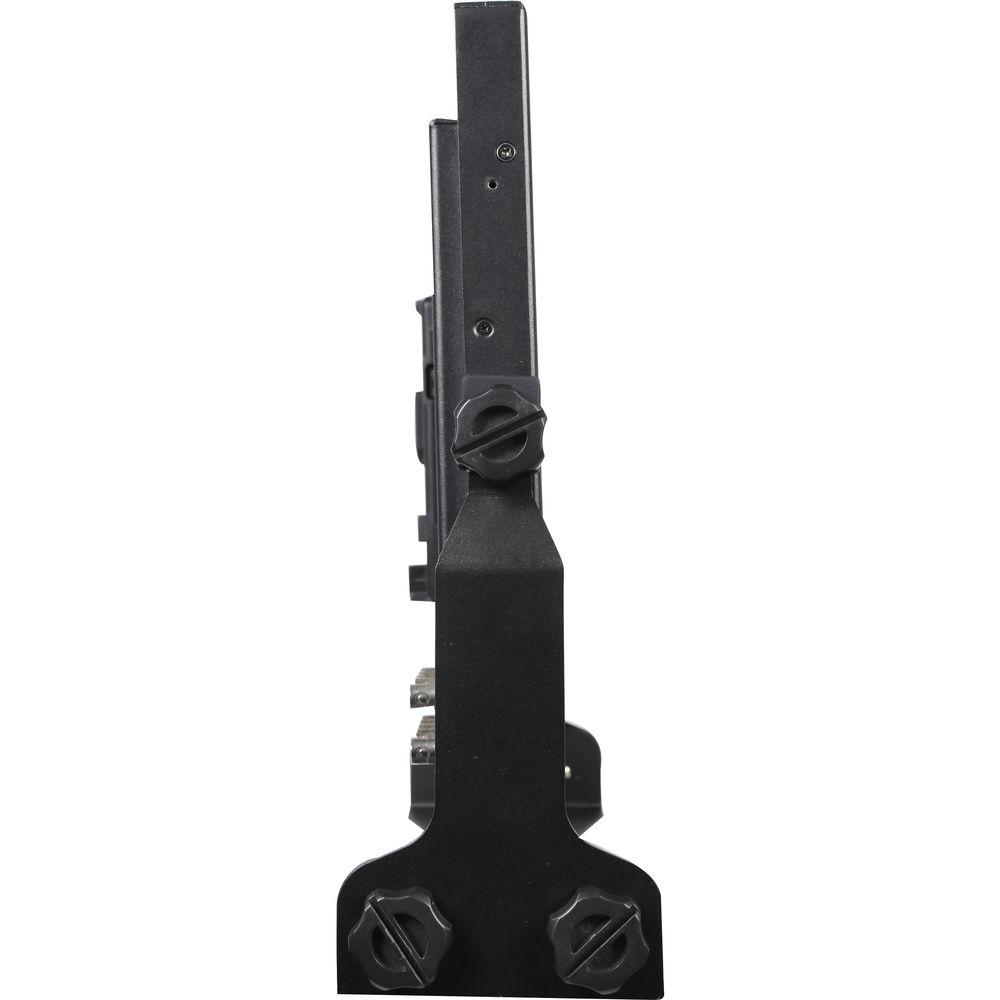

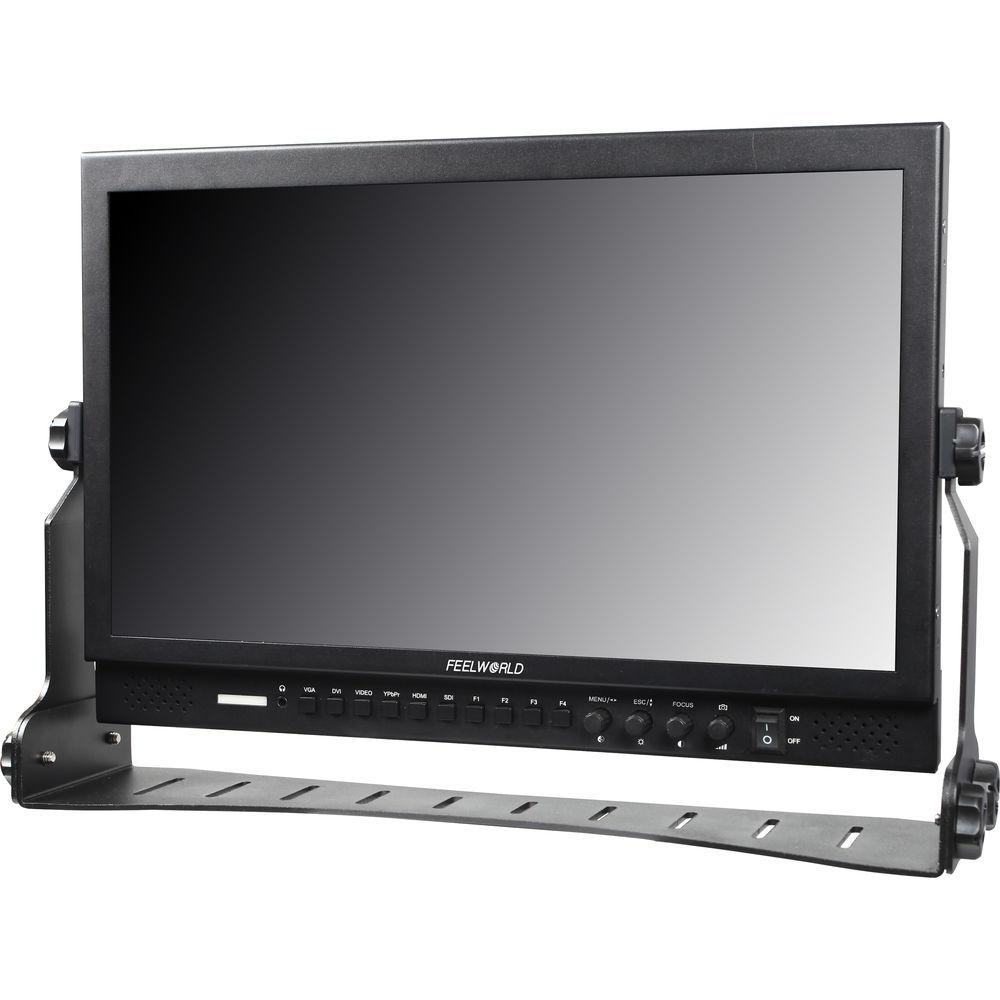

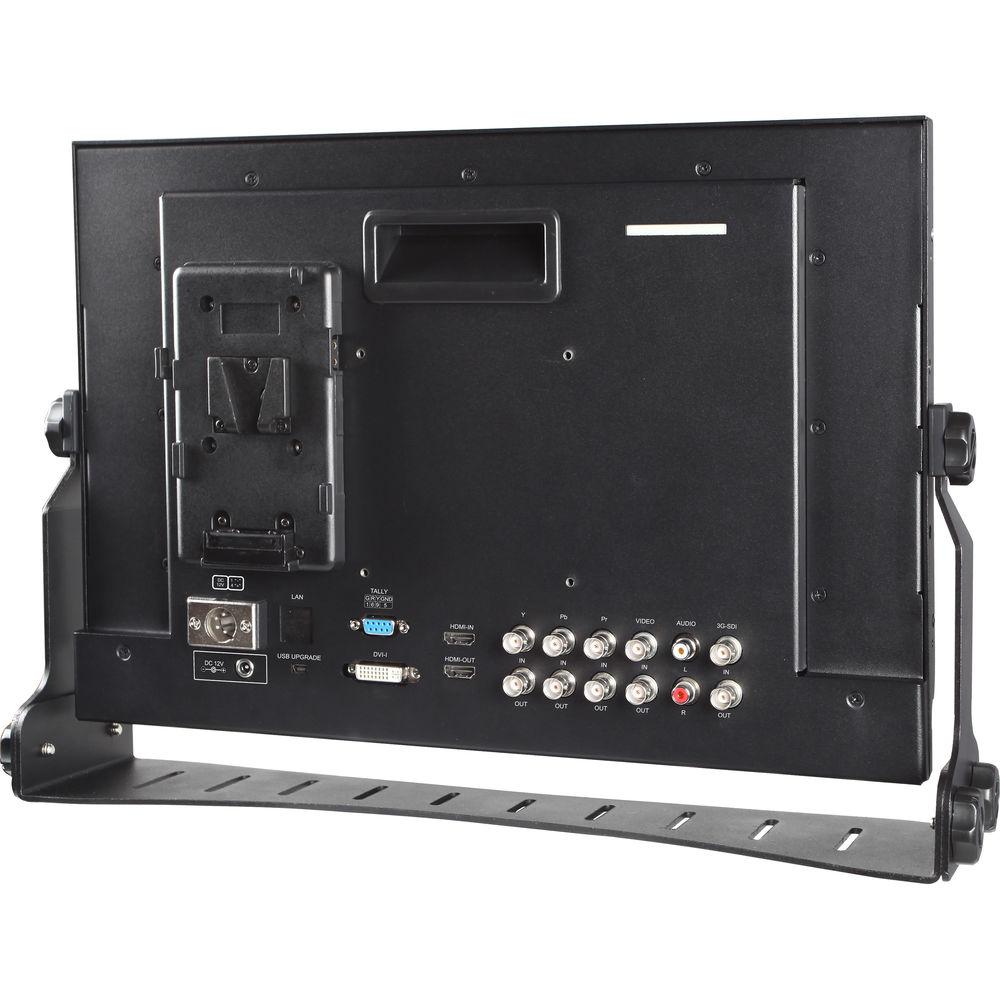

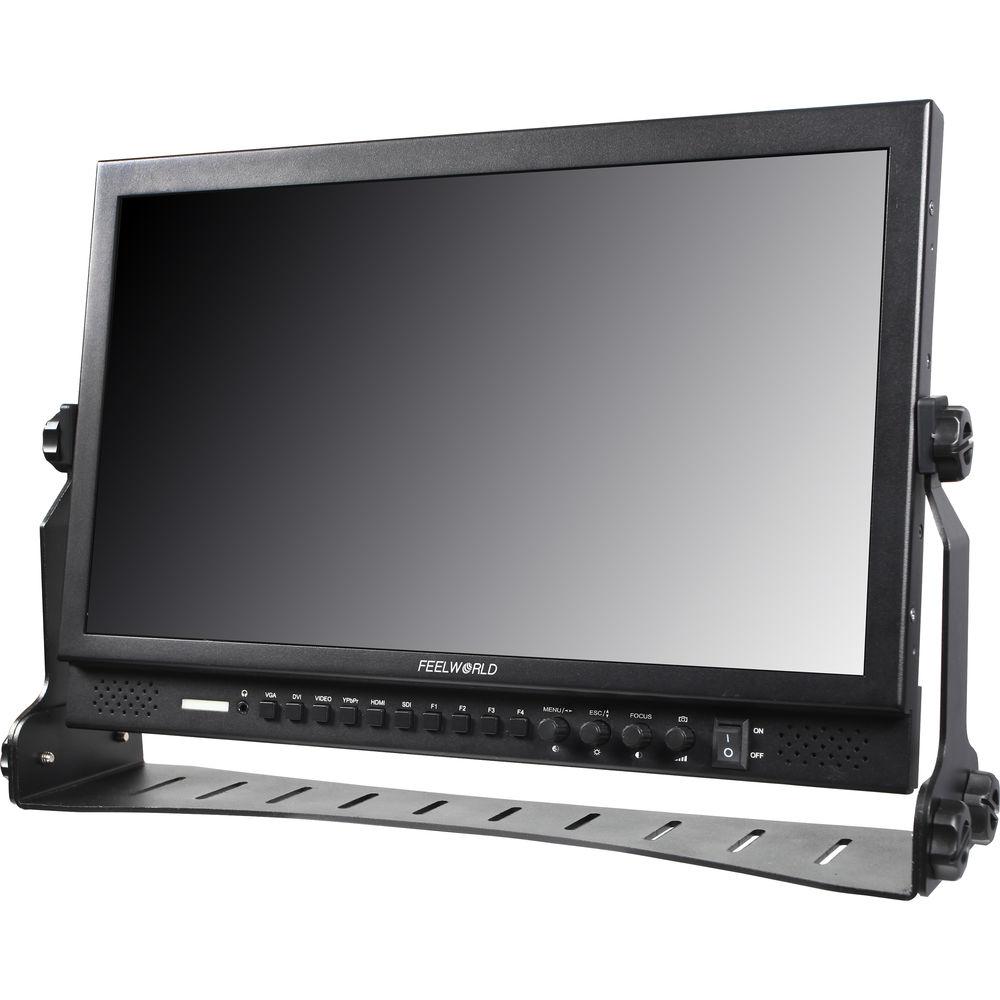

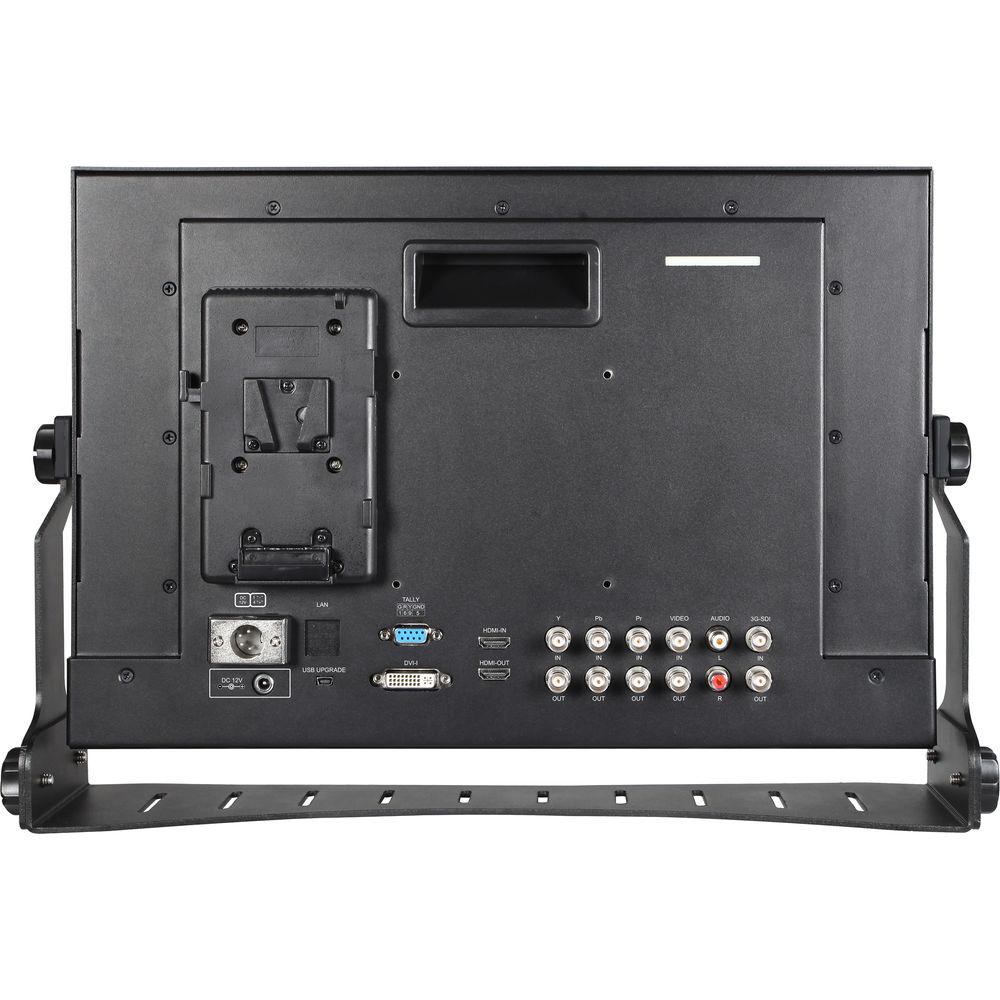

Product description Featuring a full-HD IPS LCD panel, the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor can be used for 4K, HD, as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. The HDMI input will accept both DCI and UHD 4K signals for high-resolution productions. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration. Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting. - Monitoring Tools
-
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
UPC: 815206021526 In the Box FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor Power Supply V-Mount Battery Plate Mini HDMI Cable Tally Kit Sunshade U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld P173-9HSD Specs | | | Panel Type | TFT LCD | | Display Size | 17.3" / 43.9 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 140° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Dot Pitch | 0.1989 x 0.1989 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x DVI-I Input
1 x BNC (Composite) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 23.98/24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 26 W (Maximum) | | | | Mounting-Hole Pattern | 100 x 100 mm | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 16.3 x 11 x 1.4" / 414 x 280 x 35.1 mm | | Weight | 6.06 lb / 2.75 kg
7.28 lb / 3.3 kg, Including Bracket | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 20.5 x 16.2 x 6.4" |
