User Manual for FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor
- Product category: Production Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld Production Monitors
 |
User manual for the FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|

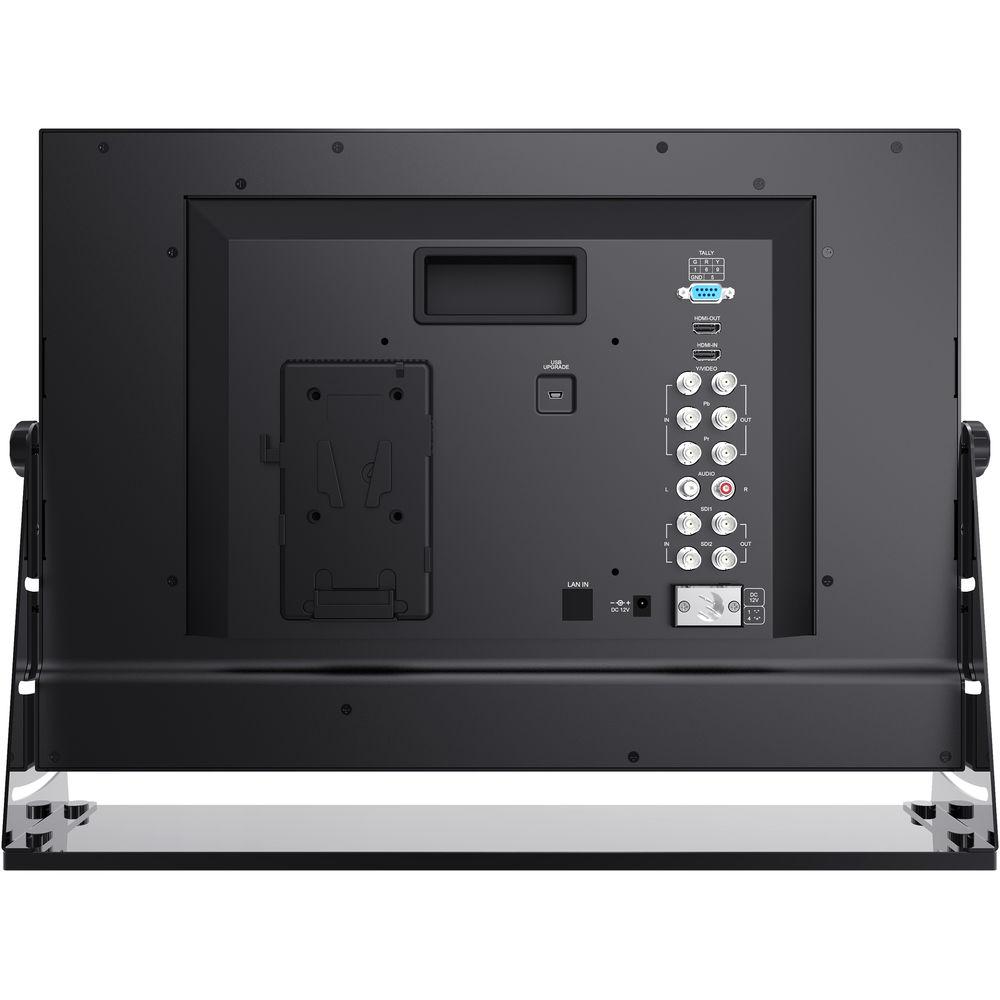

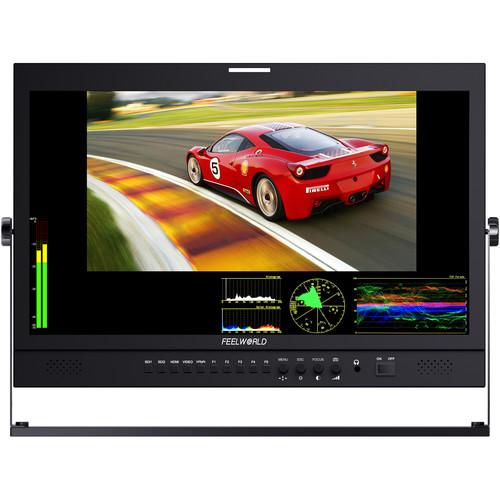

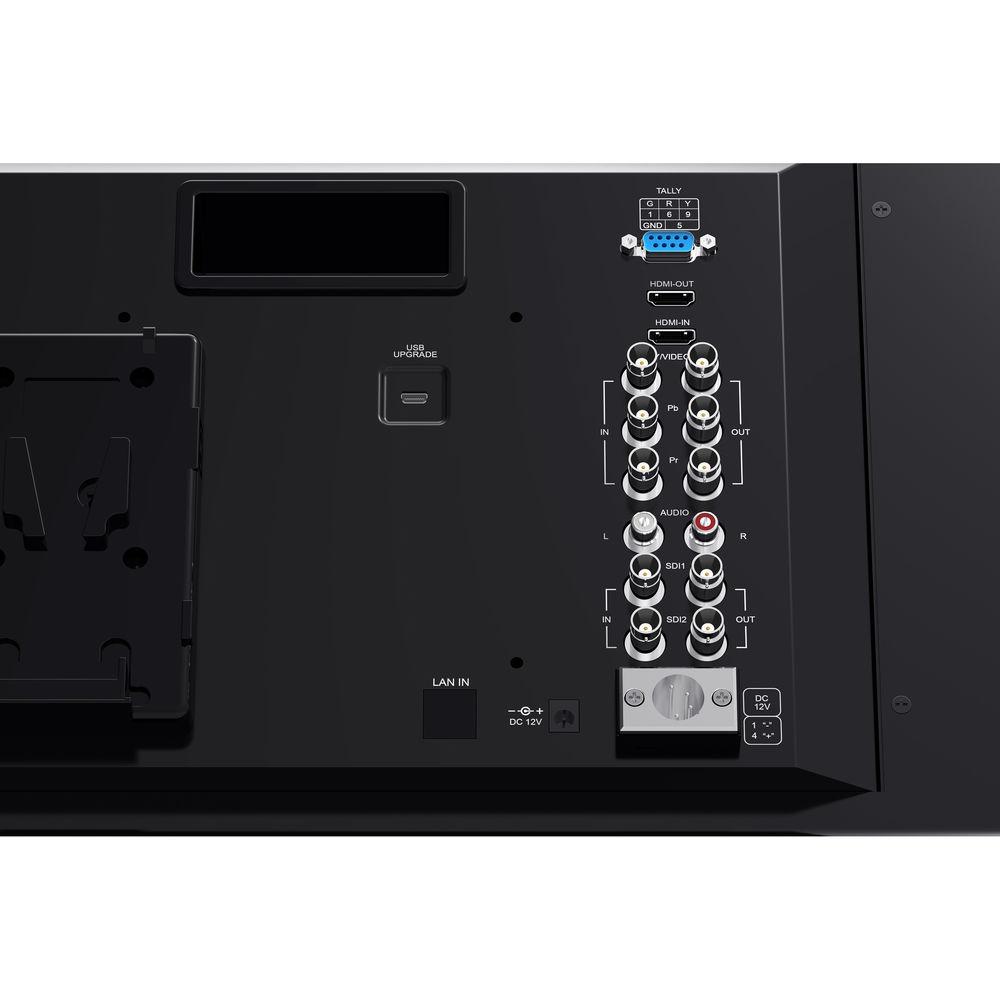

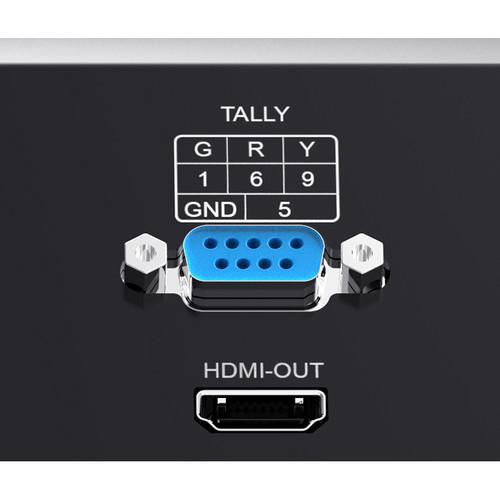

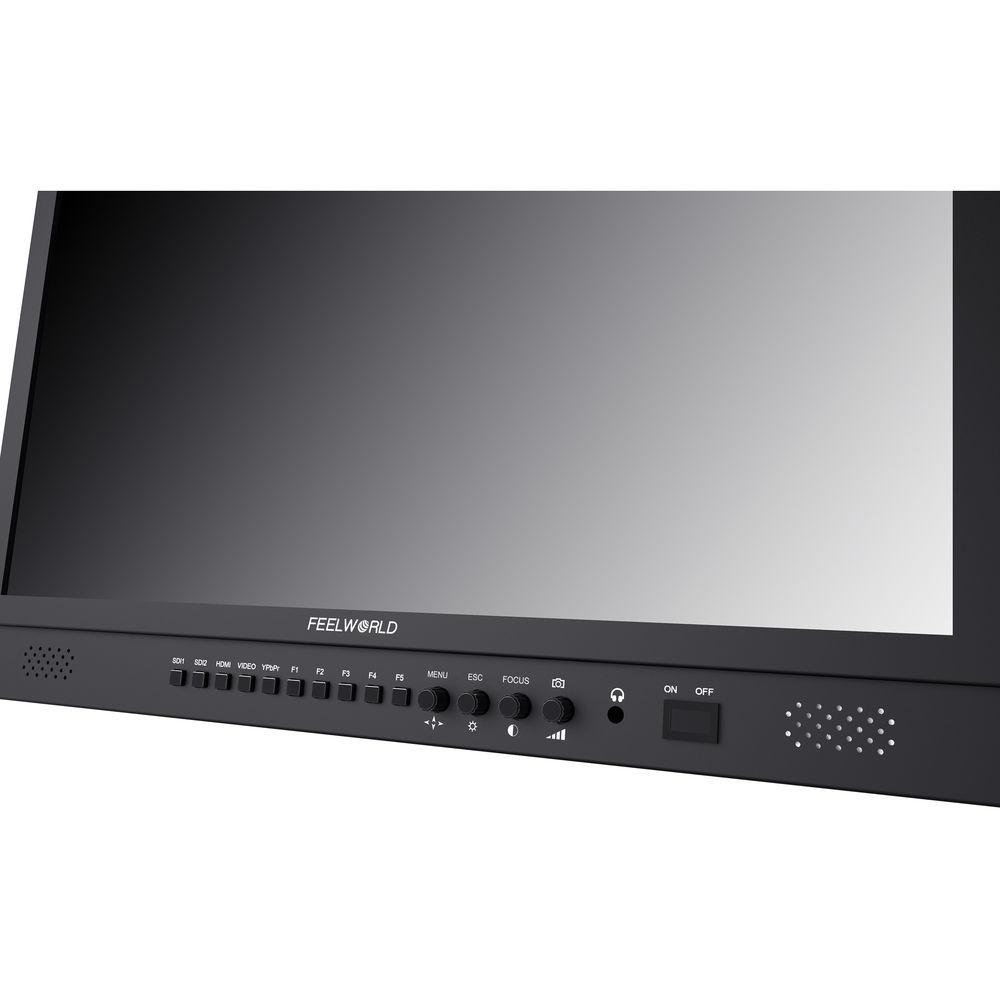

Product description Featuring a Full HD IPS panel, the FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs; outputs are available for SDI, HDMI, component, and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration, activating the 3-color tally light atop the display. A V-Mount bracket on the rear of the monitor can be used to power the display in the field, in addition to 12V barrel and 4-pin XLR jacks. Gold Mount plates are available separately.Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. Scopes can be displayed transparently on top of the image or in a black bar below the image, depending on preference. If shooting outdoors, attach the included sun hood for optimal contrast. A U-bracket is also included for convenient tabletop mounting. - Monitoring Tools
-
- Waveform (RGB, YUV, Y (Luminance))
- Vectorscope
- Color and luminance histograms
- Embedded audio meter
- Peaking focus assist
- False color
- Zebras
- Check field (R/G/B/Gray)
- Color bars
- DSLR scaling
- Scan modes (auto/over/full-screen)
- Pixel-to-pixel mapping
- Zoom scale (punch-in)
- Anamorphic de-squeeze (1.33x / 2.0x / 2.0x mag)
- Image flip
- Center marker
- Colored screen markers (16:9, 4:3, 2.35:1, 1.85:1)
- Safe area (80/85/90/93/96%)
- Color temperature
UPC: 815206022905 In the Box FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor Power Supply V-Mount Battery Plate Mini HDMI Cable Tally Kit Sunshade U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld P215-9DSW 21.5" Broadcast LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld FWP215-9DSW Specs | | | Panel Type | IPS-Type LCD | | Display Size | 21.5" / 54.6 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dot Pitch | 0.24825 x 0.24825 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x 3BNC (Component) Input
1 x DVI-I Input
1 x BNC (Composite) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Card Slot | None | | | | Video Format | HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
PAL
NTSC
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
PAL
NTSC | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 19 W (Maximum) | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 20.1 x 14 x 1.5" / 51.2 x 35.6 x 3.8 cm | | Weight | 9.9 lb / 4.5 kg
14.1 lb / 6.4 kg, Including Bracket | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 5.0" |
