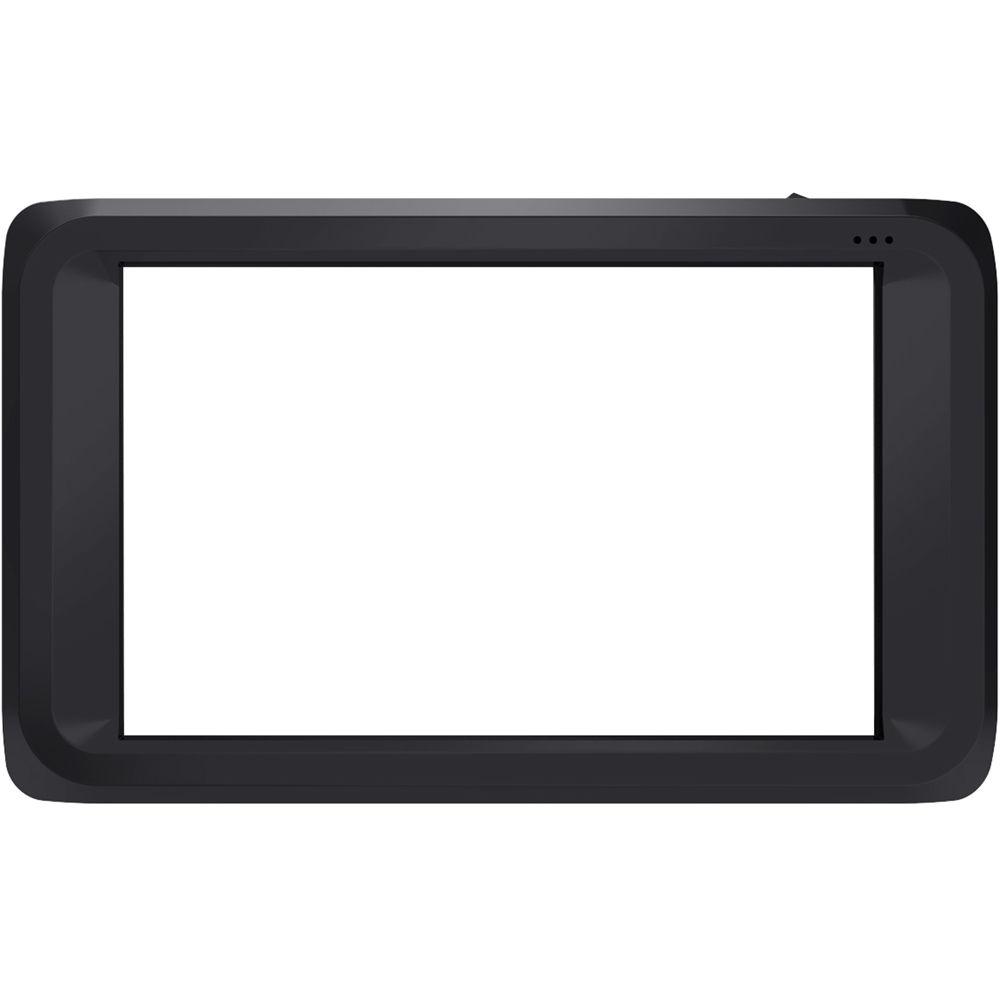

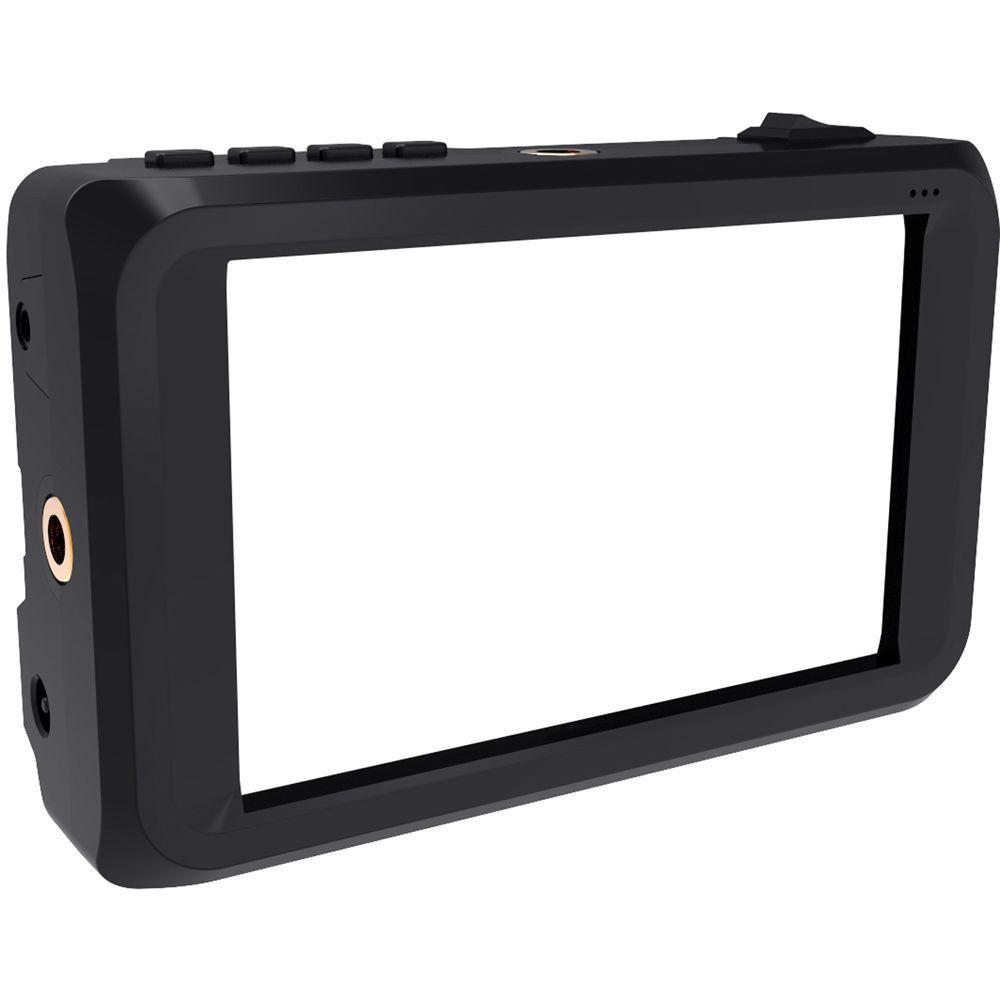

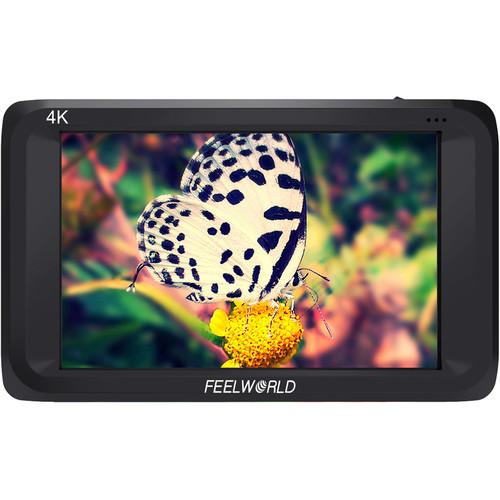

User Manual for FeelWorld S450-M 4.5" On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the FeelWorld S450-M 4.5" On-Camera Monitor
- Product category: On Camera Monitors FeelWorld
- Brand: FeelWorld
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeelWorld On Camera Monitors
 |
User manual for the FeelWorld S450-M 4.5" On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeelWorld product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeelWorld user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeelWorld product will considerably shorten its lifespan!
|
Product description Monitor high-resolution signals in the field with the portable FeelWorld S450-M 4.5" On-Camera Monitor. Using the HDMI 2.0 input, 4K signals (either UHD or DCI) from your mirrorless, DSLR, or digital cinema camera can be displayed, as well as HD and SD signals. Broadcast cameras and professional equipment can be connected to the SDI input. An SDI loop output ensures that the signal chain can continue beyond the monitor. The 1280 x 800 LCD panel itself sports a 470 cd/m² brightness rating, and a 900:1 contrast ratio. IPS technology is implemented in the panel for vivid colors and wide 160° viewing angles. Essential monitoring tools such as focus peaking, pixel-to-pixel mapping, markers, and more are built right in. A Mini HDMI to HDMI cable, shoe mount, and NP-F battery plate are included. Monitoring Tools - Check field (Red, Green, Blue, Mono)
- Safe markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Horizontal and vertical image flip
- Color temperature adjustment
UPC: 815206022868 In the Box FeelWorld S450-M 4.5" On-Camera Monitor Mini HDMI to HDMI Cable Shoe Mount NP-F Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld S450-M 4.5" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeelWorld S450-M Specs | | | Panel | 4.5" / 11.4 cm IPS LCD | | Resolution | 1280 x 800 pixels | | Pixel Pitch | 0.07575 x 0.07575 mm | | Aspect Ratio | 16:10 | | Brightness | 470 cd/m² | | Contrast | 900:1 | | Viewing Angle | 160° H/V | | Backlight | LED | | | | HDMI | 4096 x 2160 24
3840 x 2160 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | | | Input | 1 x BNC, SDI
1 x HDMI Type A, v2.0 | | Output | 1 x BNC, SDI
1 x Stereo headphone | | | | Input Voltage | 7-18 VDC | | Power Consumption | ≤7 W | | Working Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Mounting Threads | 1/4"-20, on bottom | | Dimensions | 5 x 3.1 x 1.2" / 12.8 x 7.8 x 3.1 cm | | Weight | 8.4 oz / 240 g (without battery plate)
9.5 oz / 270 g (with battery plate) | | | | Package Weight | 1.545 lb | | Box Dimensions (LxWxH) | 7.35 x 4.95 x 3.25" |
