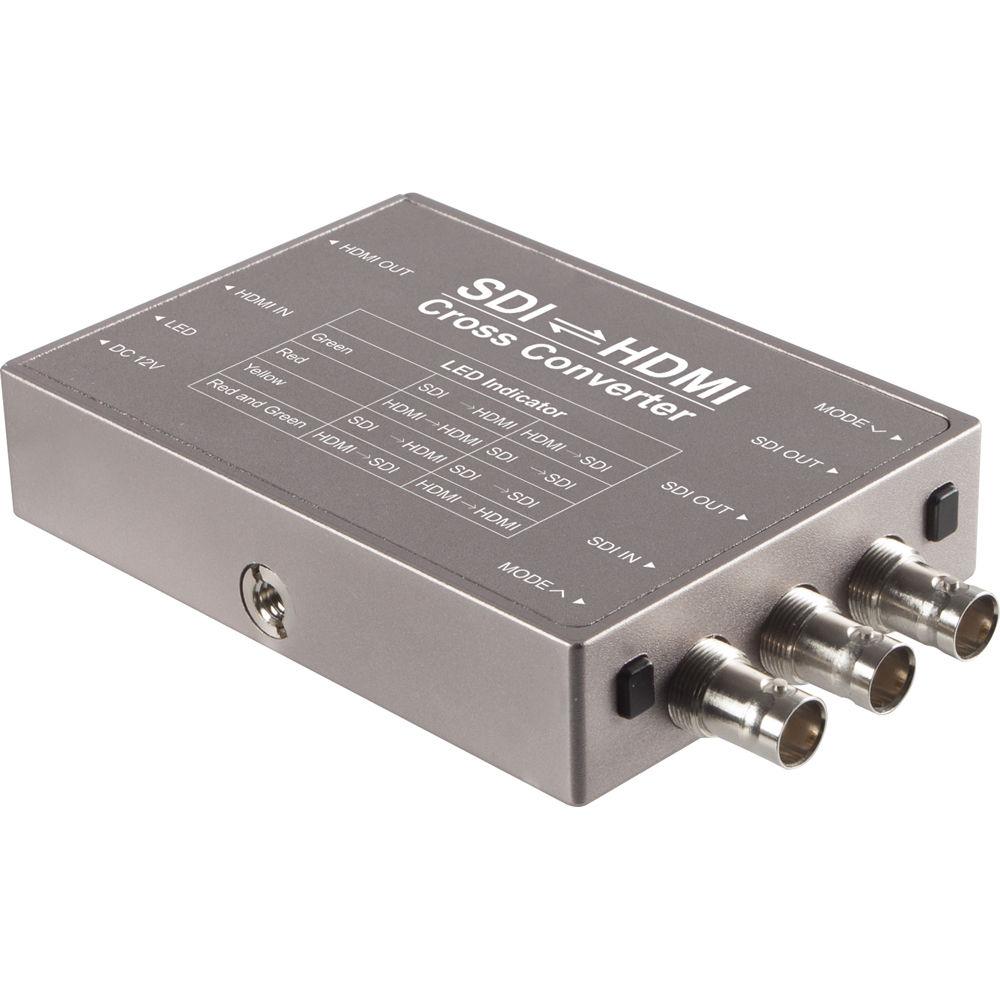

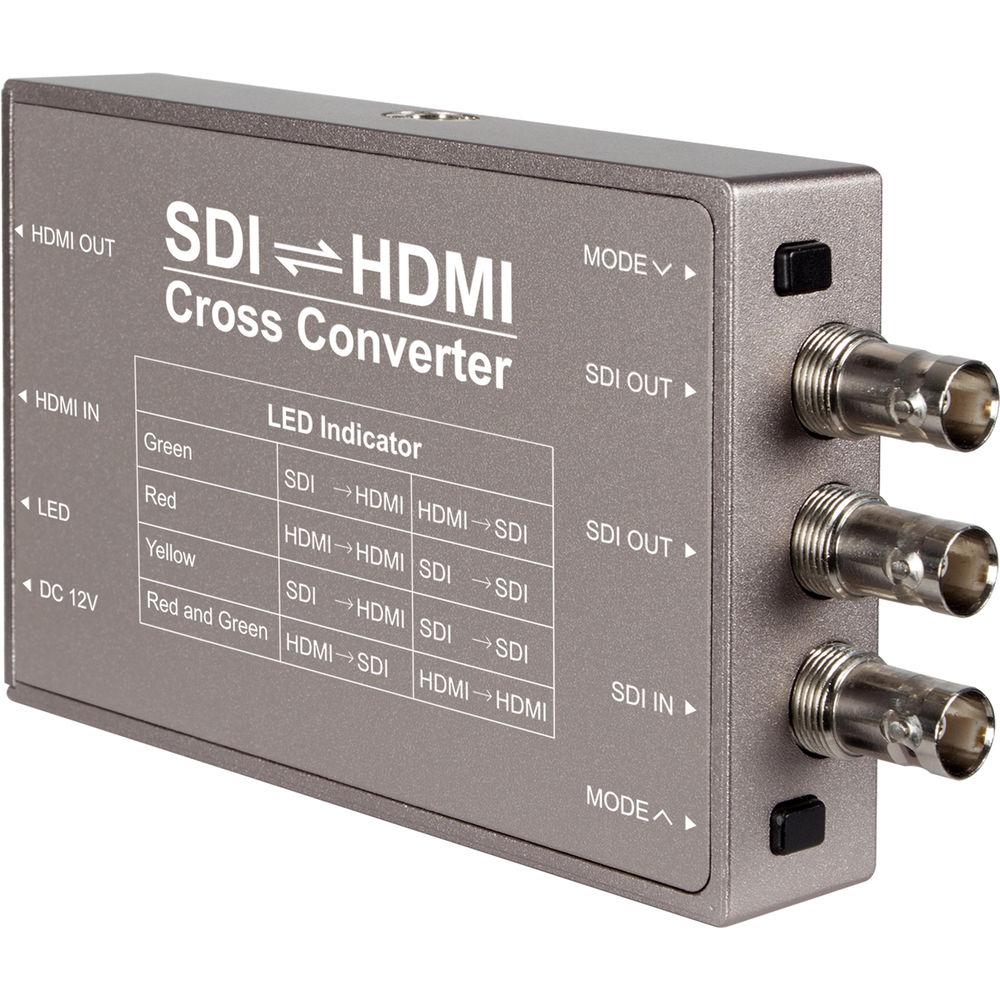

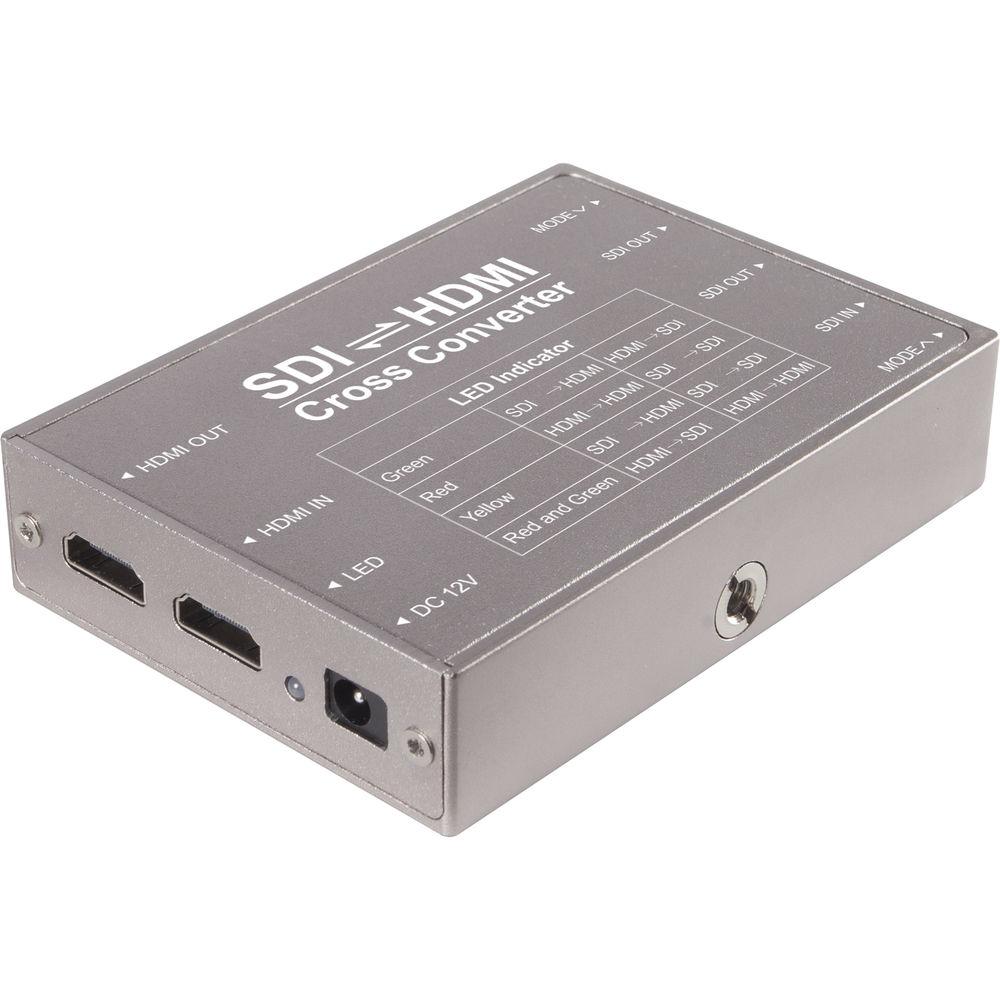

Product description The SDI to HDMI Cross Converter from FeelWorld converts an HD digital component serial interface SDI signal to an HDMI signal, and an HDMI digital signal to a 3G/HD/SD-SDI signal. It features one SDI and one HDMI inputs, along with one HDMI and two SDI outputs. This broadcast-grade video-format converter supports wide signal formats. It is suitable for applications such as, multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring, and more. - One SDI and one HDMI inputs, and one HDMI and two SDI outputs
- Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M
- Enhanced HD signal processing technology supports 3G-SDI transmission up to 328'
- Supports wide range input voltage from 5 to 24 VDC
- Double power supply system with DC adapter or lithium battery
- Easy-to-carry, mini-size design
- Comes with standard 1/4"-20 screw threads on both sides for installation
- Power/input/output status indicator
- Heavy-duty titanium housing

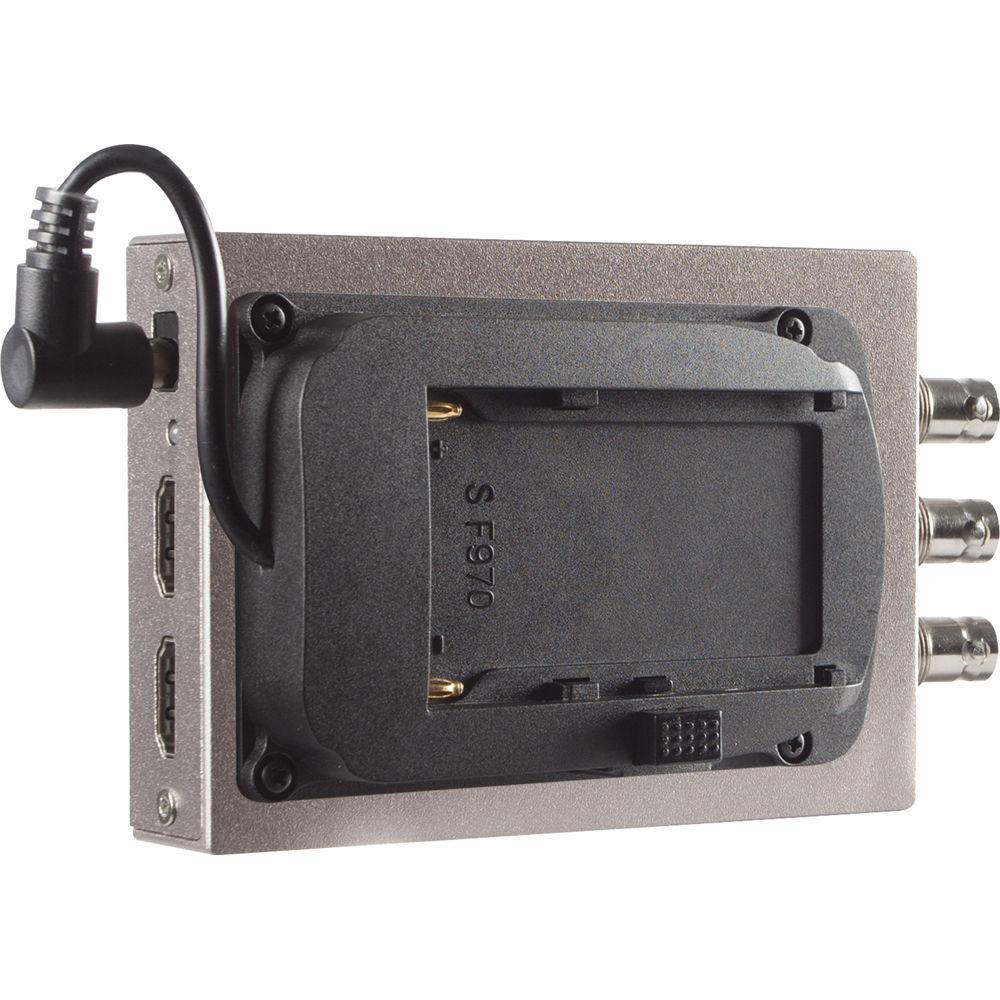

In the Box FeelWorld SDI to HDMI Cross Converter Power Adapter F970 Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the FeelWorld SDI to HDMI Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

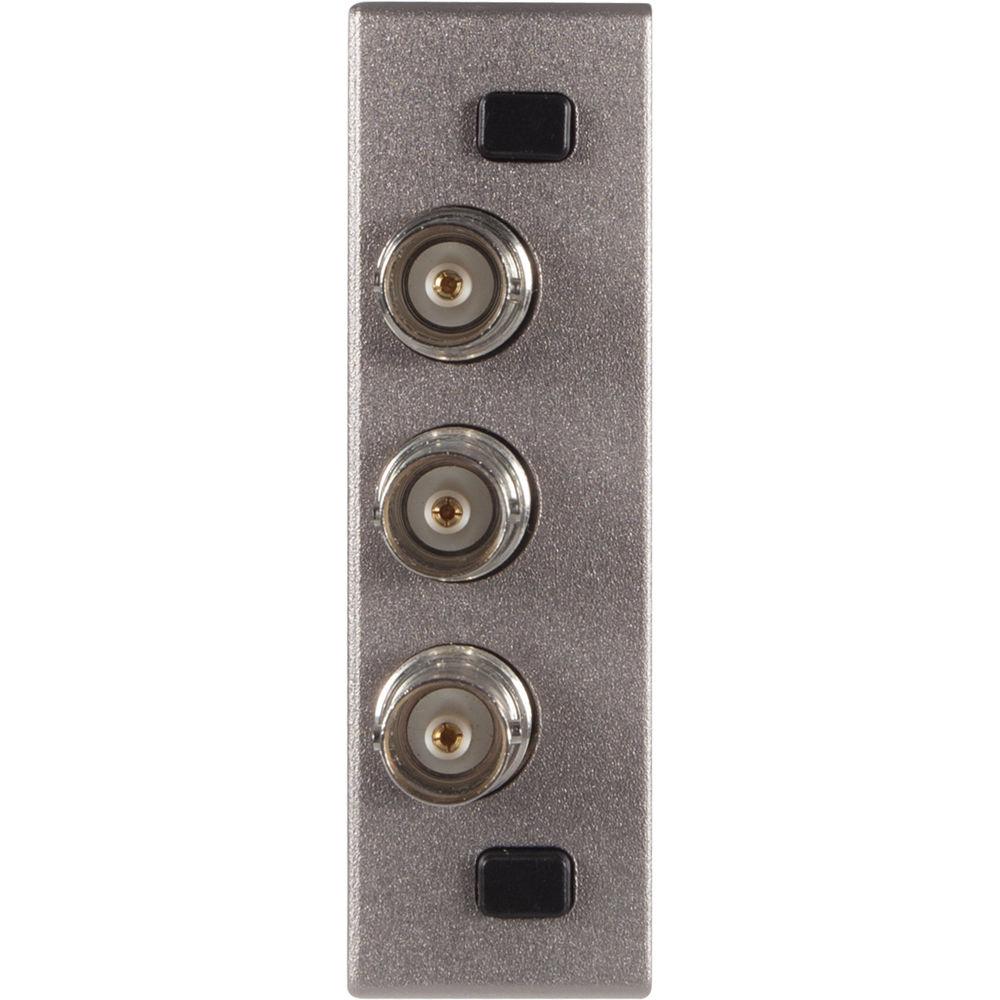

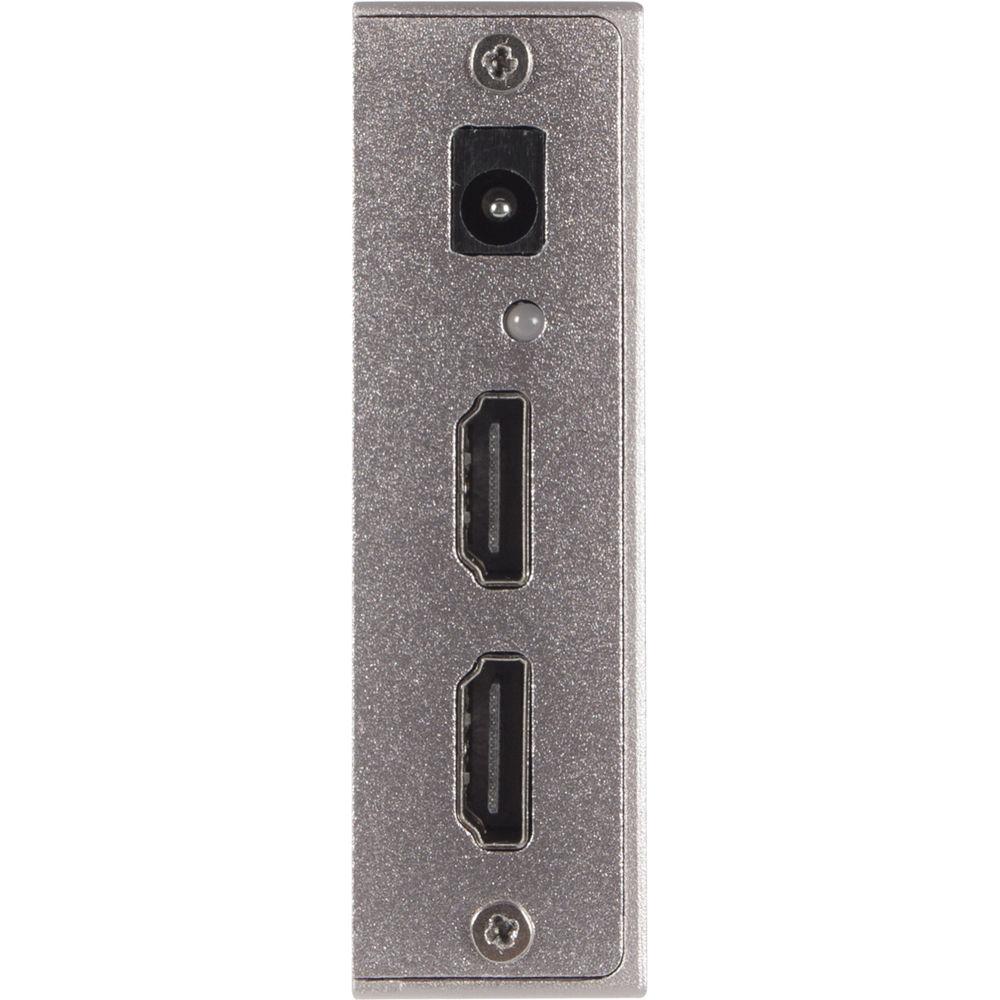

Technical parametersFeelWorld FWSCH Specs | Input | 1 x BNC (3G/HD/SD-SDI)
1 x HDMI | | Output | 2 x BNC (3G/HD/SD-SDI)
1 x HDMI | | SDI Format Support | 3G-SDI: 1080p (60/59.94/50)
HD-SDI: 1080p (30/29.97/25/24)
1080i (60/59.94/50)
1080psF24
720p (60/59.94/50)
SD-SDI: 576i,480i (60/59.94) | | HDMI Format Support | 1080p (60/59.94/50/30/29.97/25/24)
1080i (60/59.94/50)
1080psF24
720p (60/59.94/50)
576i, 480i (60/59.94) | | Power Consumption | ≤4.2 W | | Input Voltage | 5 to 24 VDC | | Connector | 12 VDC | | Battery Plate | L-Type (included)
D28S and E6 (available separately) | | Installation | Via 1/4"-20 thread sockets | | Working Temperature | 1.4 to 131°F (-17 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions (L x H x D) | 4.3 x 3.1 x 0.9" (108.5 x 78 x 23.5 mm) | | Weight | 8.1 oz (230 g)
9.2 oz (260 g) with L-Type battery plate | | | | Package Weight | 1.015 lb | | Box Dimensions (LxWxH) | 8.0 x 4.15 x 2.05" |
