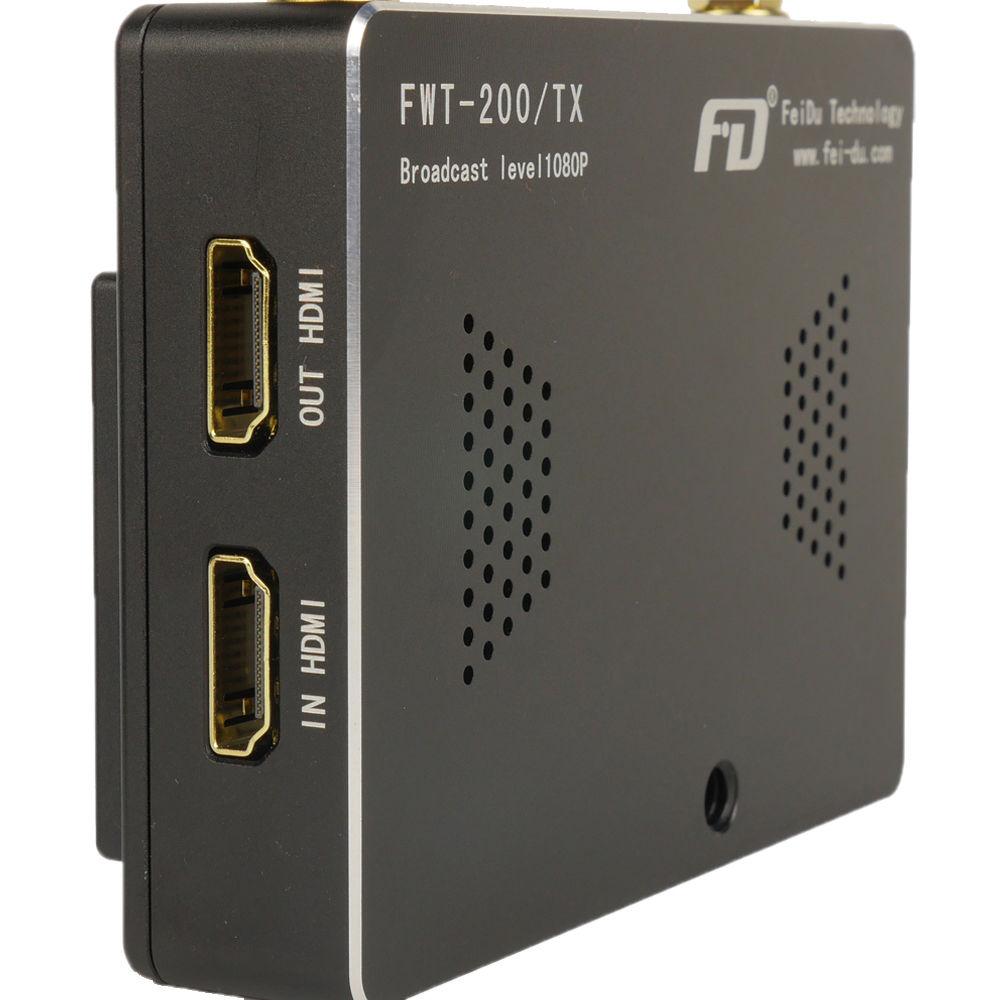

User Manual for FeiDu HDMI Wireless Video Transmitter Click to enlarge the picture
Contents of the user manual for the FeiDu HDMI Wireless Video Transmitter
- Product category: Wireless Transmission Systems FeiDu
- Brand: FeiDu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FeiDu Wireless Transmission Systems
 |
User manual for the FeiDu HDMI Wireless Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FeiDu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FeiDu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FeiDu product will considerably shorten its lifespan!
|

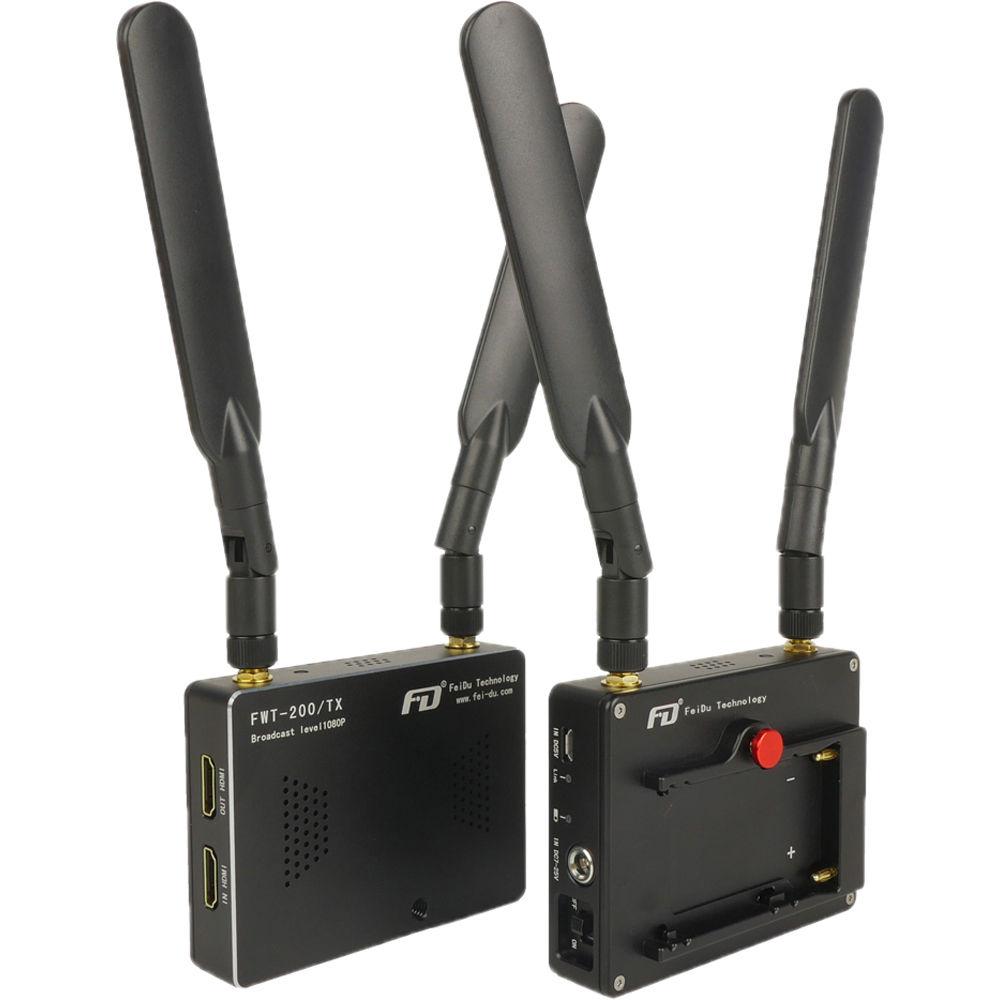

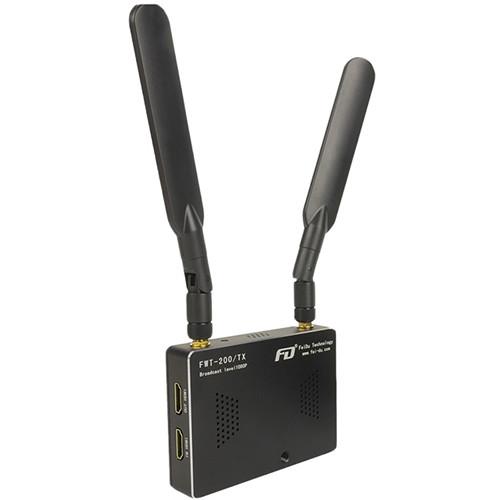

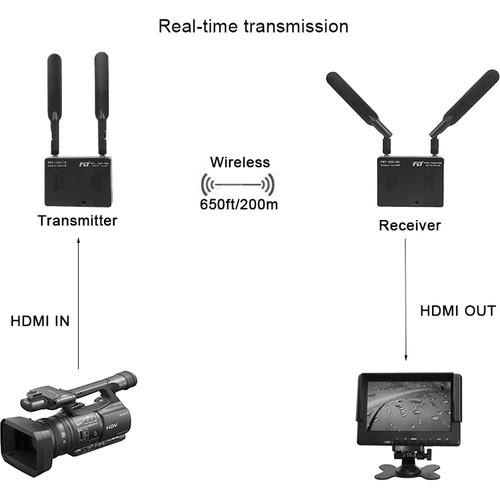

Product description The HDMI Wireless Video Transmitter from FeiDu can be used to transmit to up to four FWT-200 receivers (available separately). It supports a 650' range line of sight with zero latency and a resolution of up to 1080p at 60 fps. This transmitter features an HDMI input, an HDMI output, and an integrated L-type battery plate. It can be secured to a camera or other HDMI video source via built-in 1/4"-20 threaded holes. A hot shoe adapter is included for attaching to cameras without 1/4"-20 threads.

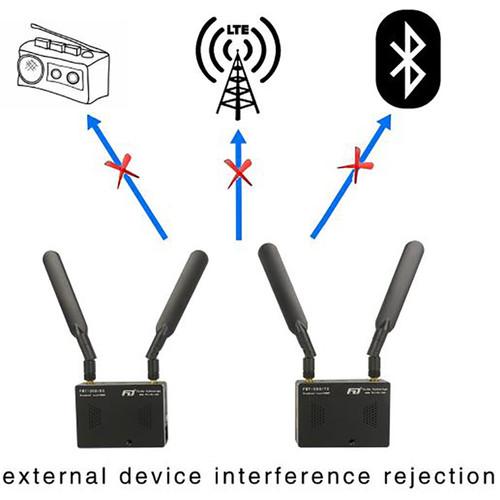

This transmitter can be powered by an external microUSB 5V (power bank available separately), 7-25 VDC input, or using a F970, F750, or F550 battery (available separately), which is compatible with the integrated L-series battery plate. Two 5 GHz antennas, an HDMI cable, and a carry bag are included. - Dynamic Frequency Selection (DFS) function detects radar signals that must be protected against interference from 5 GHz radios by dynamically switching the operating frequency of the 5 GHz radio to one that does not interfere with the radar.

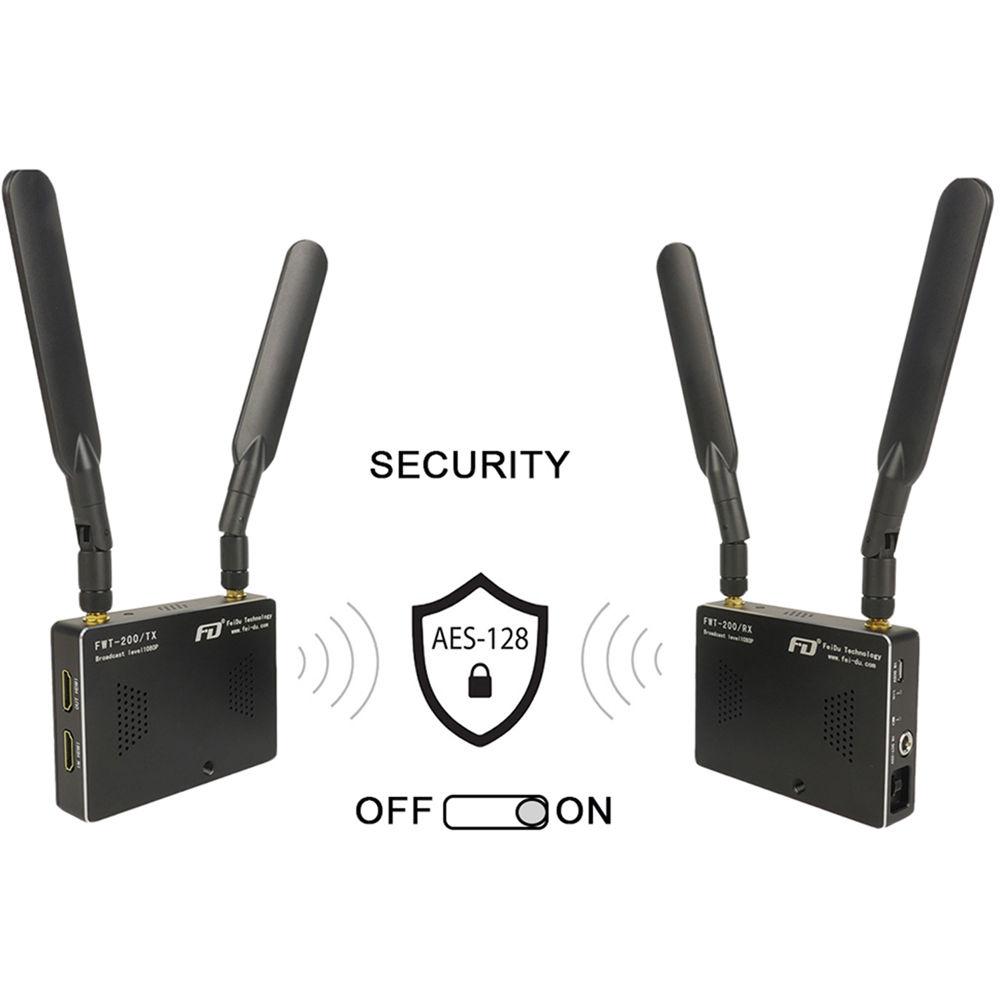

- AES-128 encryption security

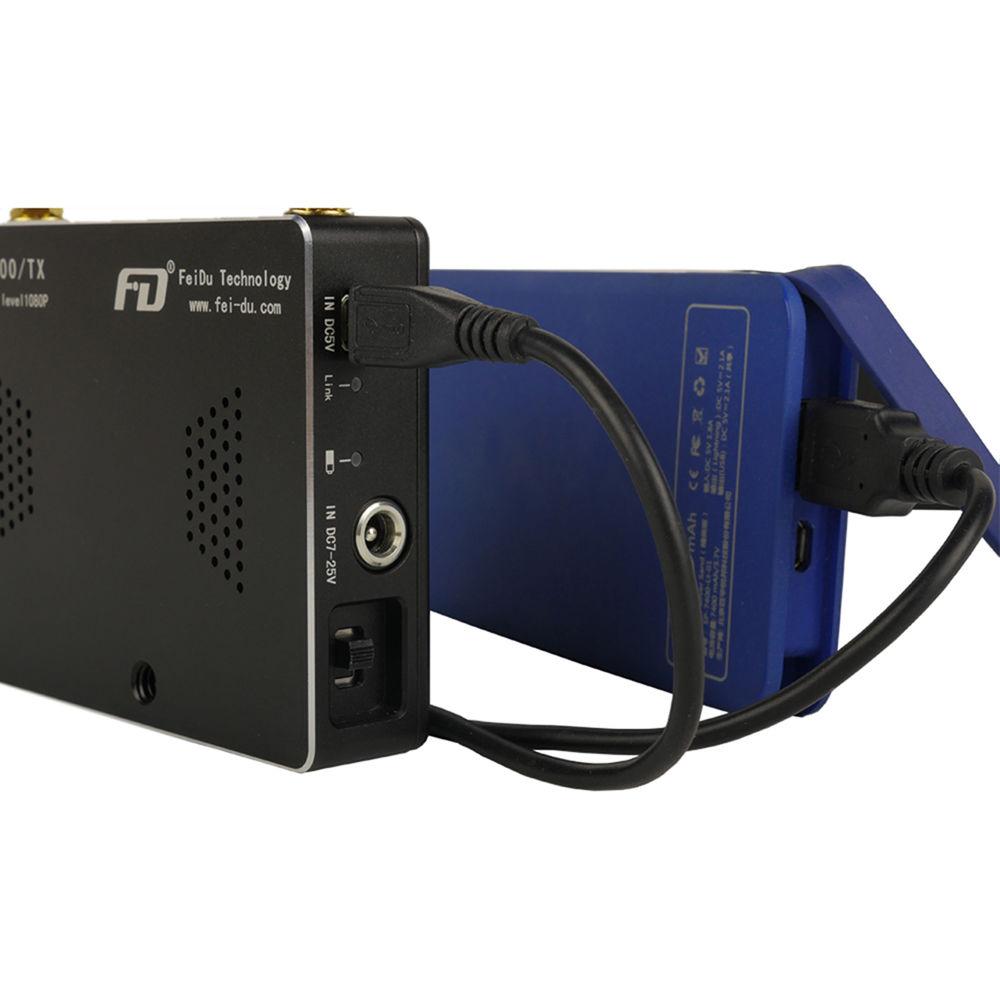

- Uninterruptible power supply when changing batteries with microUSB plugged in
- F970, F750, and F550 battery (available separately) and micro USB 5V (power bank) can be used together for a limited time for battery exchange without signal drop off

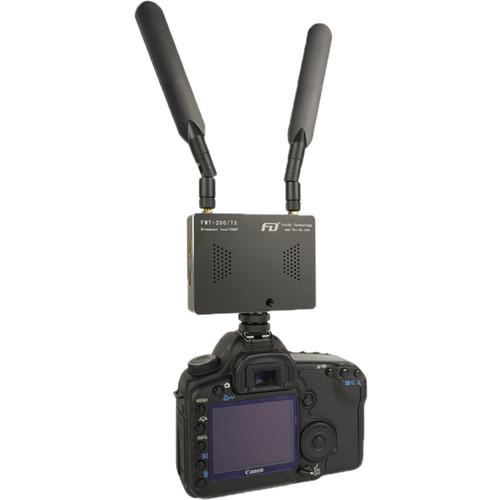

- Battery quick release design with a hot shoe adapter included for attaching to cameras without 1/4"-20 threads
In the Box FeiDu HDMI Wireless Video Transmitter 2 x 5 GHz Antennas HDMI Cable Hot Shoe Adapter Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FeiDu HDMI Wireless Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

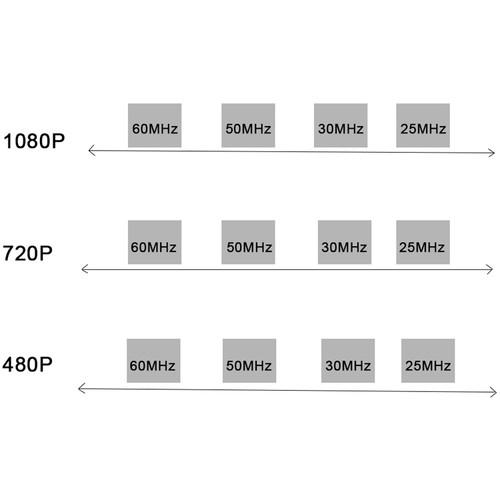

Technical parametersFeiDu FWT200T Specs | Range & Elevation (Line of Sight) | Up to 650' / 200 m | | Resolution | 1080p at 60/50/30/25 fps
720p at 60/50/30/25 fps
480p
Progressive Scan Only | | Operating Frequency | 5 GHz | | Input/Output | HDMI Input
HDMI Output | | Power | 7-25 VDC
microUSB 5 V (Power Bank Available Separately)
F970, F750, and F550 Battery (Available Separately) | | Dimensions | 3.94 x 2.95 x 1.10" / 100 x 75 x 28 mm (Antenna is Not Included) | | Weight | 7.23 oz / 205 g |
