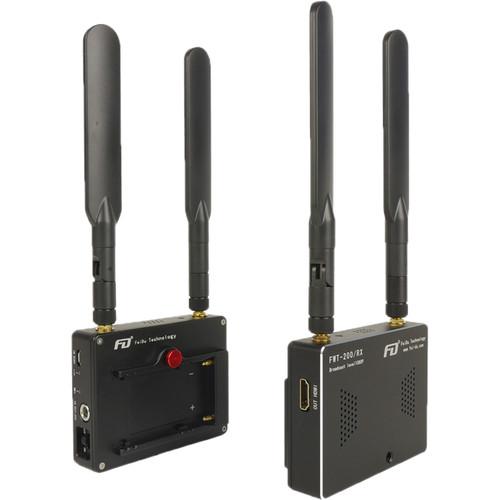

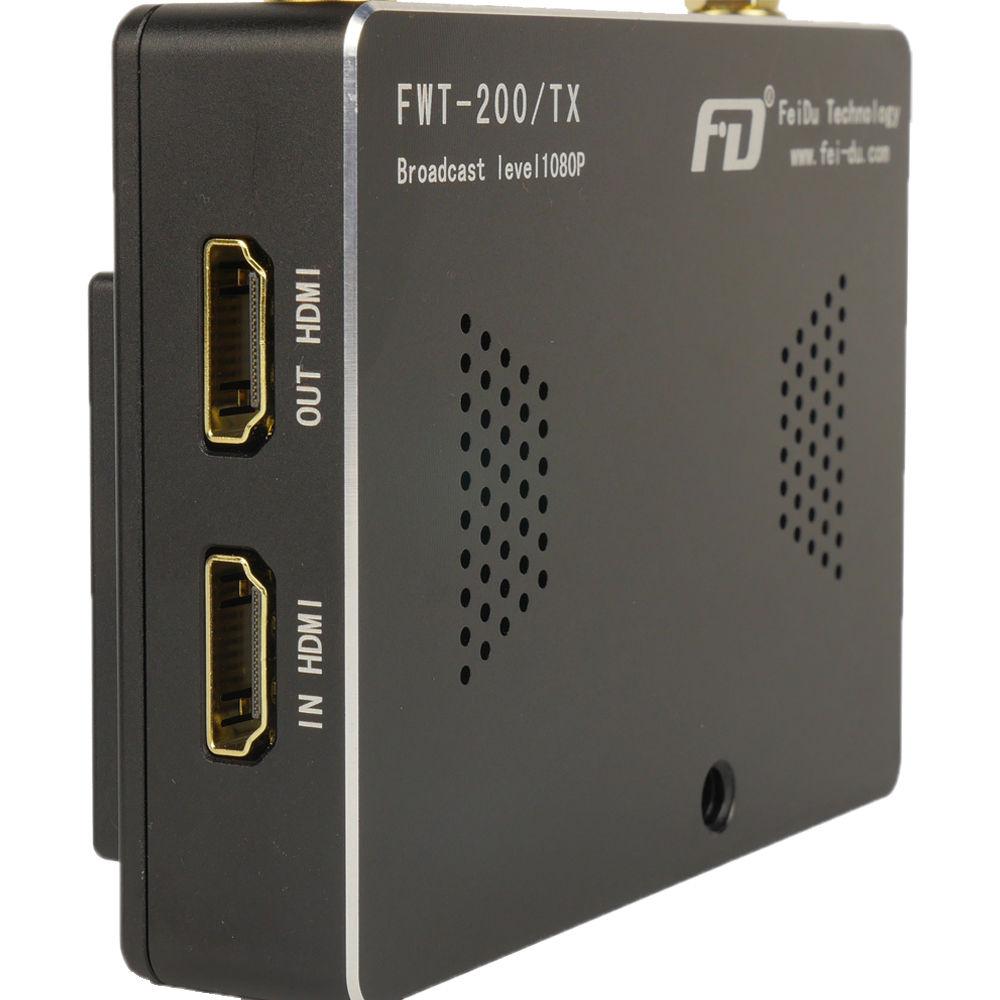

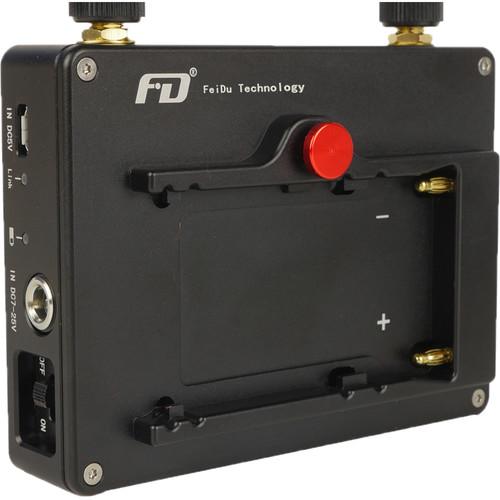

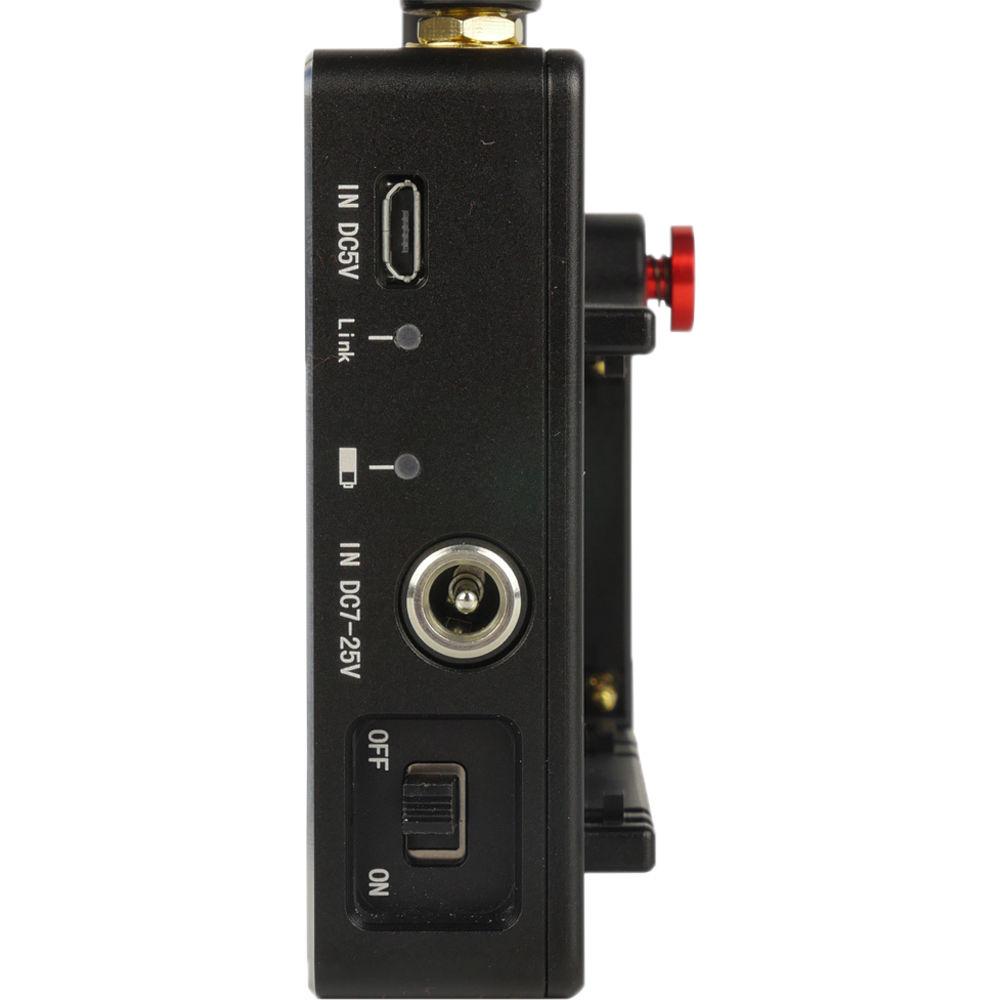

Product description The HDMI Wireless Video Transmitter and Receiver Set from FeiDu includes a FWT-200 HDMI wireless transmitter with two 5 GHz antennas and a FWT-200 HDMI wireless receiver with two 5 GHz antennas . A 650' line of sight range is supported at a resolution of up to 1080p at 60 fps. Two hot shoe adapters are included for attaching to cameras without 1/4"-20 threads. Two standard HDMI cables and a carry bag are included as well. Both the transmitter and receiver can be powered by external micro USB 5V (power bank available separately), 7-25 VDC input, and using an F970, F750, or F550 battery (available separately), which are compatible with the integrated L-series battery plate. - HDMI Wireless Video Transmitter The HDMI Wireless Video Transmitter from FeiDu can be used to transmit to up to four FWT-200 receivers (available separately). It supports a 650' range line of sight with zero latency and a resolution of up to 1080p at 60 fps. This transmitter features an HDMI input, an HDMI output, and an integrated L-type battery plate. It can be secured to a camera or other HDMI video source via built-in 1/4"-20 threaded holes. A hot shoe adapter is included for attaching to cameras without 1/4"-20 threads.

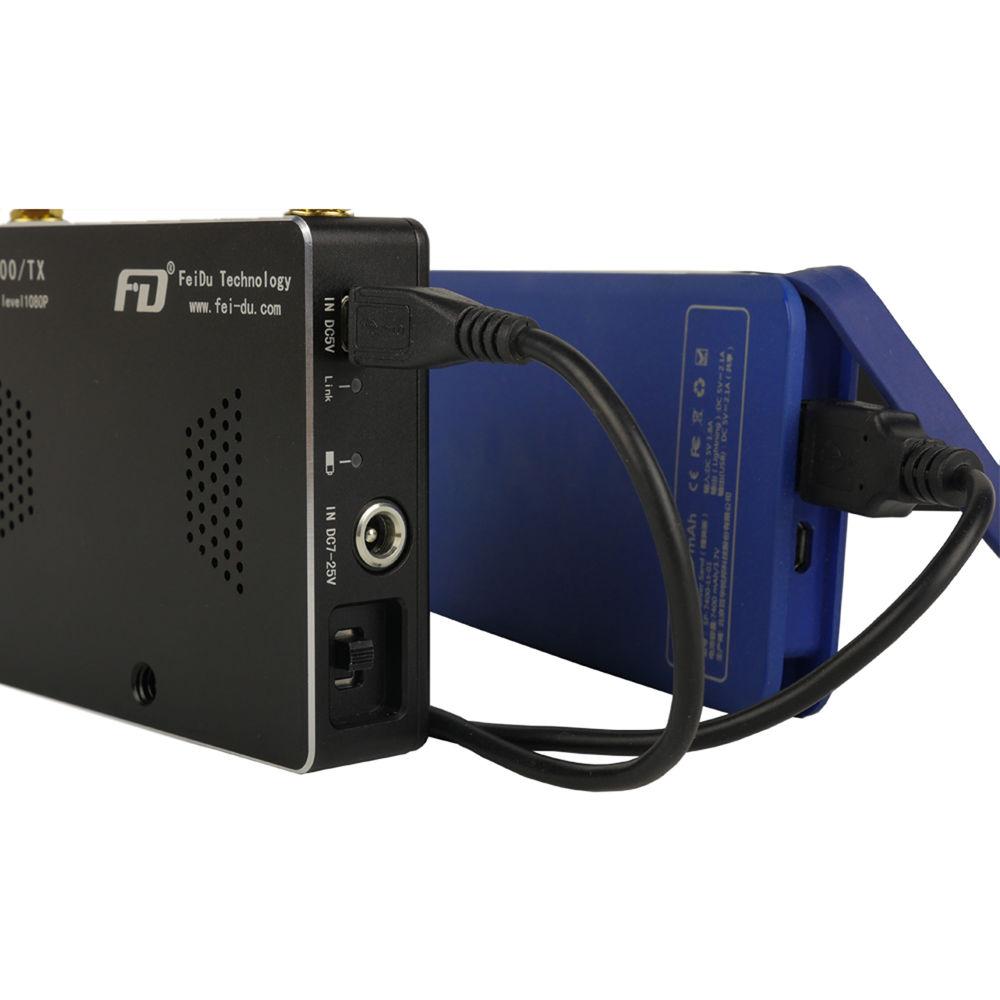

This transmitter can be powered by an external microUSB 5V (power bank available separately), 7-25 VDC input, or using a F970, F750, or F550 battery (available separately), which is compatible with the integrated L-series battery plate. Two 5 GHz antennas, an HDMI cable, and a carry bag are included. - Dynamic Frequency Selection (DFS) function detects radar signals that must be protected against interference from 5 GHz radios by dynamically switching the operating frequency of the 5 GHz radio to one that does not interfere with the radar.
- AES-128 encryption security
- Uninterruptible power supply when changing batteries with microUSB plugged in
- F970, F750, and F550 battery (available separately) and micro USB 5V (power bank) can be used together for a limited time for battery exchange without signal drop off

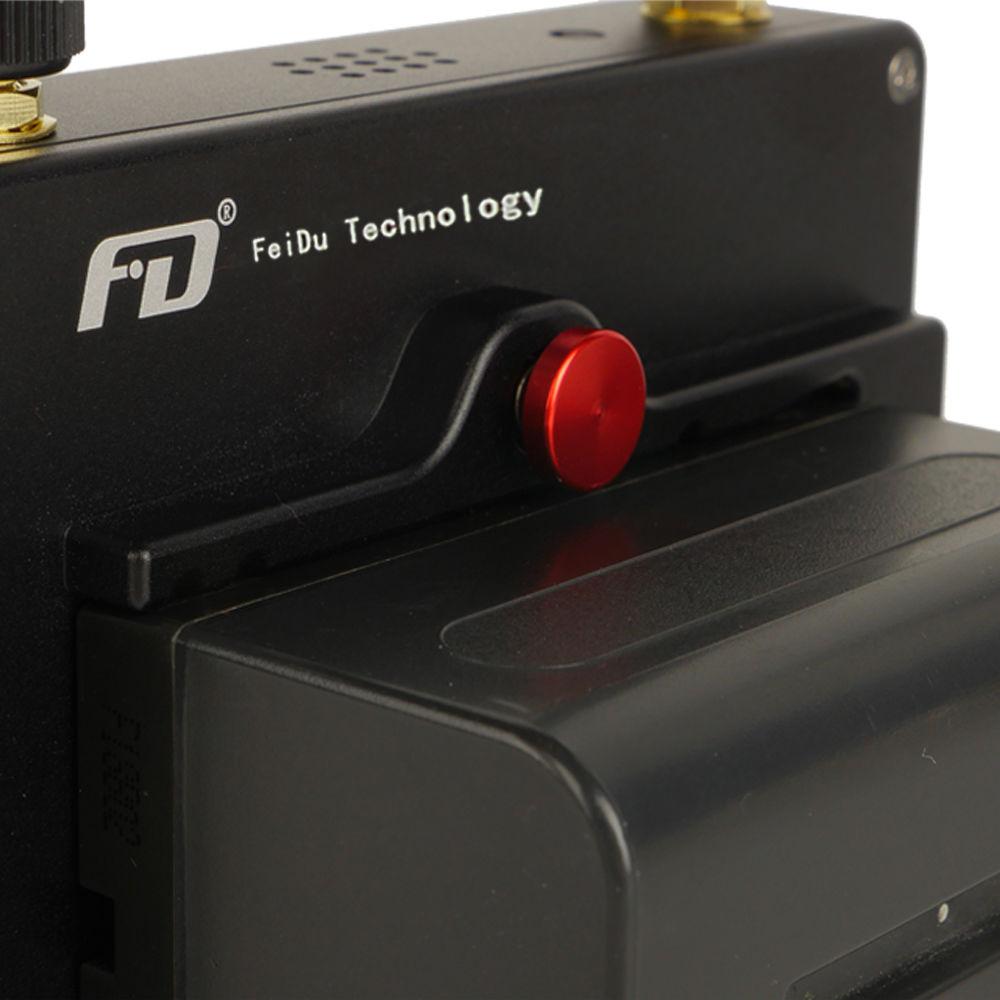

- Battery quick release design with a hot shoe adapter included for attaching to cameras without 1/4"-20 threads

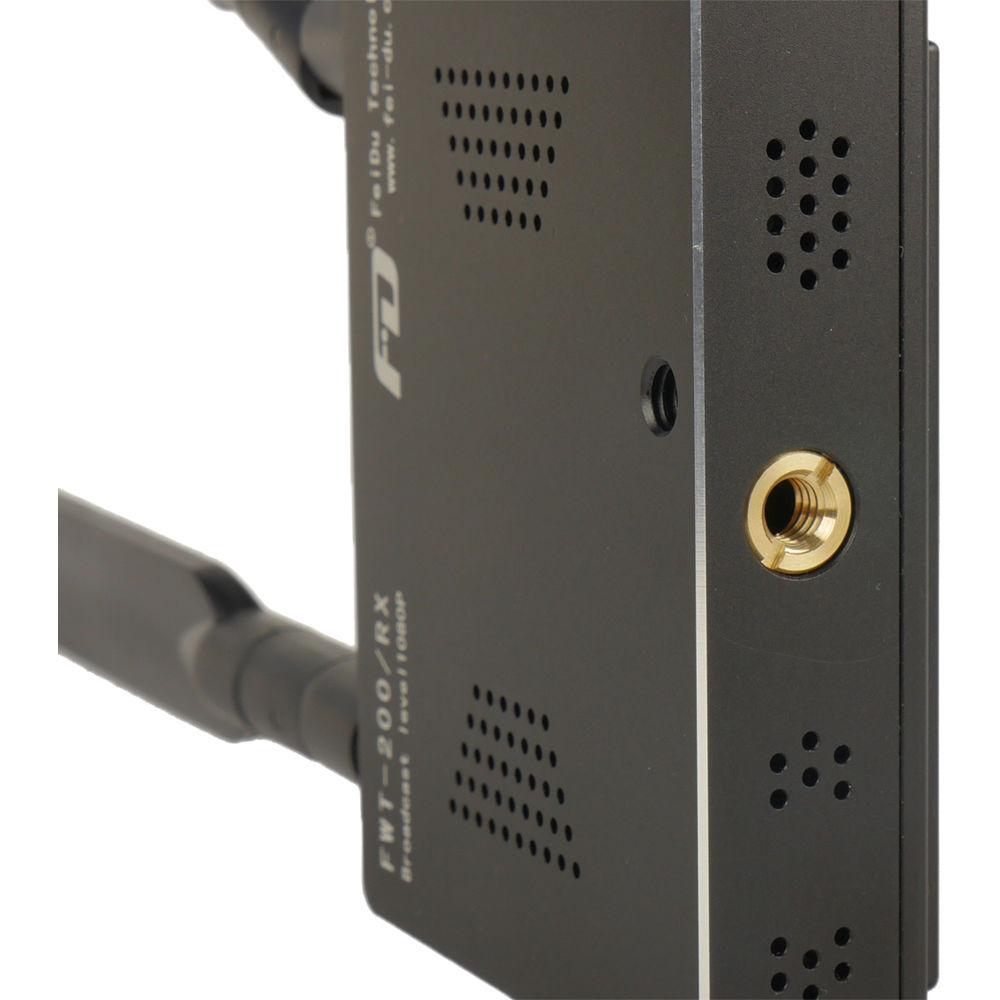

- HDMI Wireless Video Receiver The HDMI Wireless Video Receiver from FeiDu is designed to be used with the FWT-200 transmitter (available separately). It supports a 650' range line-of-sight and a resolution of up to 1080p at 60 fps. This receiver features an HDMI output and an integrated L-type battery plate. It can be powered by external micro USB 5V (power bank available separately), 7-25 VDC input, or using an F970, F750, or F550 battery (available separately), which is compatible with the integrated L-series battery plate. Two 5 GHz antennas, an HDMI cable, a hot shoe adapter, and a carry bag are included.
- Dynamic Frequency Selection (DFS) function detects radar signals that must be protected against interference from 5 GHz radios by dynamically switching the operating frequency of the 5 GHz radio to one that does not interfere with the radar.
- AES-128 encryption security
- Uninterruptible power supply when changing batteries with micro-USB plugged in
- F970, F750, or F550 battery (available separately) and micro USB 5V (power bank) can be used together for a limited time for battery exchange without signal drop off
- Battery quick release design with a hot shoe adapter included for attaching to cameras without 1/4"-20 threads

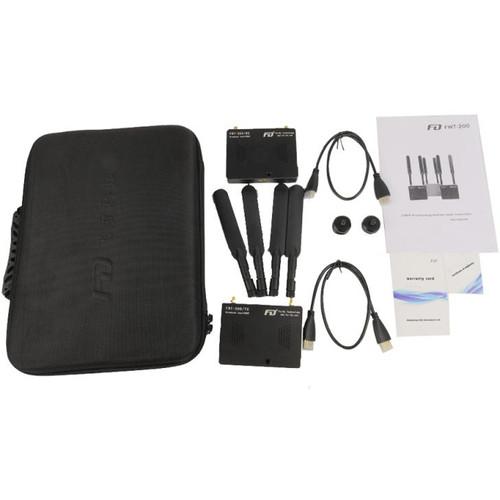

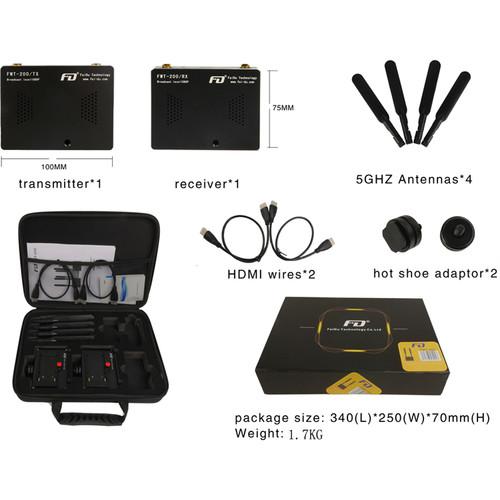

In the Box Bundle Items HDMI Wireless Video Transmitter auzfettdcswurcsrtbea HDMI Wireless Video Receiver
Also Includes - 2 x HDMI Type-A Male Cables (1.64')
- 2 x Hot Shoe Adapters
- Carry Bag
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FeiDu HDMI Wireless Video Transmitter and Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI Wireless Video Transmitter
| Range & Elevation (Line of Sight) | Up to 650' / 200 m | | Resolution | 1080p at 60/50/30/25 fps
720p at 60/50/30/25 fps
480p
Progressive Scan Only | | Operating Frequency | 5 GHz | | Input/Output | HDMI Input
HDMI Output | | Power | 7-25 VDC
microUSB 5 V (Power Bank Available Separately)
F970, F750, and F550 Battery (Available Separately) | | Dimensions | 3.94 x 2.95 x 1.10" / 100 x 75 x 28 mm (Antenna is Not Included) | | Weight | 7.23 oz / 205 g | - HDMI Wireless Video Receiver
| Range & Elevation (Line of Sight) | Up to 650' / 200 m | | Resolution | 1080p 60/50/30/25
720p 60/50/30/25
480p
Progressive Scan Only | | Operating Frequency | 5 GHz | | Output | HDMI | | Power | 7-25 VDC
Micro USB 5 V (Power Bank Available Separately)
F970, F750, or F550 Battery (Available Separately) | | Dimensions | 3.94 x 2.95 x 1.10" / 100 x 75 x 28 mm (without Antennas) | | Weight | 7.23 oz / 205 g |
