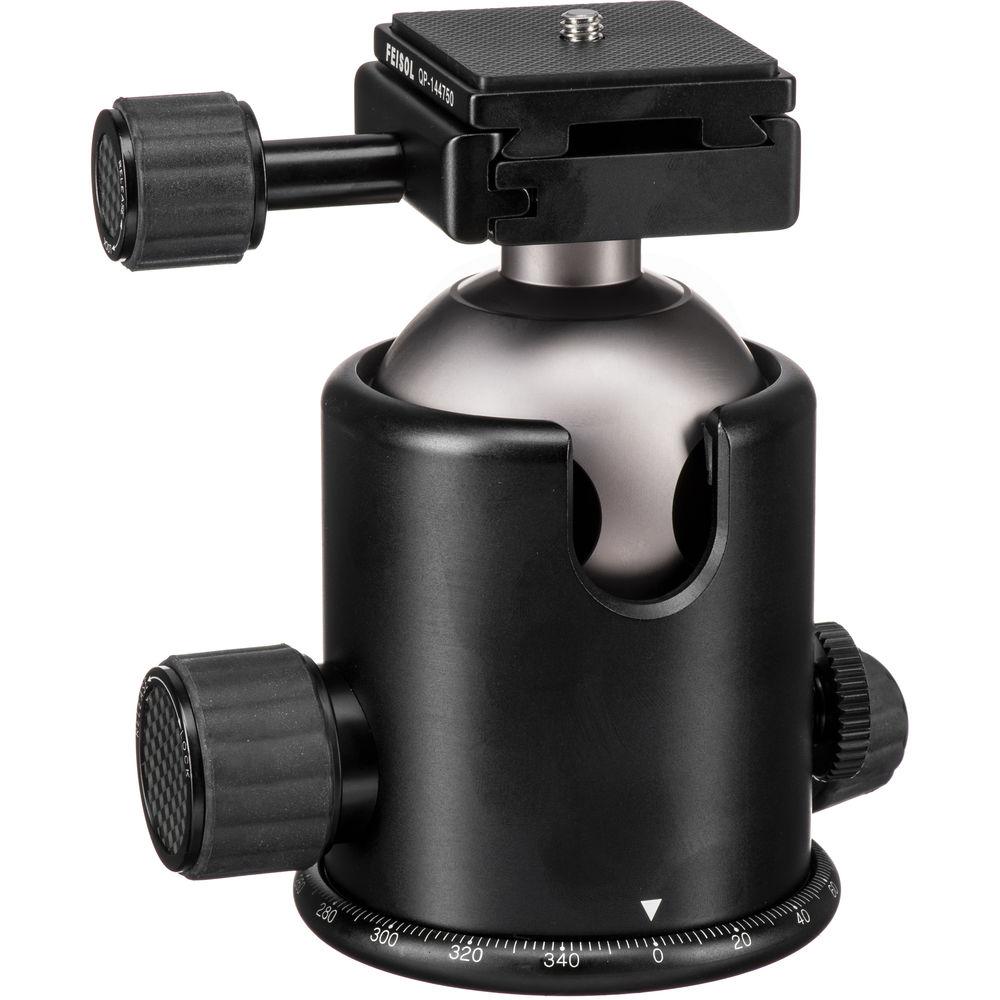

Product description The FEISOL CB-60D is an Arca-type compatible ball head that can be attached to tripods or other support systems that feature a 3/8"-16 mount. When closed, its internal, dual-caliper locking mechanism firmly holds the head's ball-and-socket joint in place and helps provide a load capacity of 84.0 lb.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QP-144750 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's rubberized, knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QP-144750 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform, while a button along the edges of the clamp can be pressed to retract the retaining pin when removing the plate.

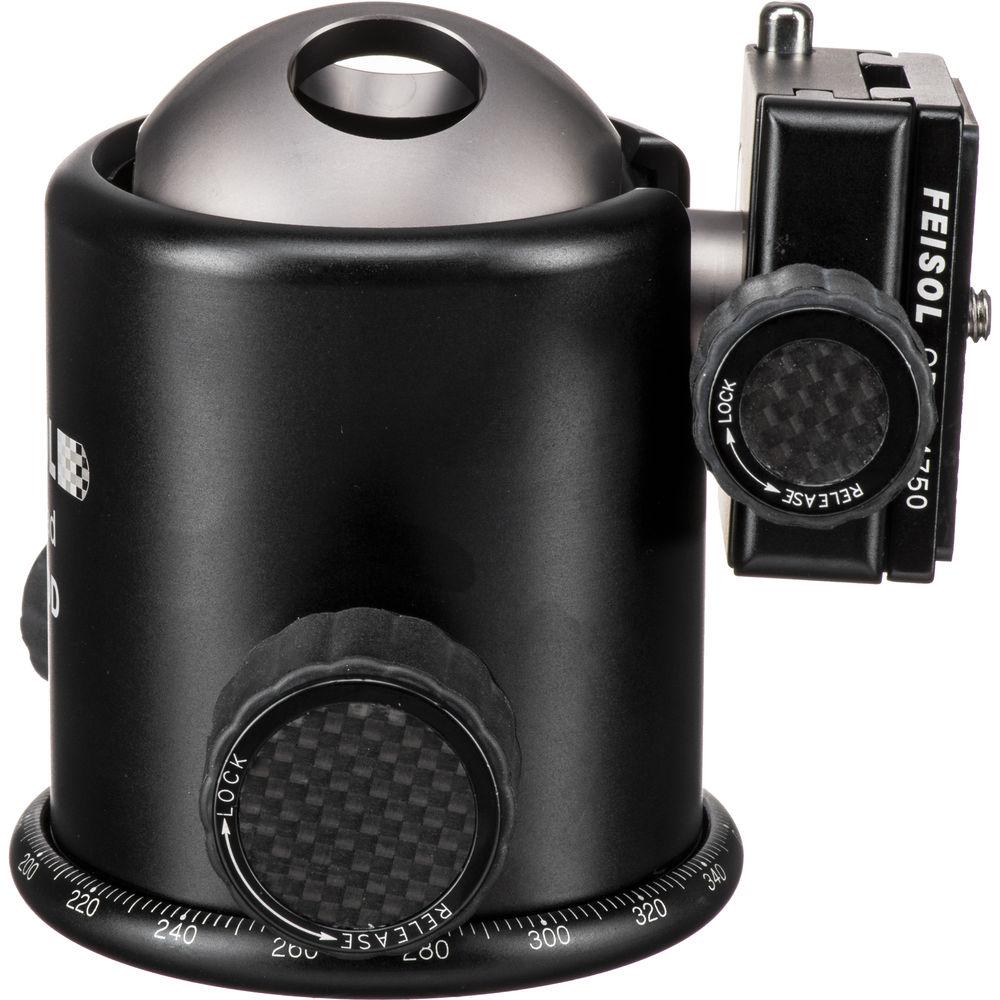

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by adjusting the friction knob located toward the side of the ball head opposite the primary locking knob. Toward the base of the ball head is a secondary locking knob, which controls the ability to rotate the head 360°. -
- Arca-type ball head that is compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- When closed, dual-caliper locking mechanism firmly holds the head's ball-and-socket joint in place and helps provide a load capacity of 84.0 lb
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large, primary locking knob with rubberized, knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Rubberized, knurled friction knob located toward the side of the ball head opposite the primary locking knob adjusts variable tension on the ball-and-socket joint's movements
- Secondary locking knob with rubberized, knurled surface allows head to rotate 360°
- Integrated clamp on top of on the ball-and-socket joint is compatible with included QP-144750 Quick Release Plate
- Integrated retaining pin on the clamp prevents QP-144750 Quick Release Plate from accidentally sliding off when the clamp is opened
- Durable, aluminum-alloy construction
UPC: 851308003824 In the Box FEISOL CB-60D Ball Head QP-144750 Quick Release Plate yburazscwaafftzwydczry Limited 3-Year Warranty User Manual PDF 42.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the FEISOL CB-60D Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFEISOL CB-60D Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Load Capacity | 84.0 lb / 38.1 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 2.4" / 60 mm | | Dimensions |
