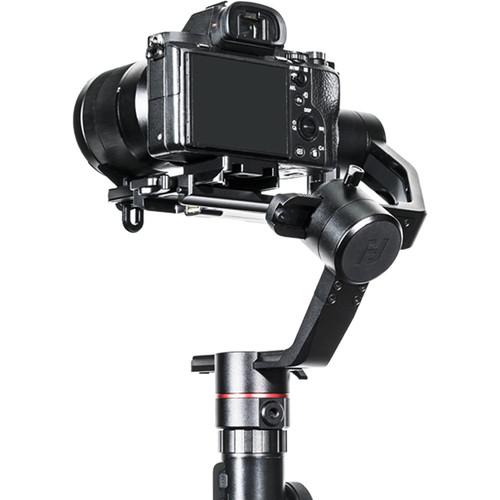

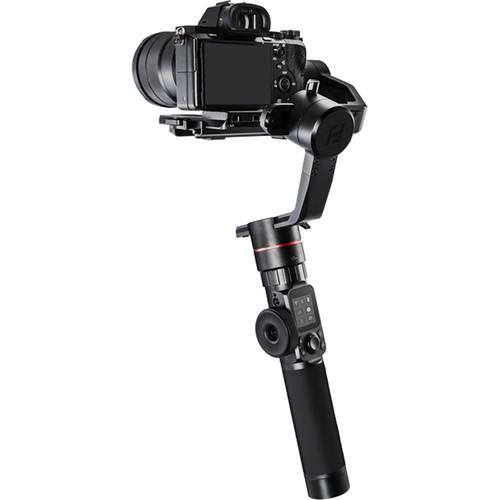

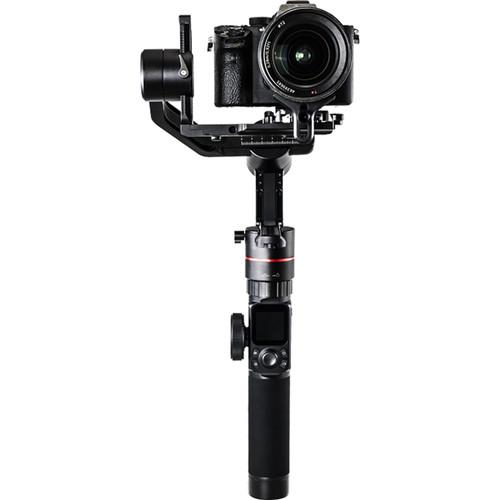

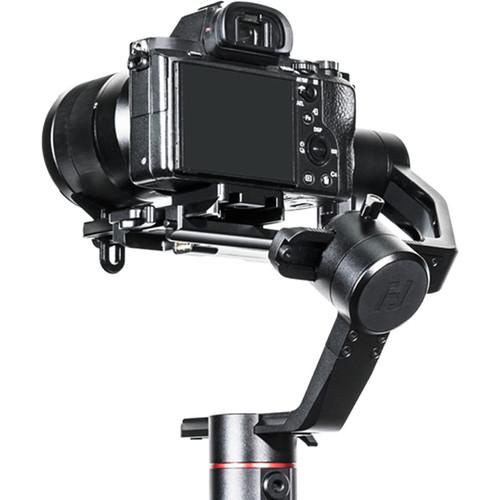

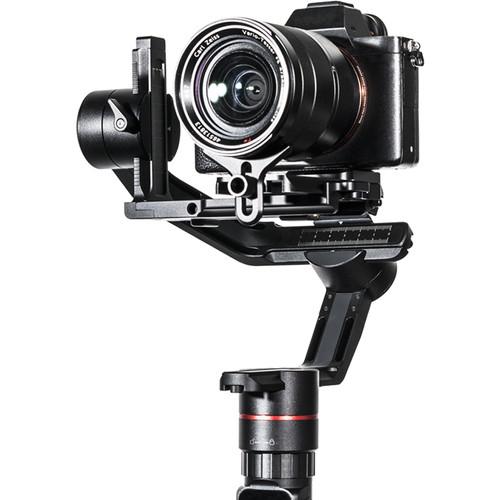

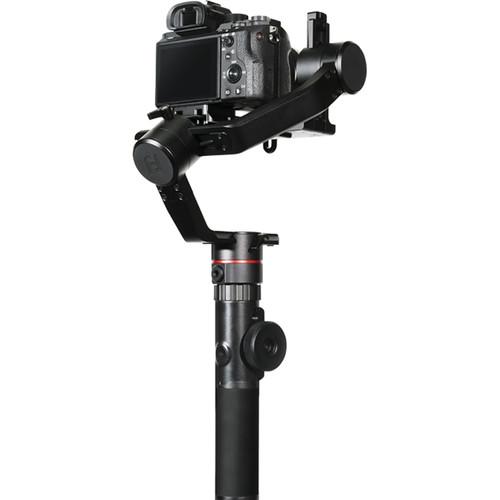

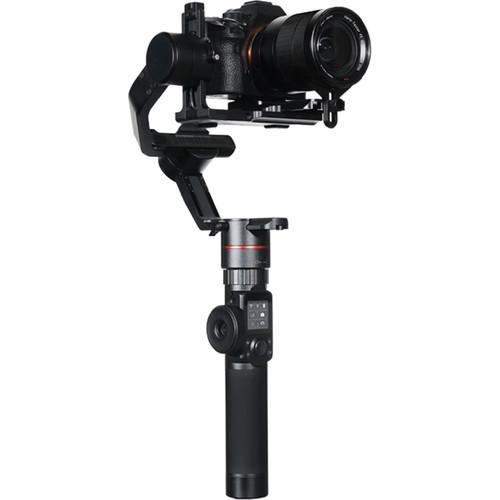

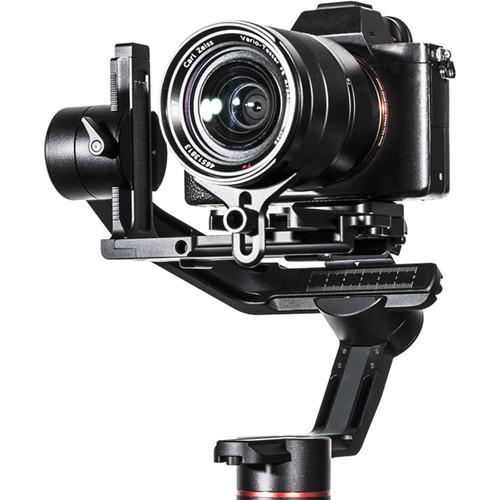

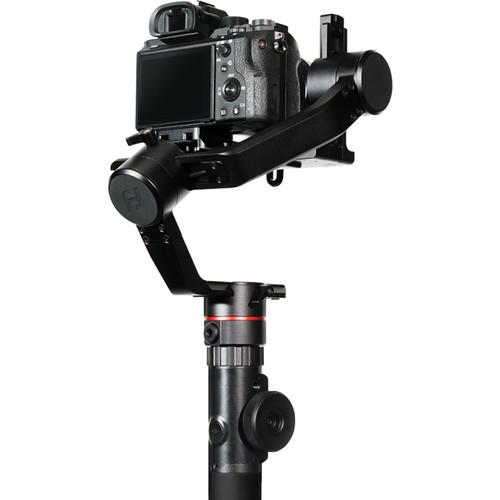

Feiyu AK2000 3-Axis Gimbal Stabilizer

User Manual for Feiyu AK2000 3-Axis Gimbal Stabilizer

• Product category: See All Gimbal Stabilizers Feiyu
• Brand: Feiyu
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Feiyu See All Gimbal Stabilizers

Product description

• AK4000 launch video
• FULL TUTORIAL of AK Series | FeiyuTech Tutorial
• How to solve the vibration in AK Series | FeiyuTech Tutorial

Multifunction Handwheel
• High-precision magnetic induction knob allows control of focus, zoom, and camera movement in select operation modes of the gimbal, including pan and tilt modes.

Touchscreen LCD Smart Panel
• Low-power LCD touch panel, in combination with the joystick and handwheel, allows for easy adjustment of all the gimbal's settings. It slides left/right to display different setting options.

Angled Motor Arm
• A beveled angle design prevents obstruction of the camera screen during shooting, allowing for better framing and monitoring.

Manfrotto PL501 Compatible
• The AK2000 is designed with a fixed mounting plate and comes with a quick release plate. The fixed mounting plate also supports the Manfrotto PL501 quick release plate for more flexible compatibility with tripods and other camera supports.

High-Precision Algorithms
• The AK2000 features an M4 kernel MCU, 0.02° high-precision magnetic encoding sensor, and w5 generation control algorithm with correction speed of 2000x per second, all adding up to allow high-precision operation.

Wi-Fi + Bluetooth Dual Module Connection
• The gimbal can be connected over Wi-Fi to compatible devices to control photo/video capture, focus, zoom, sensitivity adjustment, white balance, and exposure value, as well as to switch modes. At the same time, the included Feiyu ON iOS/Android app can connect to your camera via Bluetooth to set up various other parameters.

12-Hour Battery Life
• Four included 18650 lithium-polymer batteries (2200mAh each) install into the handle to provide up to 12 hours of battery life.

USB Expansion Interface
• A multifunction USB expansion interface lets you charge the camera and accessories.

Pan Mode
• The roll and tilt direction are fixed and the camera moves left/right, according to the movements of the user's hand.

Follow Mode
• The roll direction is fixed and the camera moves left/right, up/down, according to the movements of the user's hand.

Lock Mode
• The orientation of the camera is fixed.

All Follow Mode
• All three axes of the gimbal follow the user's hand movements.

Autorotation Mode
• One of the selectable modes of operation is an autorotation mode that allows you to assign a pre-set travel route for standard video capture as well as time-lapse photography.

1/4"-20 Mounting Holes
• A 1/4"-20 threaded mounting hole on the bottom of the handle allows extending the length of the gimbal with an optional extension rod, as well as mounting it on various other supports. The gimbal also offers 1/4"-20 threaded holes in the following locations for attaching accessories: on the top of the sliding arm of the tilt axis, at the front of the fixed plate, and on the pan motor.

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Feiyu AK2000 3-Axis Gimbal Stabilizer can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Feiyu AK2000 3-Axis Gimbal Stabilizer can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Feiyu AK2000 3-Axis Gimbal Stabilizer (PDF file, 4.62 MB)

Technical parameters

Feiyu AK2000 Specs

Number of Axes	3-Axis (Pitch, Roll, Yaw)
Rotation Range	Yaw (Pan): 360 Rating 82% users recommend this product to others. And what about you? This product has already been rated by 76 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
