Product description - How to install Follow Focus I of AK Series | FeiyuTech Tutorial
Control focus with ease using the Feiyu Follow Focus I for AK Series Gimbals. Quick and easy to install, the Follow Focus I is lightweight and has a small form factor.

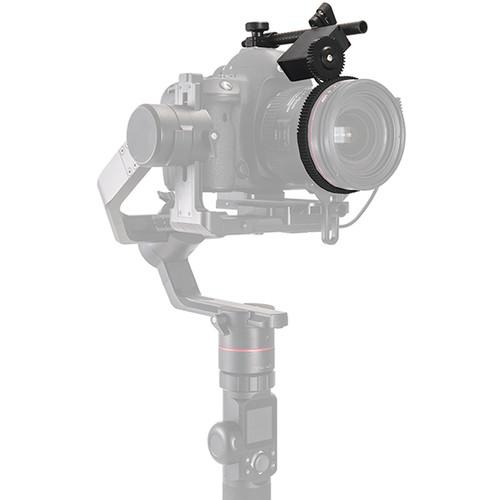

To get the follow focus up and running, the included rod clamp attaches to the shoe mount on your camera, and a 10mm carbon fiber rod secures with a locking lever. The motor connects to the other end of the rod via its built-in 10mm rod clamp. The adjustable lens focus ring tightens around your lens, and the motor slides along the rod to line up its 0.8 MOD gear.
Finally, the integrated USB motor cable plugs into the gimbal for full control. The gimbal's "magic ring" handwheel is then set up to control fine focus of your camera lens through the gimbal settings menu. - Compatibility
- FeiyuTech AK Series AK4000 and AK2000 gimbals
- Fine Focus Control
- Control the focus with the gimbal knob via USB connection

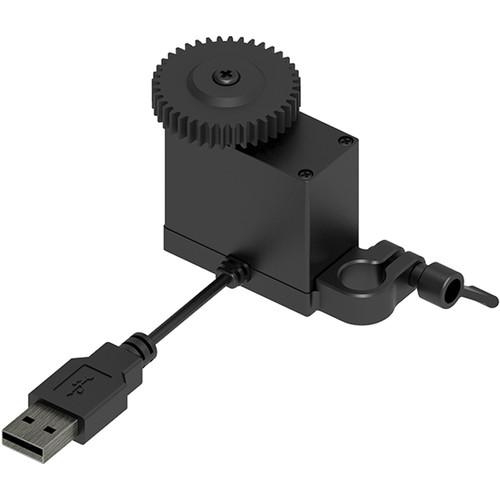

- Motor
- The compact motor comes with a 0.8 MOD gear with 40 teeth, and an adjustable lens gear ring with a maximum diameter of 114mm is included
- Mounting
- The motor mounts onto a 5.9" long 10mm carbon fiber rod which secures to the camera's shoe mount

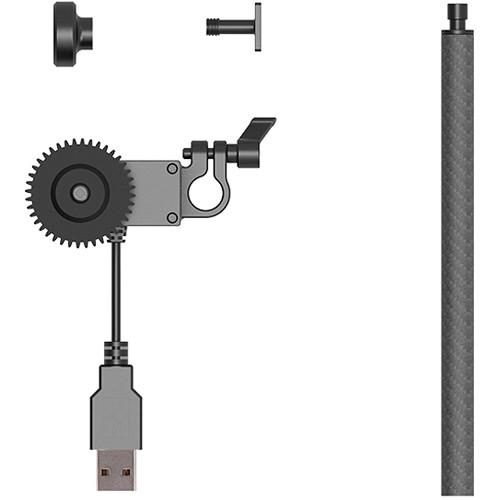

UPC: 719821440987 In the Box Feiyu Follow Focus I for AK Series Gimbals Rod Clamp with Shoe Mount 10mm Carbon Fiber Rod (5.9") Adjustable Focus Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Feiyu Follow Focus I for AK Series Gimbals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeiyu FY A4000285 Specs | Compatibility | AK Series Gimbals (FY AK4000, FY AK2000) | | Rod Diameter | 10 mm | | Focus Gear | 0.8 MOD
40 Teeth | | Rod Material | Carbon Fiber | | Connector Cable | USB | | Voltage | 4.8 to 6 V | | Dimensions | Motor: 2.9 x 2 x 1.3" / 7.3 x 5 x 3.2 cm
Rod Diameter: 10 mm
Rod Length: 5.9" / 150 mm
Rod Clamp: 1.2 x 0.8 x 1" / 31 x 20 x 25 mm
Focus Ring Diameter: 114 mm (Max Lens Diameter) | | Weight | 2.8 oz / 80 g | | | | Package Weight | 0.29 lb | | Box Dimensions (LxWxH) | 7.65 x 2.6 x 1.4" |
