User Manual for Feiyu G4S 3-Axis Handheld Gimbal for GoPro HERO4 3 3 Click to enlarge the picture
Contents of the user manual for the Feiyu G4S 3-Axis Handheld Gimbal for
- Product category: See All Gimbal Stabilizers Feiyu
- Brand: Feiyu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Feiyu See All Gimbal Stabilizers
 |
User manual for the Feiyu G4S 3-Axis Handheld Gimbal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Feiyu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Feiyu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Feiyu product will considerably shorten its lifespan!
|

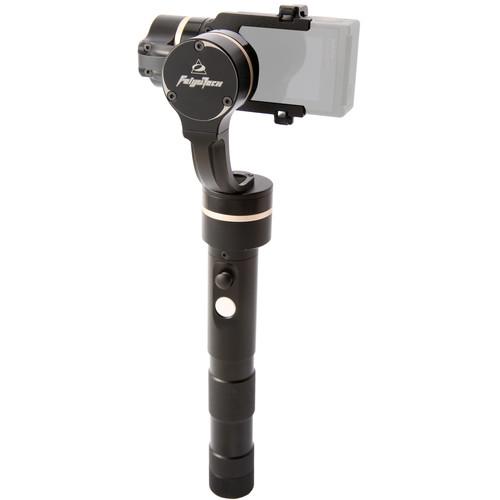

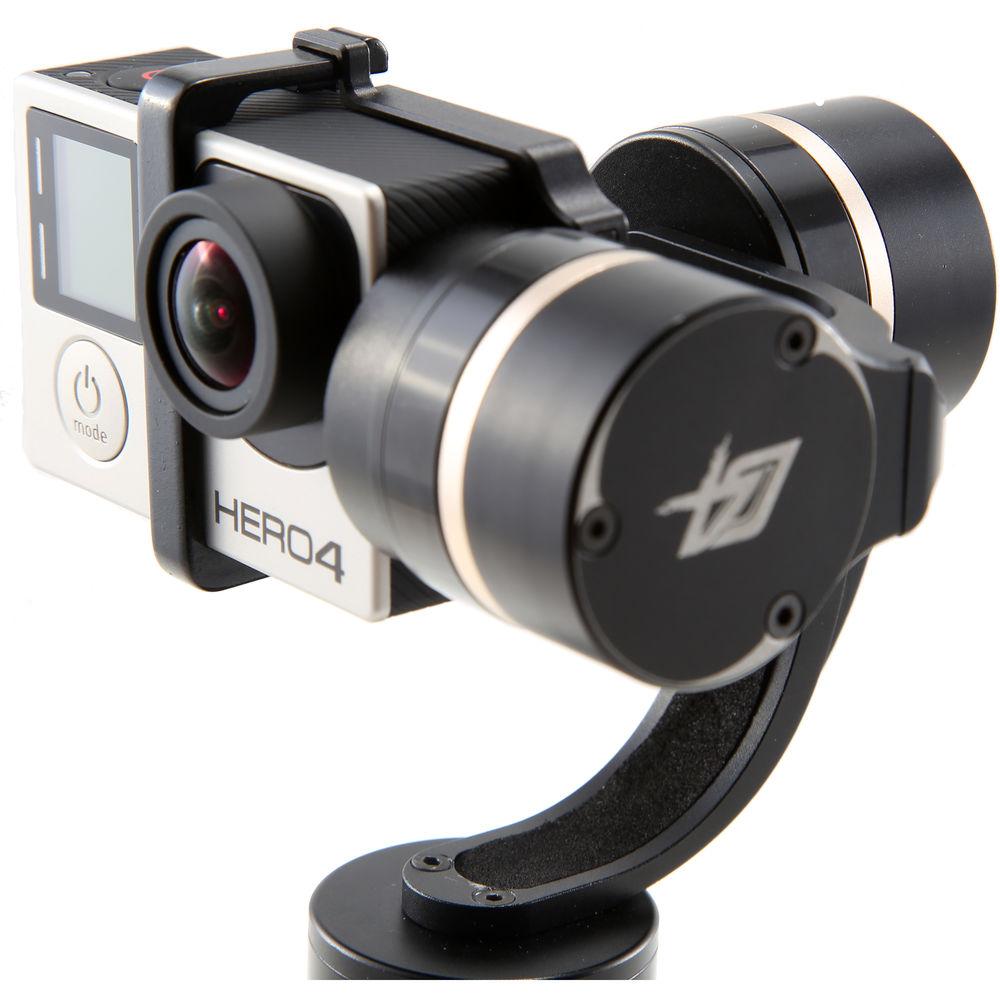

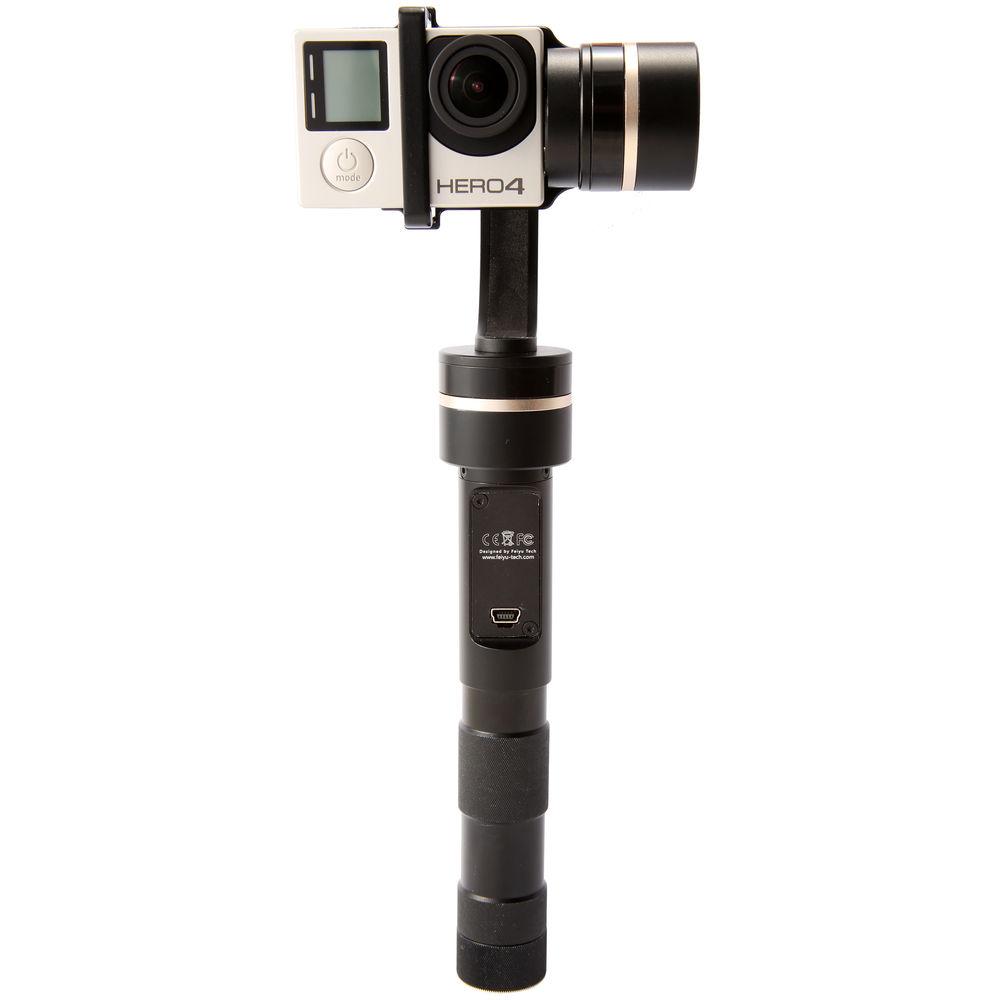

Product description Compatible with the GoPro HERO4, HERO3+, and HERO3, the G4S 3-Axis Handheld Gimbal from Feiyu provides motorized stabilization along the pan, tilt, and roll axes, allowing you to capture smooth, free-floating footage. The G4S builds upon the original G4 design by providing full 360° rotation along all three axes for unrestricted movement, as well as a 4-directional control stick for easy camera angle adjustments. Additionally, it features a 10-pin mini-USB interface for mounting your GoPro and supports GoPro charging, data transfer, and analog video output, all without having to remove the GoPro from the gimbal. A quick-access clip system enables fast camera mounting and is cushioned to help protect the camera from scuffing. - Key Features
-
- Compatible with GoPro HERO4, HERO3+, and HERO3
- Full 360° rotation along pan, tilt, and roll axes
- Single button control
- 4-directional control stick for camera angle control

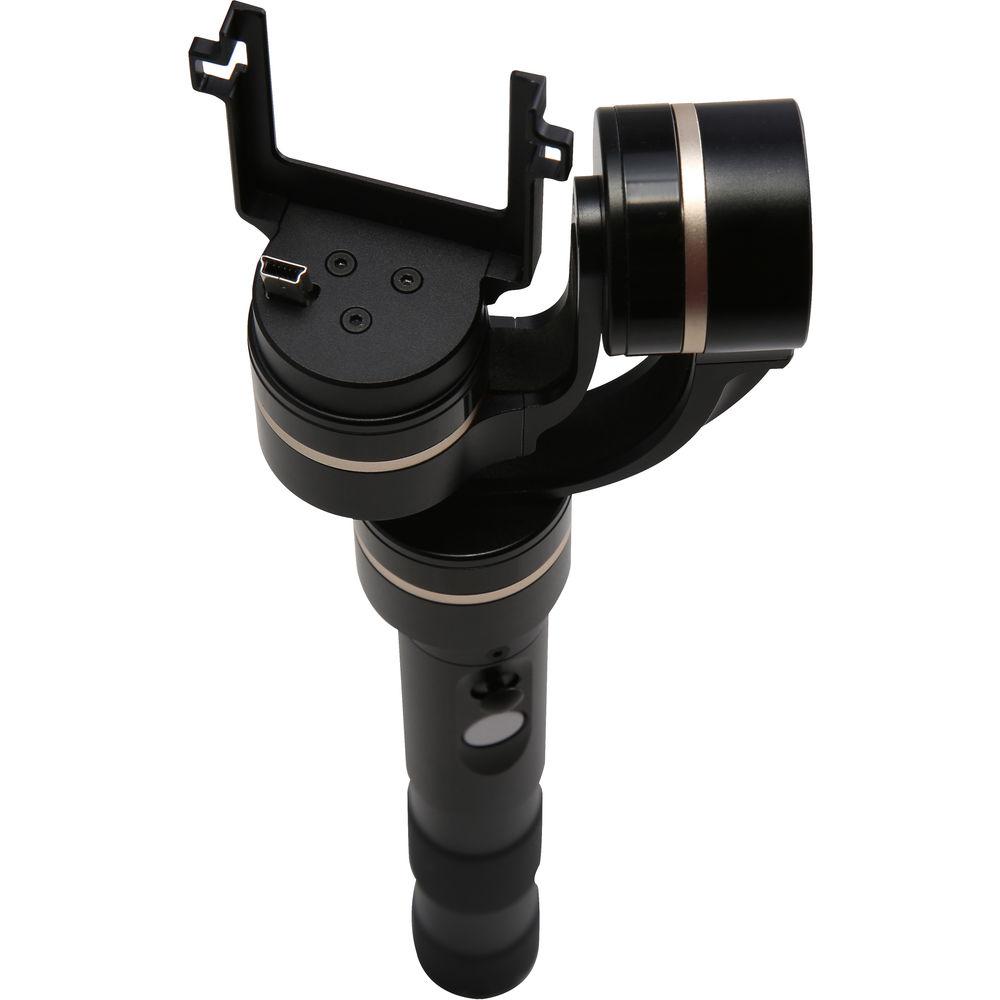

- 10-pin mini-USB interface

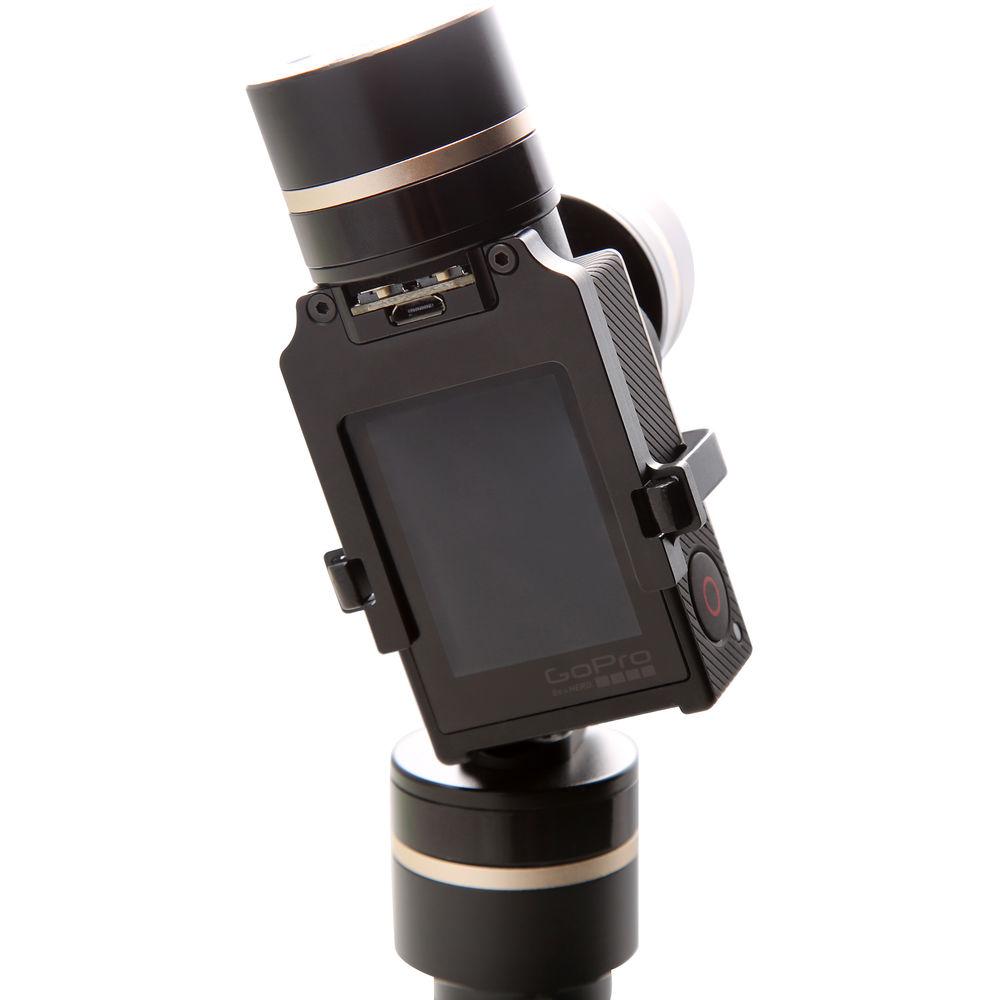

- Access to data transfer and camera charging via rear micro-USB port
- Micro-USB Function Interface for analog video output (using included cable) and firmware updates
- Powered using two 18350 type batteries
- Optional wireless remote control
- LED battery level indicator light

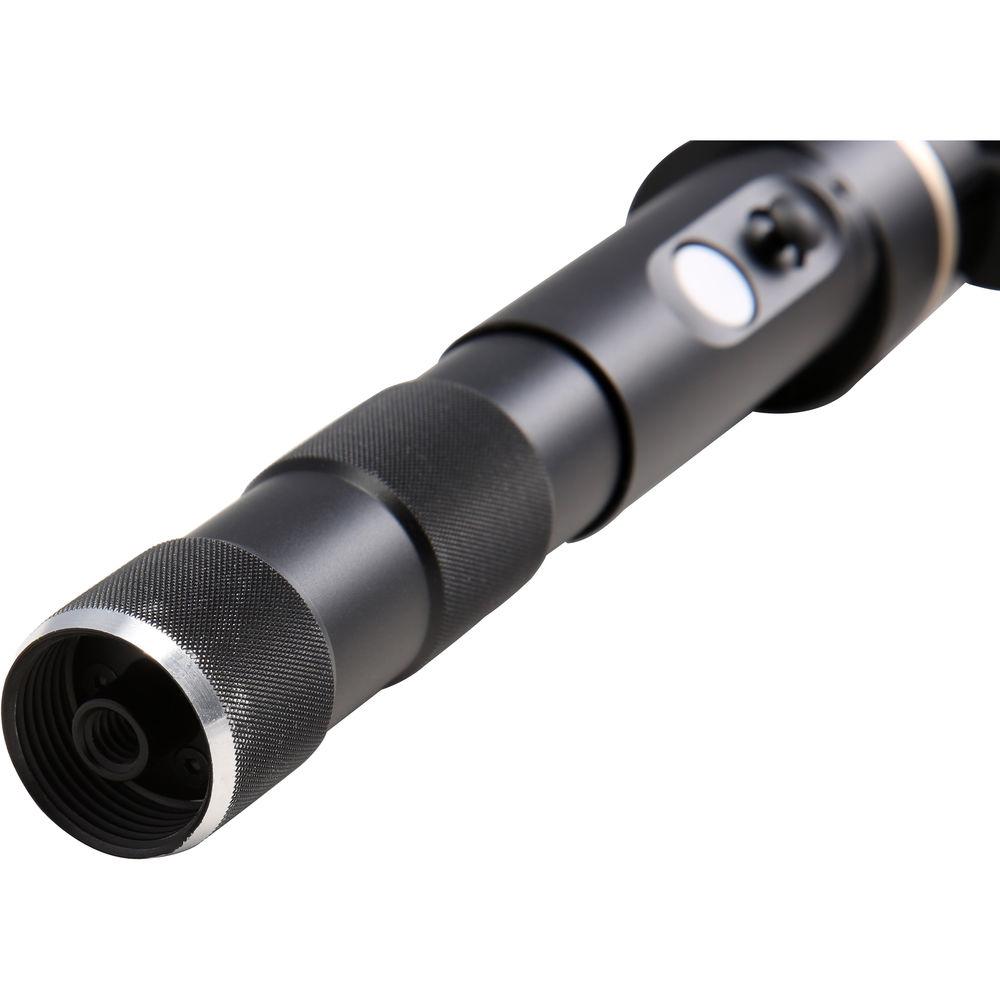

- 1/4"-20 mounting thread on bottom
- Modes
-
Panning Mode: Locks tilt and roll axes. Camera smoothly pans to follow the direction of the handle
Panning and Tilting Mode: Locks roll axis. Camera smoothly follows the pan and tilt motion of the handle
Lock Mode: Locks the pan, tilt, and roll axes of the camera in the position it is in when mode is activated
Inverted Mode: Allows you to turn the gimbal upside-down. This mode is an inverted version of the Pan Following Mode
Standby Mode: The gimbal remains on but the motor is shut down
Reset: Resets the tilting axis of the gimbal to initial orientation and initial mode UPC: 815206020048 In the Box Feiyu G4S 3-Axis Handheld Gimbal for GoPro HERO4/3+/3 4 x 18350 Type Rechargeable Battery Battery Charger Video Output Cable USB Connector USB Data Cable Limited 1-Year Warranty User Manual PDF 6.3mbuseffrxbadeduturzz Table of Contents
|
Upload User Manual
Have you got an user manual for the Feiyu G4S 3-Axis Handheld Gimbal for GoPro HERO4 3 3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeiyu FY-G4S Specs | Pan Angle | 360° | | Tilt Angle | 360° | | Roll Angle | 360° | | Tilting Speed | 2 to 75°/sec | | Panning Speed | 3 to 150°/sec | | Interface | 1 x 10-pin mini-USB camera interface
1 x Micro-USB (data transfer and charging)
1 x Mini-USB (analog video output and firmware updates) | | Working Voltage | 6 to 9 VDC | | Overload Current Protection | 800 mA | | Operating Time | 3 to 5 hours | | Weight | 9 oz (260 g), without batteries & camera | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 2.9" |
